Simpson Anchors | SKU:
PAB5-12

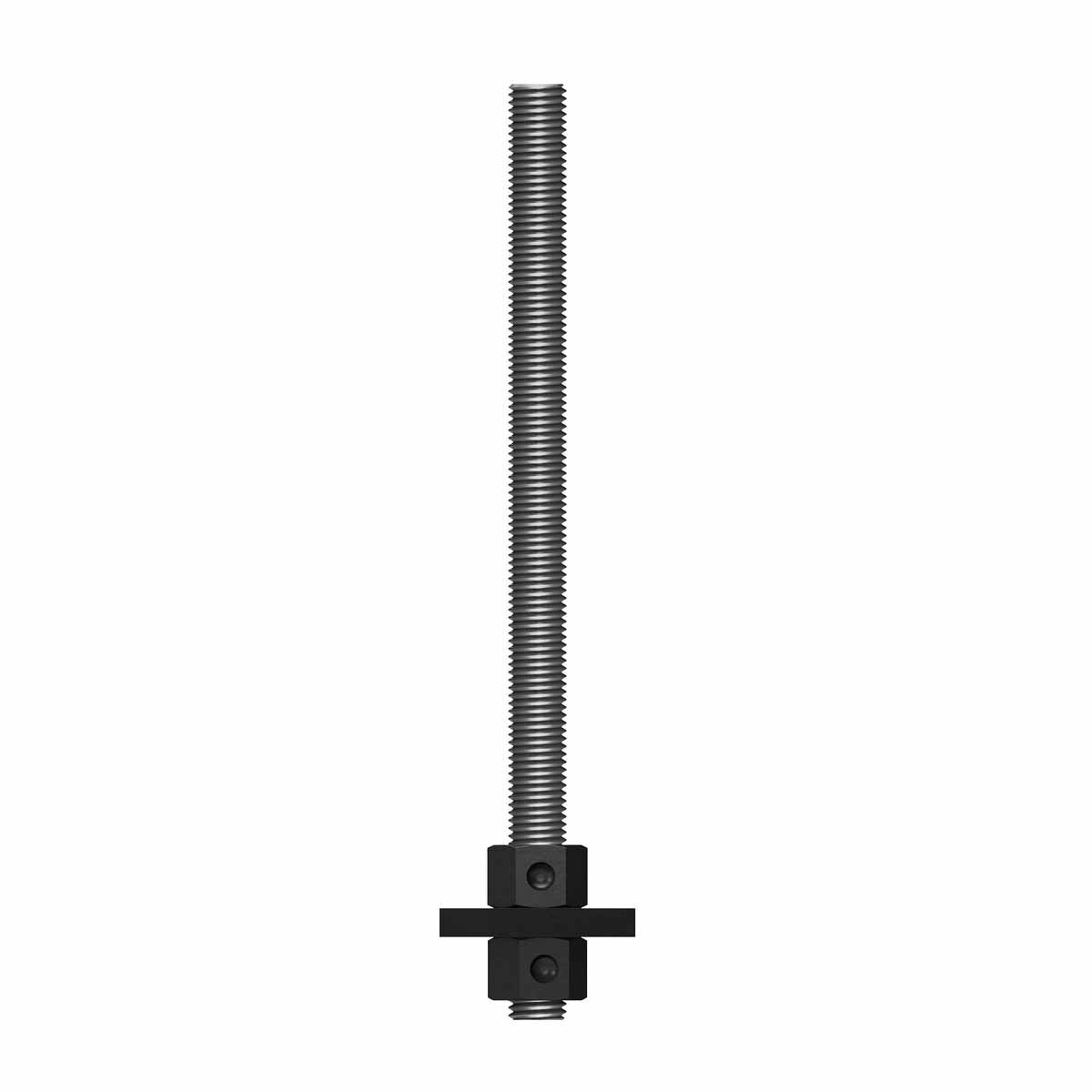

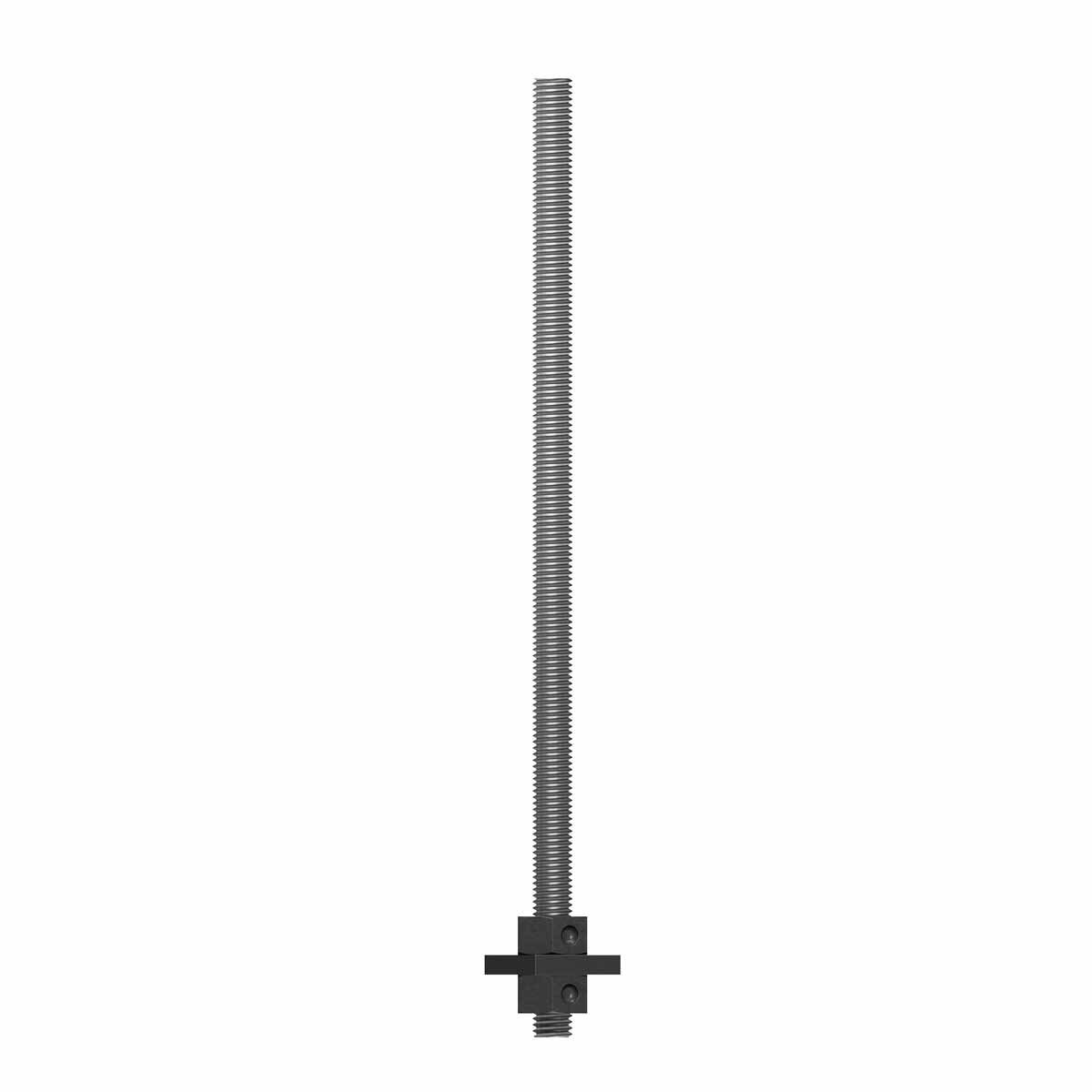

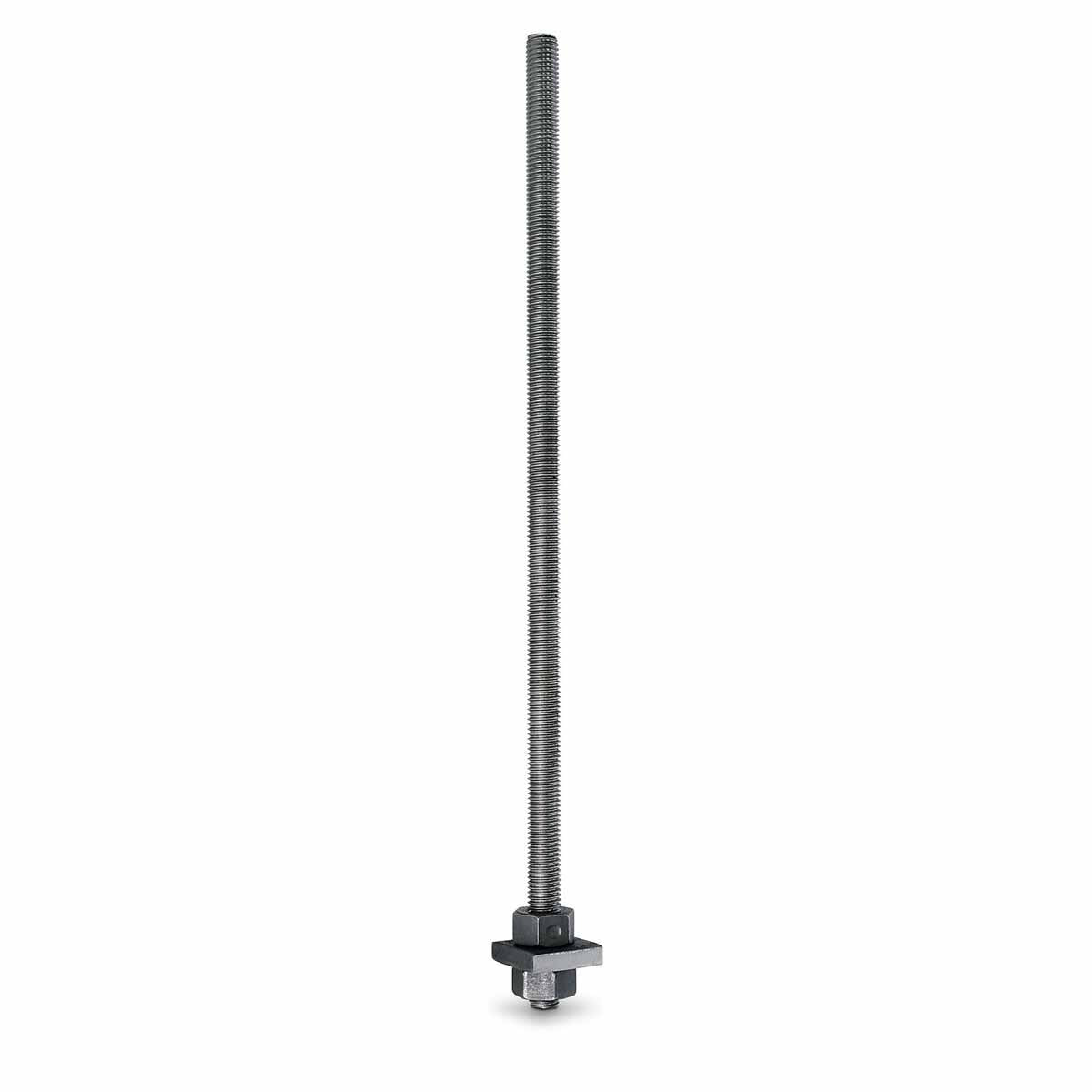

Simpson Strong-Tie PAB5-12 (5/8" x 12") Preassembled Anchor Bolt for Concrete Foundations
$23.46
$33.75
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB5-12 Description
The Simpson Strong-Tie PAB5-12 is a preassembled anchor bolt designed for concrete foundations, offering high-tension-load capacity and durability.
Simpson Strong-Tie PAB5-12 Includes
- (1) 5/8" x 12" Anchor Bolt
Simpson Strong-Tie PAB5-12 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Made from high-quality ASTM F1554 Grade 36 steel
- Preassembled for convenience and efficiency
Simpson Strong-Tie PAB5-12 Applications
- Ideal for high-tension-load applications such as shearwalls and rod systems

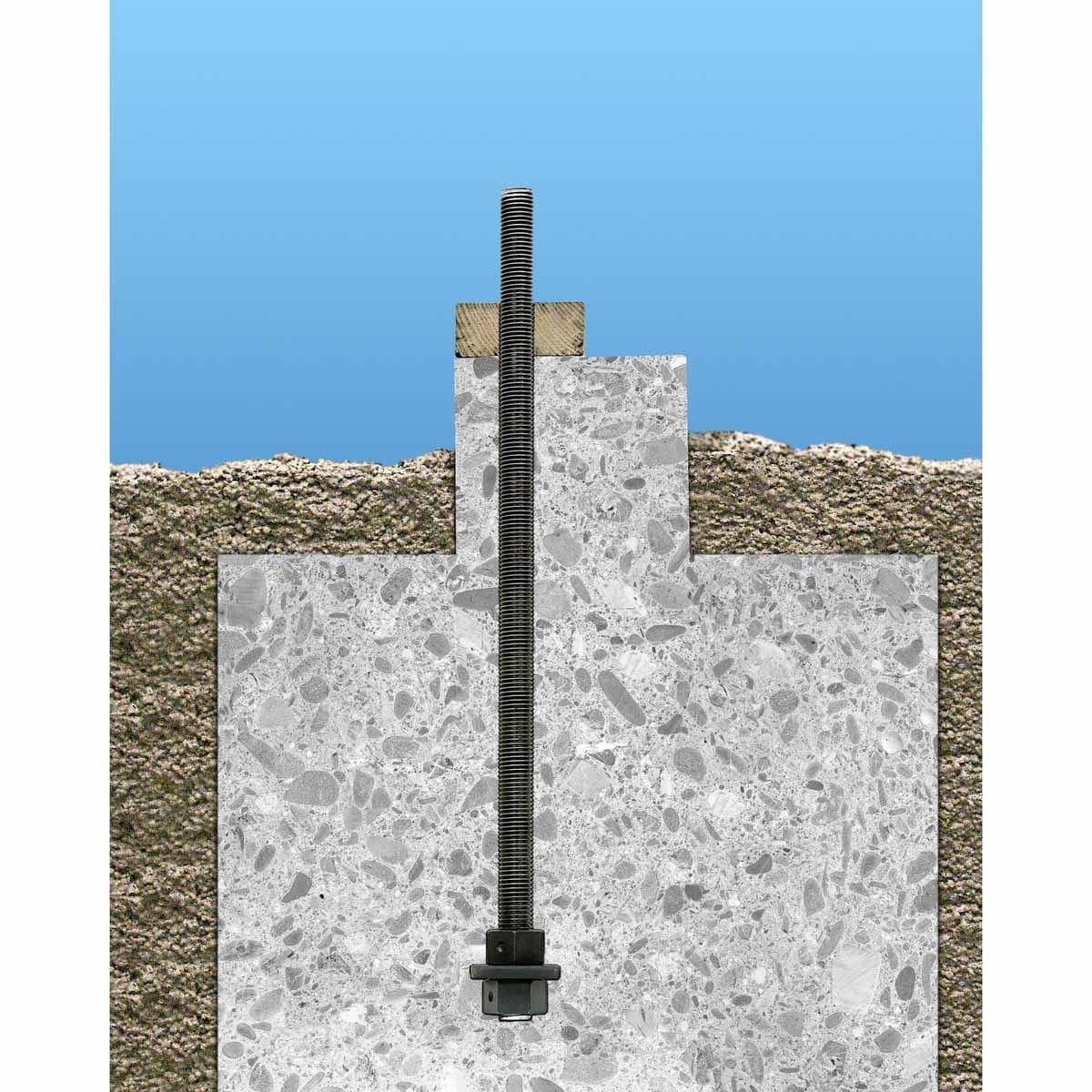

- Suitable for concrete foundation anchoring
Simpson Strong-Tie PAB5-12 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563

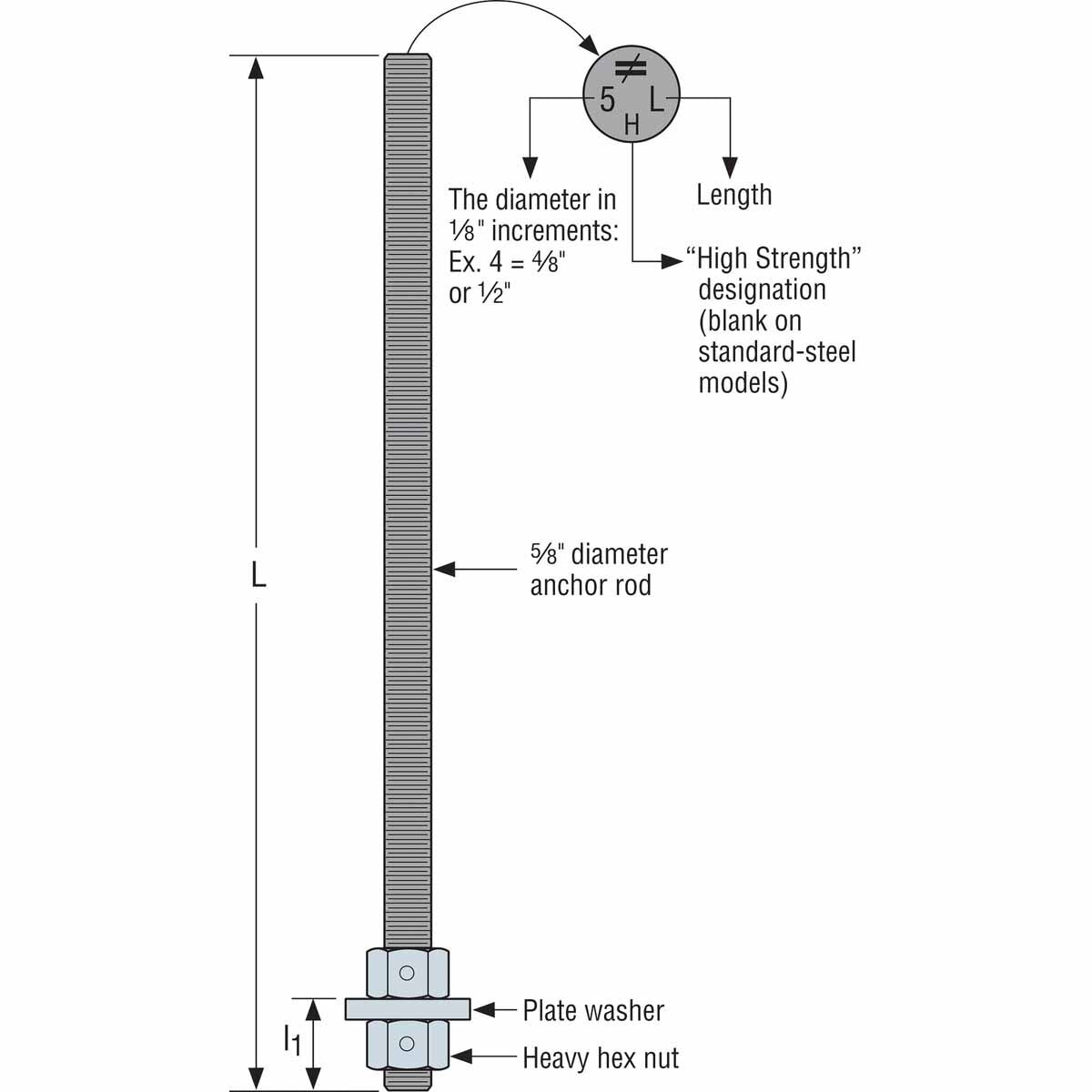

Simpson Strong-Tie PAB5-12 Specifications
| Diameter | 5/8" |
| Length | 12" |
| Material | ASTM F1554 Grade 36 steel |
| Finish | Plain |
| Weight | 1.3 lb |
