Simpson Anchors | SKU:
PAB5-18

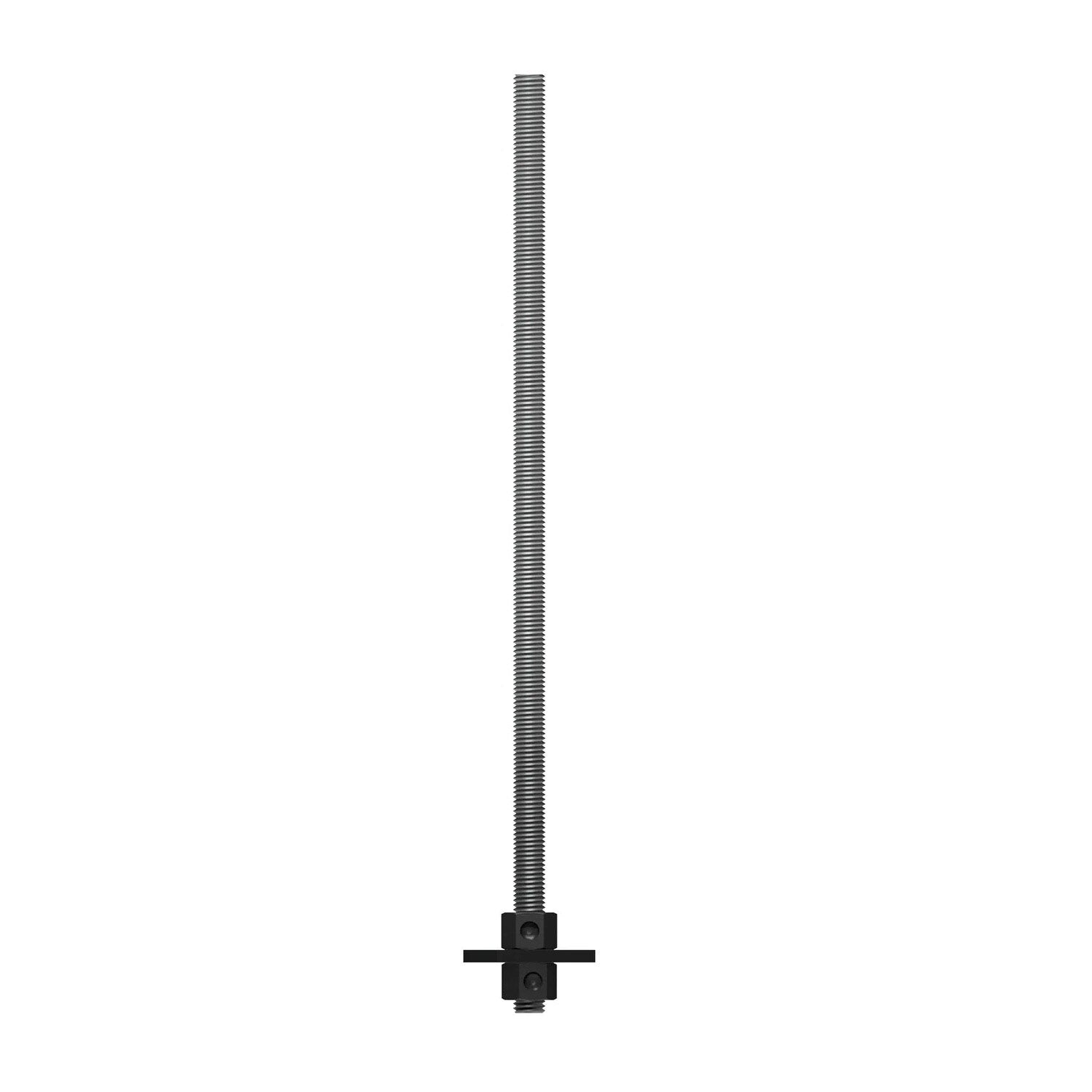

Simpson Strong-Tie PAB5-18 (5/8" x 18") Preassembled Anchor Bolt with Washer for Concrete Foundations
$25.00
$30.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB5-18 Description
The Simpson Strong-Tie PAB5-18 is a preassembled anchor bolt designed for concrete foundations, offering high strength and reliability.
Simpson Strong-Tie PAB5-18 Includes
- (1) 5/8 in x 18 in Anchor Bolt
- (1) Washer
Simpson Strong-Tie PAB5-18 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Available in standard and high-strength steel
- Head stamp contains the No Equal sign, diameter designation and an "H" on high-strength rods
Simpson Strong-Tie PAB5-18 Applications
- Ideal for high-tension-load applications such as shearwalls and rod systems
- Suitable for multi-story high-wind constructions
Simpson Strong-Tie PAB5-18 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
- Contact Simpson Strong-Tie for special orders of couplers with both ends oversized
Simpson Strong-Tie PAB5-18 Specifications
| Material | Standard Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi |
| Material | High-Strength Steel (up to 1" dia.) — ASTM A449; Fu = 120 ksi |
| Material | High-Strength Steel (1 1/8" and 1 1/4" dia.) – ASTM A193 B7 or F1554 Grade 105; Fu = 125 ksi |
| Finish | None or HDG |
| Diameter | 5/8" |
| Length | 18" |
| Weight | 1.7 lb |
