Simpson Anchors | SKU:
PAB6-18
Simpson Strong-Tie PAB6-18 (3/4" x 18") Preassembled Anchor Bolt with Washer - High-Tension Concrete Anchorage
$28.47
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB6-18 Description

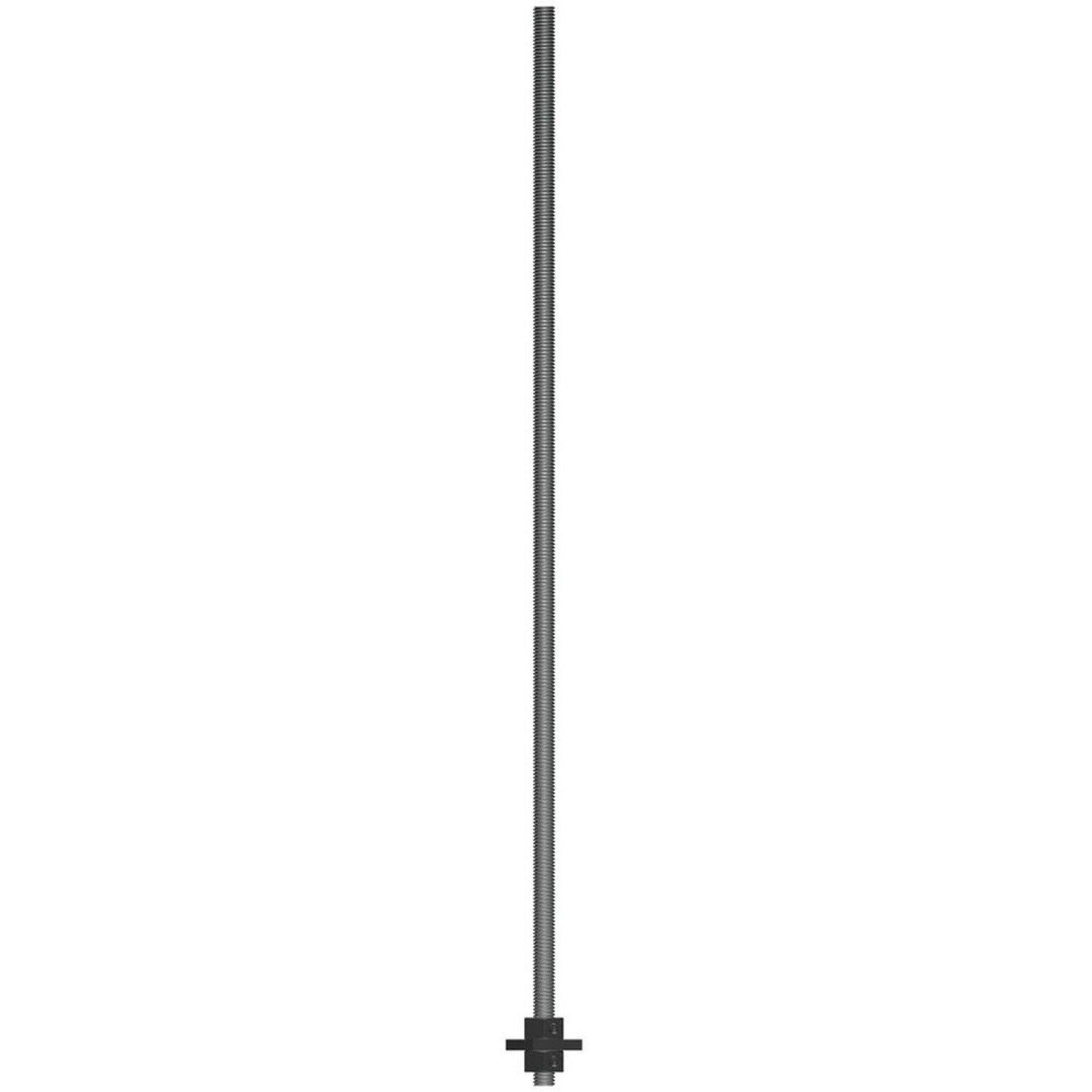

The Simpson Strong-Tie PAB6-18 is a 3/4" x 18" preassembled anchor bolt with washer, designed for high-tension concrete anchorage applications.
Simpson Strong-Tie PAB6-18 Includes
- (1) 3/4" x 18" Preassembled Anchor Bolt with Washer
Simpson Strong-Tie PAB6-18 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Made from high-quality ASTM F1554 Grade 36 steel
- Designed for high-tension-load applications such as shearwalls and rod systems
Simpson Strong-Tie PAB6-18 Applications
- High-tension-load applications in concrete anchorage
- Shearwalls and rod systems
Simpson Strong-Tie PAB6-18 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
Simpson Strong-Tie PAB6-18 Specifications
| Diameter | 3/4" |
| Length | 18" |
| Material | ASTM F1554 Grade 36 steel |
| Finish | Plain |
| Weight | 2.7 lb |
