Simpson Anchors | SKU:
PAB6-30

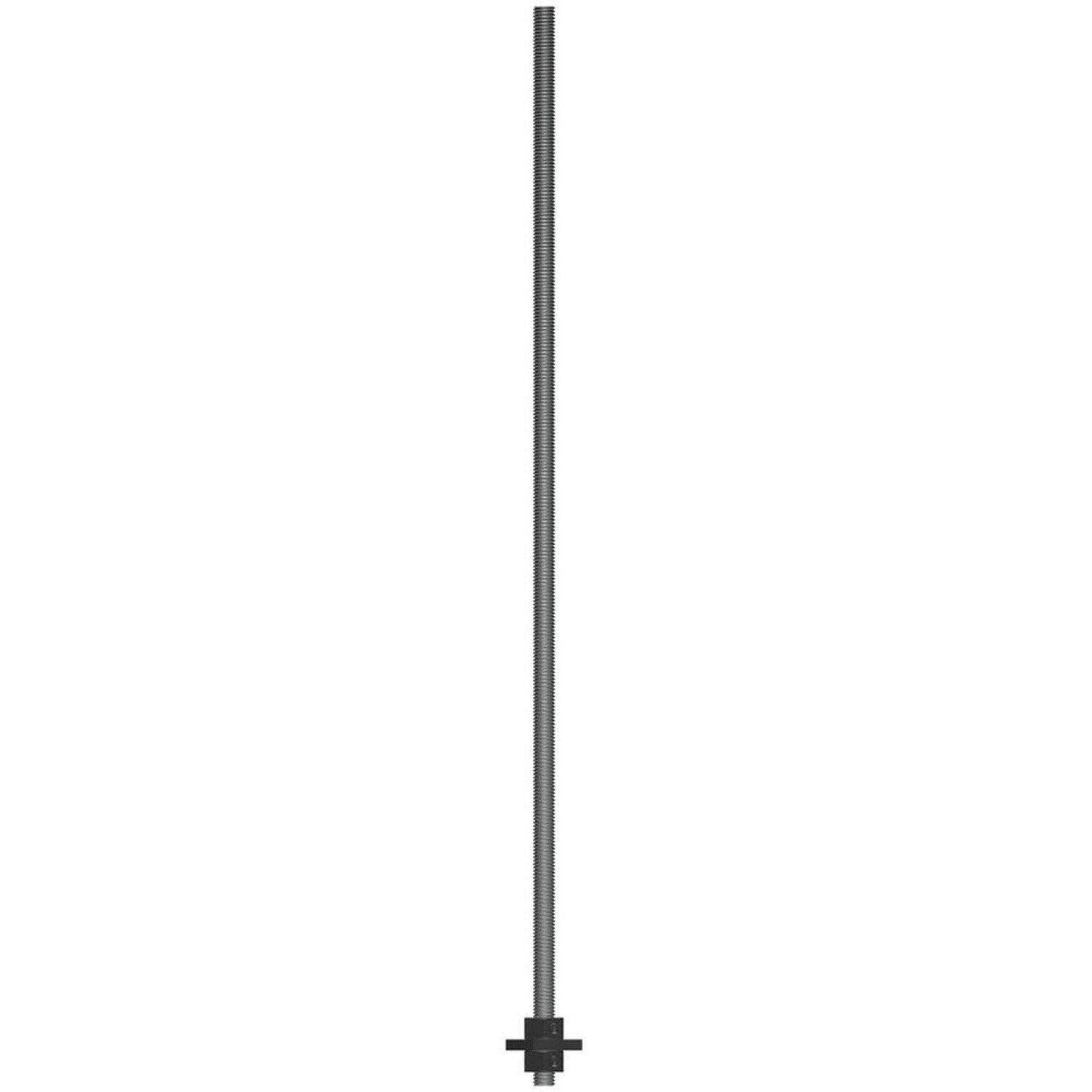

Simpson Strong-Tie PAB6-30 (3/4" x 30") Preassembled Anchor Bolt with Washer for High-Tension Concrete Applications
$32.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB6-30 Description
The Simpson Strong-Tie PAB6-30 is a preassembled anchor bolt designed for high-tension concrete applications, featuring a 3/4" diameter and 30" length.
Simpson Strong-Tie PAB6-30 Includes
- (1) 3/4" x 30" Anchor Bolt
Simpson Strong-Tie PAB6-30 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Made from high-quality ASTM F1554 Grade 36 steel
- Preassembled with washer for convenience
Simpson Strong-Tie PAB6-30 Applications
- High-tension concrete applications
- Shearwalls and rod systems
Simpson Strong-Tie PAB6-30 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
Simpson Strong-Tie PAB6-30 Specifications
| Diameter | 3/4" |
| Length | 30" |
| Material | ASTM F1554 Grade 36 steel |
| Weight | 3.9 lb |
