Simpson Anchors | SKU:
PAB7-12
Simpson Strong-Tie PAB7-12 (7/8" x 12") Pre-Assembled Anchor Bolt for Concrete Construction
$33.65
$48.40
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB7-12 Description
The Simpson Strong-Tie PAB7-12 is a pre-assembled anchor bolt designed for concrete construction, offering reliable performance and durability.
Simpson Strong-Tie PAB7-12 Includes
- (1) Pre-Assembled Anchor Bolt 7/8" x 12"
Simpson Strong-Tie PAB7-12 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Available in standard and high-strength steel

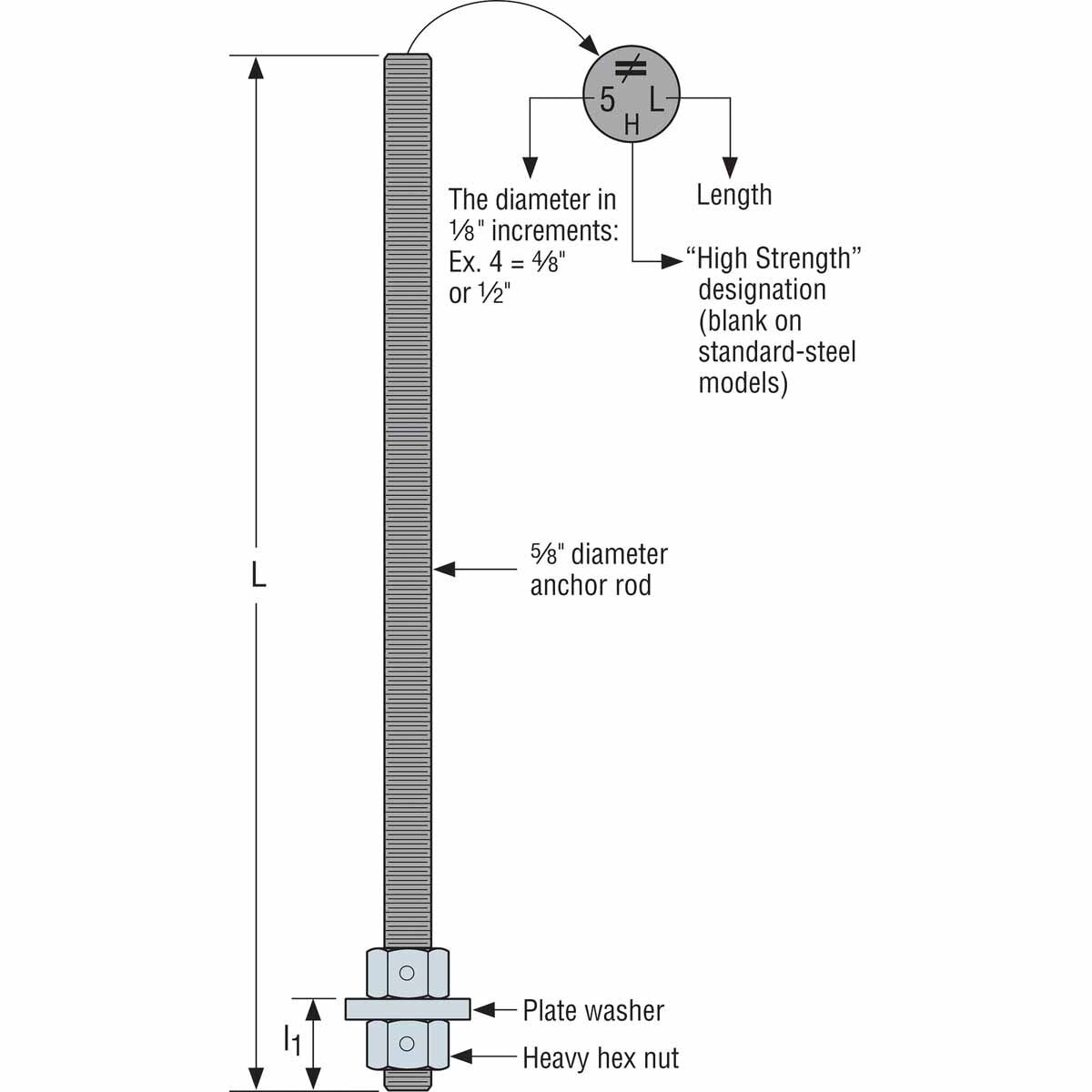

- Head stamp contains the No Equal sign, diameter designation, and an "H" on high-strength rods
Simpson Strong-Tie PAB7-12 Applications
- Multi-Story High-Wind construction
Simpson Strong-Tie PAB7-12 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
Simpson Strong-Tie PAB7-12 Specifications
| Material | Standard Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi |
| Material | High-Strength Steel (up to 1" dia.) — ASTM A449; Fu = 120 ksi |
| Material | High-Strength Steel (1 1/8" and 1 1/4" dia.) – ASTM A193 B7 or F1554 Grade 105; Fu = 125 ksi |
| Finish | None or HDG |
NOTE: Ensure threads are chased on HDG PABs to use standard nuts or couplers, or use overtapped products in accordance with ASTM A563.
