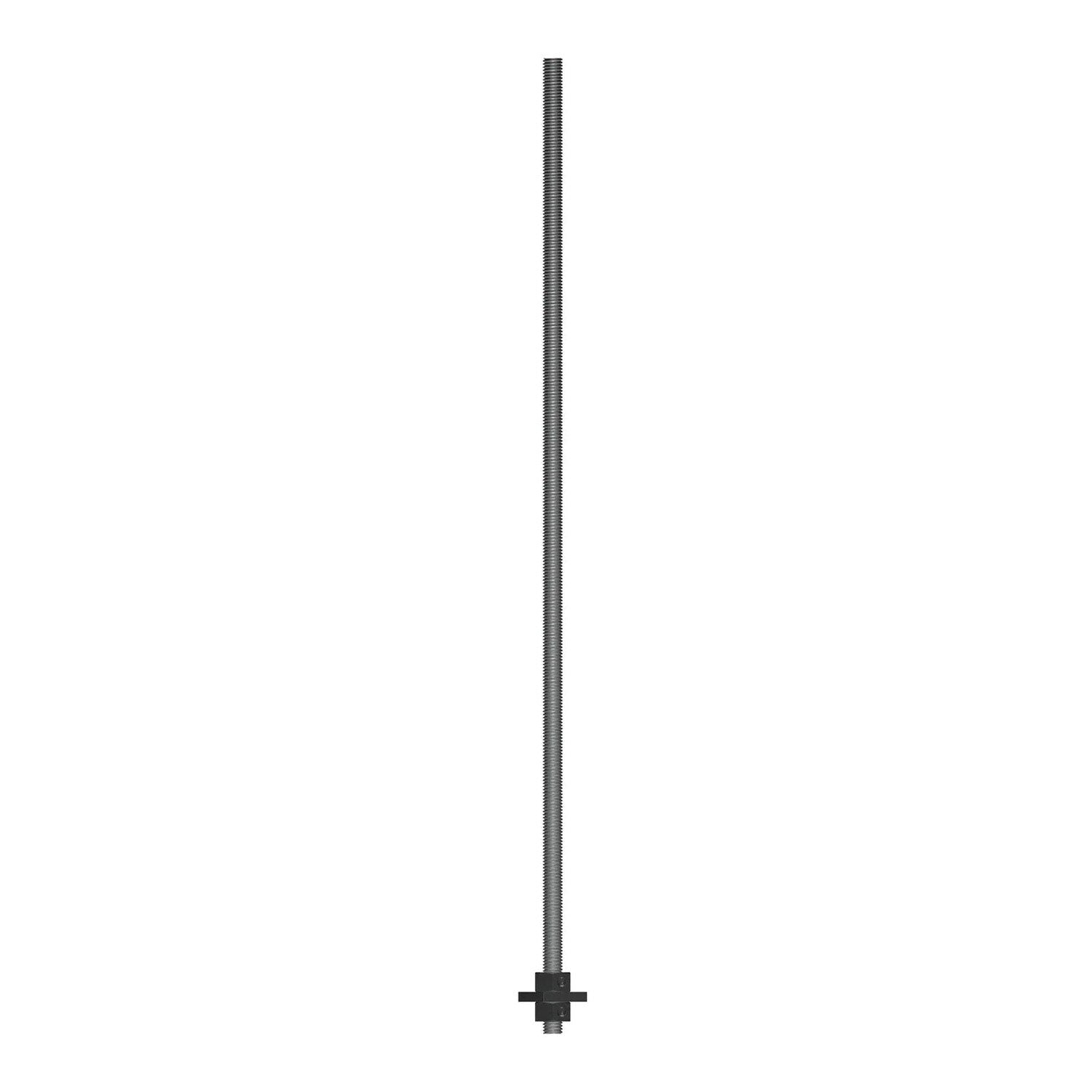

Simpson Strong-Tie PAB8-24-HDG (1" x 24") Hot-Dip Galvanized Preassembled Anchor Bolt with Washer for High-Tension Applications
Description
Description
Simpson Strong-Tie PAB8-24-HDG Description
The Simpson Strong-Tie PAB anchor bolt is a cast-in-place anchor bolt designed for high-tension-load applications such as shearwalls and rod systems.
Simpson Strong-Tie PAB8-24-HDG Includes
- (1) 1 x 24" Hot-Dip Galvanized Preassembled Anchor Bolt
Simpson Strong-Tie PAB8-24-HDG Features
- Made from high-quality ASTM F1554 Grade 36 steel
- Hot-dip galvanized coating for enhanced corrosion resistance
- Preassembled with plate washer and fixed hex nuts
- Designed for high-tension-load applications
Simpson Strong-Tie PAB8-24-HDG Applications
- Shearwalls
- Rod systems
- High-tension-load applications
Simpson Strong-Tie PAB8-24-HDG Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
- Contact Simpson Strong-Tie for special orders
Simpson Strong-Tie PAB8-24-HDG Specifications
Diameter | 1" |
Finish | Hot Dip Galvanized |
Length | 24" |
Material | Galvanized Steel |
Manufacturer name | Simpson Strong-Tie |
Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
