Simpson Anchors | SKU:
PAB8-24

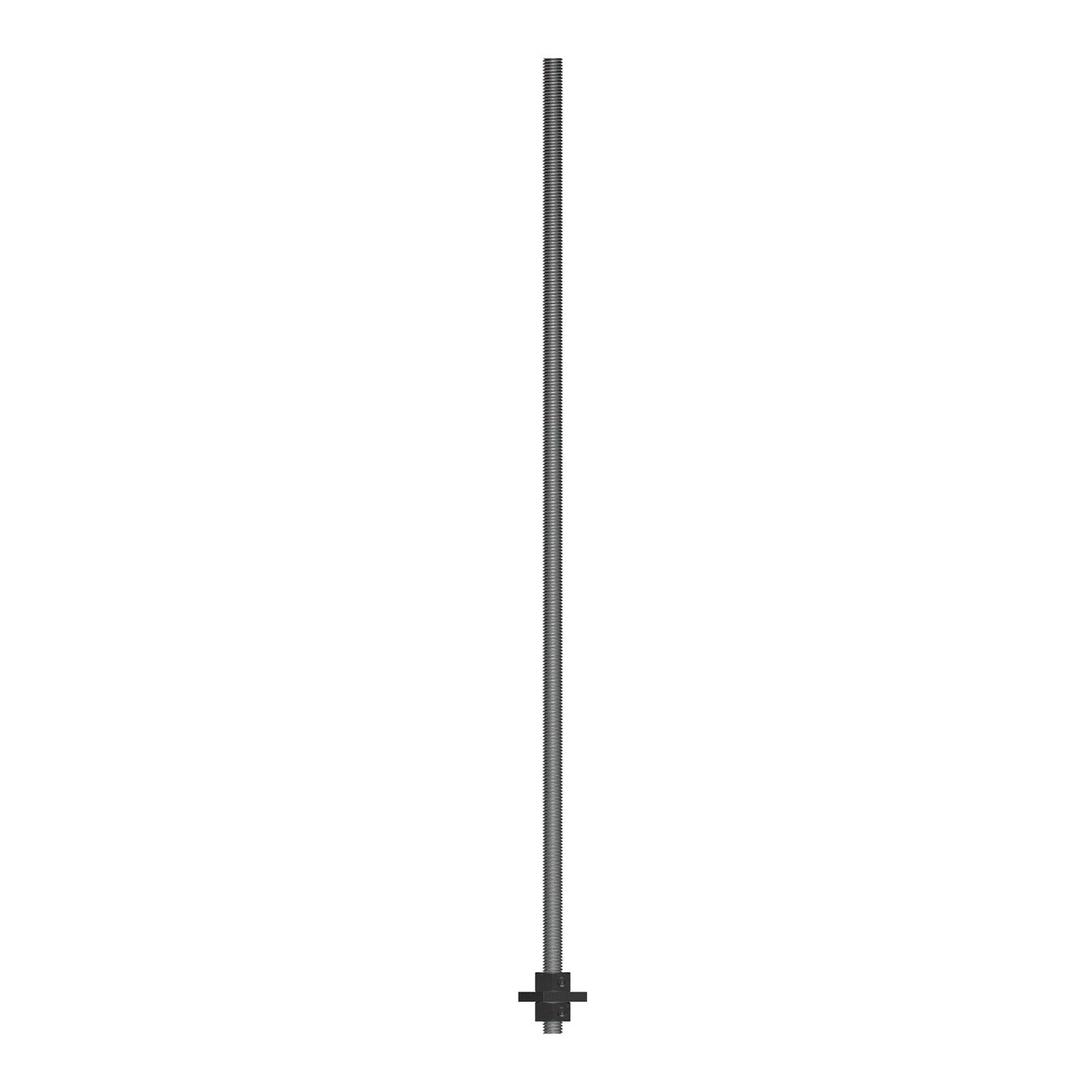

Simpson Strong-Tie PAB8-24 (1" x 24") Preassembled Anchor Bolt with Washer for High-Tension Concrete Applications
$50.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB8-24 Description
The Simpson Strong-Tie PAB8-24 is a preassembled anchor bolt designed for high-tension concrete applications, offering reliable performance and durability.
Simpson Strong-Tie PAB8-24 Includes
- (1) Preassembled Anchor Bolt with Washer
Simpson Strong-Tie PAB8-24 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Made from standard and high-strength steel
- Head stamp includes No Equal sign, diameter designation, and an 'H' for high-strength rods
Simpson Strong-Tie PAB8-24 Applications
- High-tension concrete applications
- Shearwalls and rod systems
- Multi-story high-wind constructions
Simpson Strong-Tie PAB8-24 Installation Overview
- Chase threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
- Contact Simpson Strong-Tie for special orders of couplers with oversized ends
Simpson Strong-Tie PAB8-24 Specifications
| Material | Standard Steel — ASTM F1554 Grade 36, A36 or A307; Fu = 58 ksi |
| Finish | None or HDG |
| Diameter | 1" |
| Length | 24" |
| Weight | 6.0 lb |
NOTE: Ensure proper installation using the specified fasteners to achieve published load values.
