Simpson Anchors | SKU:
PAB9-24-HDG

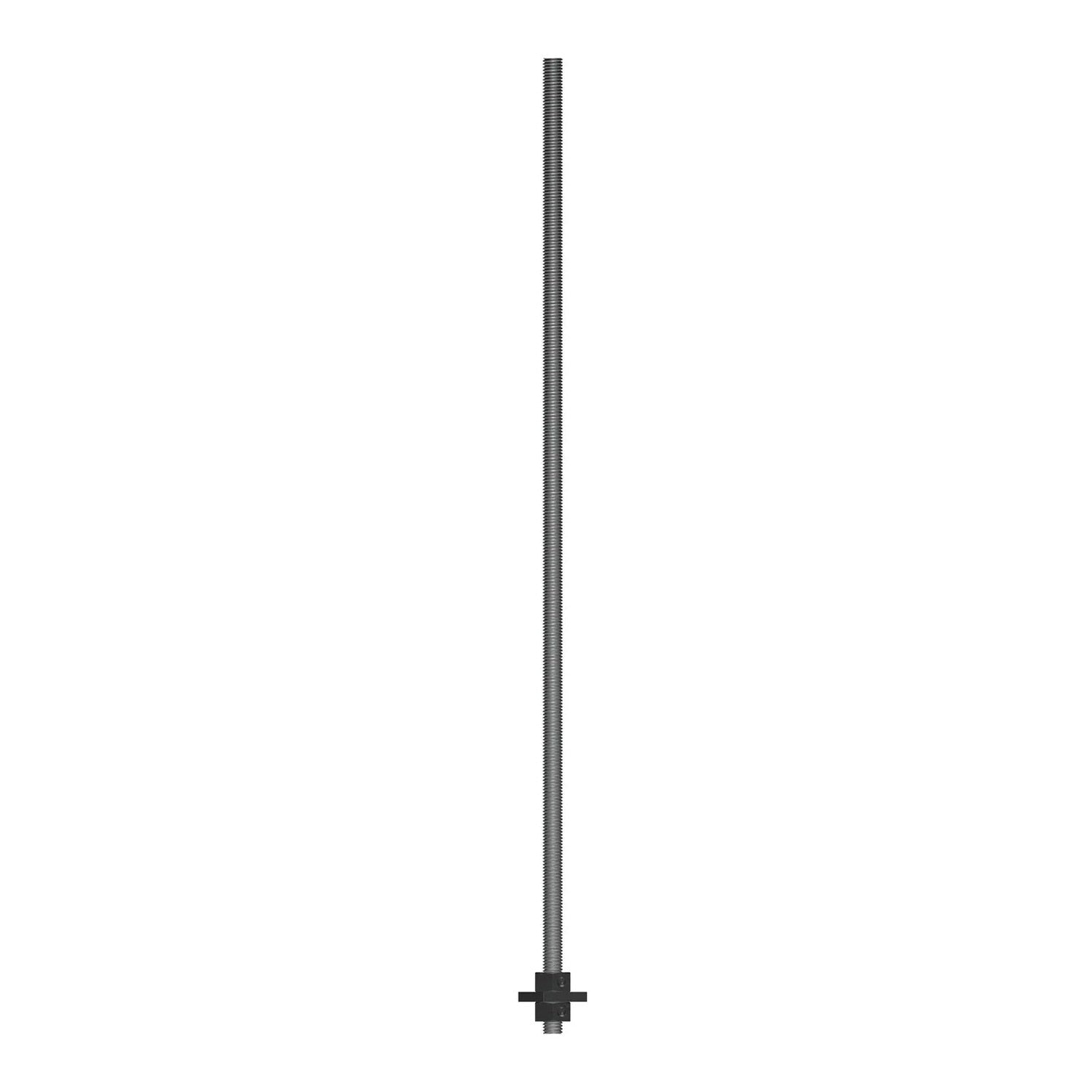

Simpson Strong-Tie PAB9-24-HDG (1-1/8" x 24") High-Strength Hot-Dip Galvanized Anchor Bolt
$93.59
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB9-24-HDG Description
The Simpson Strong-Tie PAB anchor bolt is a cast-in-place anchor bolt designed for high-tension-load applications such as shearwalls and rod systems. It features a hot dip galvanized coating for enhanced corrosion resistance.
Simpson Strong-Tie PAB9-24-HDG Includes
- (1) 1-1/8" x 24" Hot Dip Galvanized Pre-Assembled Anchor Bolt
Simpson Strong-Tie PAB9-24-HDG Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36"
- Made from high-quality ASTM F1554 Grade 36 steel
- Hot dip galvanized coating for enhanced corrosion resistance
- Pre-assembled with a plate washer and fixed hex nuts
Simpson Strong-Tie PAB9-24-HDG Applications
- High-tension-load applications such as shearwalls and rod systems
- Concrete anchoring in multi-story high-wind constructions
Simpson Strong-Tie PAB9-24-HDG Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
Simpson Strong-Tie PAB9-24-HDG Specifications
| Diameter | 1-1/8" |
| Length | 24" |
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Weight | 7.8 lb |
