Simpson Anchors | SKU:
PAB9-30-HDG

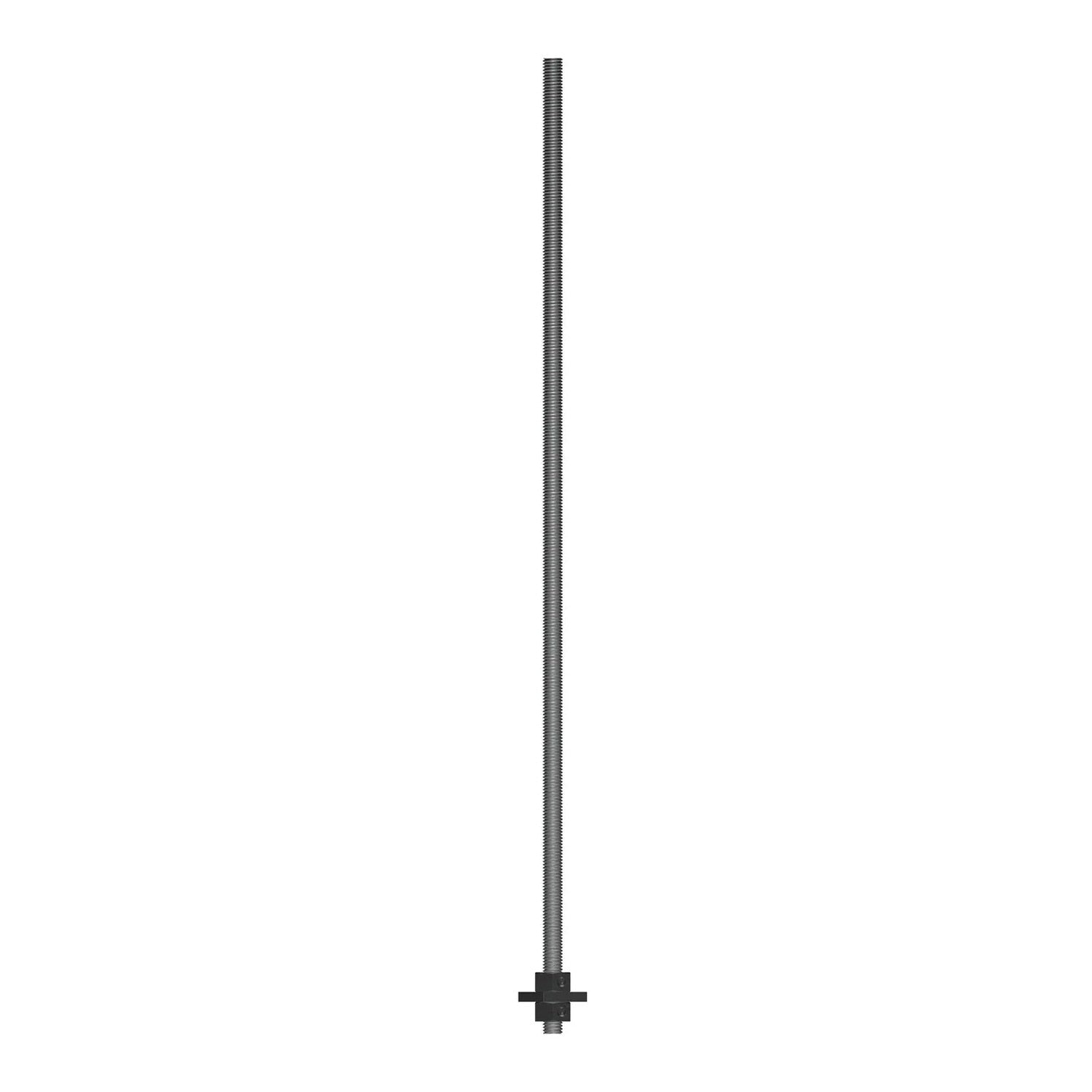

Simpson Strong-Tie PAB9-30-HDG (1-1/8" x 30") High-Strength Hot-Dip Galvanized Anchor Bolt
$108.44
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB9-30-HDG Description
The Simpson Strong-Tie PAB anchor bolt is designed for high-tension-load applications such as shearwalls and rod systems, featuring a hot-dip galvanized coating for enhanced corrosion resistance.
Simpson Strong-Tie PAB9-30-HDG Includes
- (1) 1-1/8" x 30" Hot-Dip Galvanized Anchor Bolt
Simpson Strong-Tie PAB9-30-HDG Features
- High-tension-load application suitability
- Hot-dip galvanized coating for corrosion resistance
- Pre-assembled with plate washer and fixed hex nuts
- Made from ASTM F1554 Grade 36 steel
Simpson Strong-Tie PAB9-30-HDG Applications
- Shearwalls
- Rod systems
- Concrete anchoring in high-tension-load scenarios
Simpson Strong-Tie PAB9-30-HDG Installation Overview
- Chase threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
Simpson Strong-Tie PAB9-30-HDG Specifications
| Diameter | 1-1/8" |
| Finish | Hot Dip Galvanized |
| Length | 30" |
| Material | Galvanized Steel |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: Ensure threads are chased on HDG PABs to use standard nuts or couplers, or use overtapped products in accordance with ASTM A563.
