Simpson Anchors | SKU:
PAB9H-30

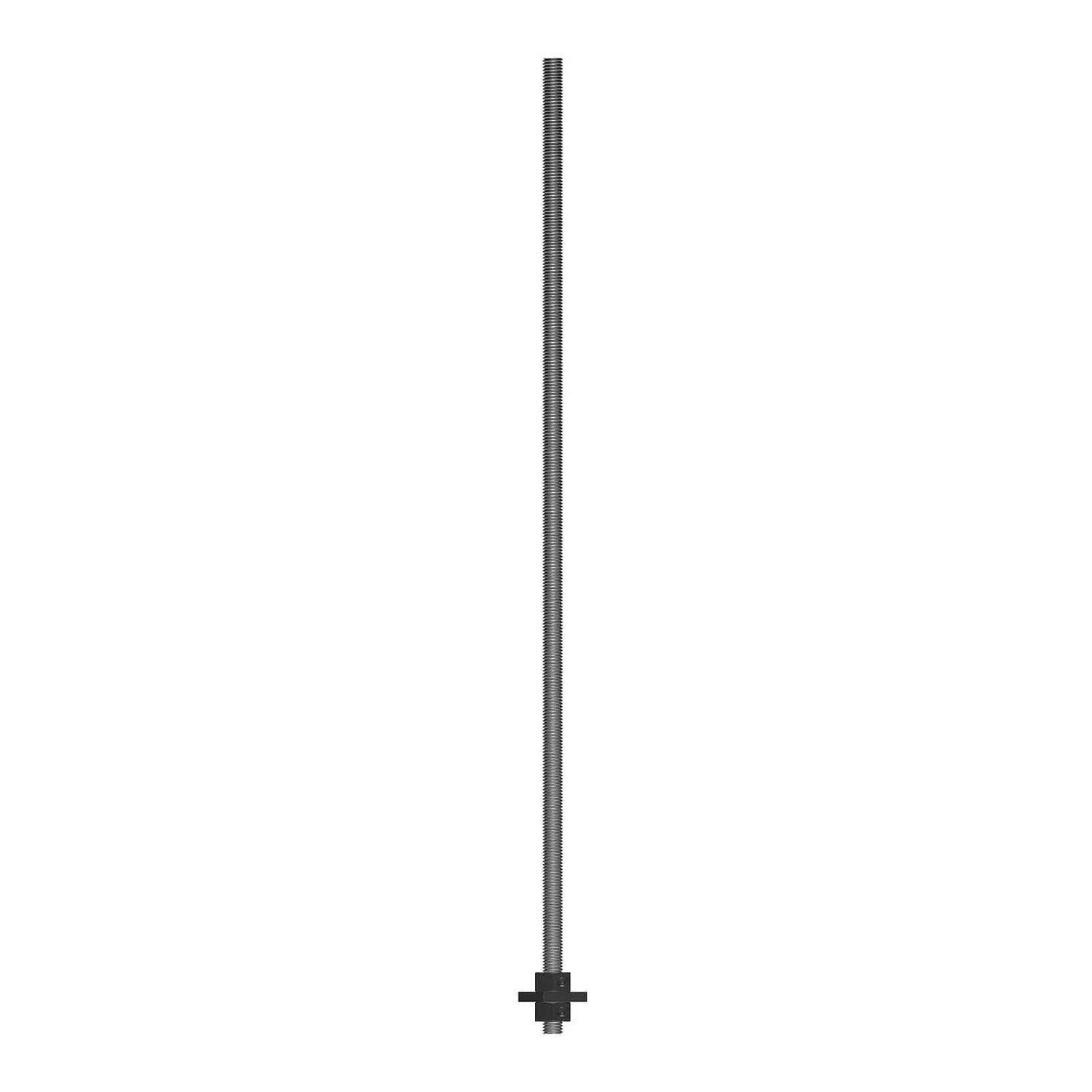

Simpson Strong-Tie PAB9H-30 (1-1/8 x 30") High-Strength Pre-Assembled Anchor Bolt Hot Dip Galvanized for Concrete Applications
$99.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAB9H-30 Description
The Simpson PAB anchor bolt is a cast-in-place anchor bolt designed for high-tension-load applications such as shearwalls and rod systems. The high strength steel version is made from high quality ASTM A449 steel.
Simpson Strong-Tie PAB9H-30 Includes
- (1) 1-1/8" x 30" High-Strength Pre-Assembled Anchor Bolt
Simpson Strong-Tie PAB9H-30 Features
- Available in diameters from 1/2" to 1 1/4" and lengths from 12" to 36" (in 6" increments)
- Available in standard and high-strength steel
- Head stamp contains the No Equal sign, diameter designation and an "H" on high-strength rods
- Hot dip galvanized coating for enhanced corrosion resistance
- Pre-assembled with plate washer and fixed hex nuts
Simpson Strong-Tie PAB9H-30 Applications
- Concrete construction requiring high-tension-load anchoring
- Shearwalls and rod systems
- Multi-story high-wind applications
Simpson Strong-Tie PAB9H-30 Installation Overview
- Chase the threads on HDG PABs to use standard nuts or couplers
- Use overtapped products in accordance with ASTM A563
- Contact Simpson Strong-Tie for special orders of couplers with both ends oversized
Simpson Strong-Tie PAB9H-30 Specifications
| Diameter | 1-1/8" |
| Finish | Hot Dip Galvanized |
| Length | 30" |
| Material | Galvanized Steel |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
