Simpson Anchors | SKU:
PAI18

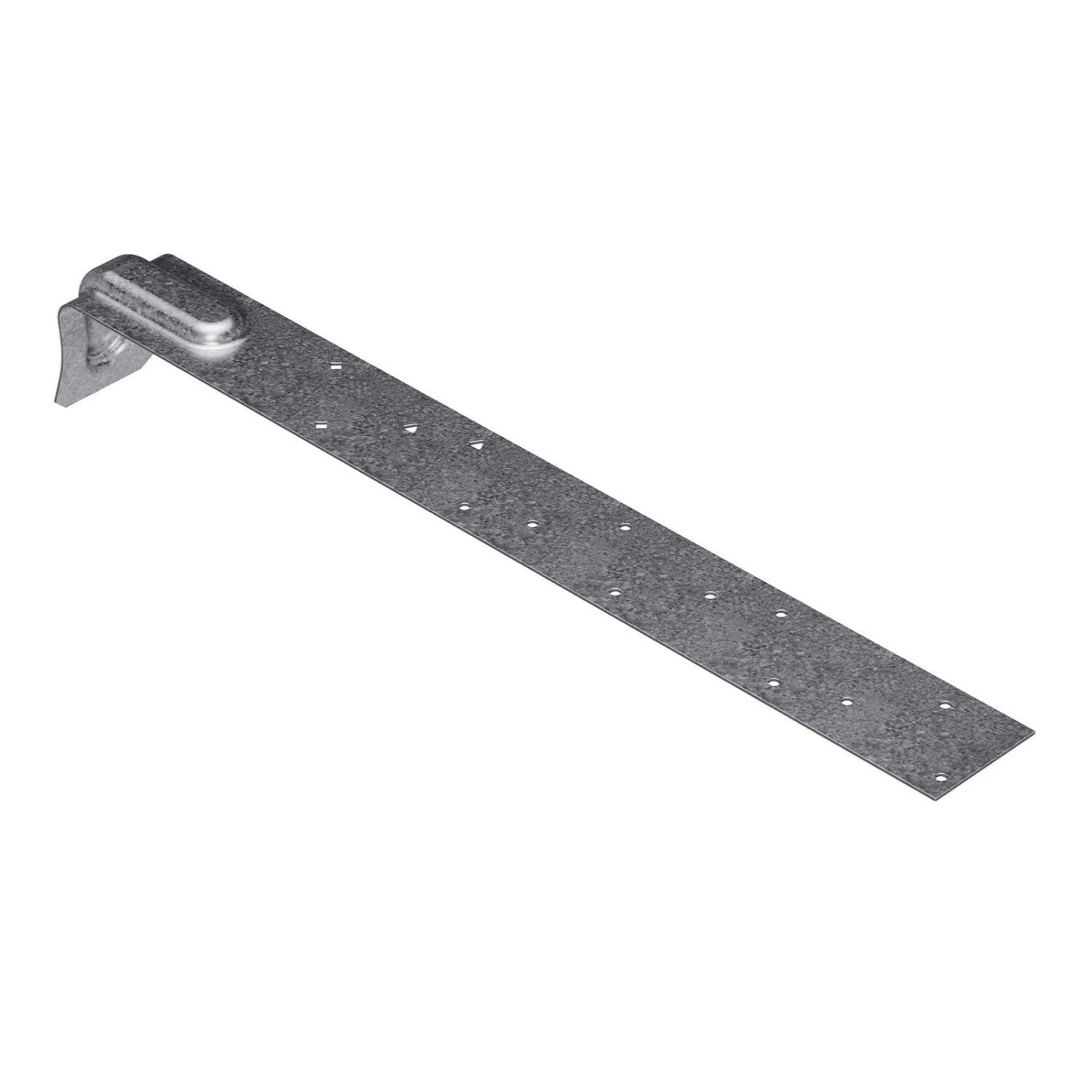

Simpson Strong-Tie PAI18 (18-1/2") 12 Gauge Purlin Anchor for I-Joist - G90 Galvanized
$14.60
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAI18 Description
The Simpson PAI18 Purlin Anchor is designed for wood-to-concrete and wood-to-masonry connections, featuring a dual-embedment line for ease of installation.
Simpson Strong-Tie PAI18 Includes
- (1) Purlin Anchor for I-Joist, 12 Gauge - G90 Galvanized
Simpson Strong-Tie PAI18 Features

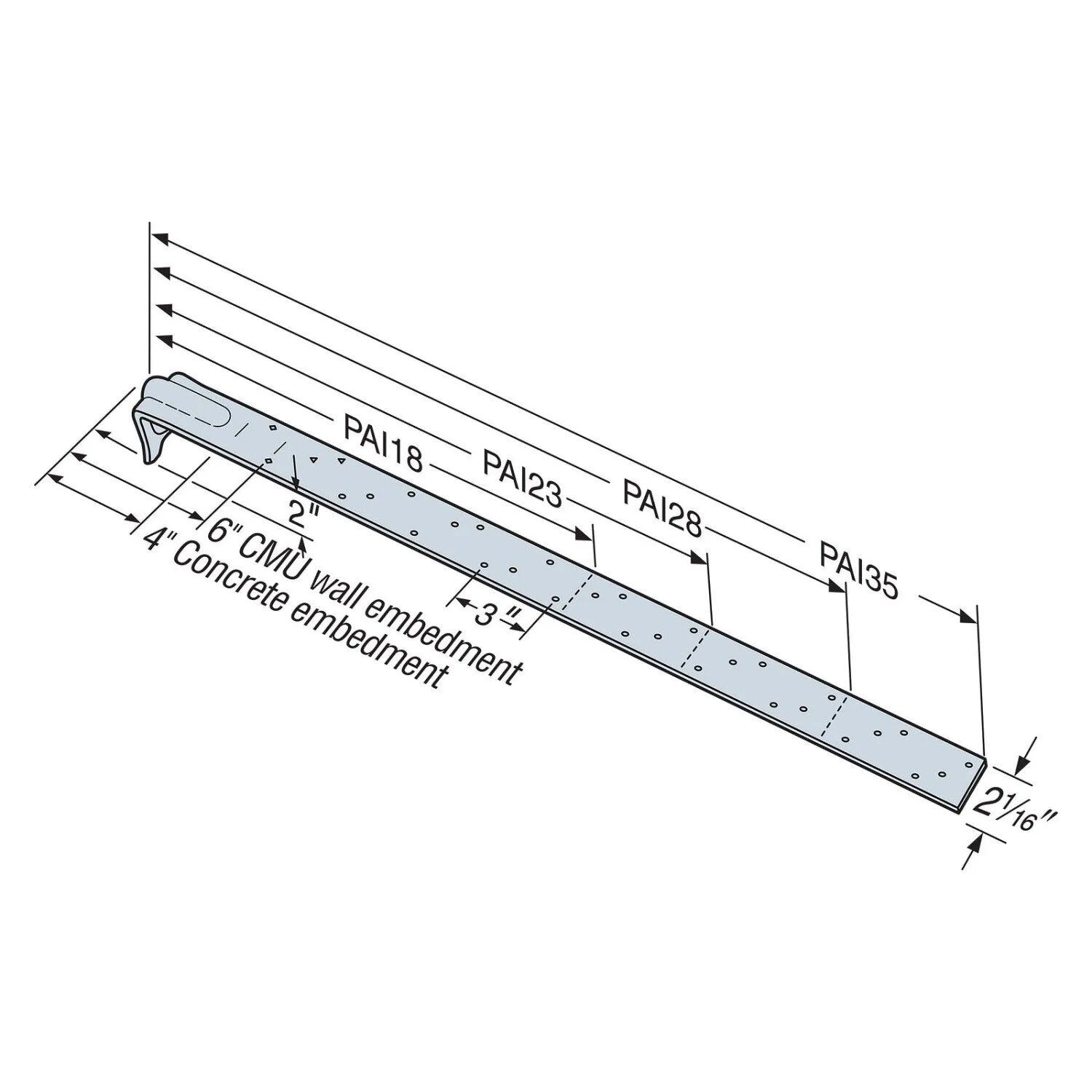

- Minimum embedment line indicators for both concrete and masonry installations
- Nailing pattern optimized for I-joist wood member
- Low design profile minimizes visibility
- Purlin anchor must hook around rebar

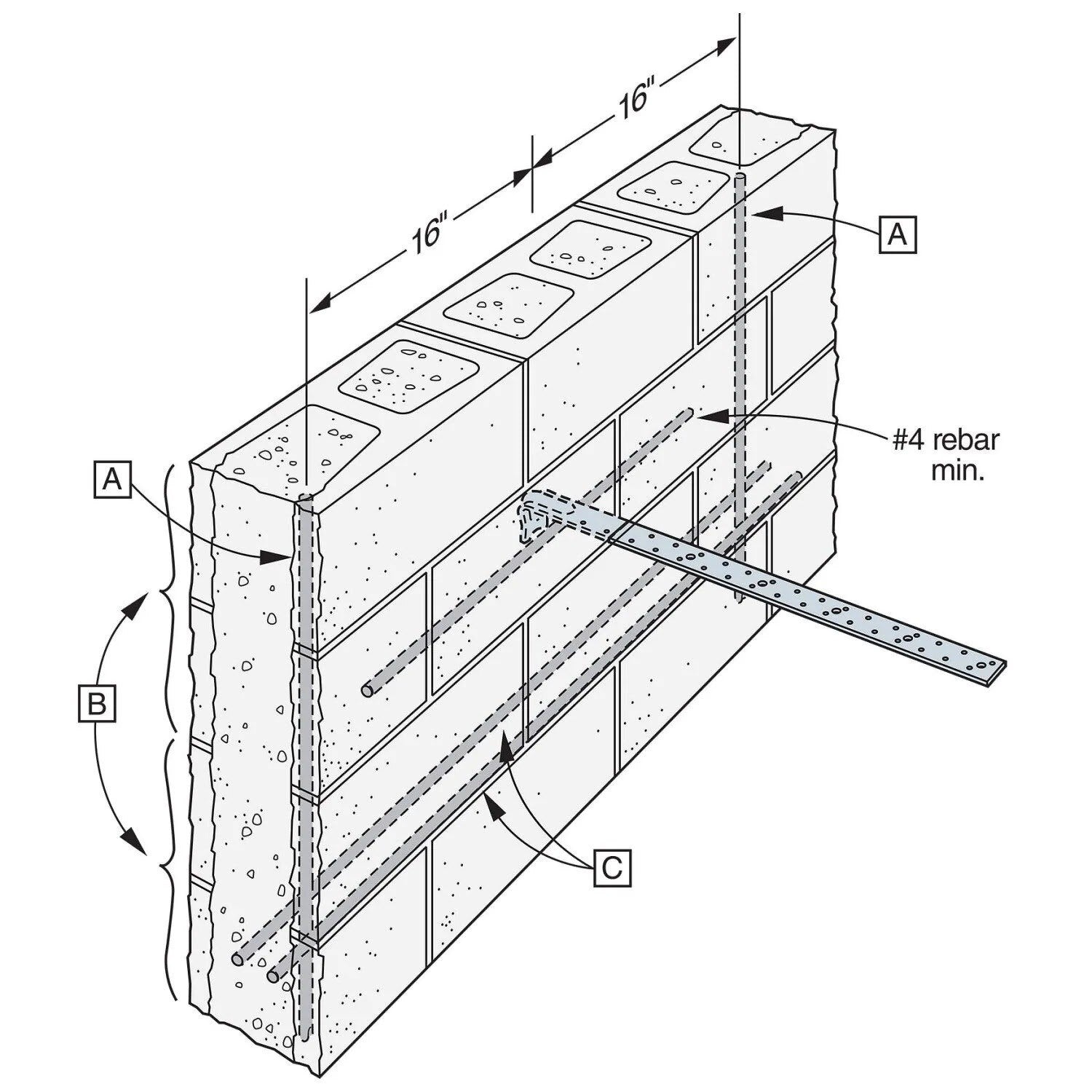

- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall
- Strap may be bent one full cycle (bent vertical 90°, then bent horizontal)
- Use all specified fasteners; some models have extra fastener holes
Simpson Strong-Tie PAI18 Applications
- Wood-to-concrete connections
- Wood-to-masonry connections

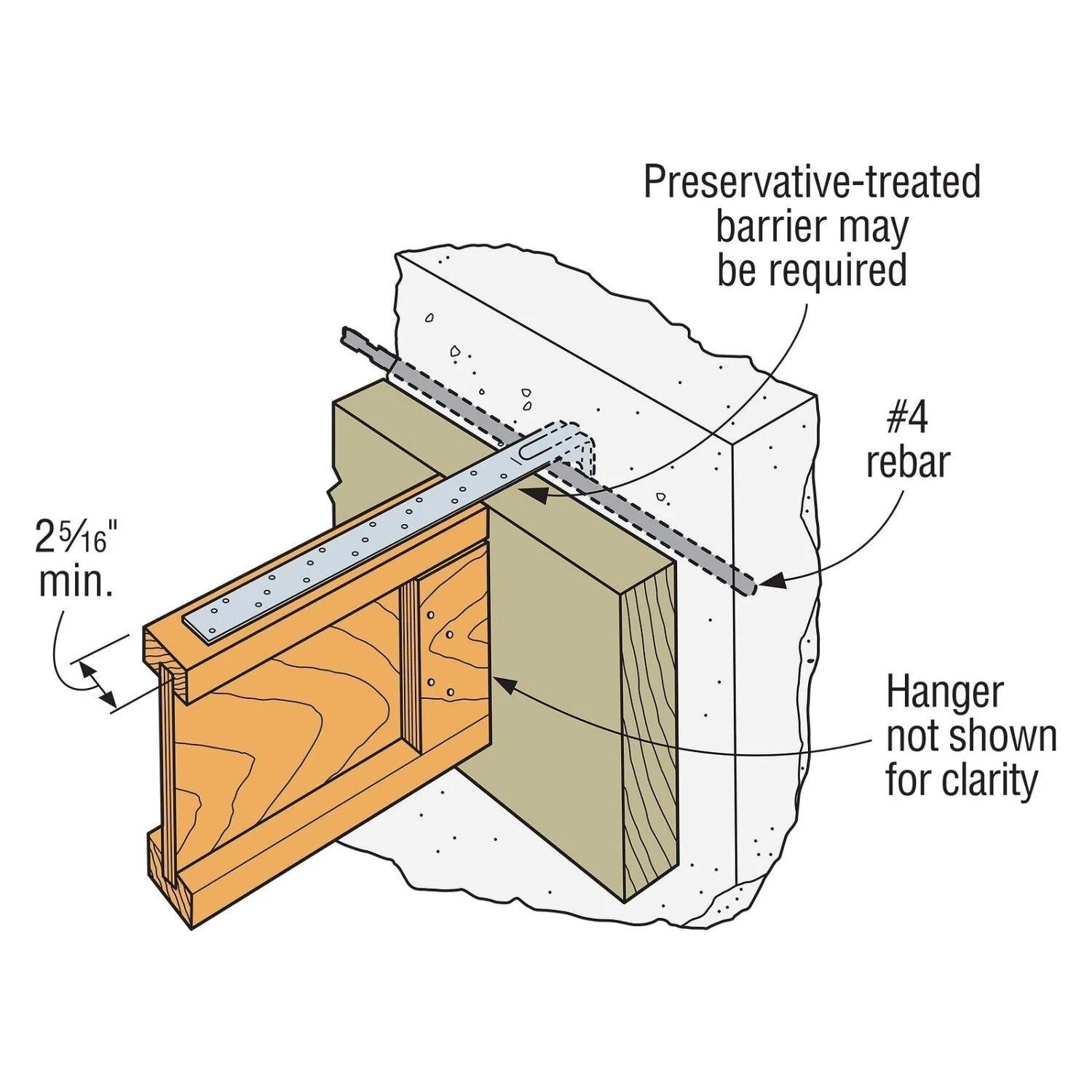

- I-joist connections to concrete or masonry walls
Simpson Strong-Tie PAI18 Specifications
| Length | 18-1/2" |
| Thickness | 12 Gauge |
| Width | 2-1/16" |
| Finish | G90 Galvanized |
| Weight | 1.2 lb |
