Simpson Anchors | SKU:
PAI23

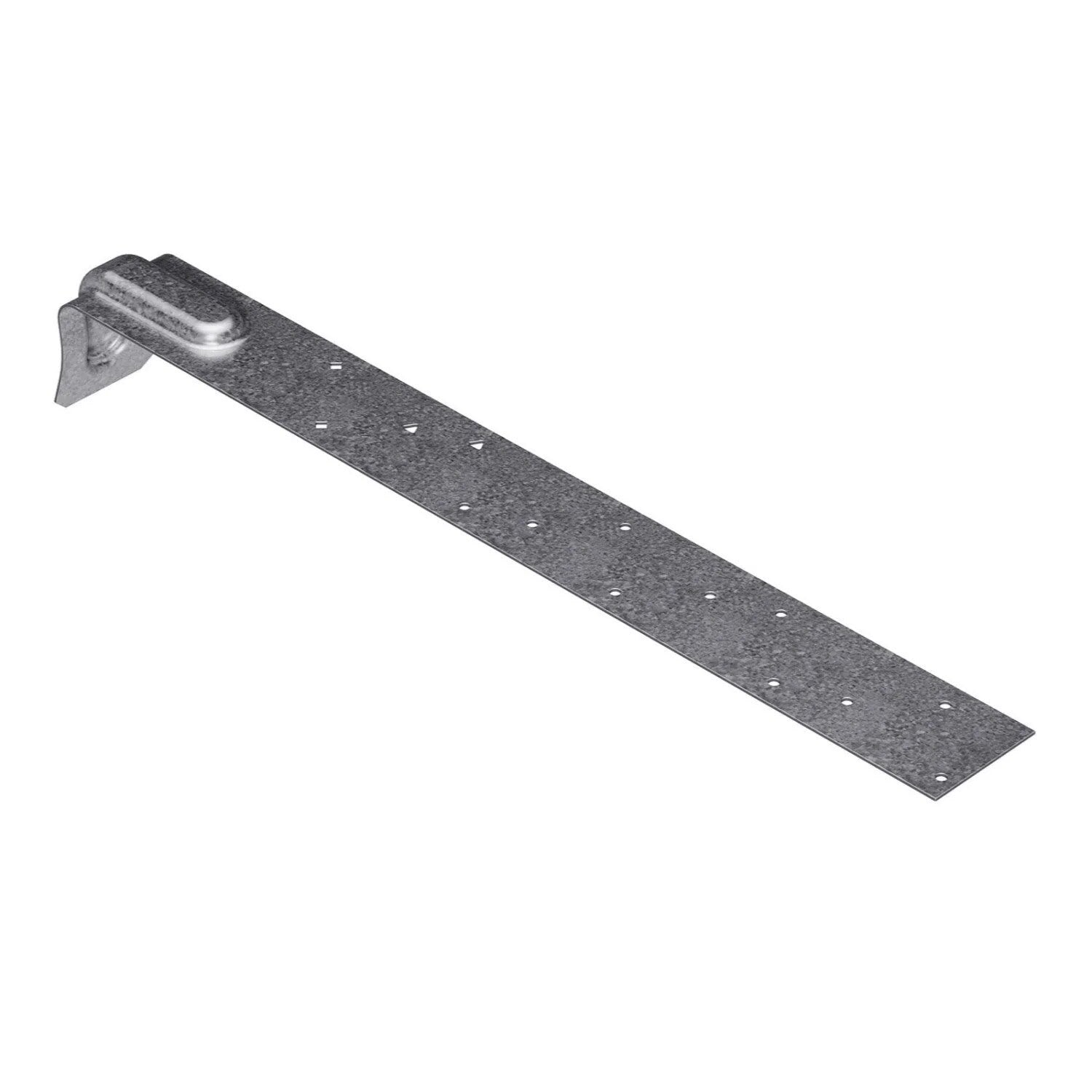

Simpson Strong-Tie PAI23 (23-3/4") 12 Gauge Purlin Anchor for I-Joist - G90 Galvanized
$16.82
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAI23 Description
The Simpson PAI23 Purlin Anchor is designed for wood-to-concrete and wood-to-masonry connections, providing a reliable solution for I-joist connections to concrete or masonry walls.
Simpson Strong-Tie PAI23 Includes
- (1) Purlin Anchor for I-Joist, 12 Gauge - G90 Galvanized
Simpson Strong-Tie PAI23 Features

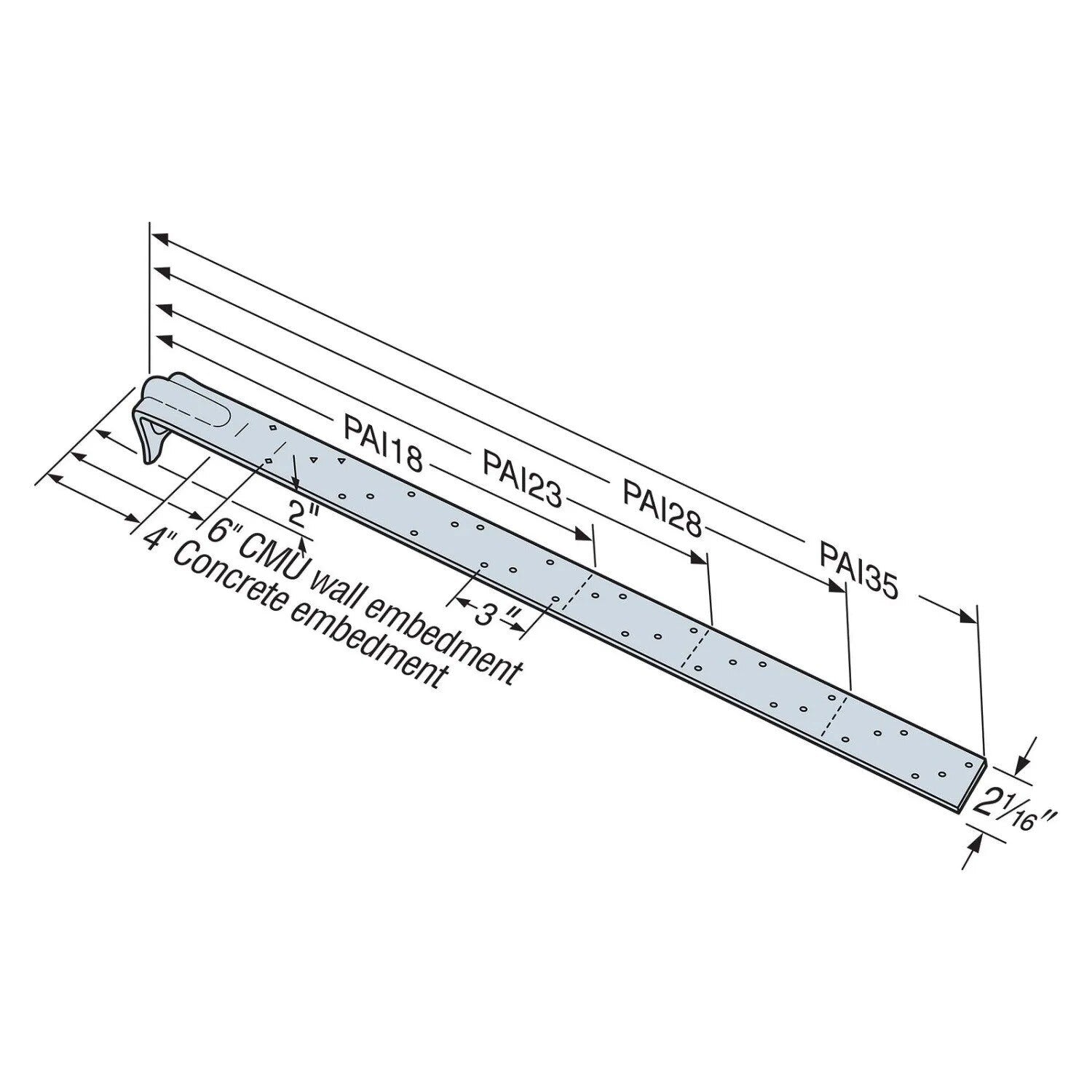

- Minimum embedment line indicators for both concrete and masonry installations
- Nailing pattern optimized for I-joist wood member
- Low design profile minimizes visibility
- Purlin anchor must hook around rebar
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall
- Strap may be bent one full cycle (bent vertical 90°, then bent horizontal)
- Use all specified fasteners; some models have extra fastener holes
Simpson Strong-Tie PAI23 Applications
- Wood-to-concrete connections
- Wood-to-masonry connections

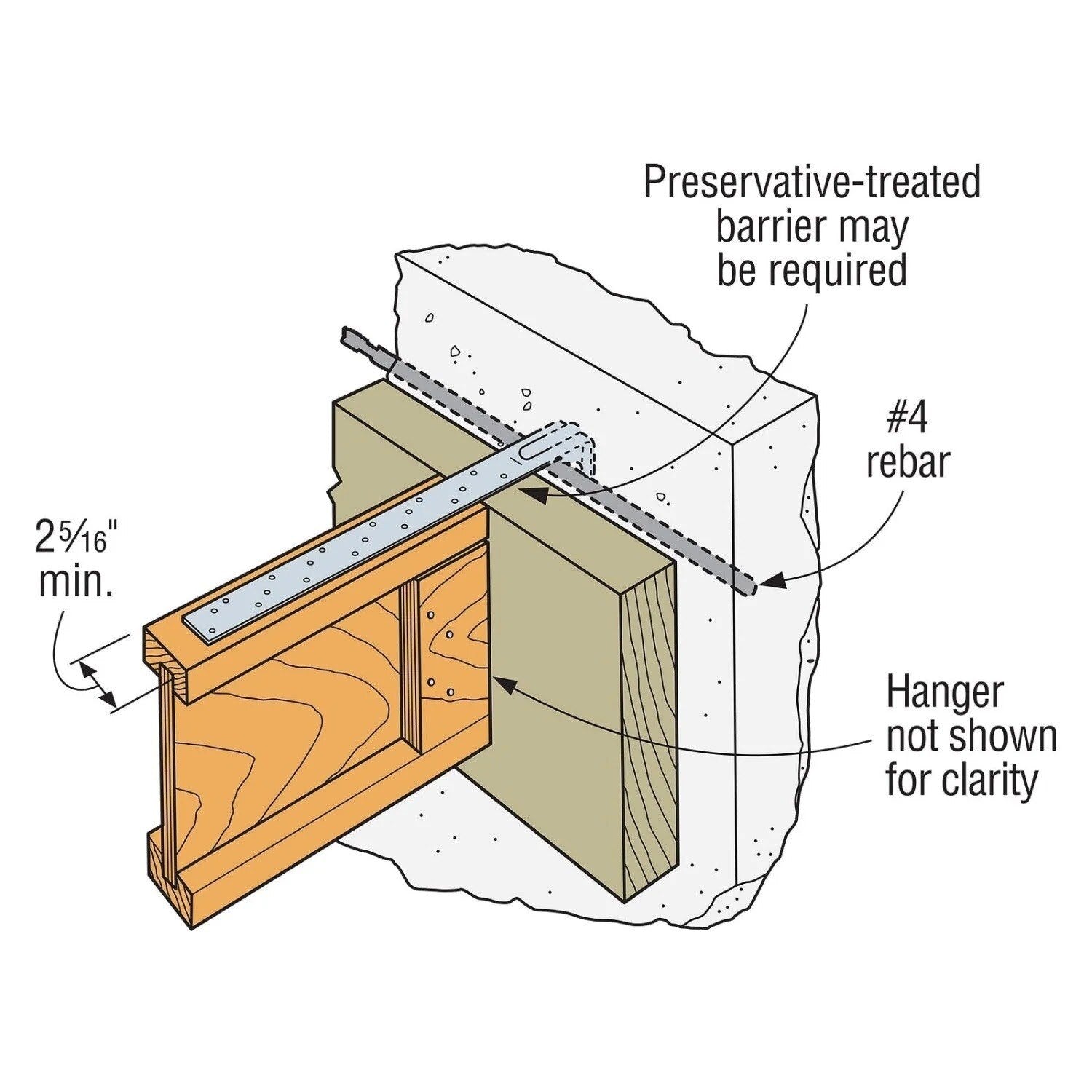

- I-joist connections to concrete or masonry walls

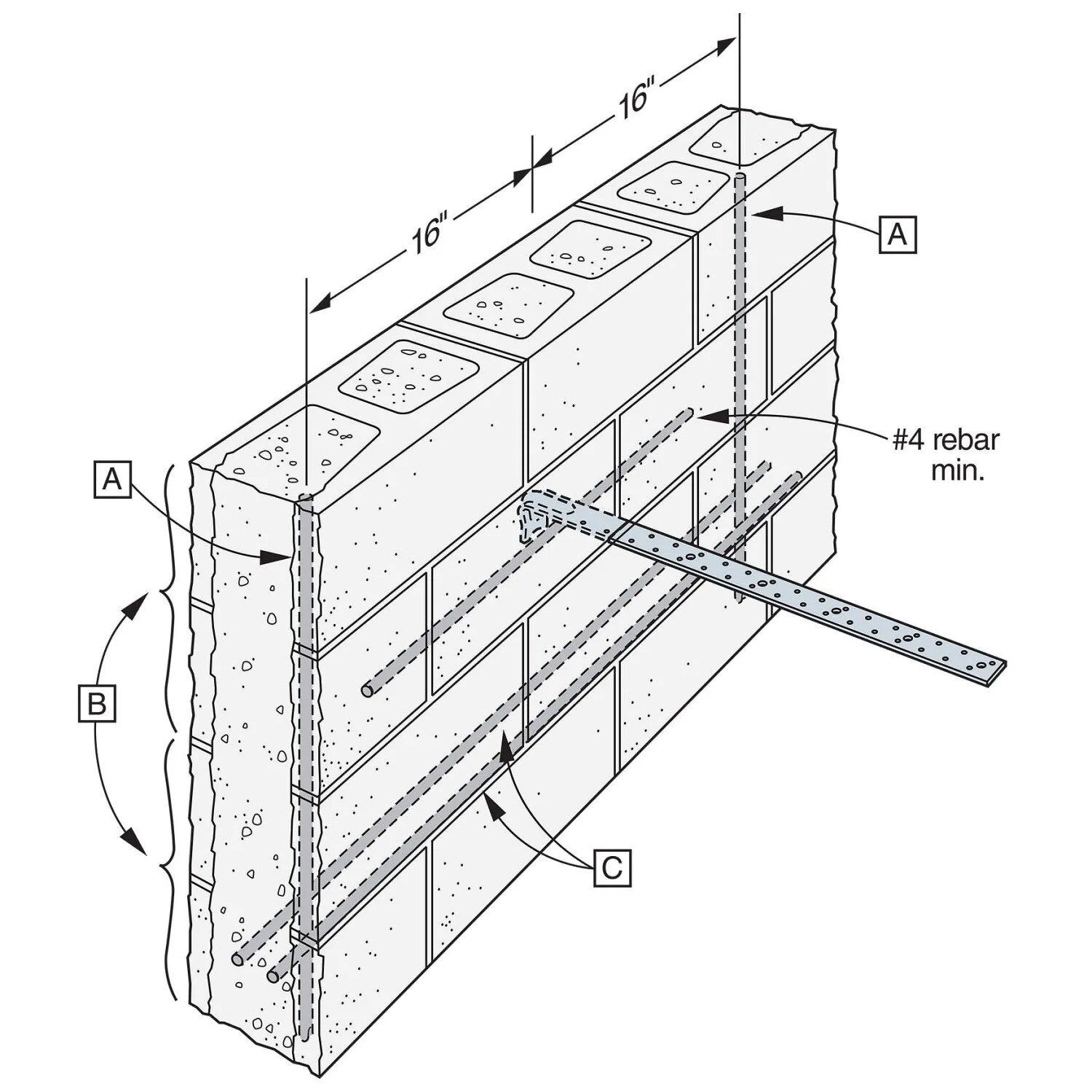

Simpson Strong-Tie PAI23 Installation Overview
- Ensure the purlin anchor hooks around rebar
- Align the anchor with the I-joist and the concrete or masonry wall
- Secure using all specified fasteners
- Follow the minimum embedment line indicators for proper installation
Simpson Strong-Tie PAI23 Specifications
| Length | 23-3/4" |
| Thickness | 12 Gauge |
| Width | 2-1/16" |
| Finish | G90 Galvanized |
| Manufacturer name | Simpson Strong-Tie Company Inc |
