Simpson Anchors | SKU:
PAI28

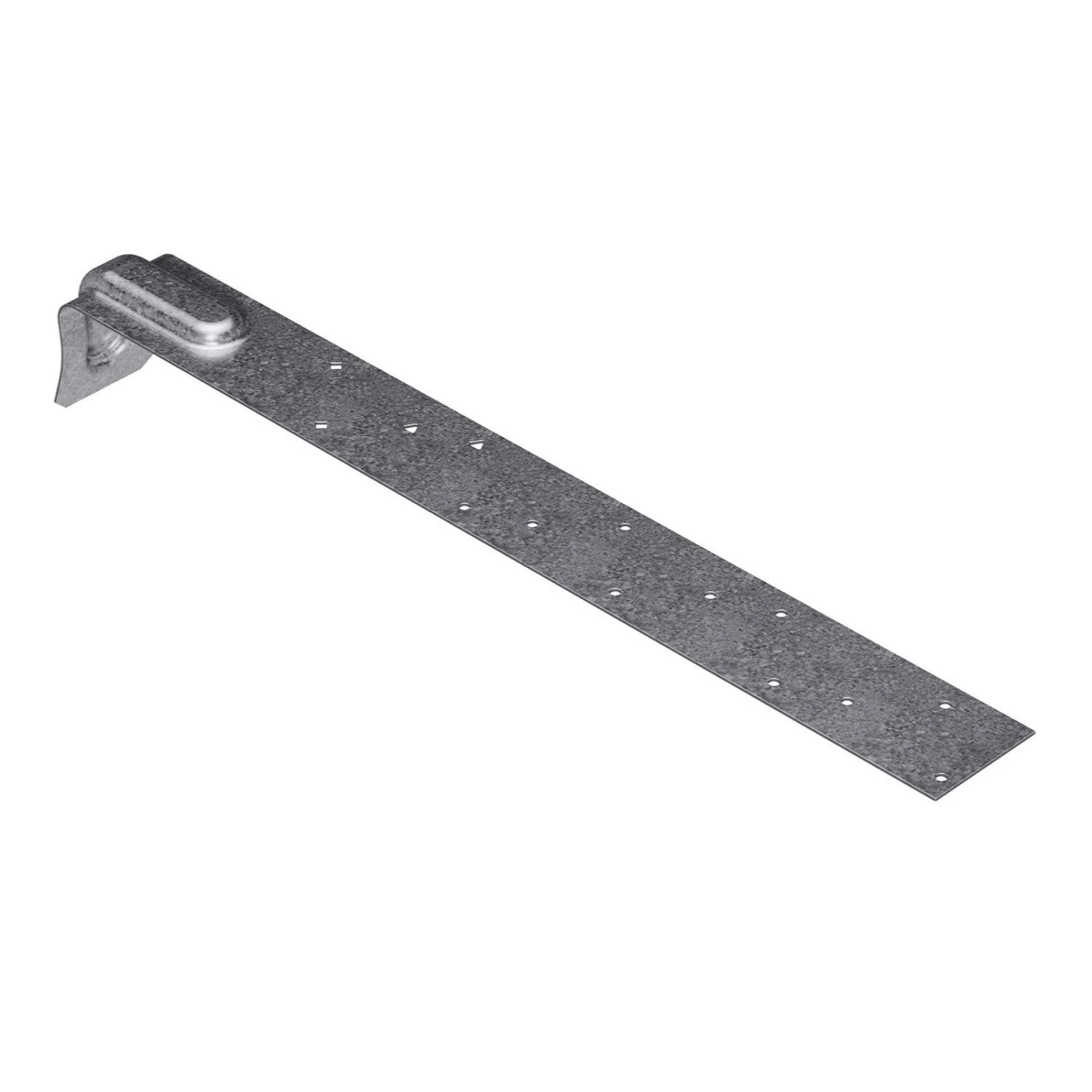

Simpson Strong-Tie PAI28 (29") 12 Gauge Purlin Anchor for I-Joist - G90 Galvanized
$21.23
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PAI28 Description

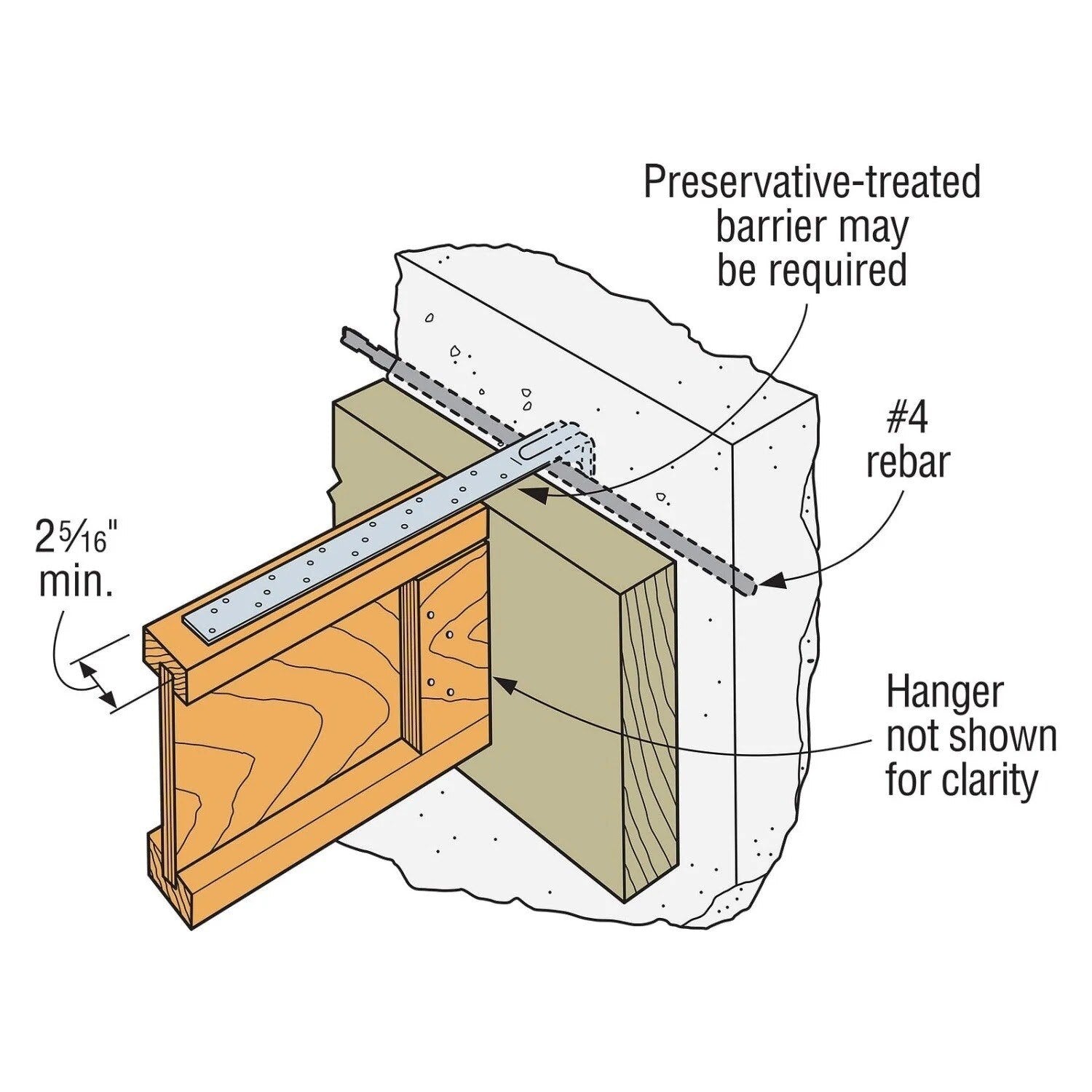

The Simpson PAI28 Purlin Anchor is designed for wood-to-concrete and wood-to-masonry connections, providing a reliable solution for I-joist connections to concrete or masonry walls.
Simpson Strong-Tie PAI28 Includes
- (1) Purlin Anchor for I-Joist, 12 Gauge - G90 Galvanized
Simpson Strong-Tie PAI28 Features

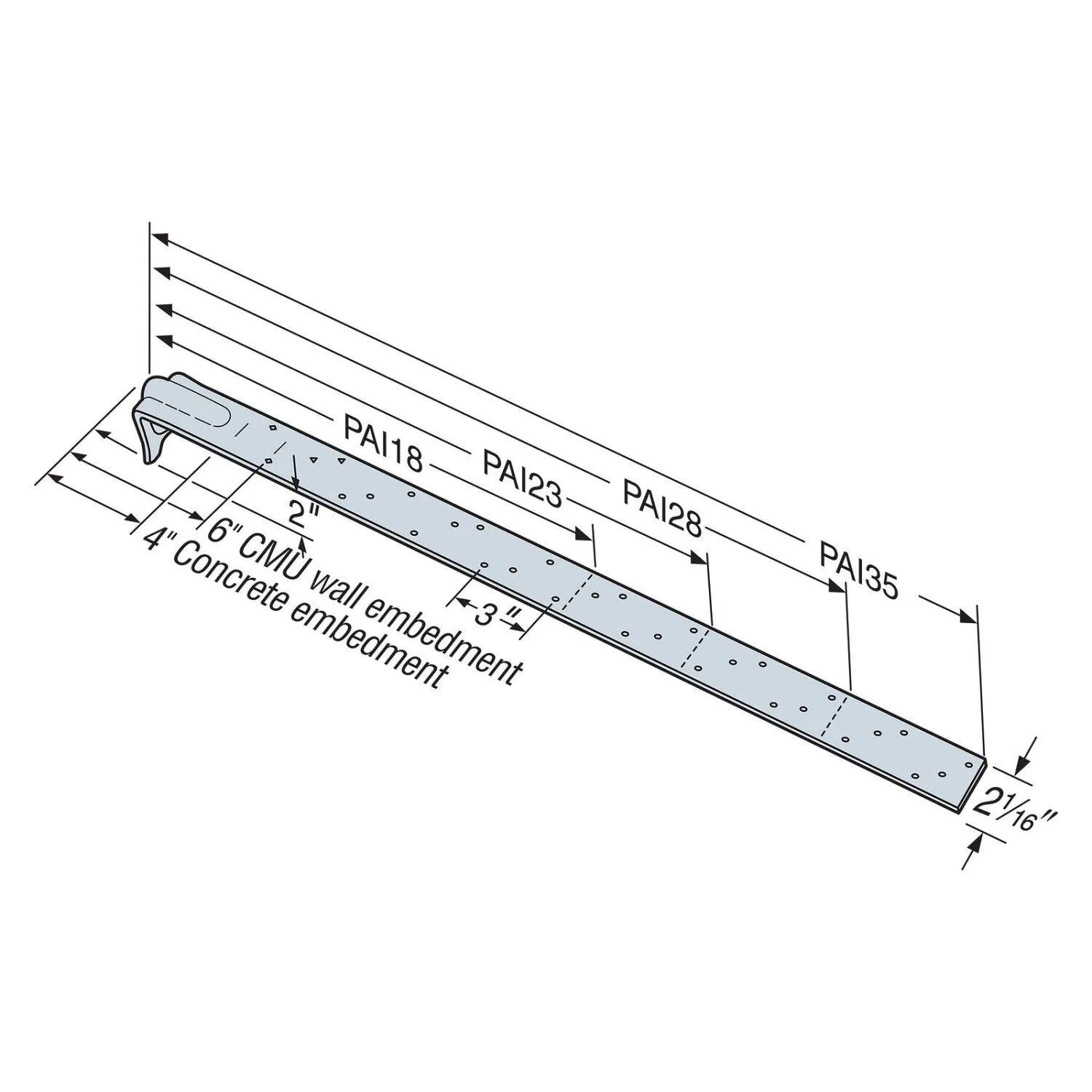

- Minimum embedment line indicators for both concrete and masonry installations
- Nailing pattern optimized for I-joist wood member
- Low design profile minimizes visibility
- Purlin anchor must hook around rebar
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall
- Strap may be bent one full cycle (bent vertical 90°, then bent horizontal)
- Use all specified fasteners; some models have extra fastener holes
Simpson Strong-Tie PAI28 Applications
- Wood-to-concrete connections

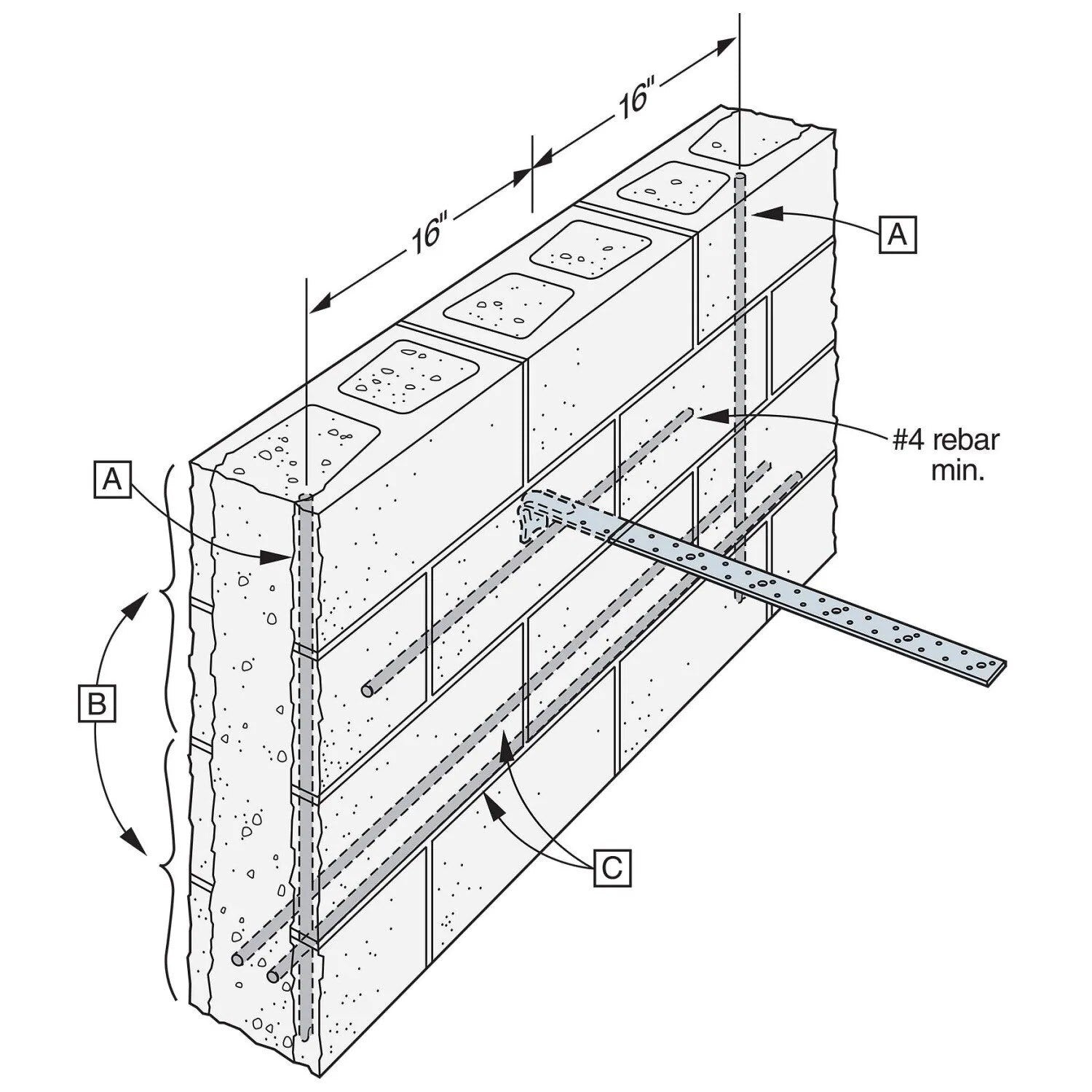

- Wood-to-masonry connections
- I-joist connections to concrete or masonry walls
Simpson Strong-Tie PAI28 Specifications
| Length | 29" |
| Thickness | 12 Gauge |
| Width | 2-1/16" |
| Finish | G90 Galvanized |
| For Treated Lumber | No |
