Simpson Strong-Tie PB66 Description

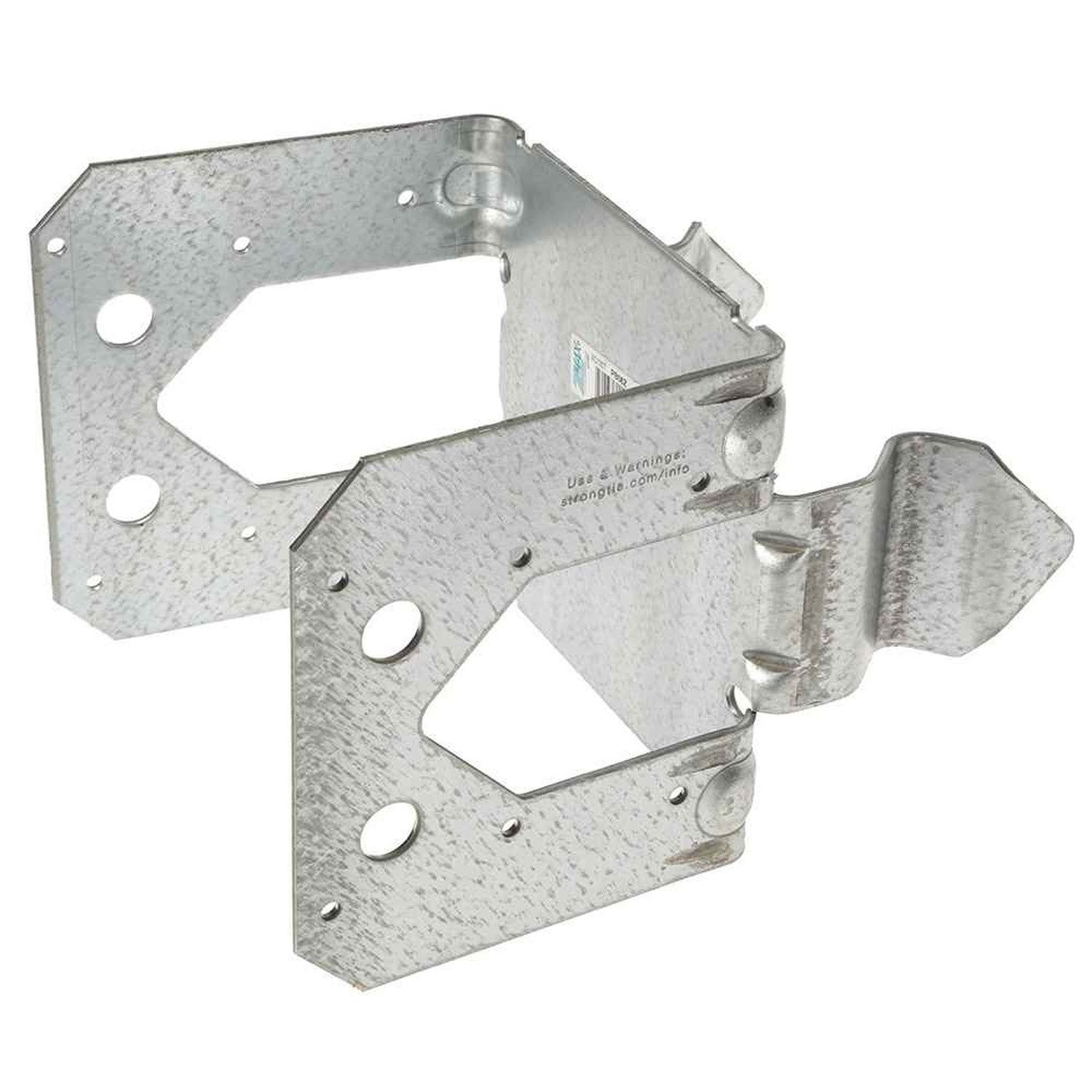

The Simpson PB66 6x6 Post Base is designed for secure wood-to-concrete connections, featuring a durable G90 galvanized finish and compatibility with 6x6 posts.
Simpson Strong-Tie PB66 Includes
- (1) PB66 6x6 Post Base
Simpson Strong-Tie PB66 Features
- Durable G90 galvanized finish for corrosion resistance
- Compatible with 6x6 posts or columns
- Designed for secure wood-to-concrete connections
- Made from heavy-gauge steel for strength and stability
Simpson Strong-Tie PB66 Applications
- Wood-to-concrete connections in construction projects
- Securing 6x6 posts or columns to concrete bases
Simpson Strong-Tie PB66 Installation Overview
- Use all specified fasteners as per guidelines
- Install using either nails or bolts

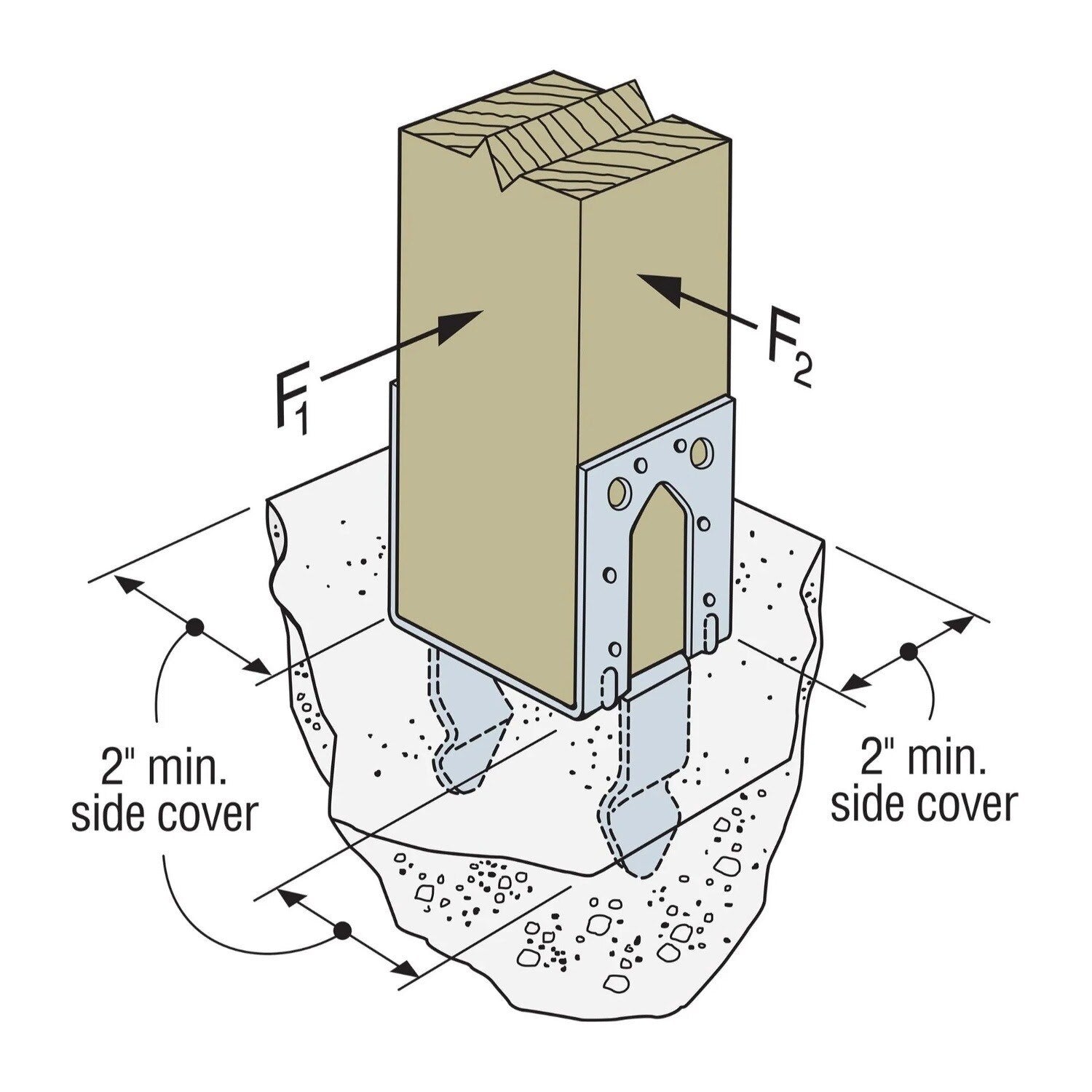

- Ensure a 2-inch minimum side cover for full load capacity
Simpson Strong-Tie PB66 Specifications
| Material | Steel |
| Finish | G90 Galvanized |
| Post Size | 6x6 |
| Gauge | 12 |
| Length | 5-1/4" |
| Width | 5-1/2" |
| Fasteners Required | (12) 0.162" x 3-1/2" Nails or (2) 1/2" Bolts |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
Toolup Part # :
248866
