Simpson Anchors | SKU:
PBV10PC
Simpson Strong-Tie PBV10PC (10") Hidden Standoff Post Base for Viga Post - Black Powder-Coated
$90.62
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PBV10PC Description

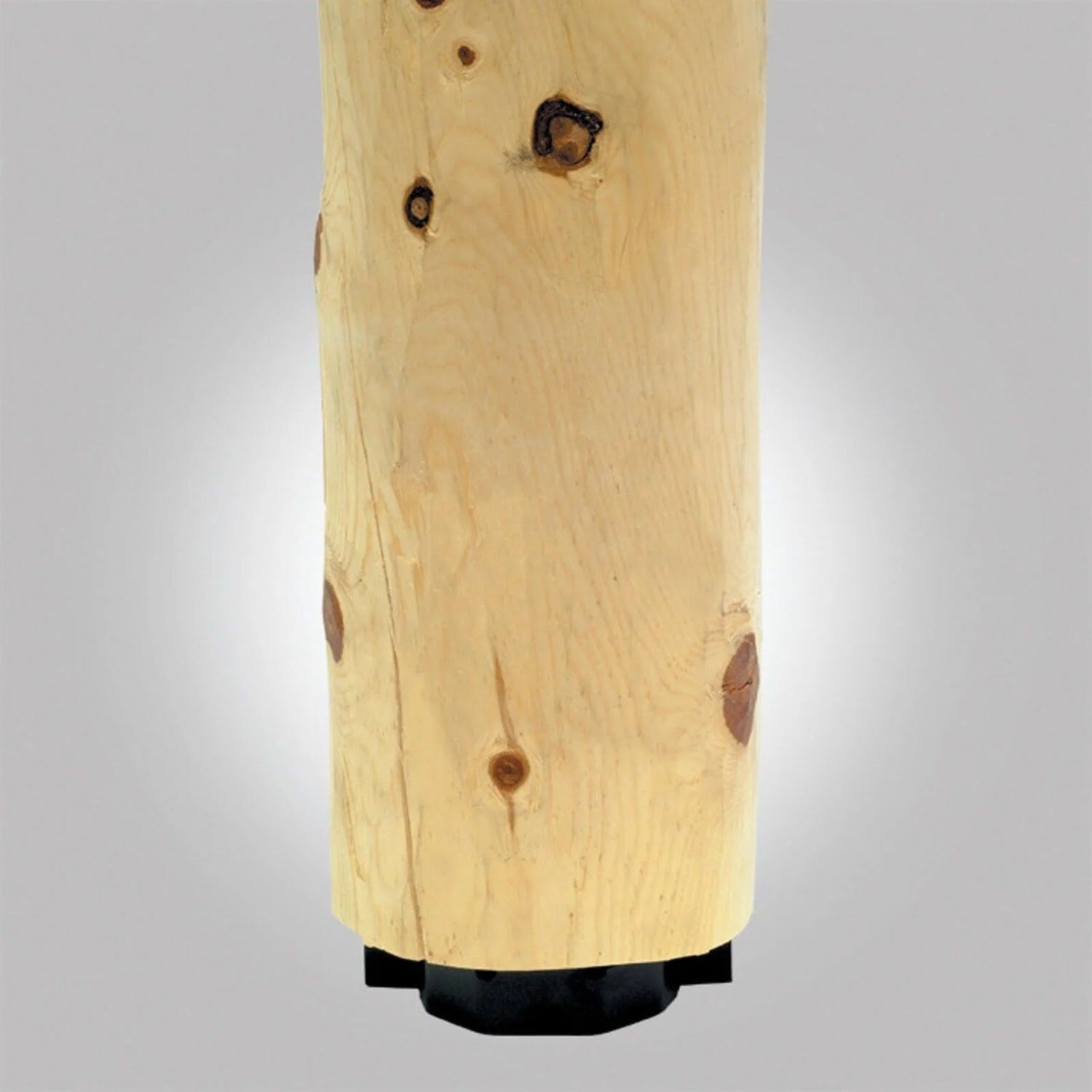

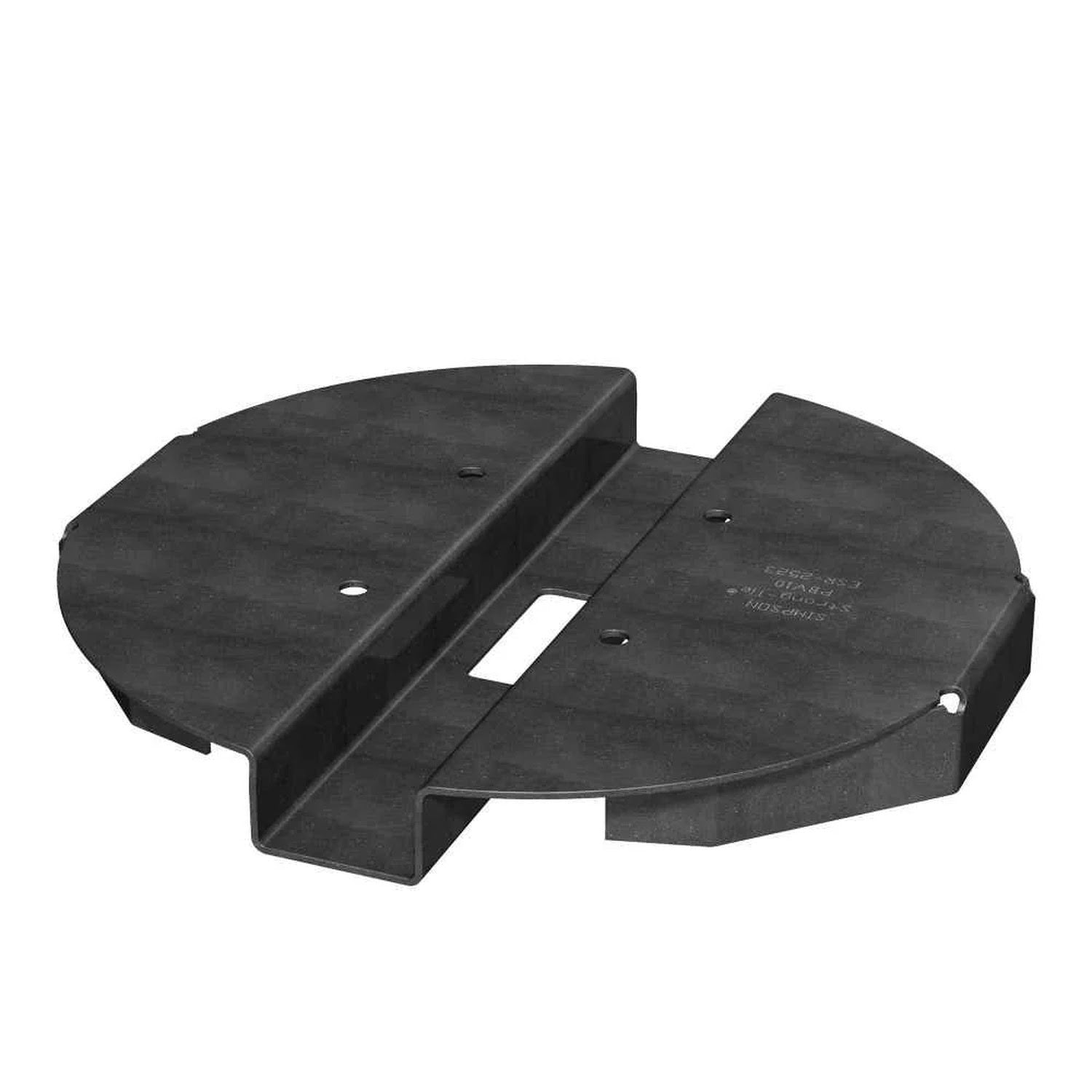

The Simpson PBV10PC Hidden Standoff Post Base features a durable black powder-coated finish, designed for 10" posts, ensuring a secure and aesthetic connection.
Simpson Strong-Tie PBV10PC Includes
- (1) Hidden Standoff Post Base
Simpson Strong-Tie PBV10PC Features
- Durable black powder-coated finish for enhanced aesthetics and durability
- Designed for 10" posts
- Includes necessary fasteners for secure installation
Simpson Strong-Tie PBV10PC Applications
- Securing 10" posts in construction projects
- Providing a hidden standoff for aesthetic and functional purposes
Simpson Strong-Tie PBV10PC Installation Overview
- Drill a 3/4" diameter hole, 10" into the center of the post.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert all-thread rod and allow epoxy to set and cure.
- Secure standoff to post using four 10d nails or SDS Heavy-Duty Connector screws.
- Drill a 3/4" diameter hole per anchor design for concrete installations.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert post subassembly into hole and allow epoxy to set and cure.
Simpson Strong-Tie PBV10PC Specifications
| Finish | Black Powder Coated |
| Length | 9-3/16" |
| Material | Galvanized Steel |
| Fasteners required | Post - (4) 1/4" x 3" SDS Screws, Anchor Bolt - (1) 5/8" All Thread Rod |
| Post size | 10" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
