Simpson Strong-Tie PBV6 Description

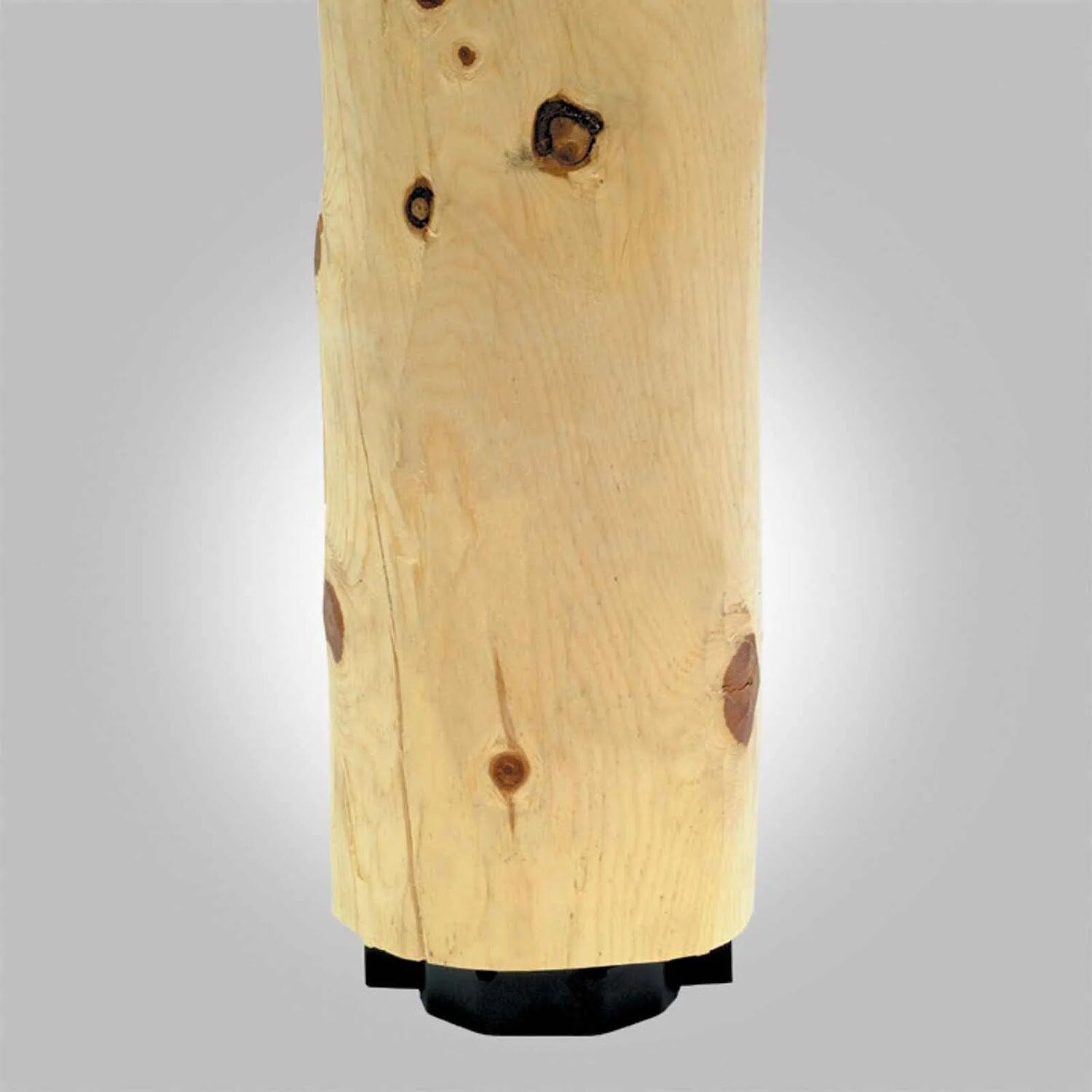

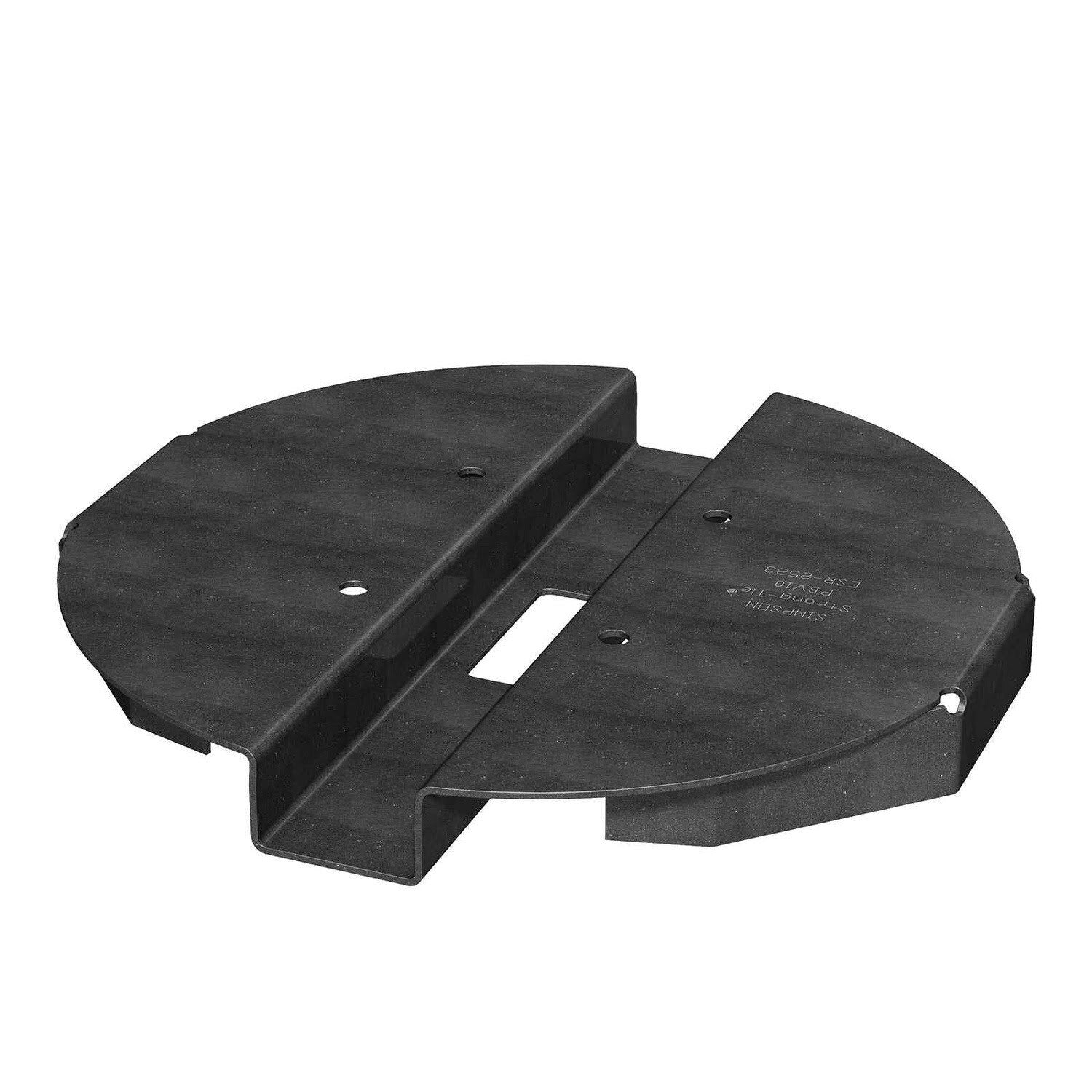

The Simpson Strong-Tie PBV6 post base is designed for a hidden connection between viga posts and concrete, featuring a G90 Galvanized finish for enhanced durability.
Simpson Strong-Tie PBV6 Includes
- (1) 6" Hidden Standoff Post Base
Simpson Strong-Tie PBV6 Features
- Hidden connection design for viga posts and concrete
- G90 Galvanized finish for enhanced durability
- Compatible with threaded rod and epoxy for secure attachment
- Designed for use with Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie PBV6 Applications
- Connecting viga posts to concrete surfaces
- Providing a hidden standoff for structural support
Simpson Strong-Tie PBV6 Installation Overview
- Attach the base to concrete using threaded rod and epoxy
- Secure the post to the base with Strong-Drive SDS screws
Simpson Strong-Tie PBV6 Specifications
| Finish | G90 Galvanized |
| Length | 5-1/4" |
| Material | Galvanized Steel |
| Fasteners required | (4) 1/4" x 3" SDS |
| Height | 1" |
| Post size | 6" |
| Quantity | 1 |
| Thickness | 14 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
