Simpson Anchors | SKU:
PBV6PC
Simpson Strong-Tie PBV6PC (6") Hidden Standoff Post Base for Viga Post - Black Powder Coated
$43.59
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PBV6PC Description

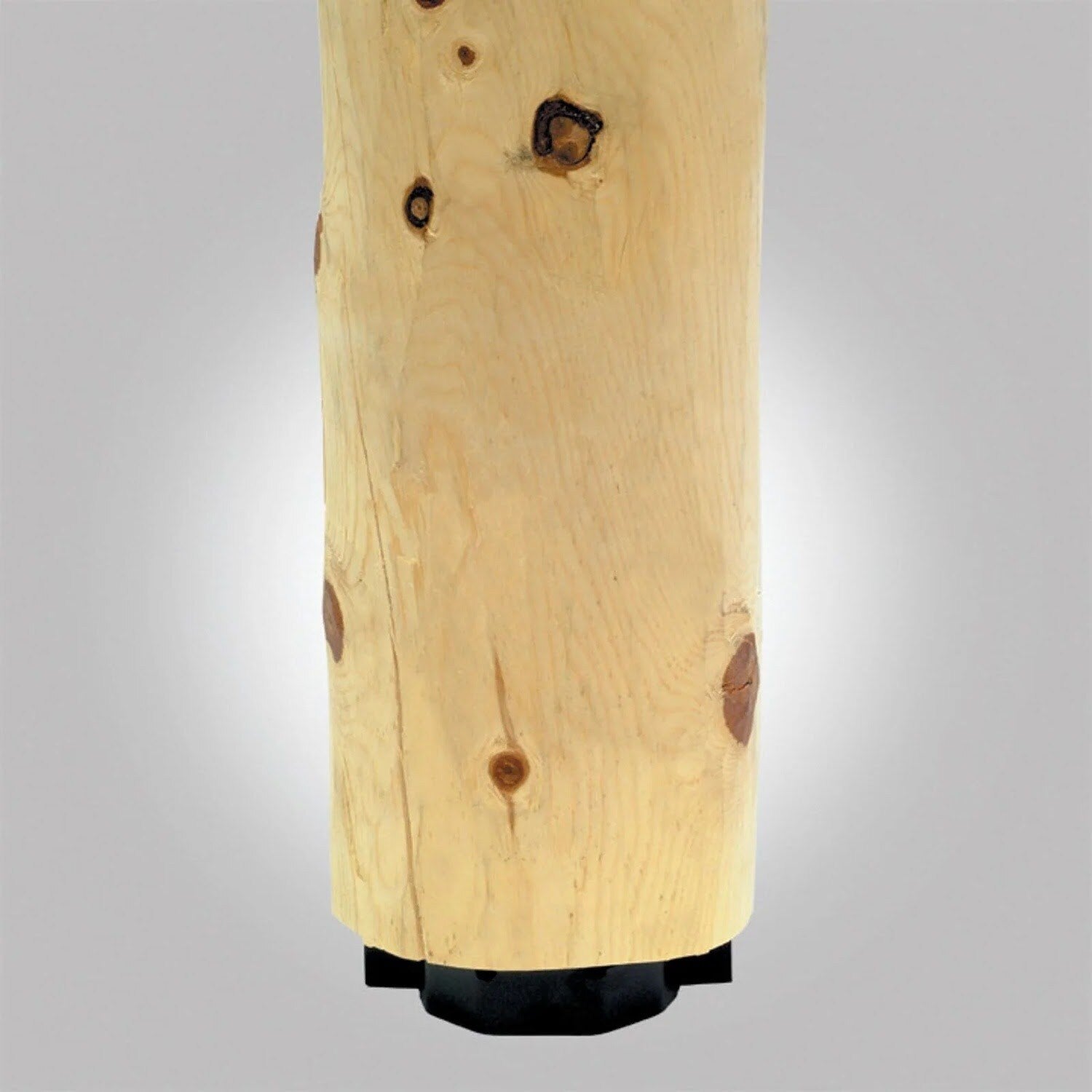

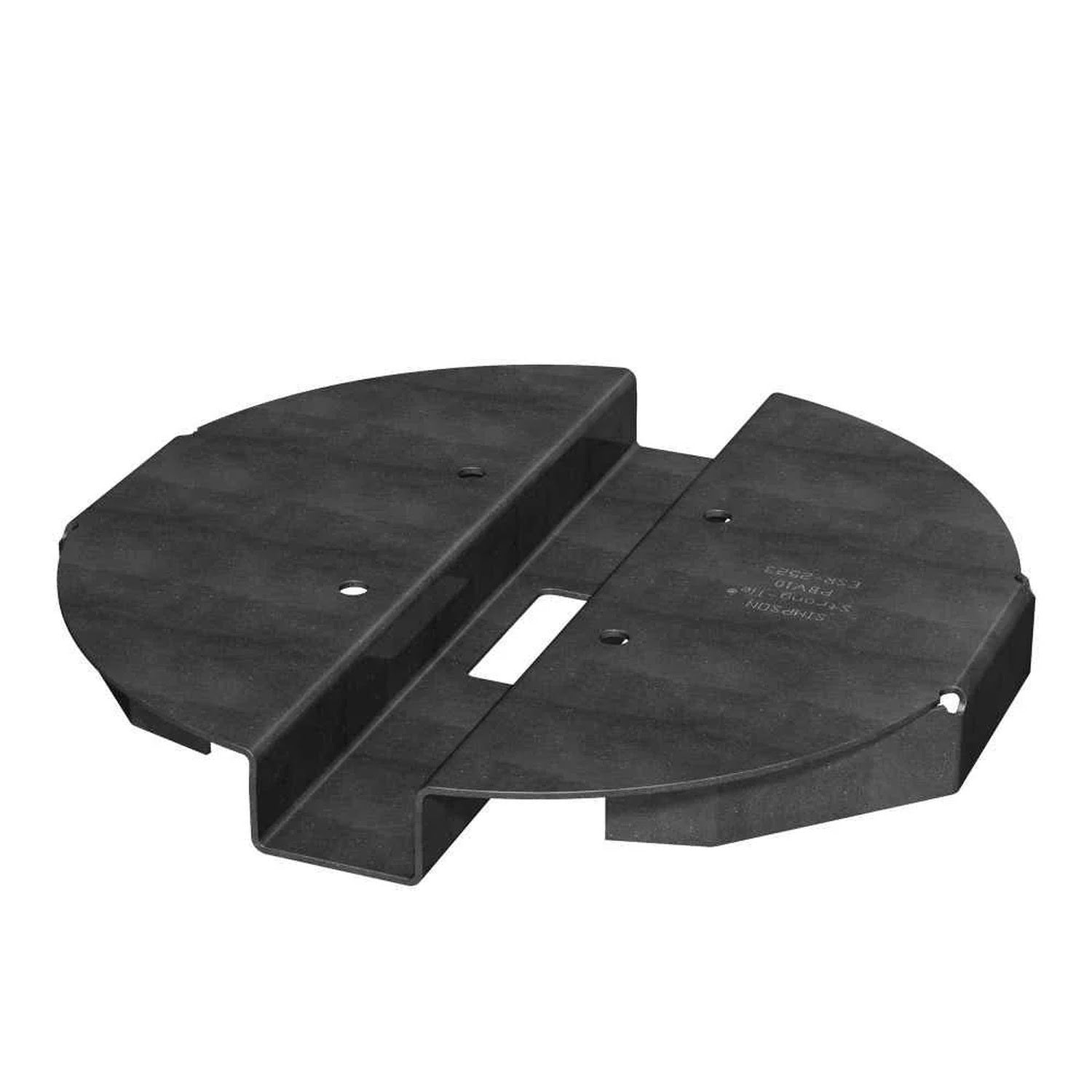

The Simpson PBV6PC hidden-standoff post base features a durable black powder-coated finish, designed for 6-inch posts and providing a secure and aesthetic solution for post installations.
Simpson Strong-Tie PBV6PC Includes
- (1) 6" Hidden Standoff Post Base
Simpson Strong-Tie PBV6PC Features
- Durable black powder-coated finish for enhanced aesthetics and longevity
- Designed for 6-inch posts
- Compatible with Simpson Strong-Tie SET epoxy anchoring adhesive
- Includes necessary fasteners for secure installation
Simpson Strong-Tie PBV6PC Applications
- Post installations for decks, patios, and other structures
- Suitable for use with 6-inch posts
- Ideal for projects requiring a hidden standoff design
Simpson Strong-Tie PBV6PC Installation Overview
- Drill a 3/4" diameter hole, 10" into the center of the post.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert all-thread rod and allow epoxy to set and cure.
- Secure standoff to post using four 10d nails or four Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws.
- Drill a 3/4" diameter hole per anchor design in concrete.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert post subassembly into the hole and allow epoxy to set and cure.
Simpson Strong-Tie PBV6PC Specifications
| Finish | Black Powder Coated |
| Length | 5-1/4" |
| Material | Galvanized Steel |
| Fasteners required | Post - (4) 1/4" x 3" SDS Screws, Anchor Bolt - (1) 5/8" All Thread Rod |
| Post size | 6" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
