At a Glance
Length
1 in
Quantity
100
Description
Description
Simpson Anchors PDPAS-100 Description

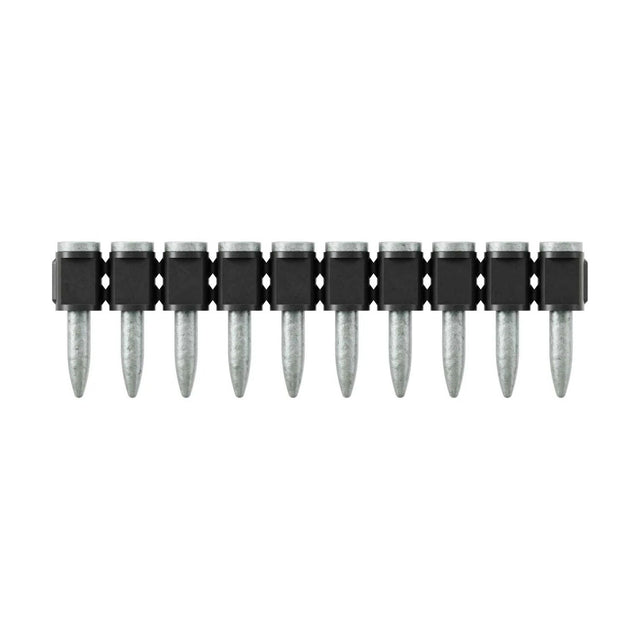

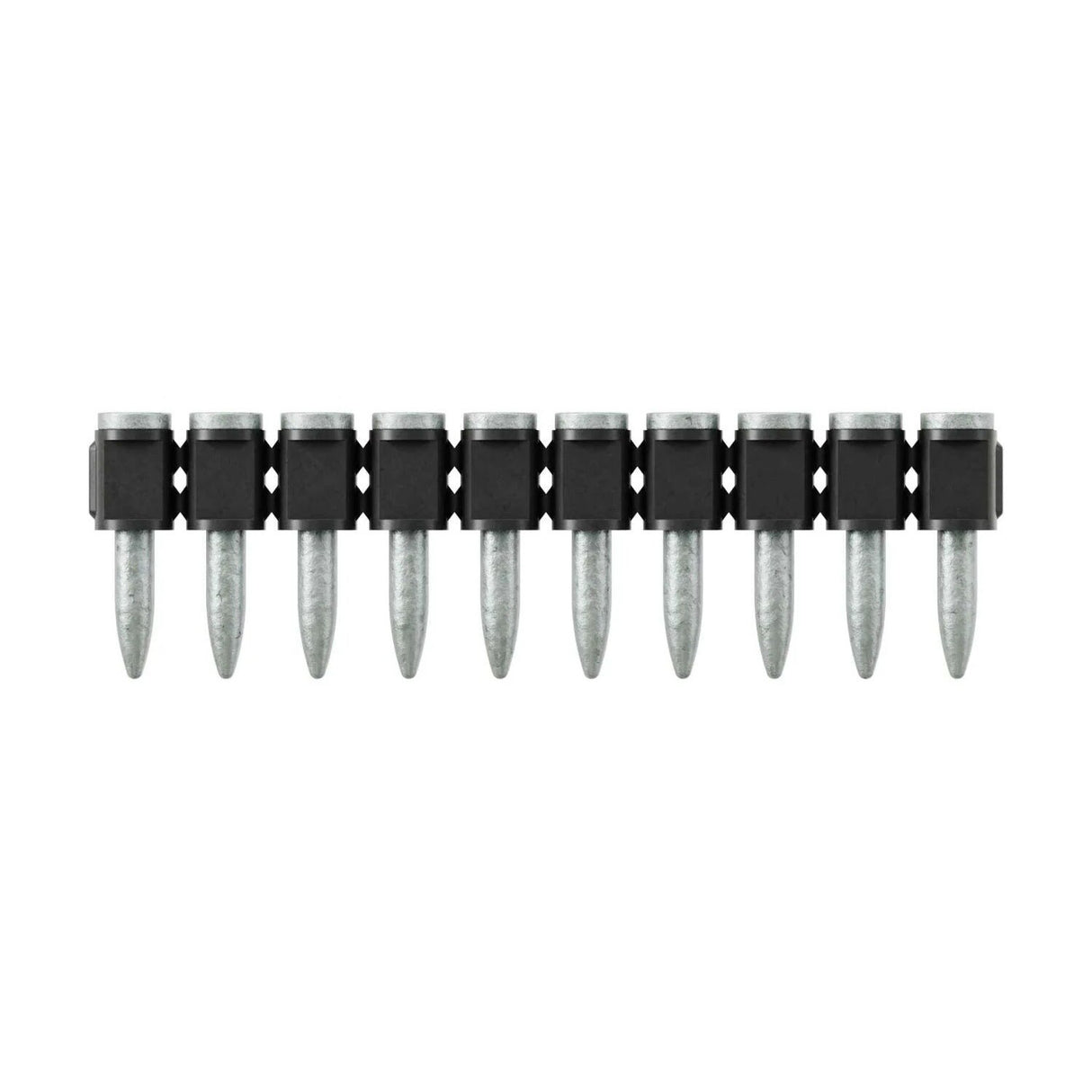

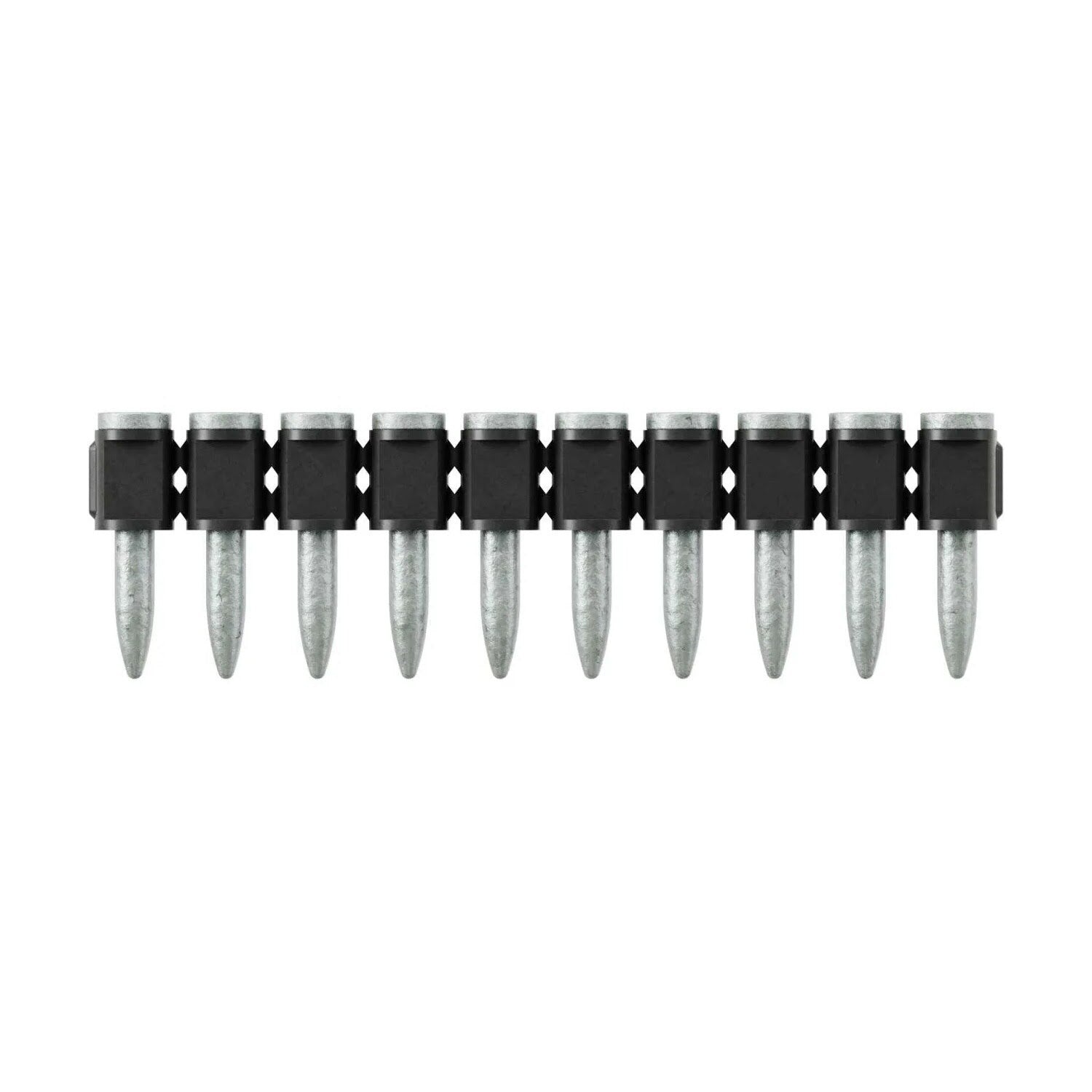

Powder-driven collated pins designed for fastening to structural steel, featuring mechanical galvanization for enhanced durability.
Simpson Anchors PDPAS-100 Includes
- (100) Powder-Driven Collated Pins
Simpson Anchors PDPAS-100 Features
- Minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730 and LA RR25469
- Designed for use with many low-velocity magazine tools
Simpson Anchors PDPAS-100 Applications
- Fastening to structural steel
Simpson Anchors PDPAS-100 Specifications
| Length (in.) | 1 |
| Head Diameter (in.) | 0.3 |
| Shank Diameter (in.) | 0.157 |
| Pack Qty. | 100 |
| Carton Qty. | 1000 |
NOTE: Mechanically Galvanized = 6 microns plating-thickness pin. Mechanically Galvanized, Class 65 = 66 microns plating-thickness pin.
Toolup Part # :
825557
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
