Simpson Strong-Tie PDPAS-150 Description

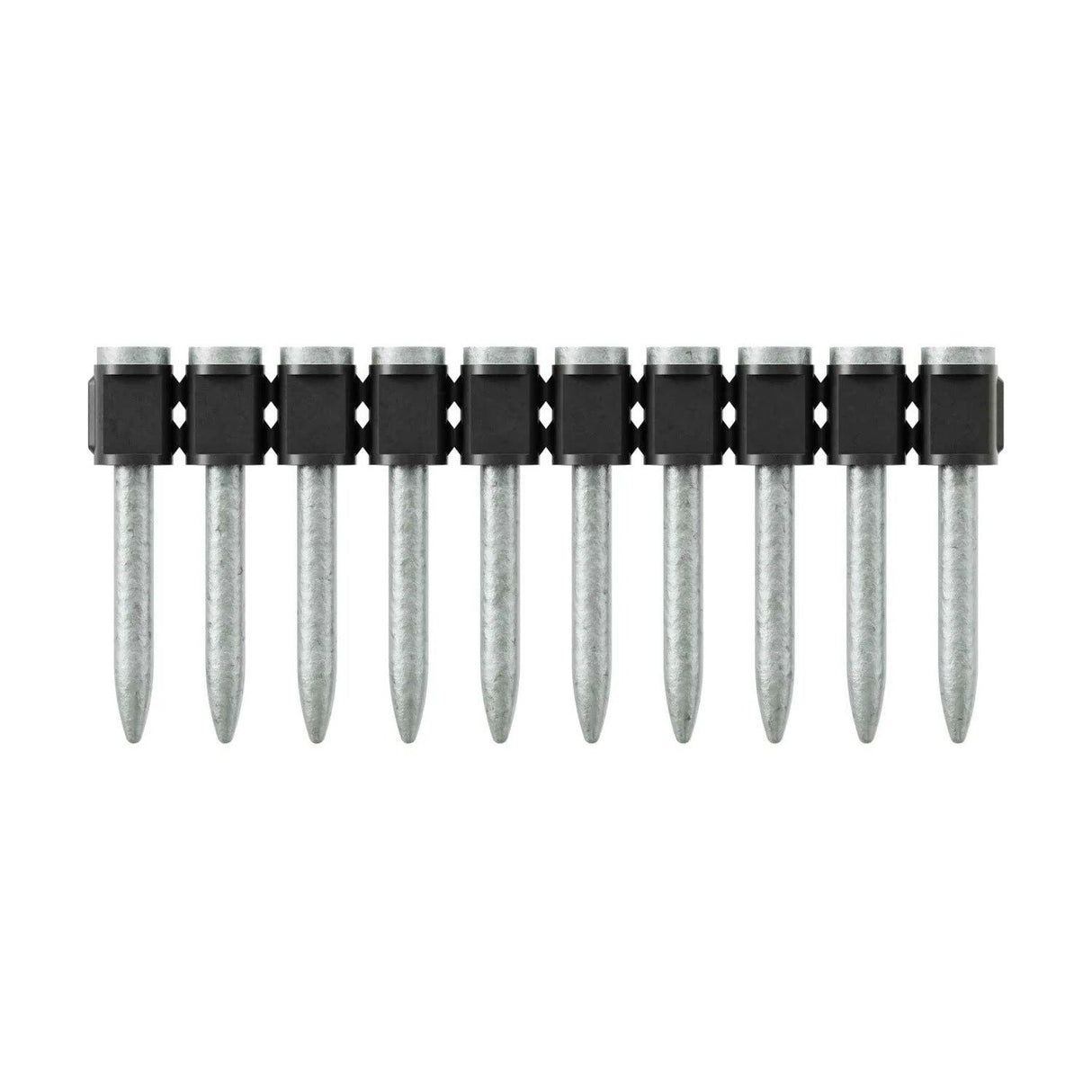

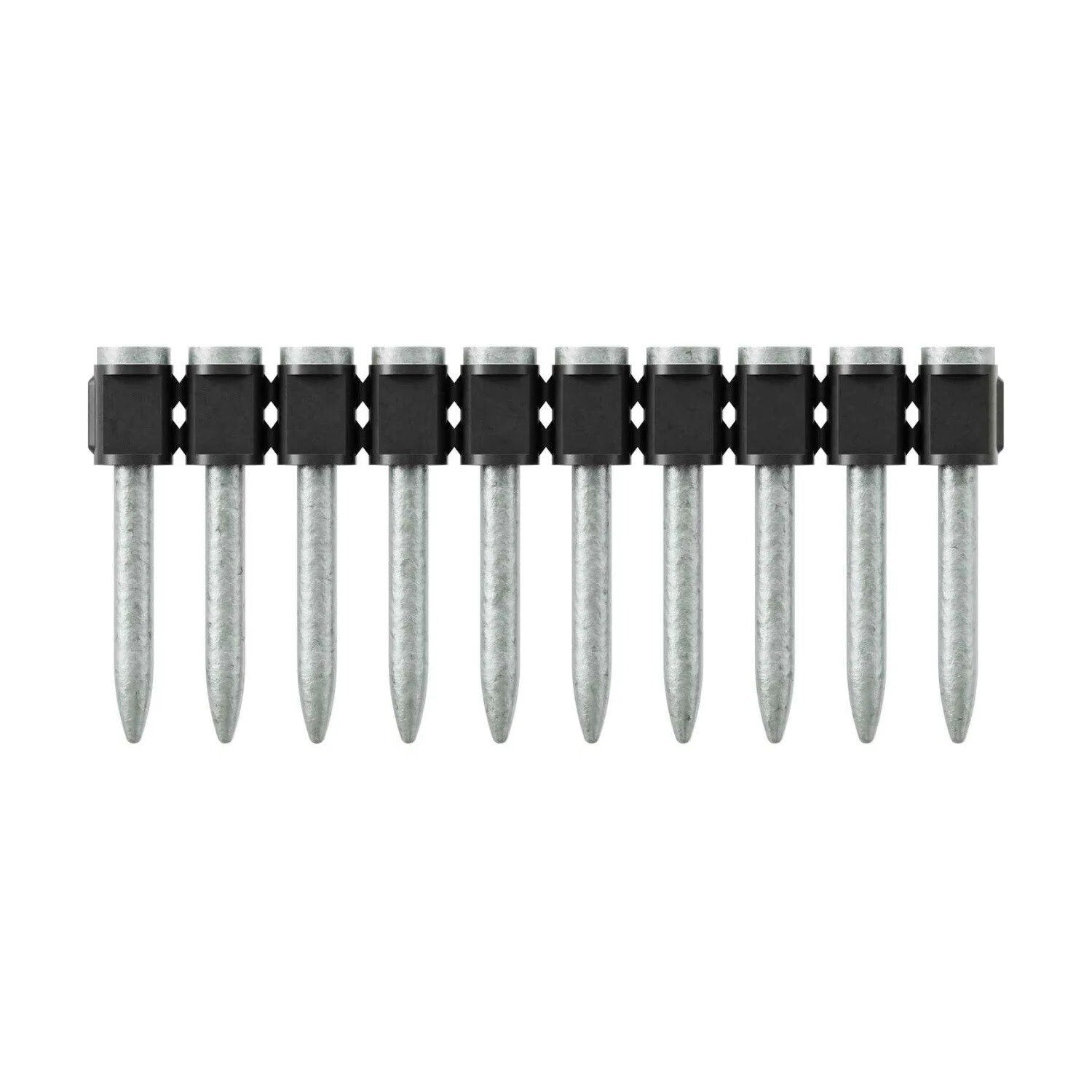

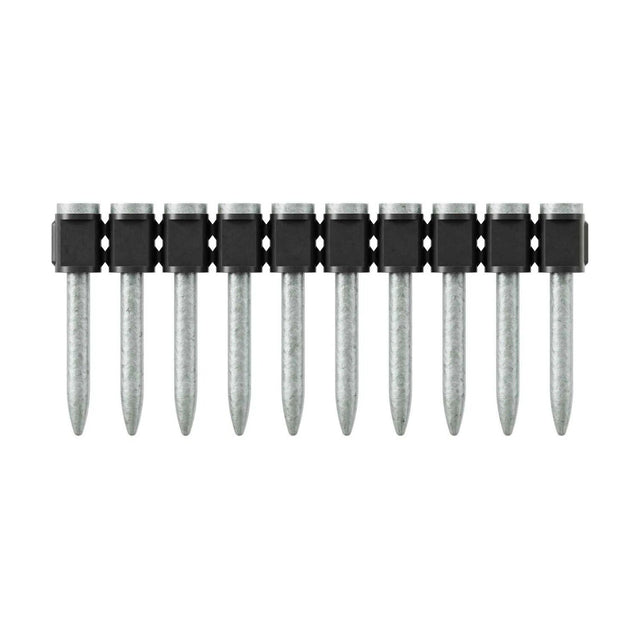

The Simpson PDPAS-150 is a 10-pin collation of hardened-steel PDPA pin designed to fasten building components to concrete, steel, and CMU. It features a 0.300"-diameter head and 0.157"-diameter shank, providing quick installation and maximum efficiency on the jobsite.
Simpson Strong-Tie PDPAS-150 Includes
- (100) Powder-Driven Collated Pins
Simpson Strong-Tie PDPAS-150 Features
- Minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730, and LA RR25469
- Designed for use with many low-velocity magazine tools
Simpson Strong-Tie PDPAS-150 Applications
- Fastening building components to concrete, steel, and CMU
Simpson Strong-Tie PDPAS-150 Specifications
| Length | 1-1/2 in. |
| Head Diameter | 0.300 in. |
| Shank Diameter | 0.157 in. |
| Finish | Mechanically Galvanized |
| Material | Carbon Steel |
| Quantity | 100 |
