Simpson Strong-Tie PDPAS-50K Description

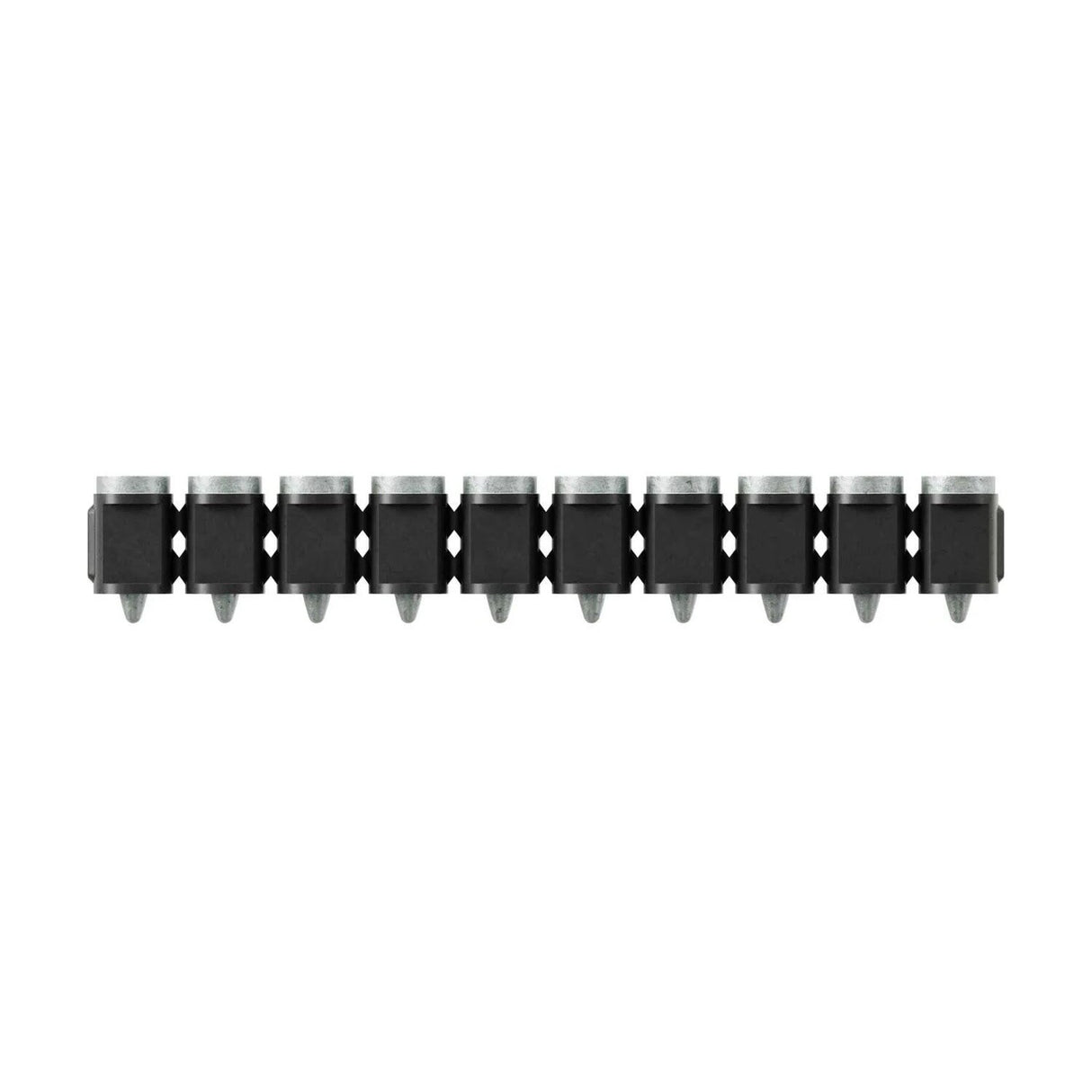

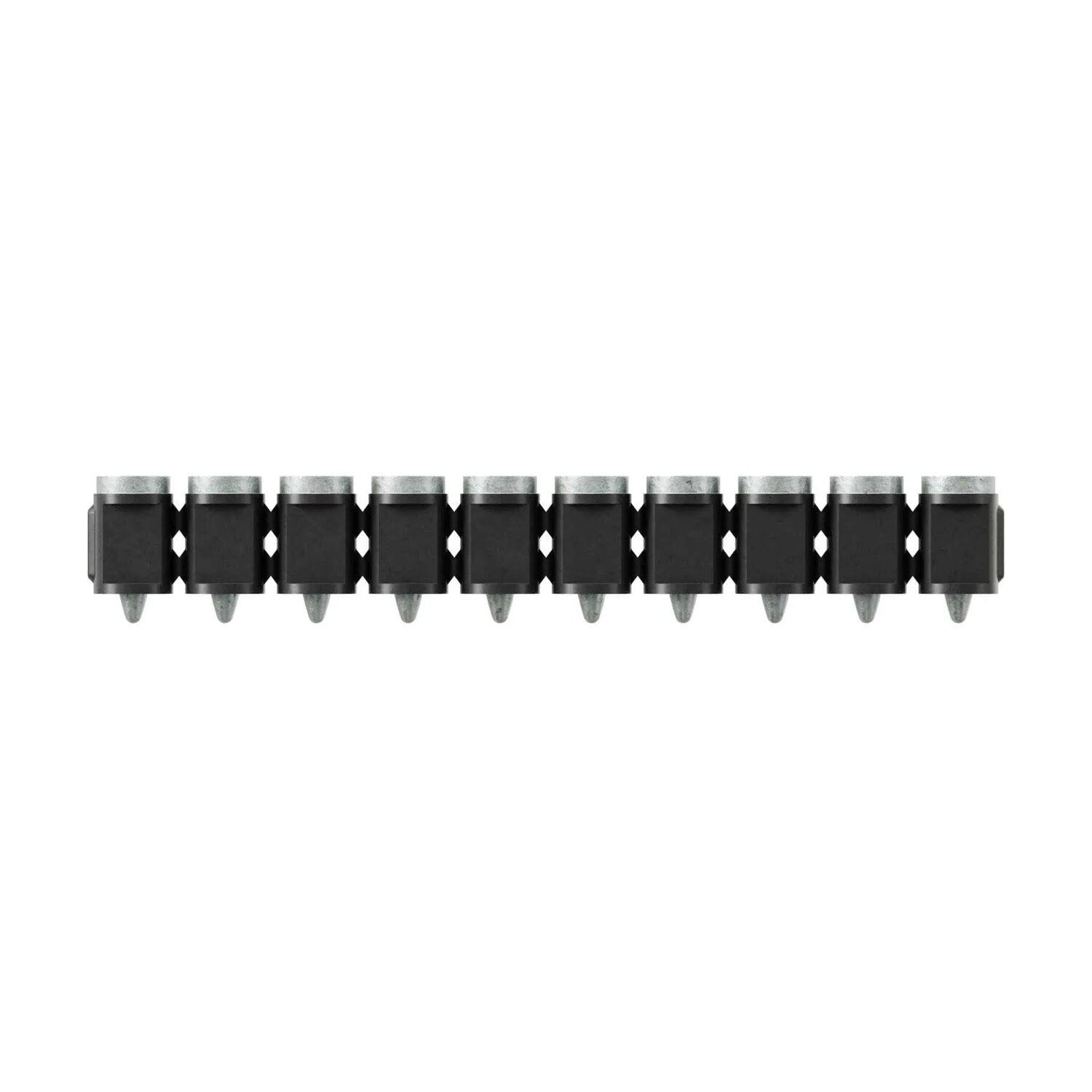

The Simpson PDPAS-50K is a 10-pin collation of hardened-steel PDPA pin designed to fasten building components to concrete, steel, and CMU. It features a 0.300"-diameter head and 0.157"-diameter shank, providing quick installation and maximum efficiency on the jobsite.
Simpson Strong-Tie PDPAS-50K Includes
- (100) 1/2" Knurled Powder-Driven Collated Pins
Simpson Strong-Tie PDPAS-50K Features
- Minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730, and LA RR25469
- Designed for use with many low-velocity magazine tools
Simpson Strong-Tie PDPAS-50K Applications
- Fastening building components to concrete, steel, and CMU
Simpson Strong-Tie PDPAS-50K Specifications
| Diameter | 0.157" |
| Finish | Mechanically Galvanized |
| Length | 1/2" |
| Material | Carbon Steel |
| Quantity | 100 |
| Head Diameter | 0.300" |
| Shank Diameter | 0.157" |
Toolup Part # :
687261
