Simpson Strong-Tie PDPAS-75 Description

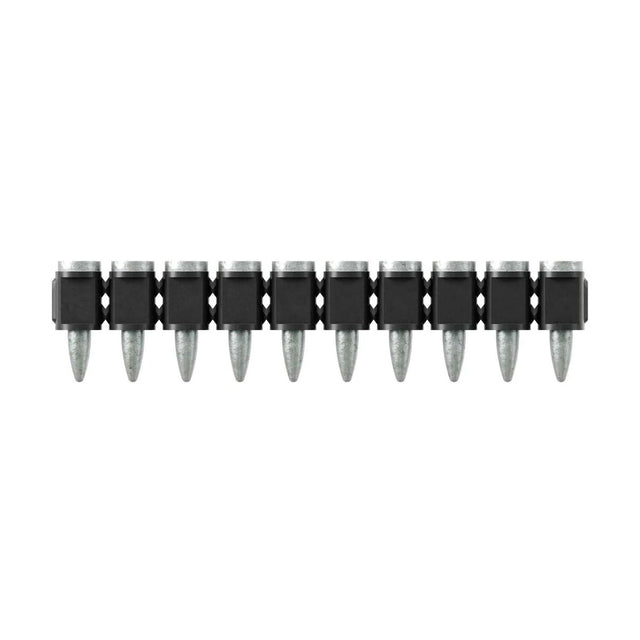

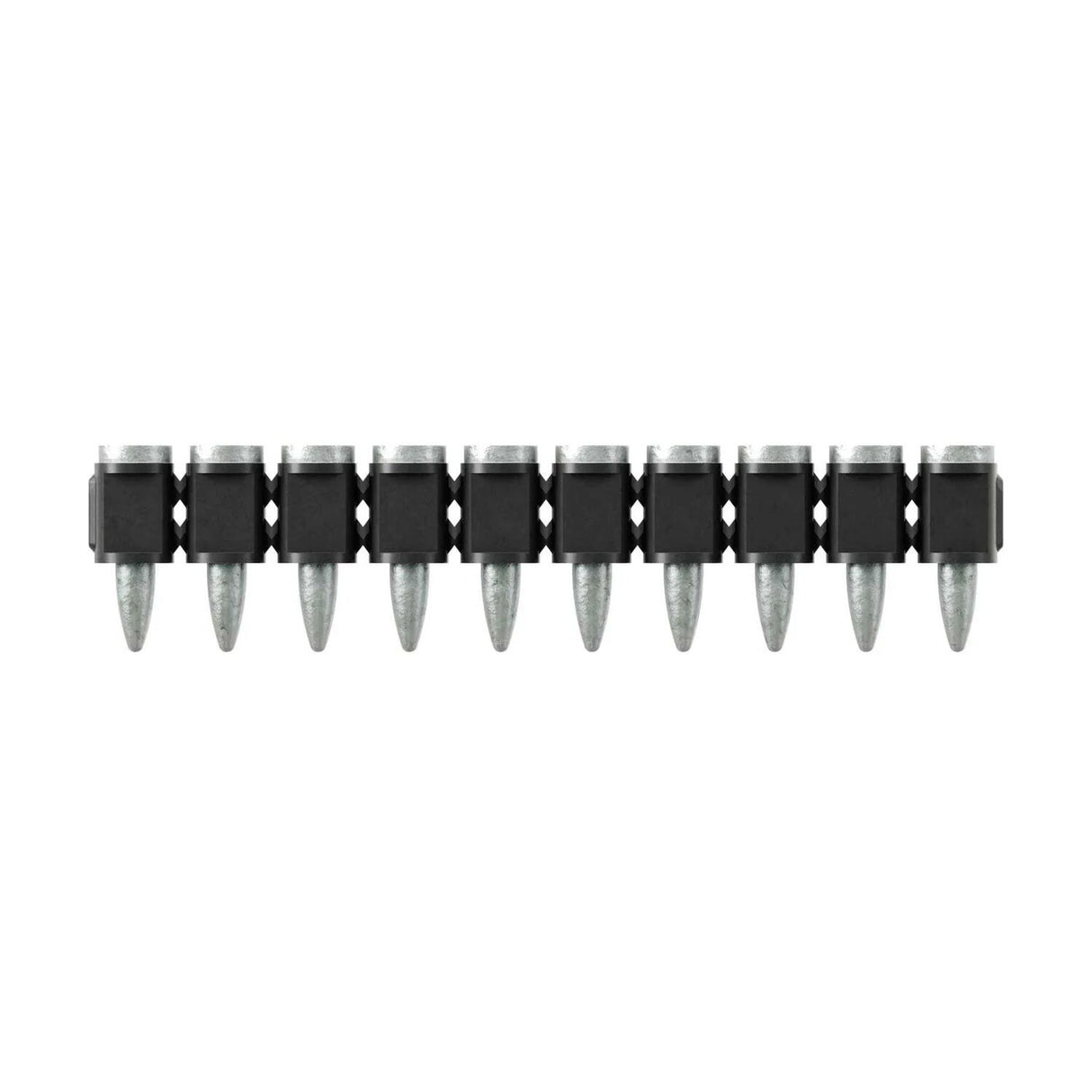

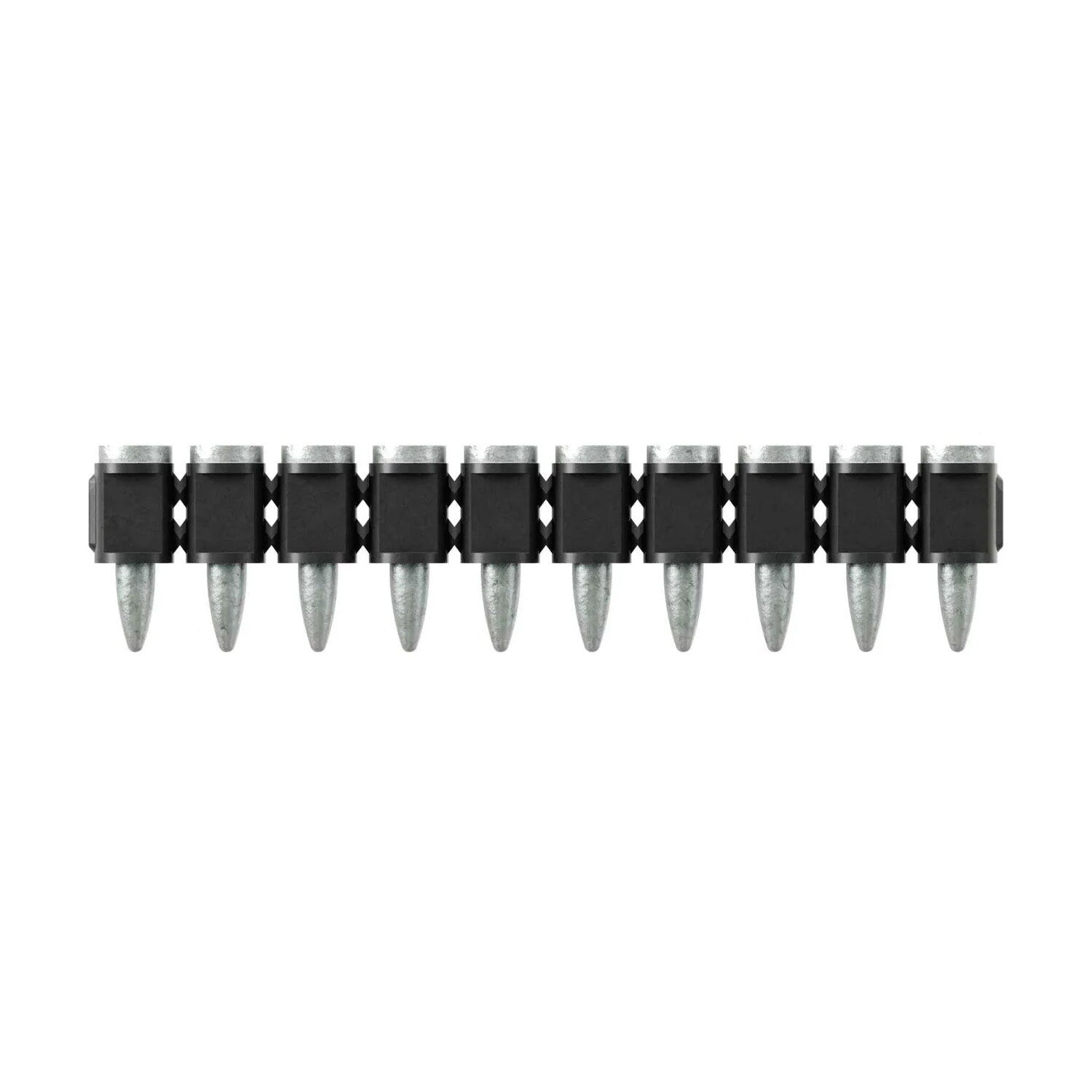

The Simpson PDPAS-75 is a 10-pin collation of hardened-steel PDPA pins designed to fasten building components to concrete, steel, and CMU. These pins provide maximum efficiency on the jobsite with quick installation.
Simpson Strong-Tie PDPAS-75 Includes
- (100) Powder-Driven Collated Pins
Simpson Strong-Tie PDPAS-75 Features
- Minimum effective shank length must equal or exceed the sum of the thickness of the attached material and the minimum embedment depth
- Code listed per ICC-ES ESR-2138, Florida FL15730, and LA RR25469
- Designed for use with many low-velocity magazine tools
Simpson Strong-Tie PDPAS-75 Applications
- Fastening building components to concrete, steel, and CMU
- Efficient installation in construction projects
Simpson Strong-Tie PDPAS-75 Specifications
| Diameter | 0.157" |
| Finish | Mechanically Galvanized |
| Length | 3/4" |
| Material | Carbon Steel |
| Head diameter | 0.300" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 100 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
