Simpson PDPAWL-150 Description

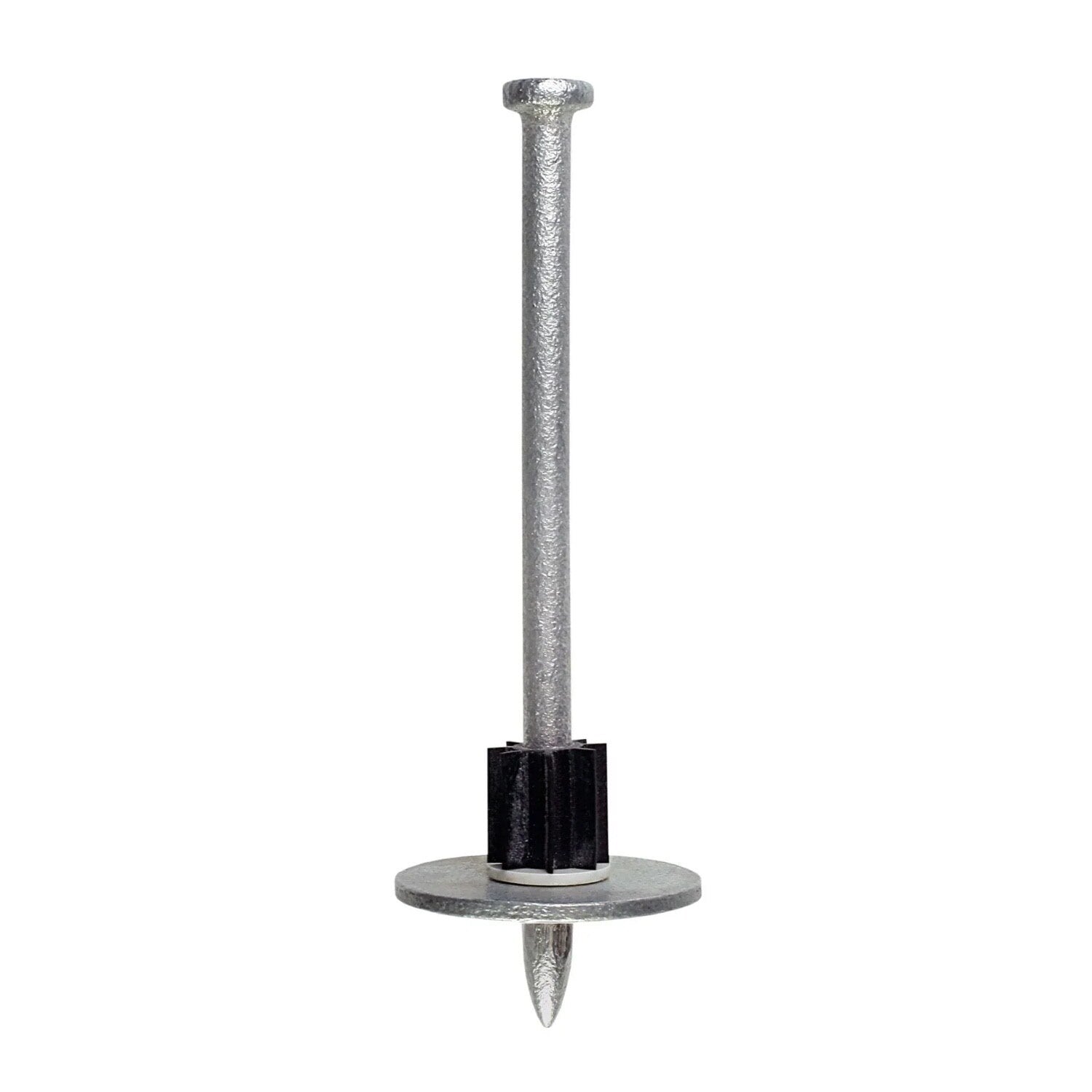

The PDPAWL-150 is a powder-actuated pin with washer designed for fastening building components to concrete, steel, and CMU. It features a hardened-steel pin preassembled with a washer for enhanced upload resistance.
Simpson PDPAWL-150 Includes

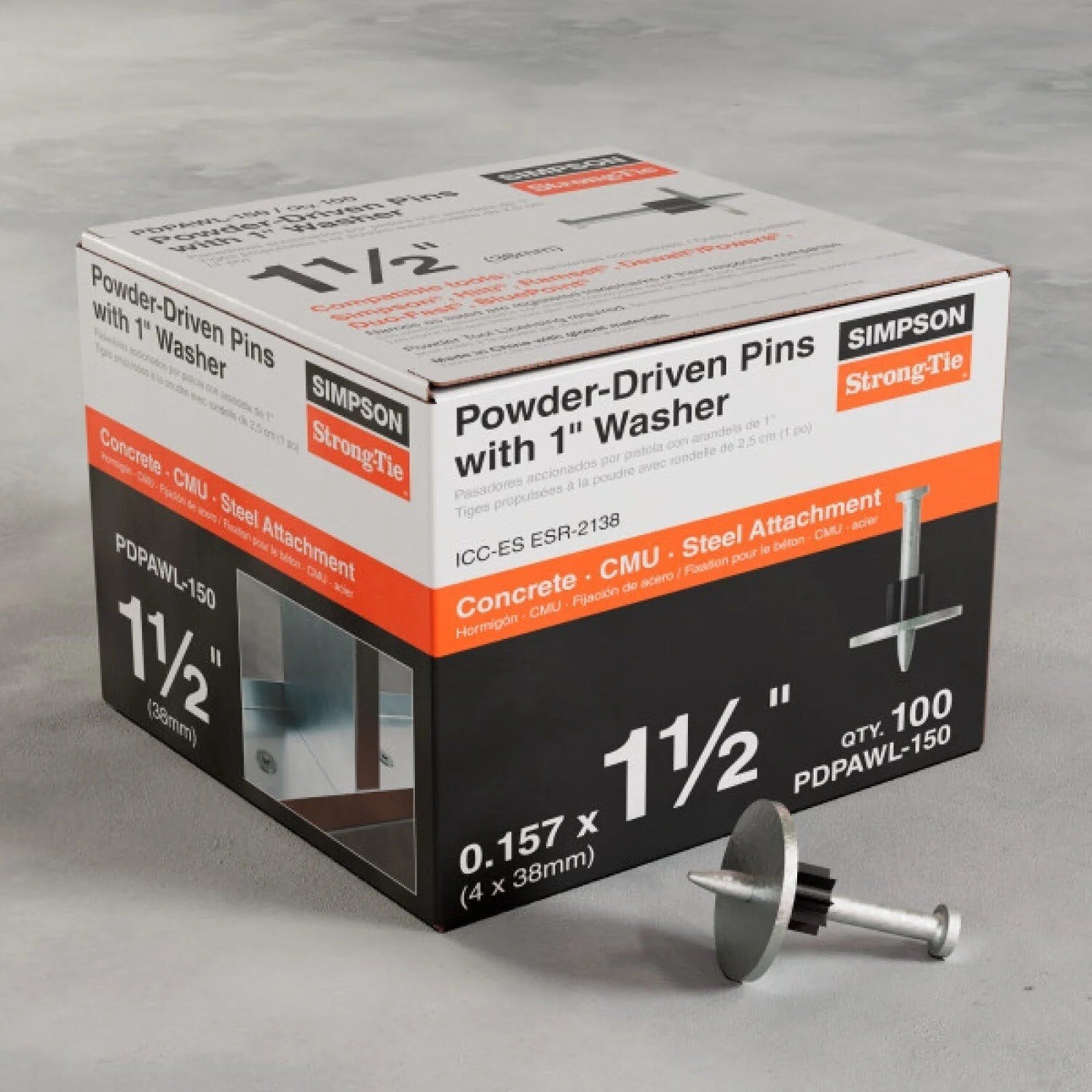

- (100) Powder-Actuated Pin with Washer
Simpson PDPAWL-150 Features
- Powder-actuated fastening system
- Preassembled with 1" washer for enhanced upload resistance
- Designed for use with Simpson Strong-Tie powder-actuated tool systems
- Compatible with other common tools
- Mechanically galvanized for corrosion protection
Simpson PDPAWL-150 Applications

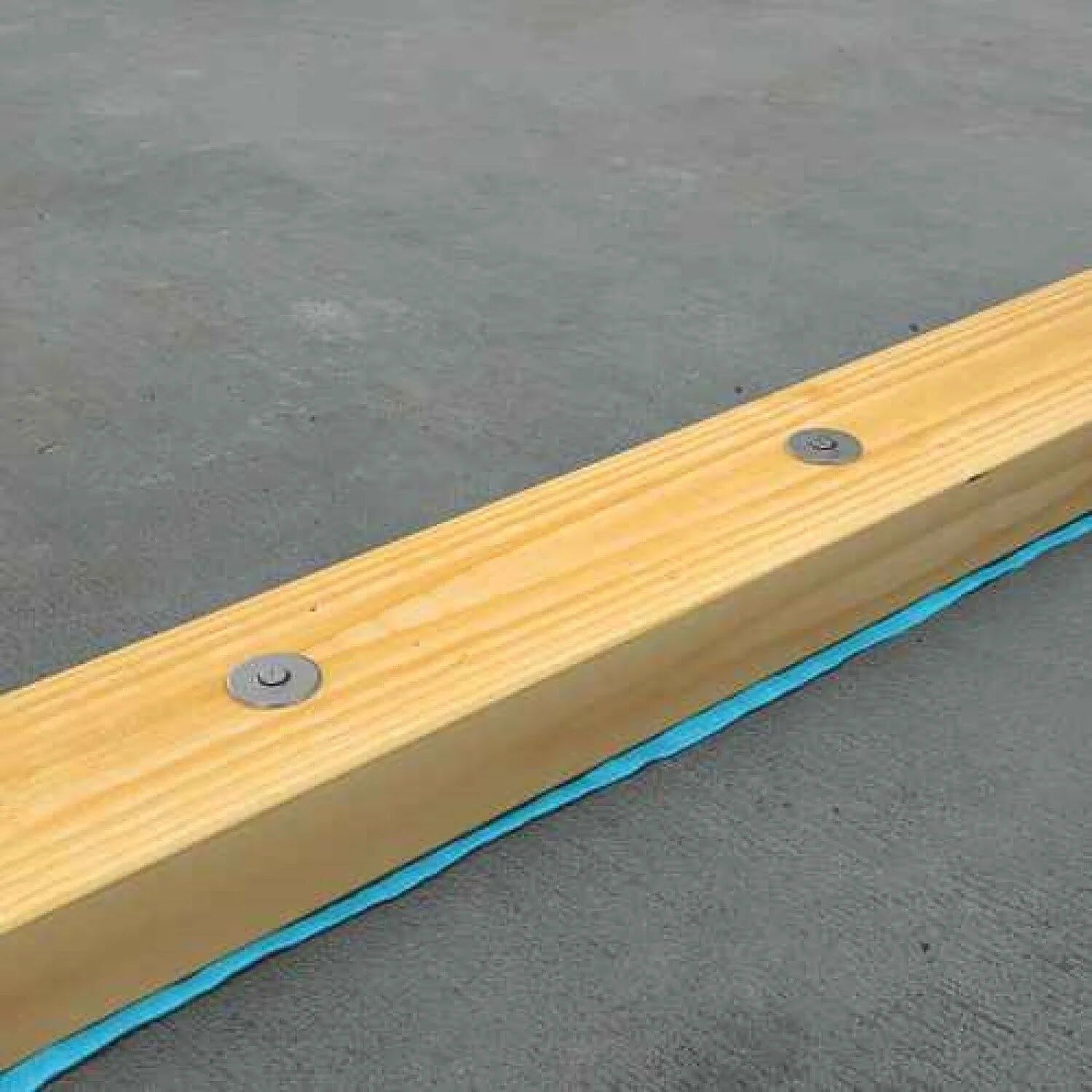

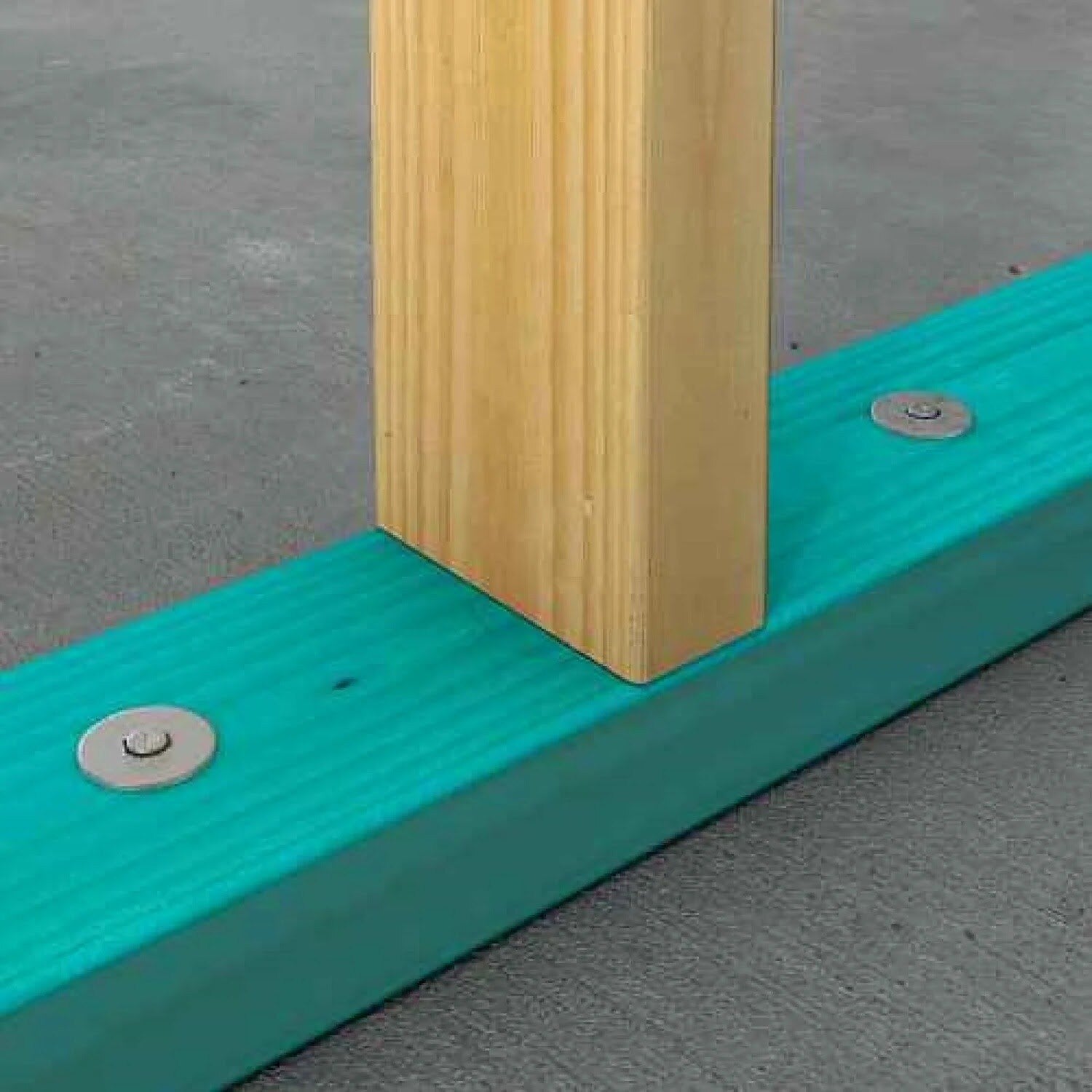

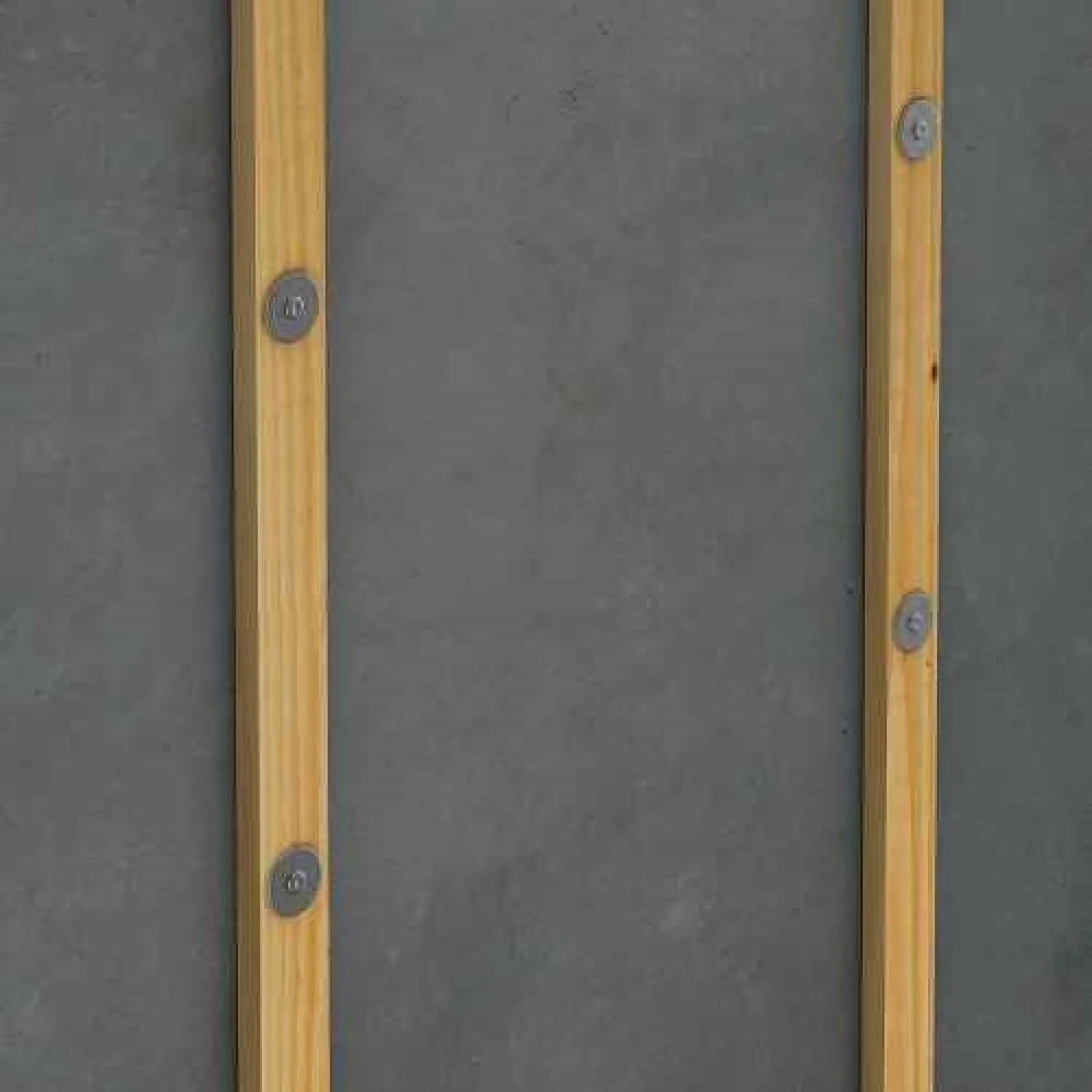

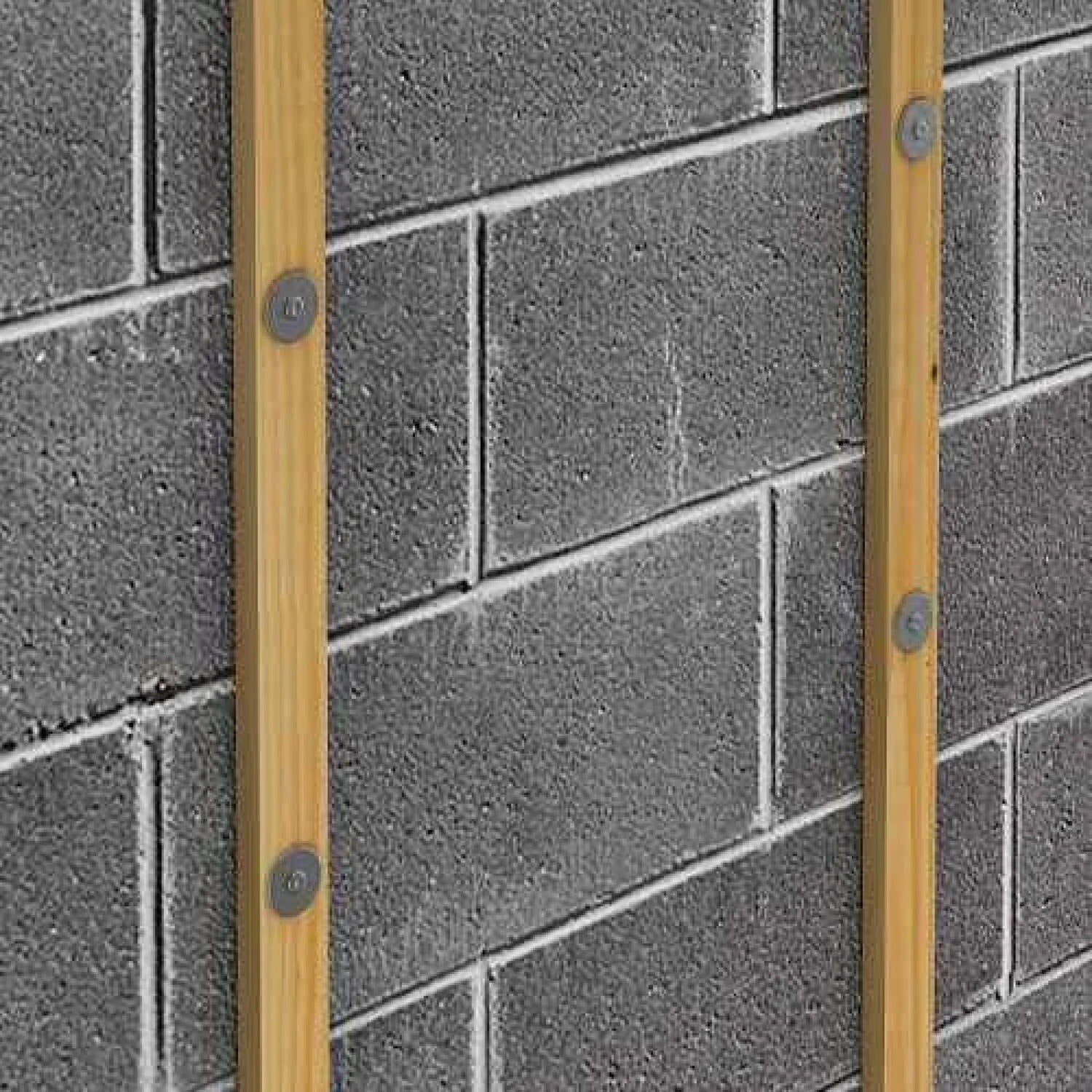

- Fastening building components to concrete, steel, and CMU

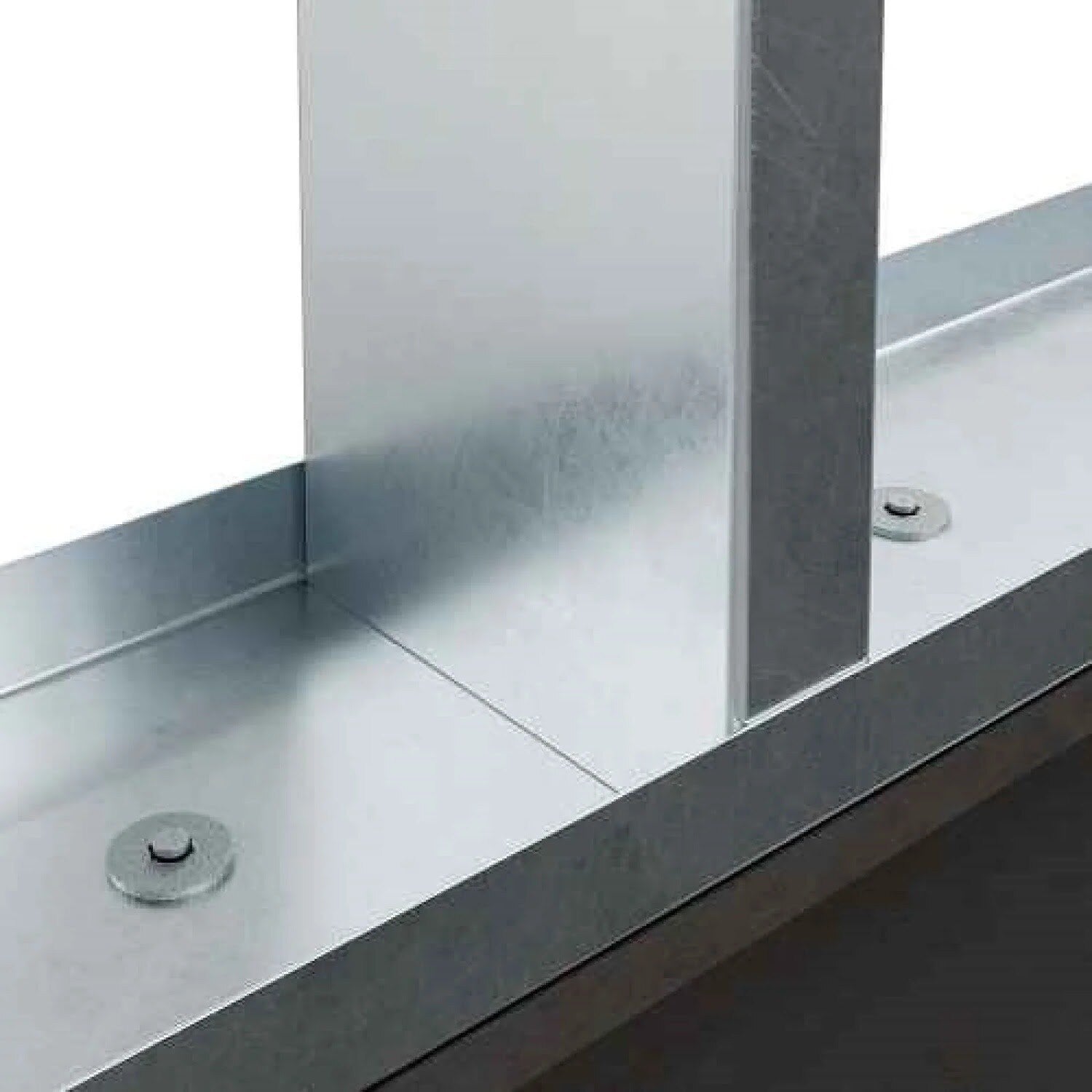

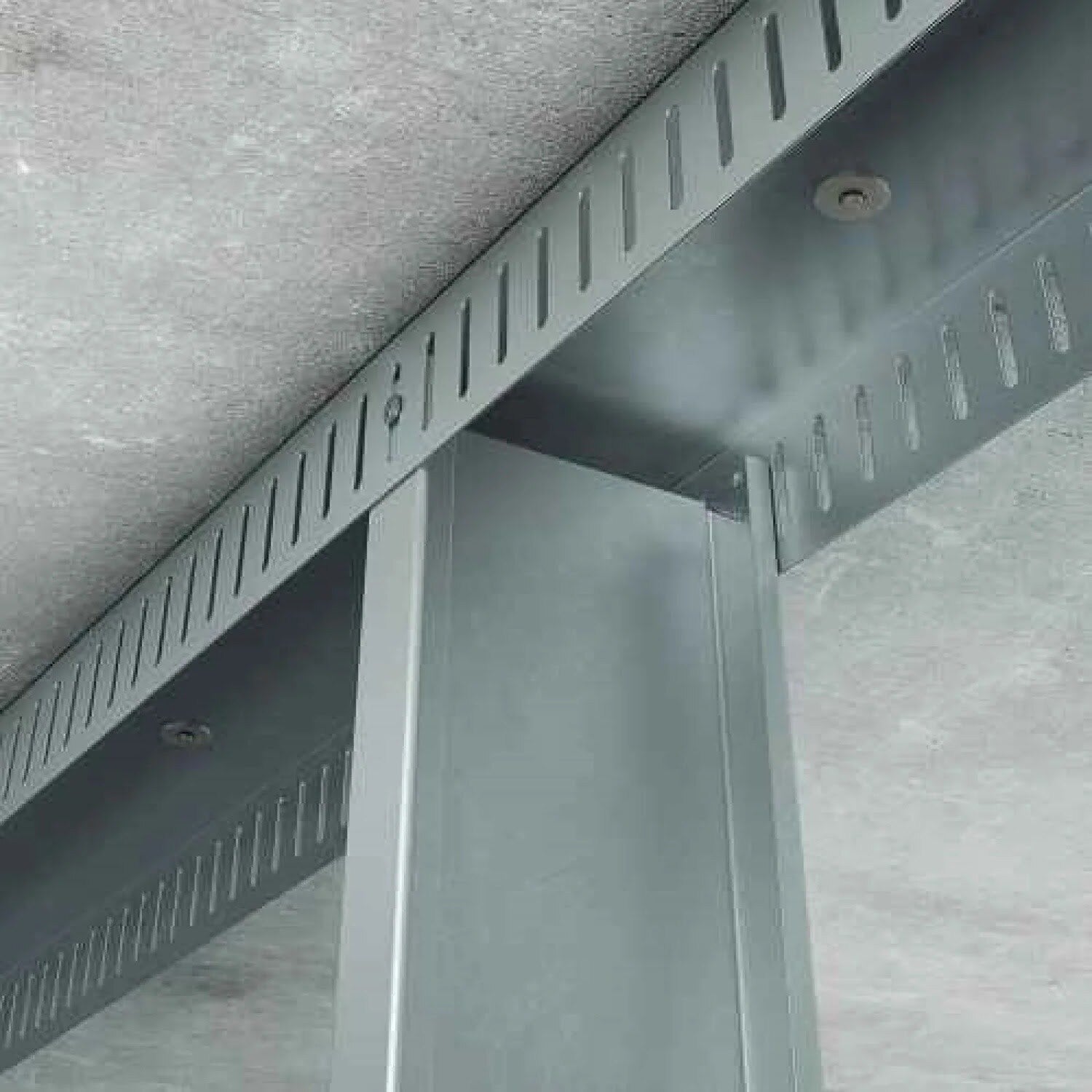

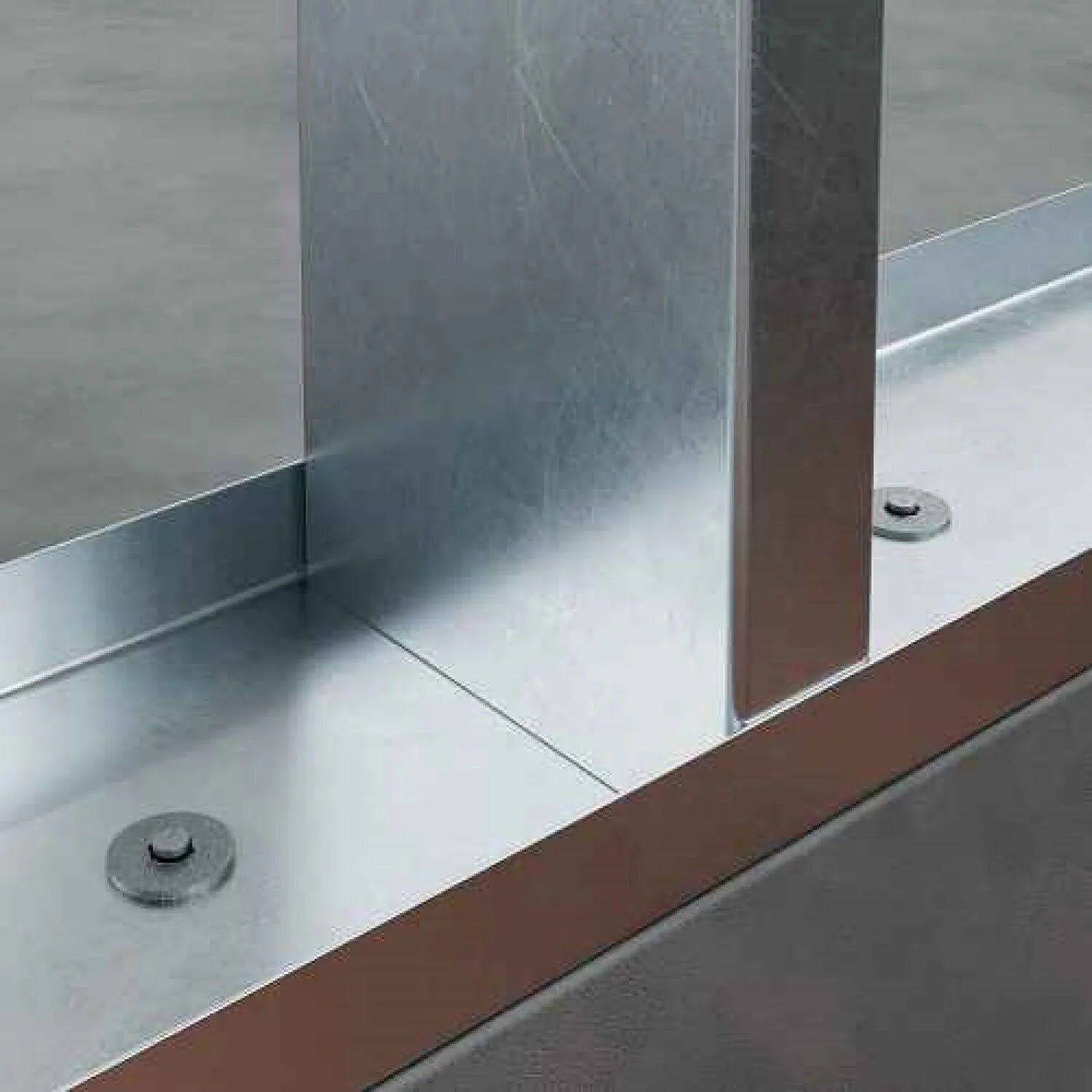

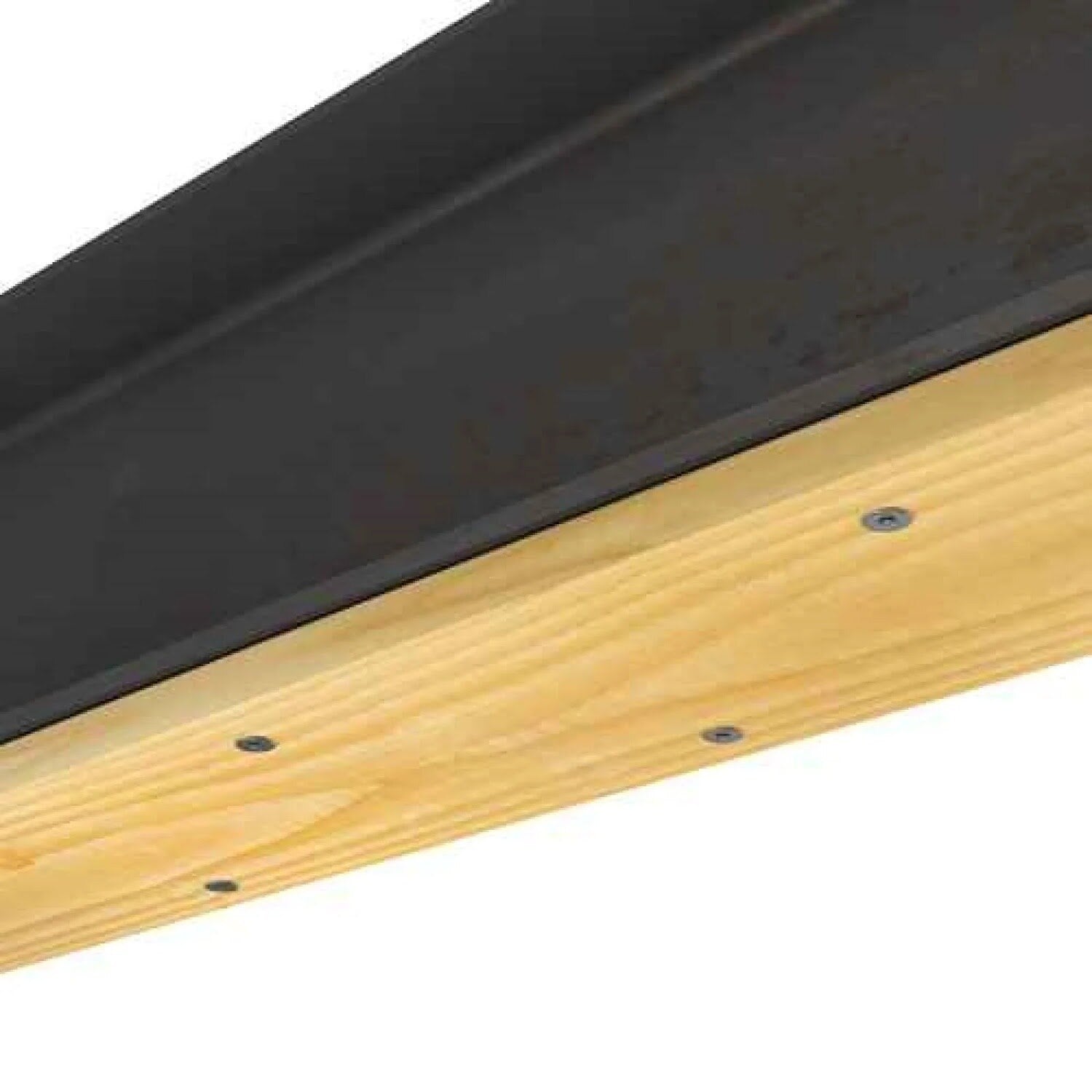

- Structural steel fastening
- General construction fastening
Simpson PDPAWL-150 Installation Overview
- Verify the dimensions and alignment of the components to be fastened.
- Position the pin and washer assembly at the desired fastening point.
- Use a compatible powder-actuated tool to drive the pin into the substrate.
- Ensure the pin is securely embedded and the washer is flush with the surface.
Simpson PDPAWL-150 Specifications
| Length | 1-1/2" |
| Diameter | 0.157" |
| Head Diameter | 0.300" |
| Finish | Mechanically Galvanized |
| Material | Carbon Steel |
| Packaging Quantity | 100 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
Toolup Part # :
825670
