Simpson PDPAWL-287MG Description

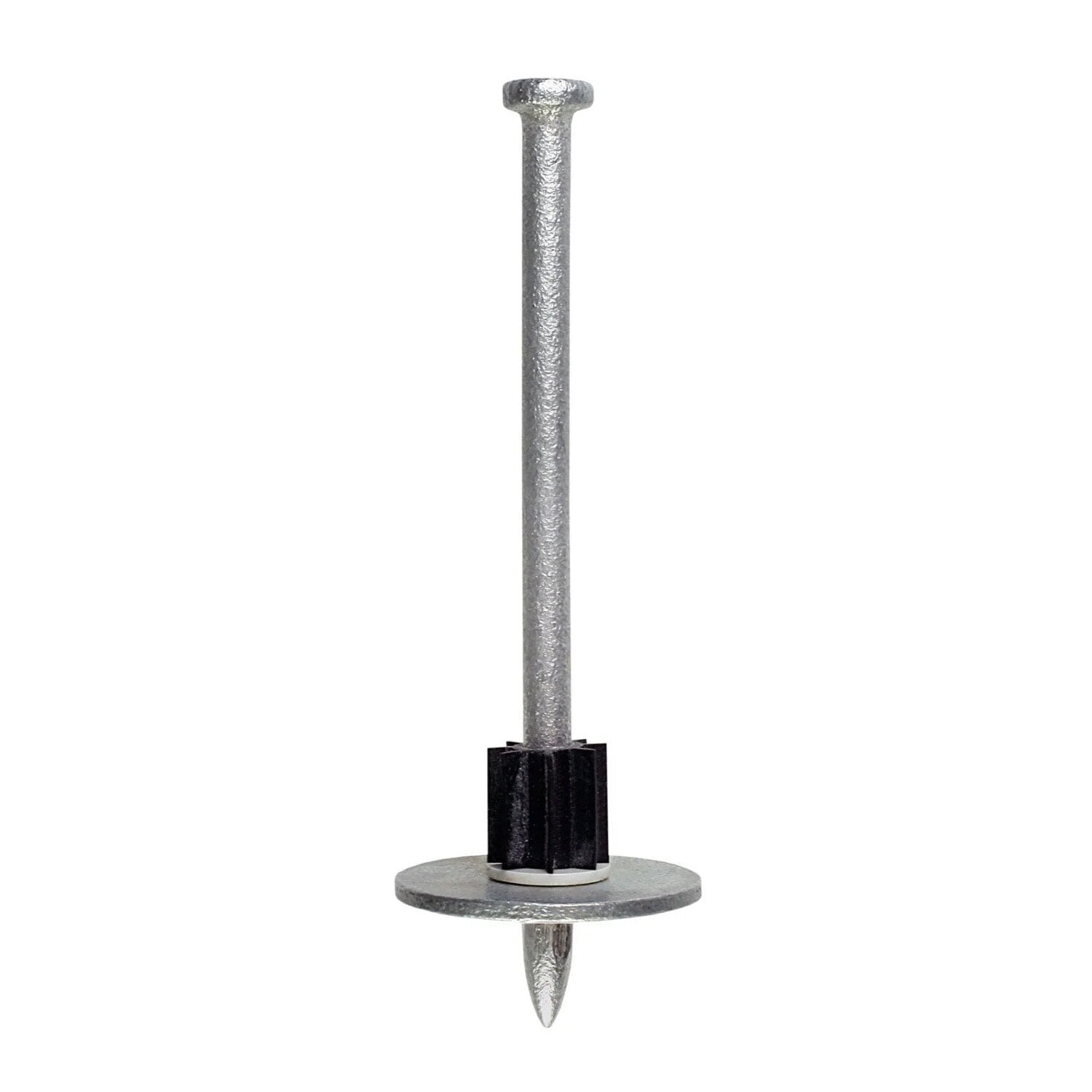

The PDPAWL-287MG is a powder-actuated washered pin designed to fasten building components to concrete, steel, and CMU. It features a hardened-steel PDPA pin preassembled with a 1" washer for enhanced upload resistance.
Simpson PDPAWL-287MG Includes

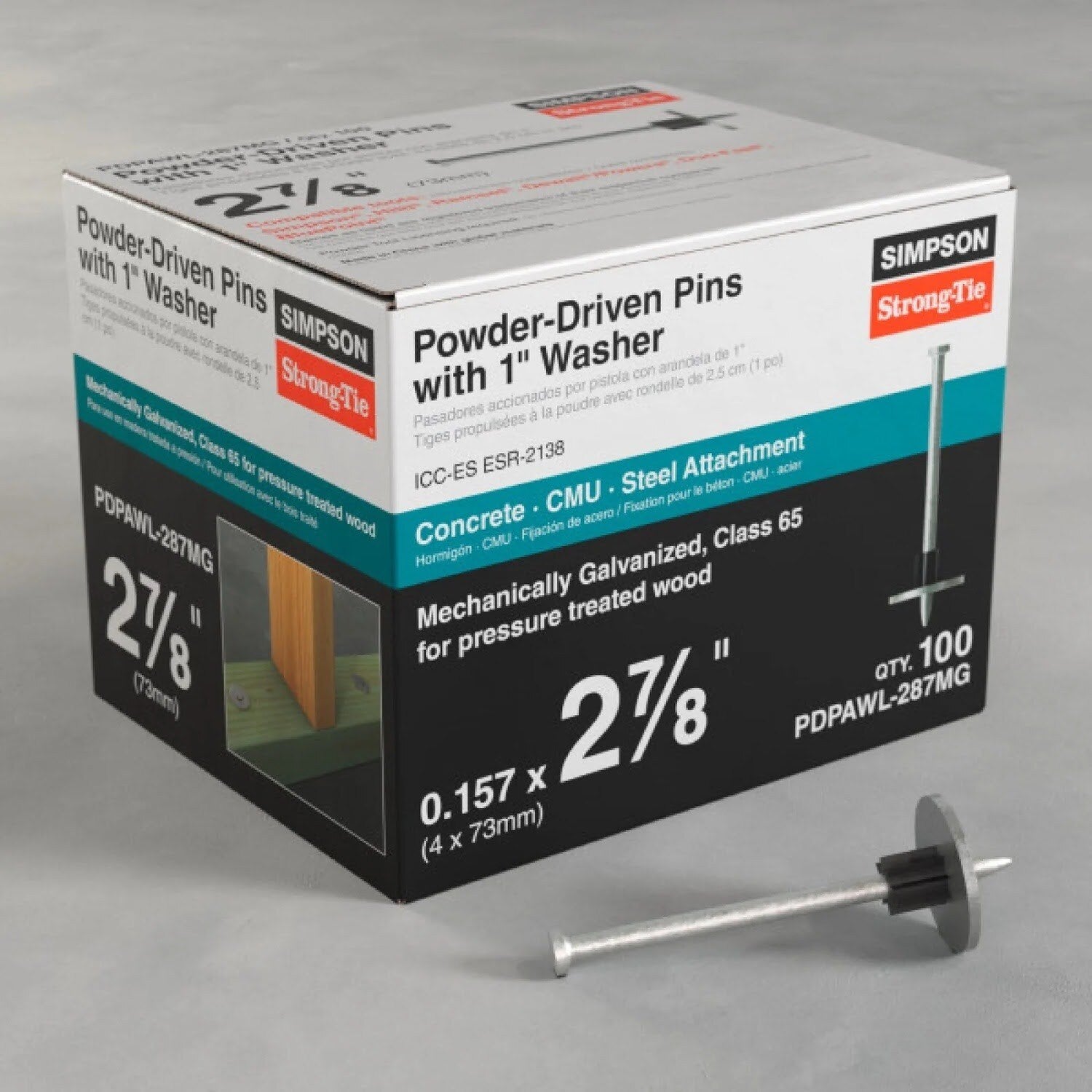

- (100) Powder-Actuated Pin with Washer
Simpson PDPAWL-287MG Features
- Mechanically galvanized for corrosion protection
- Preassembled with a 1" washer for enhanced upload resistance
- Designed for use with Simpson Strong-Tie powder-actuated tool systems
- Compatible with other common powder-actuated tools
- Code listed per ICC-ES ESR-2138, Florida FL15730, and LA RR25469
Simpson PDPAWL-287MG Applications

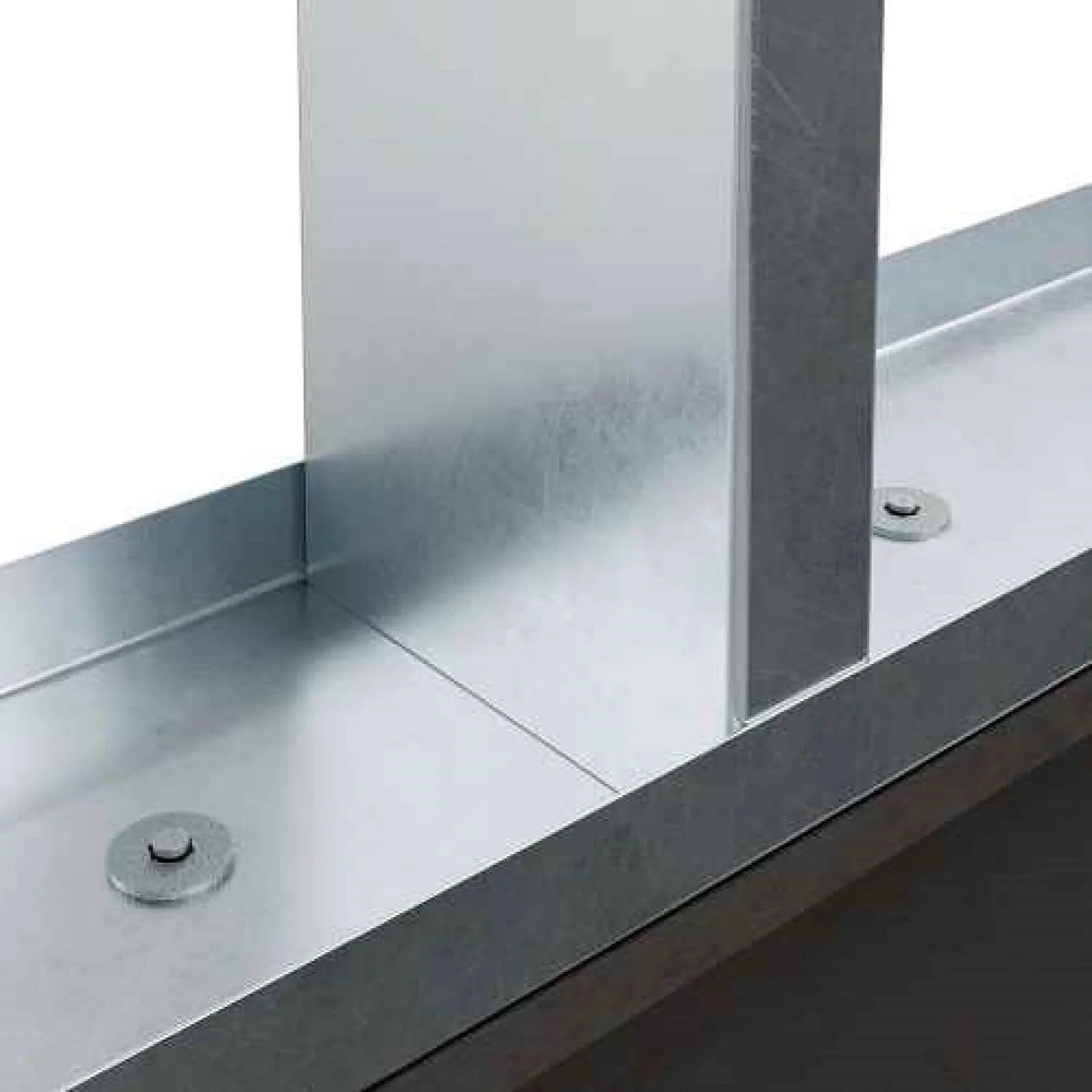

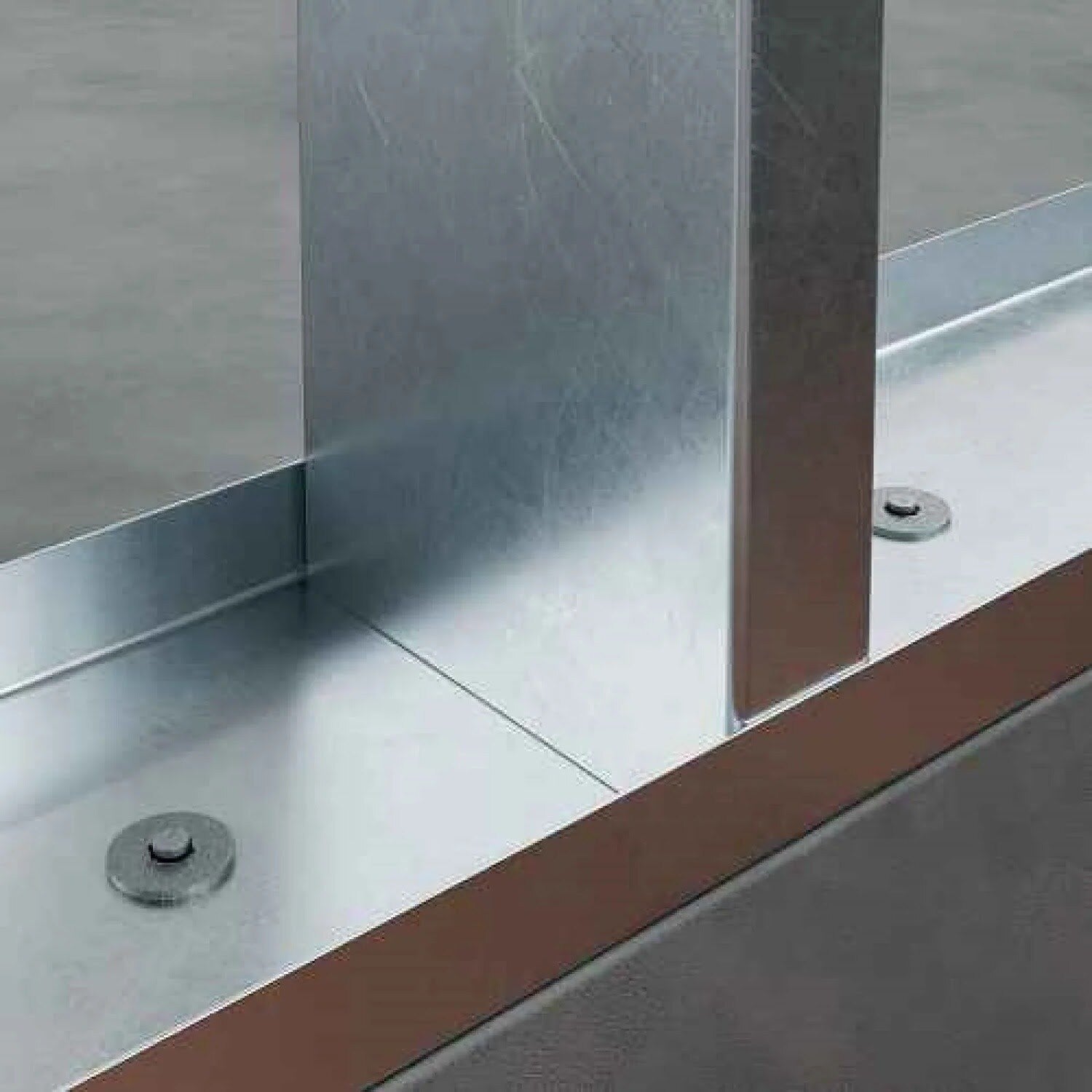

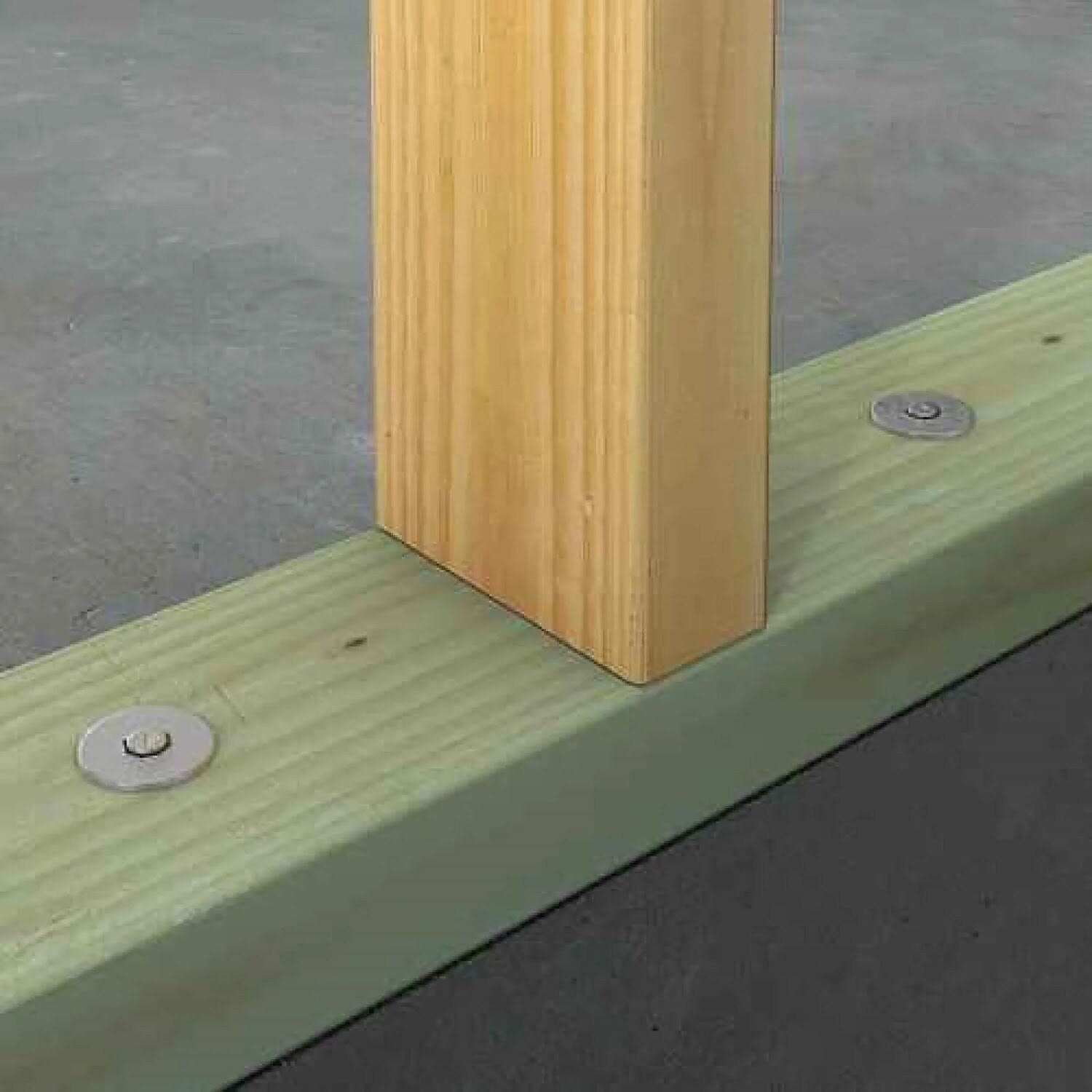

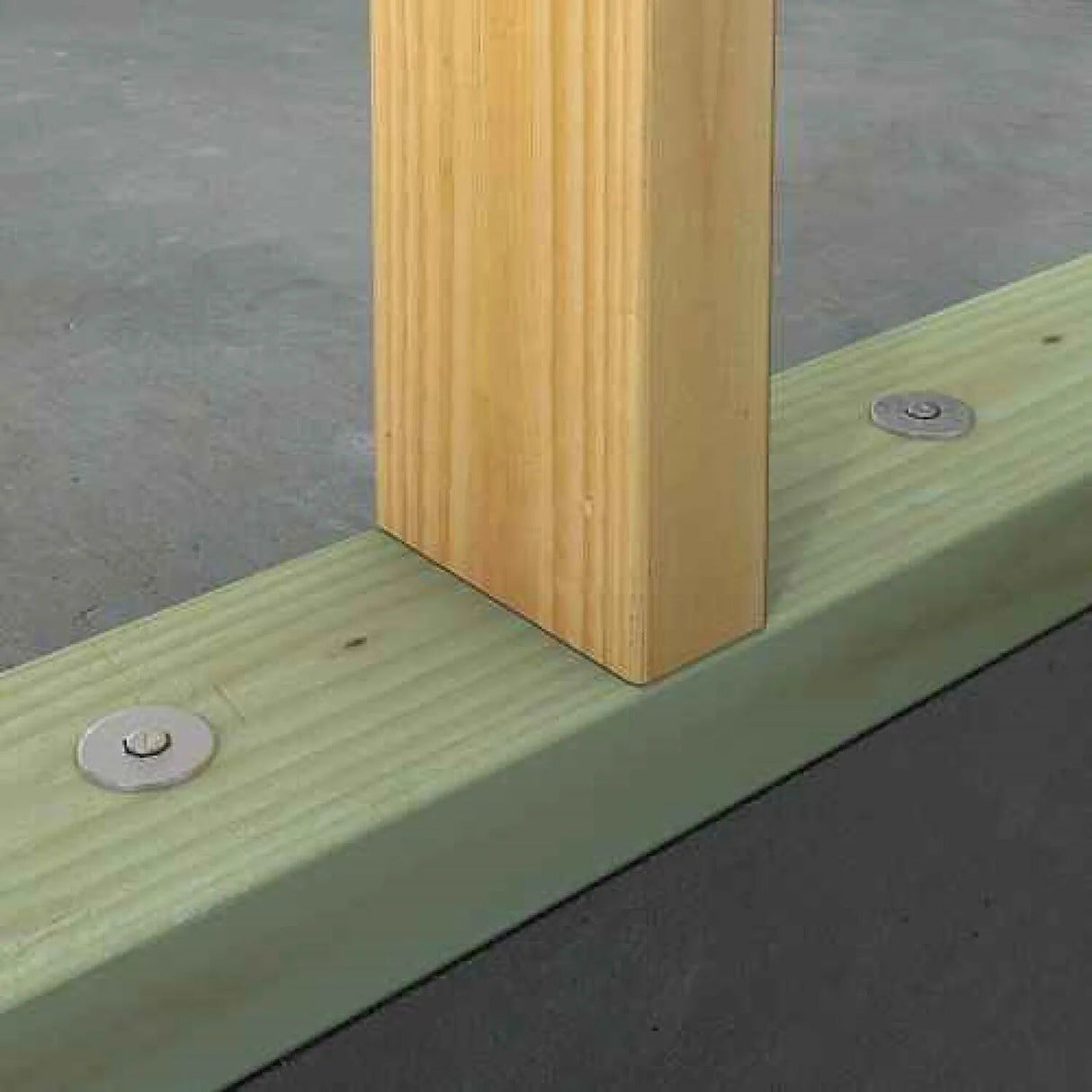

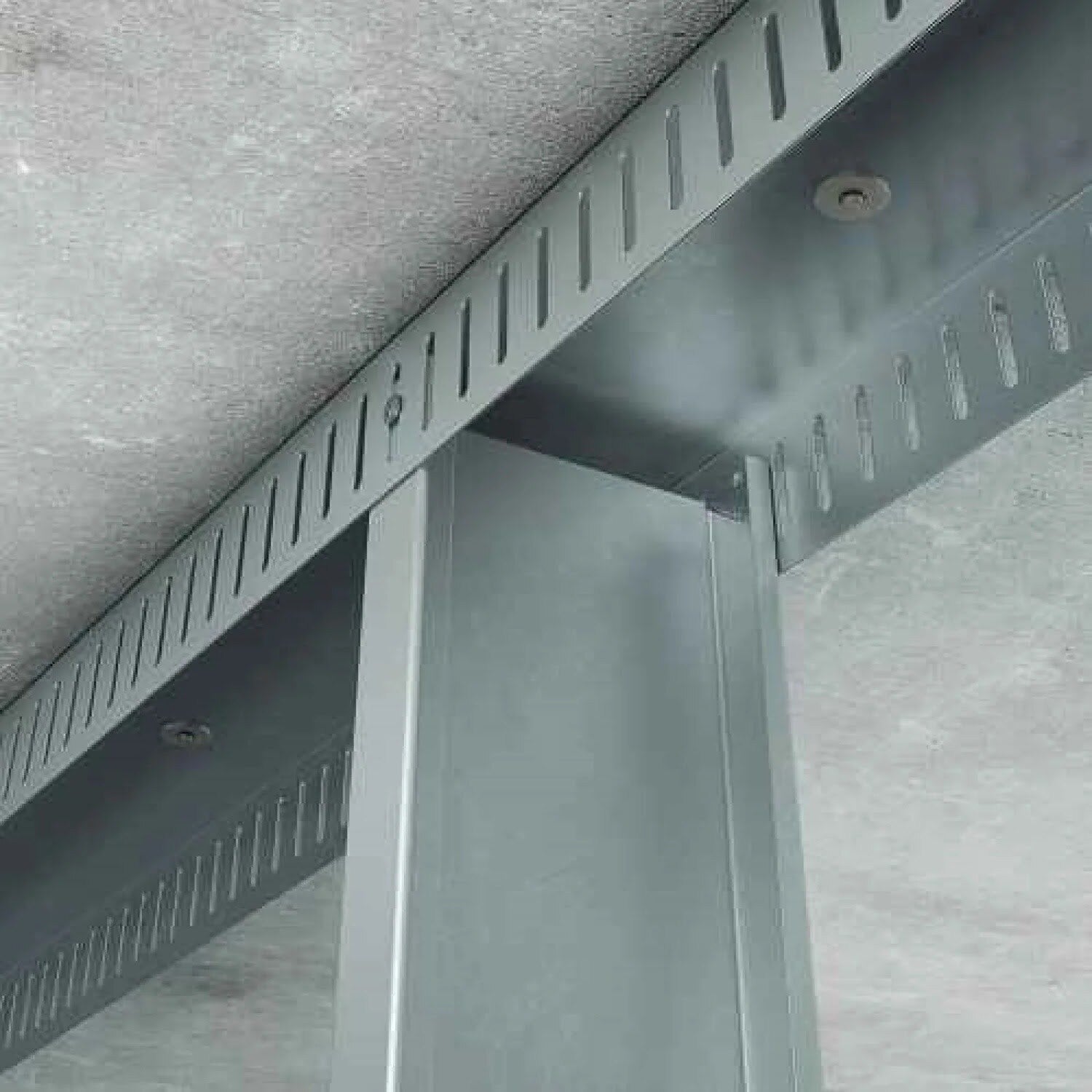

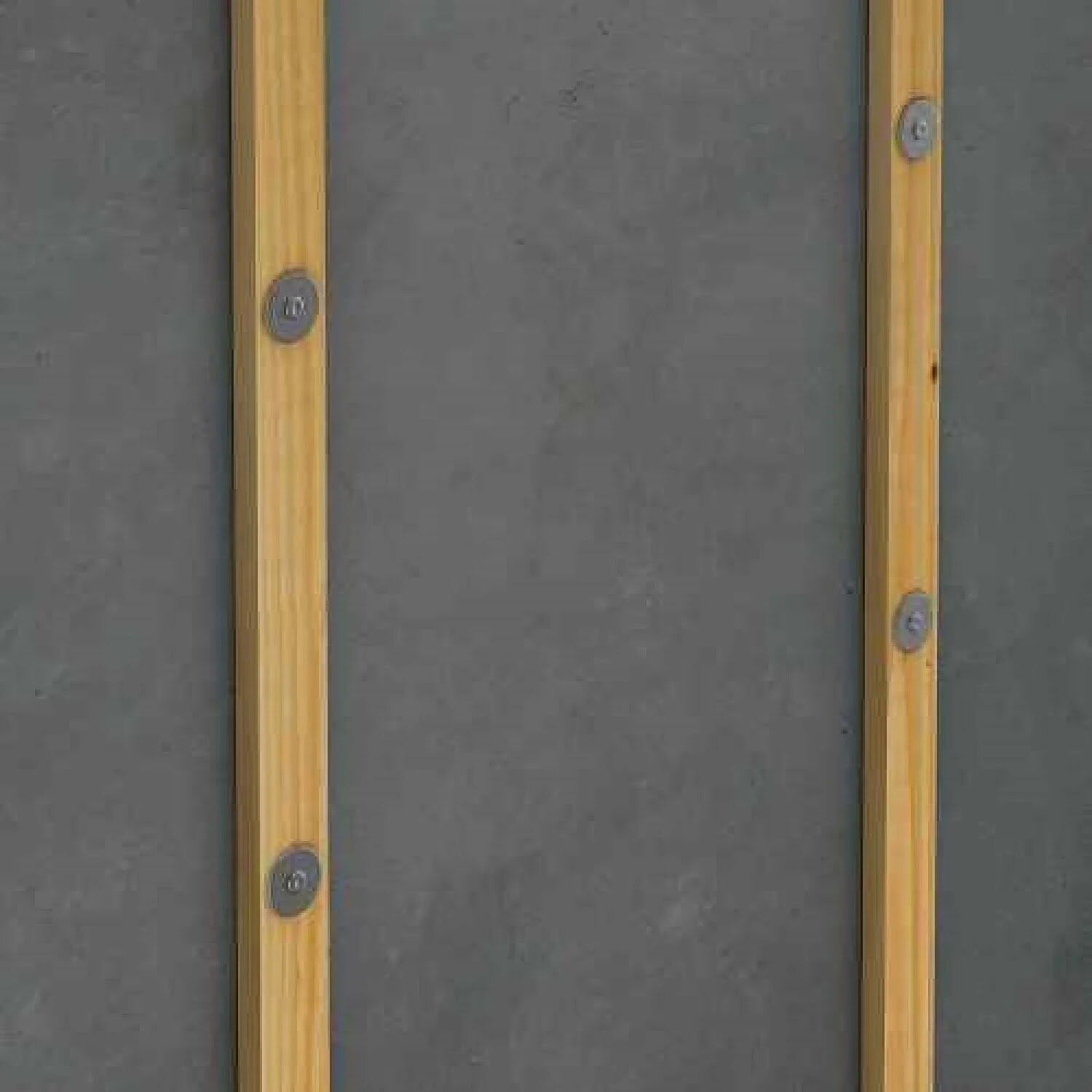

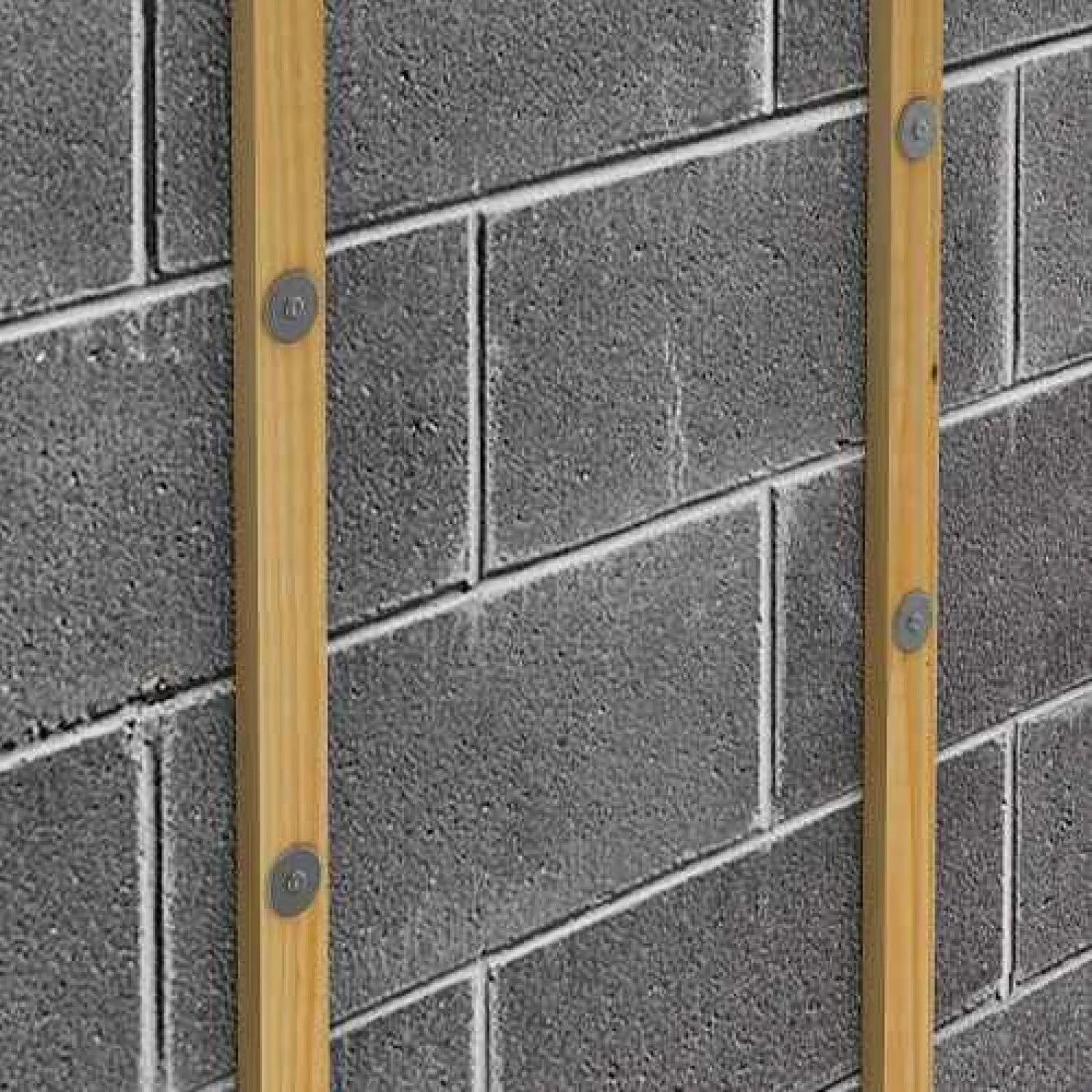

- Fastening building components to concrete, steel, and CMU

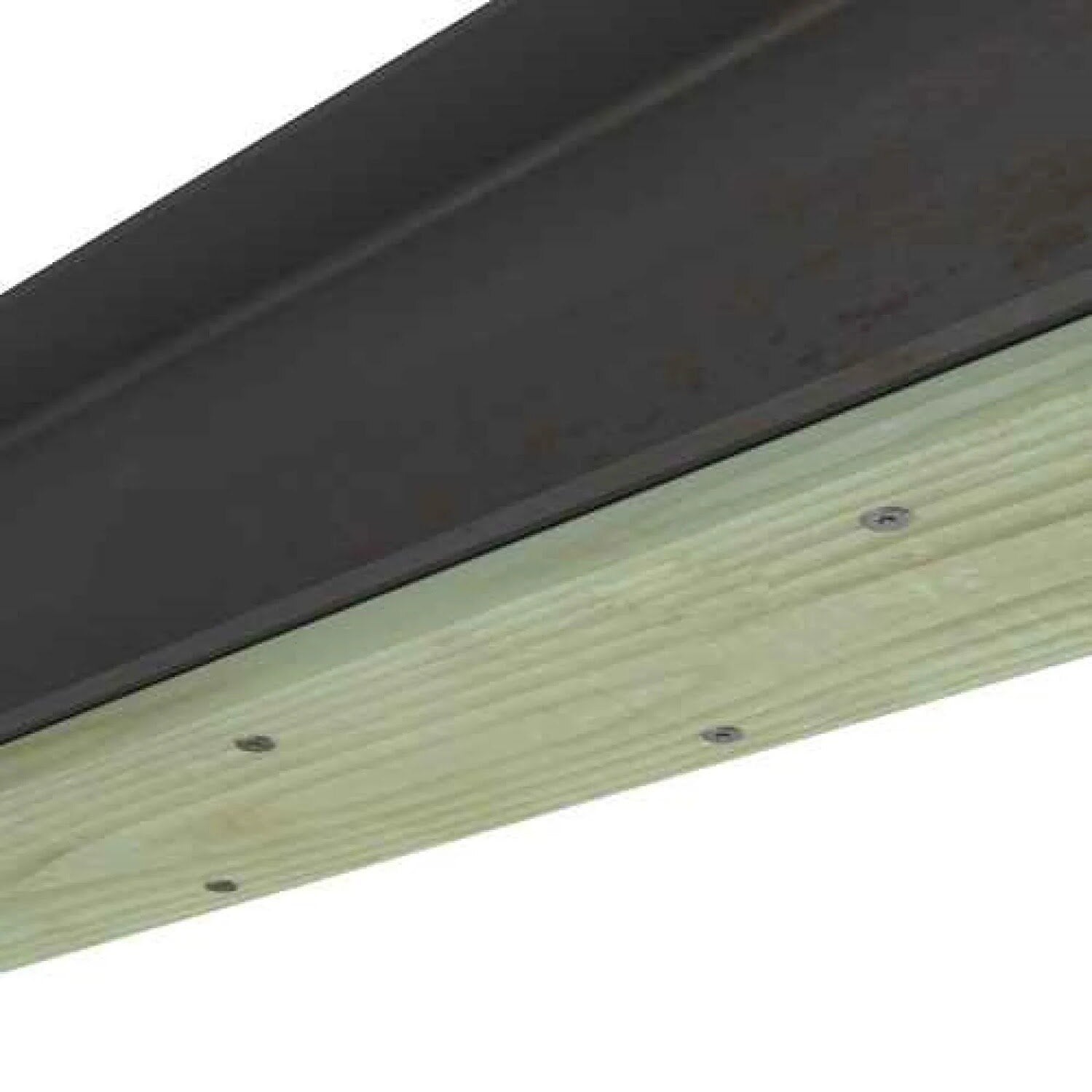

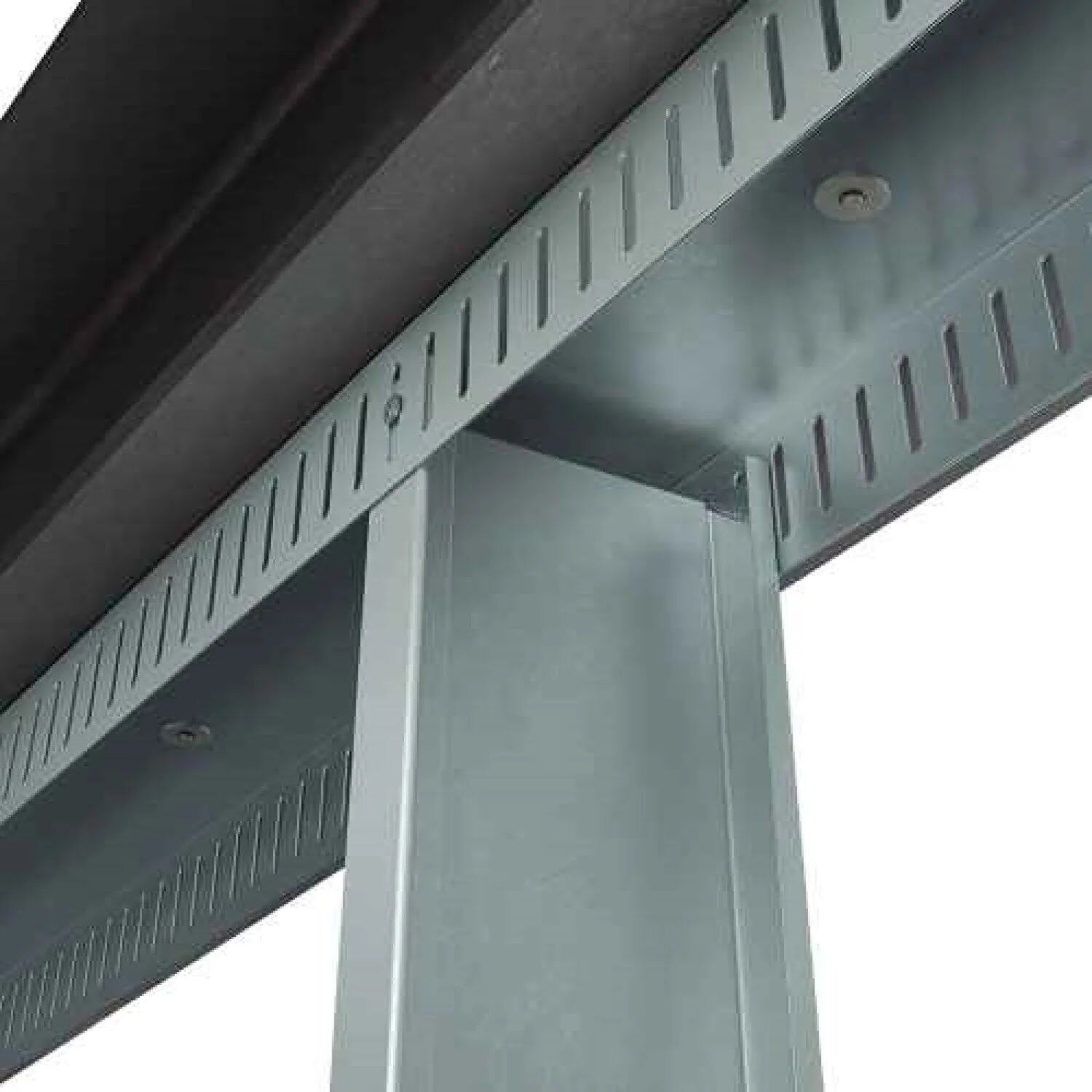

- Structural steel fastening
- General construction applications requiring powder-actuated fastening
Simpson PDPAWL-287MG Specifications
| Length | 2-7/8 in. |
| Diameter | 0.157 in. |
| Head Diameter | 0.300 in. |
| Finish | Mechanically Galvanized |
| Material | Carbon Steel |
| Quantity | 100 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
