Simpson Anchors | SKU:
PF28B

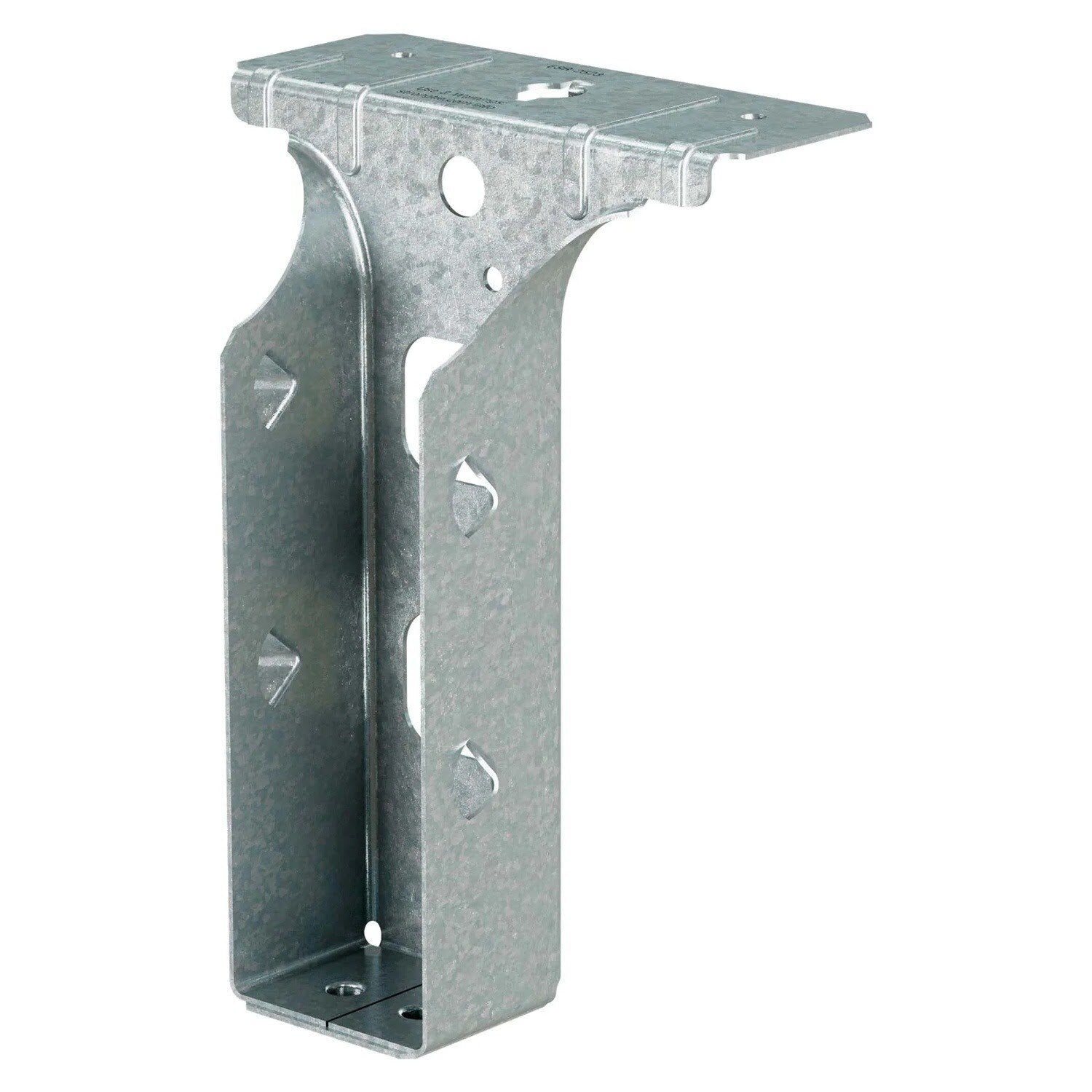

Simpson Strong-Tie PF28B (2x8) 20Ga Post-Frame Bent Top-Flange Hanger, G90 Galvanized
$2.83
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PF28B Description
The Simpson Strong-Tie PF28B Post-Frame Hanger is designed for secure and efficient connections in post-frame construction, featuring a durable, one-piece design for superior strength and load distribution.
Simpson Strong-Tie PF28B Includes
- (1) PF28B Post-Frame Hanger
Simpson Strong-Tie PF28B Features
- One-piece top flange for precise and secure fit
- Installation prongs for quick and accurate positioning
- Double-shear nailing design for enhanced load distribution
- Dome-shaped joist nail holes for correct nail angle
- Folded seat for strong and stable connection
Simpson Strong-Tie PF28B Applications
- Post-frame buildings: Secures roof purlins and floor joists in pole barns and agricultural structures.
- Decks and porches: Provides strong connections between joists and beams for increased structural integrity.
- Commercial and industrial structures: Supports framing elements in warehouses and factories.
- Residential construction: Suitable for floor and roof framing in homes and garages.

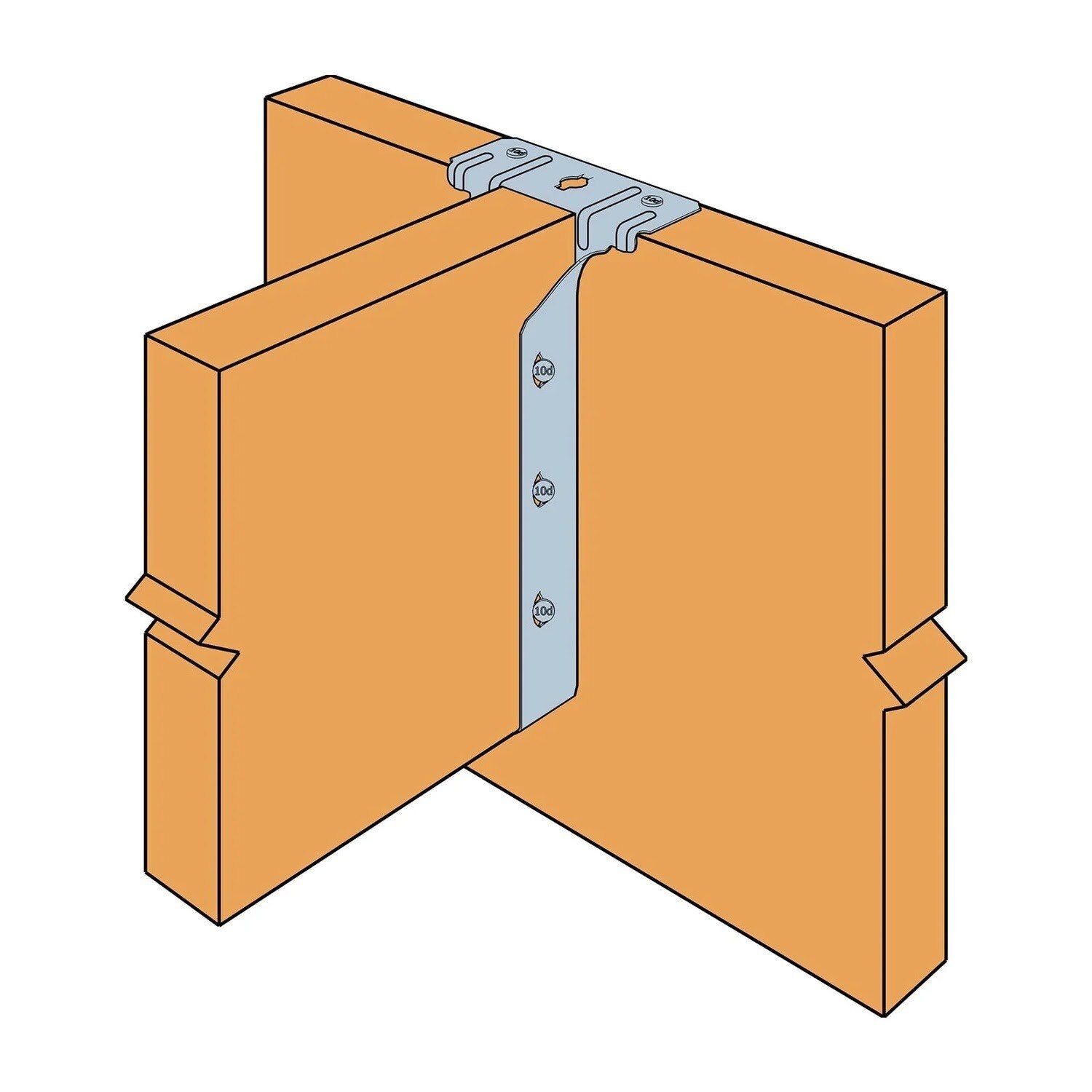

Simpson Strong-Tie PF28B Installation Overview
- Designed for use with solid-sawn lumber in post-frame construction.
- Installs with a combination of joist and header fasteners.
- Use 10d or 16d common nails for maximum load capacity.
- Ensure fasteners are driven at the proper angle for optimal performance.
- Follow manufacturer guidelines for compliance with structural requirements.
Simpson Strong-Tie PF28B Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 7-1/8" |
| Joist size | 2" X 6" |
| Thickness | 20 Gauge |
| Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
