Simpson Anchors | SKU:
PFD26B

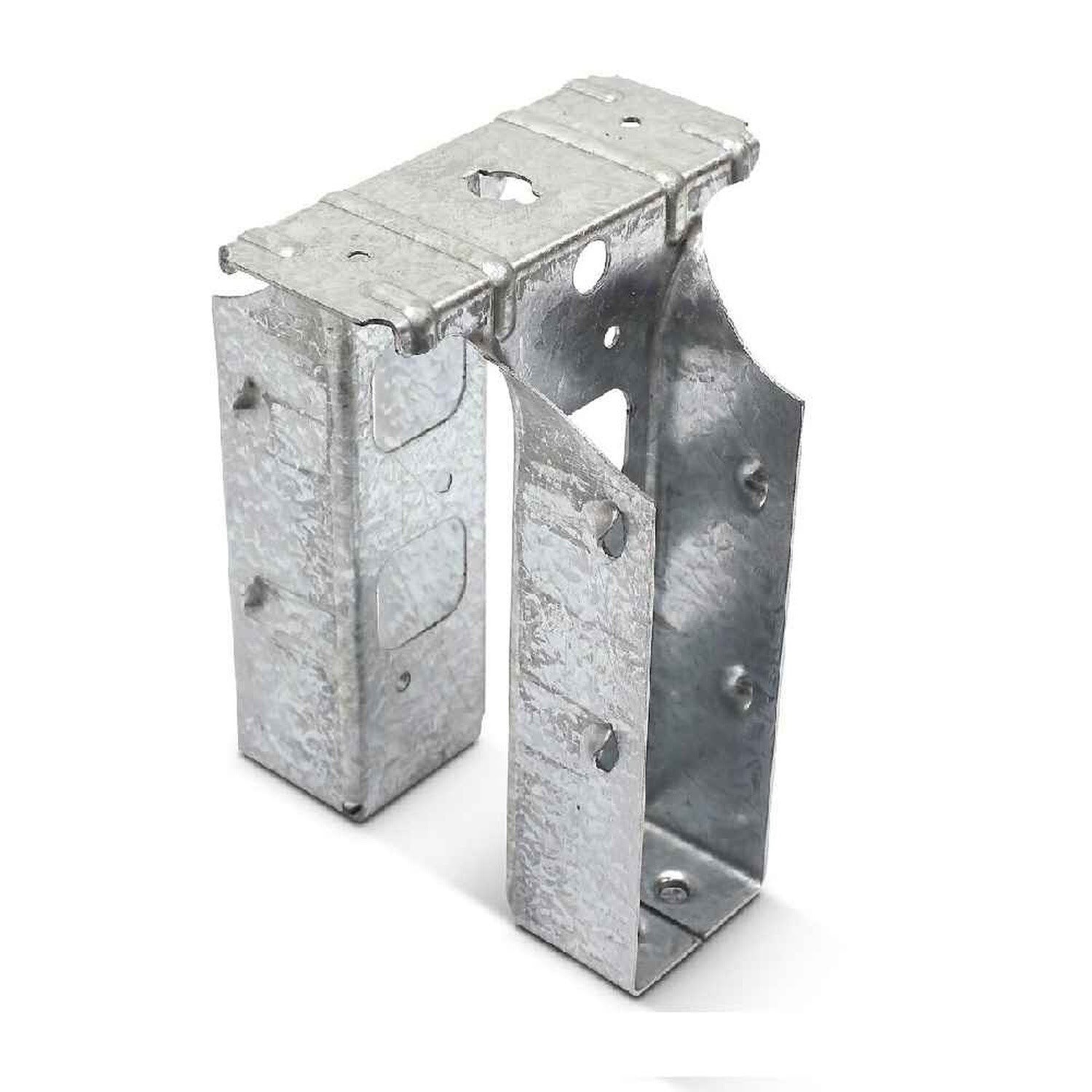

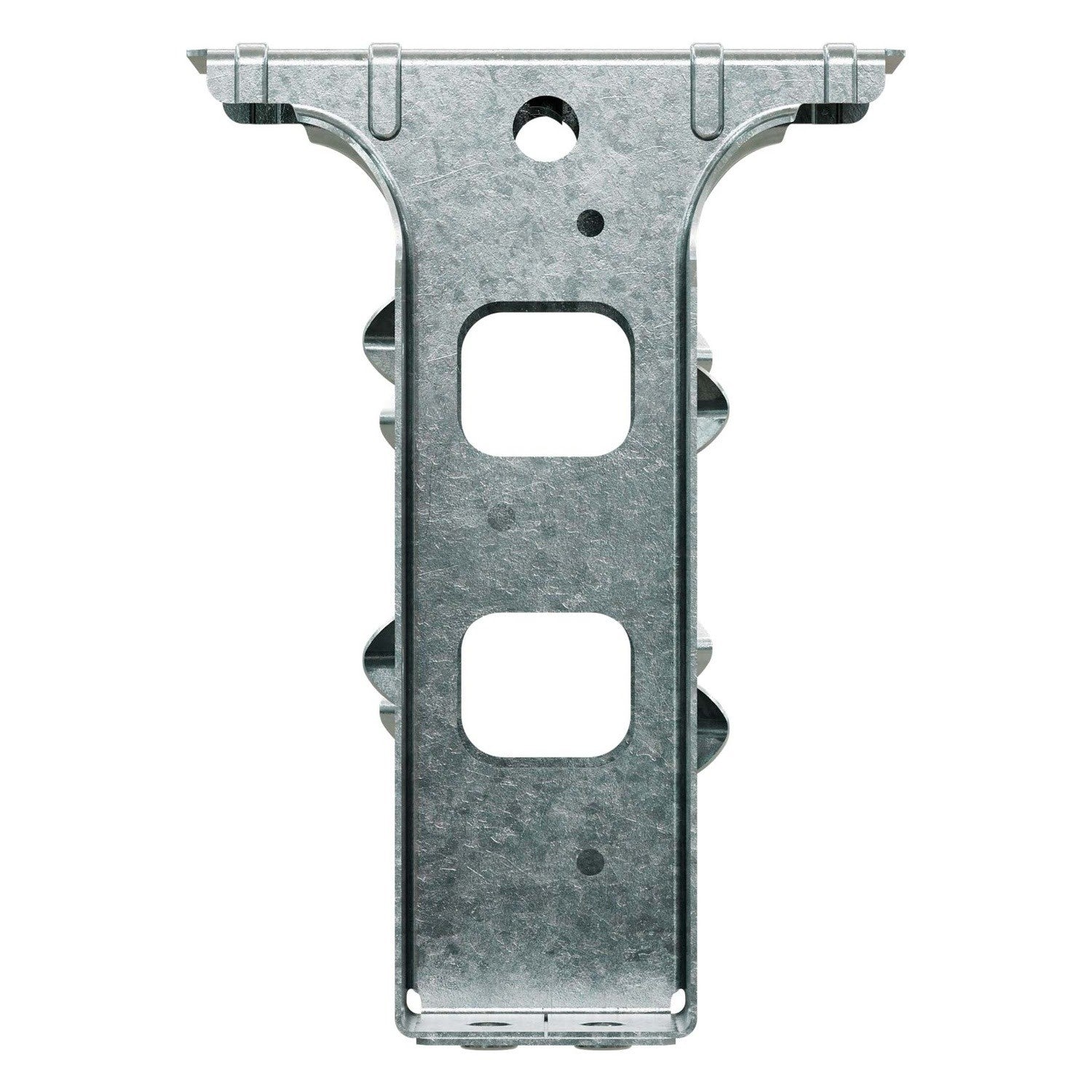

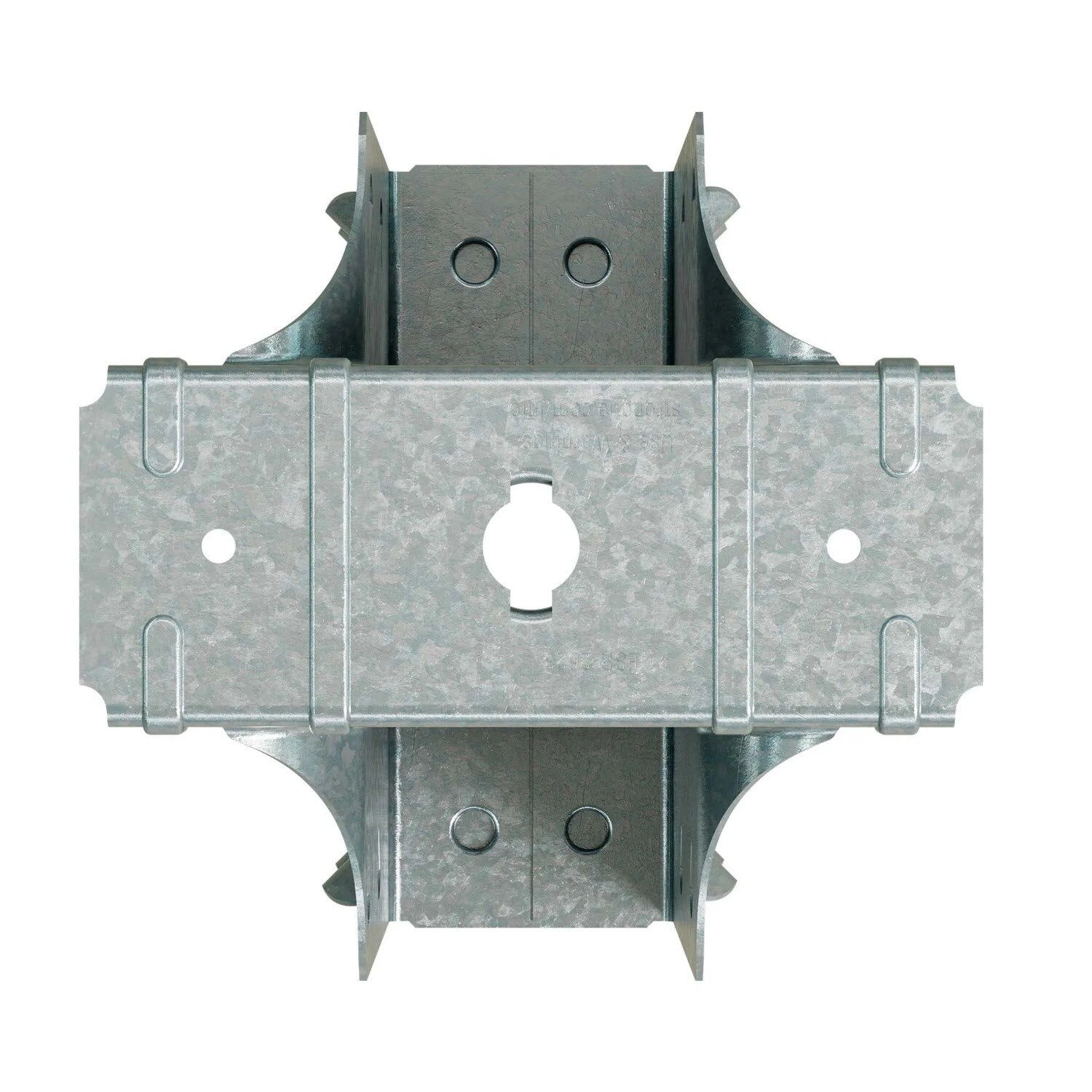

Simpson Strong-Tie PFD26B (2x6) Galvanized Post-Frame Top-Flange Saddle Hanger
$4.60
Unit price
/
Unavailable
Description
Description
Simpson PFD26B Description
The Simpson PFD26B Post-Frame Saddle Hanger is designed for secure and reliable support of 2x6 joists in post-frame construction, featuring a durable G90 galvanized finish.
Simpson PFD26B Includes
- (1) Post-Frame Saddle Hanger for 2x6
Simpson PFD26B Features
- High-Strength Construction: Manufactured from heavy-gauge steel for superior load-bearing capacity.
- Corrosion-Resistant Finish: Hot-dip galvanized coating enhances durability and longevity.
- Top-Flange Saddle Design: Provides stable, uniform support for 2x joists.
- Code-Compliant Engineering: Meets industry standards for post-frame construction.
- Versatile Application: Compatible with wood and concrete beams.
Simpson PFD26B Applications
- Post-Frame Buildings: Ensures secure joist support in pole barns, agricultural structures, and storage facilities.
- Commercial & Residential Framing: Provides strong, stable connections for decks, pavilions, and similar structures.

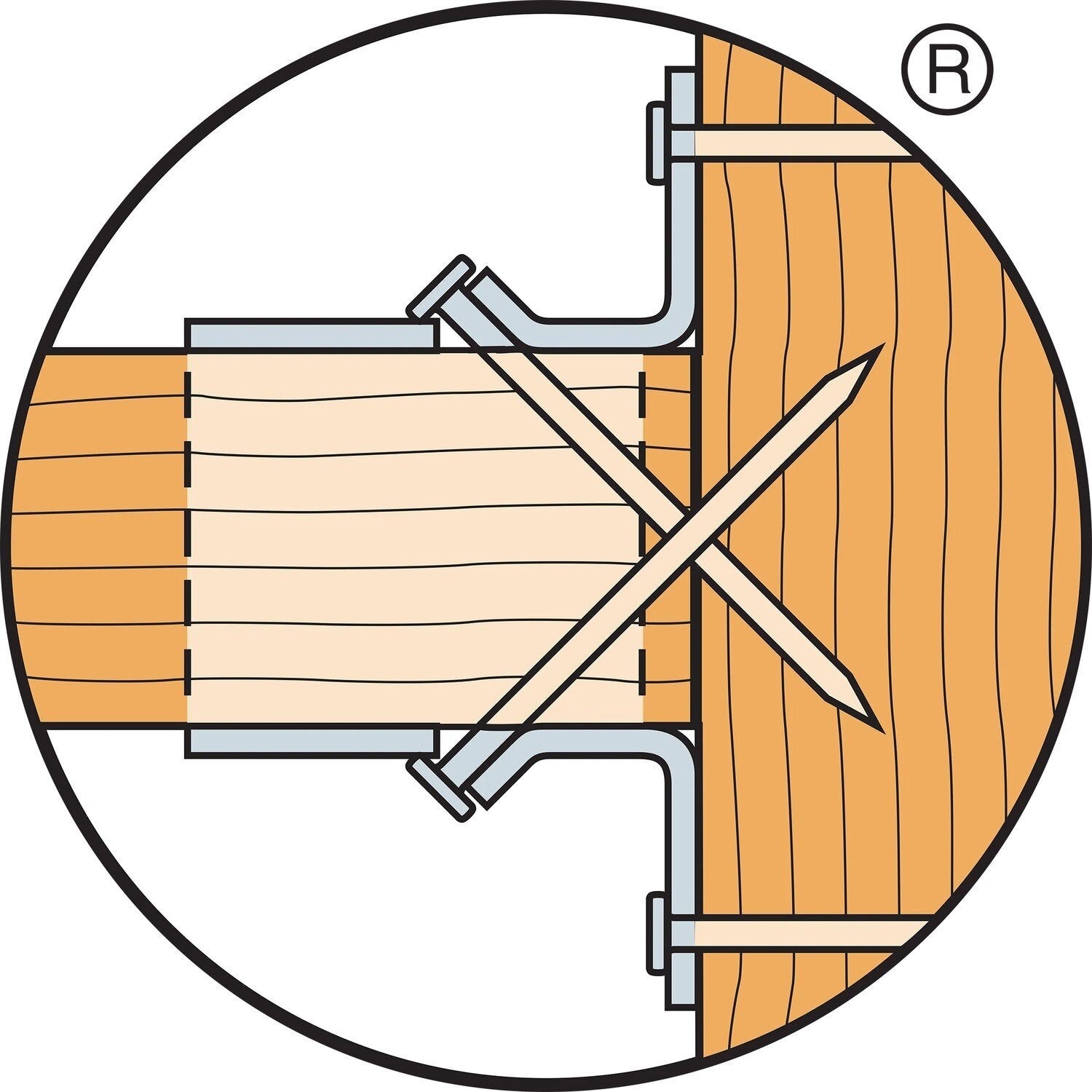

Simpson PFD26B Installation Overview
- Attach the joist to the hanger using common nails or Strong-Drive SD Connector Screws.
- Secure the top flange to the supporting beam using structural nails or screws.
- For concrete beams, use mechanical or adhesive anchors as specified by the project engineer.
Simpson PFD26B Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | No |
| Height | 5-3/8" |
| Joist size | 2" X 6" |
| Thickness | 20 Gauge |
| Width | 1-9/16" |
NOTE: Ensure proper fasteners are used and installed correctly to achieve published load values.
