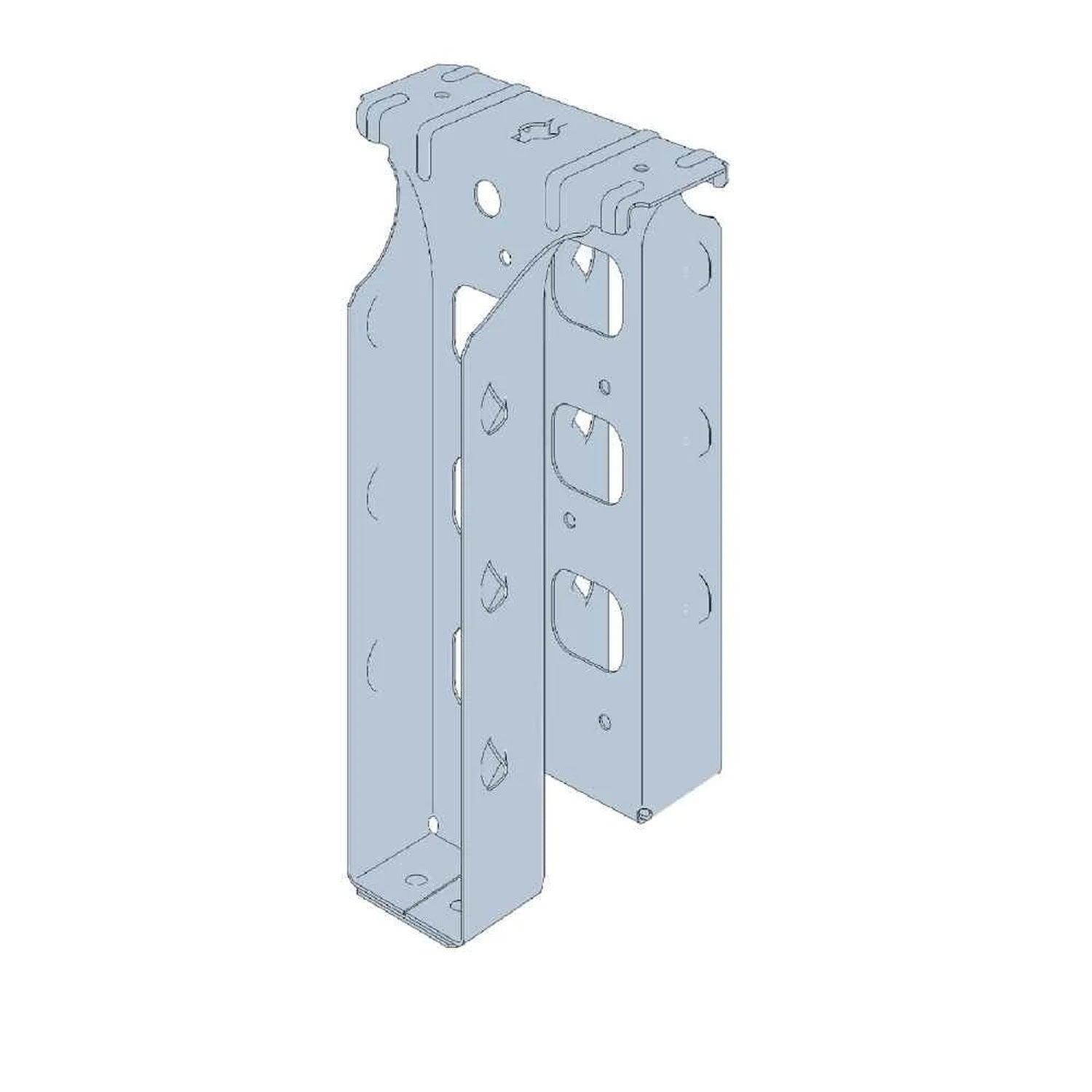

Simpson Strong-Tie PFD28B (2x8) Galvanized Post-Frame Top-Flange Saddle Hanger

Simpson Strong-Tie PFD28B Features

• High-Strength Construction: Manufactured from heavy-gauge steel for superior load-bearing capacity.
• Corrosion-Resistant Finish: Hot-dip galvanized coating enhances durability and longevity in demanding environments.
• Top-Flange Saddle Design: Provides stable, uniform support for 2x joists while simplifying installation.
• Code-Compliant Engineering: Meets industry standards for post-frame construction, ensuring a secure and durable connection.
• Versatile Application: Compatible with wood and concrete beams, making it ideal for multiple framing scenarios.

Simpson Strong-Tie PFD28B Applications

• Post-Frame Buildings: Ensures secure joist support in pole barns, agricultural structures, and storage facilities.
• Commercial & Residential Framing: Provides strong, stable connections for decks, pavilions, and other structures.

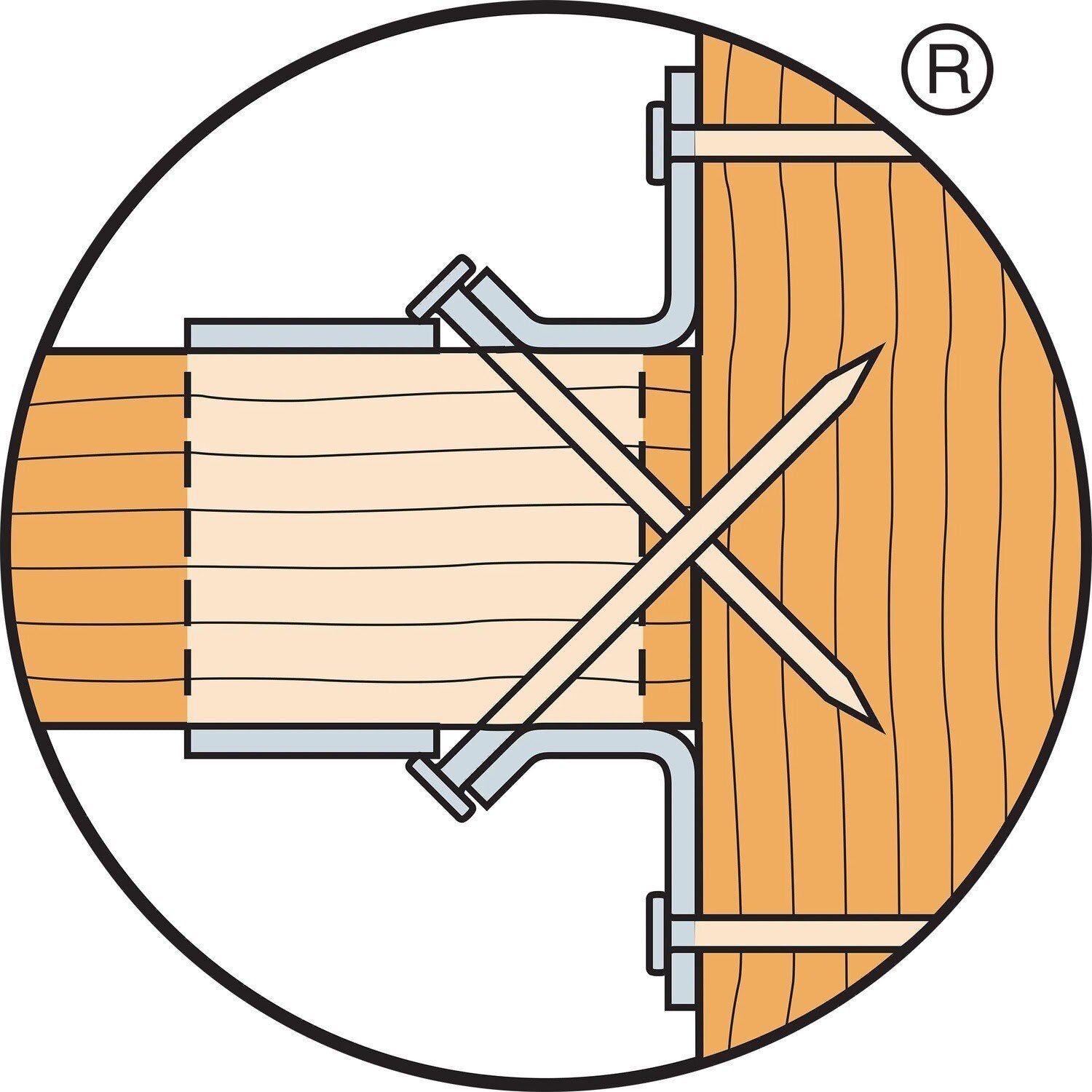

Simpson Strong-Tie PFD28B Installation Overview

1. Face Nails (Joist Connection): Attach the joist to the hanger using common nails or Strong-Drive SD Connector Screws for increased holding power.
2. Top-Flange Attachment (Beam Connection): Secure the top flange to the supporting beam using structural nails or screws, ensuring proper embedment for maximum strength.
3. Concrete Applications: When attaching to a concrete beam, use mechanical or adhesive anchors as specified by the project engineer.
