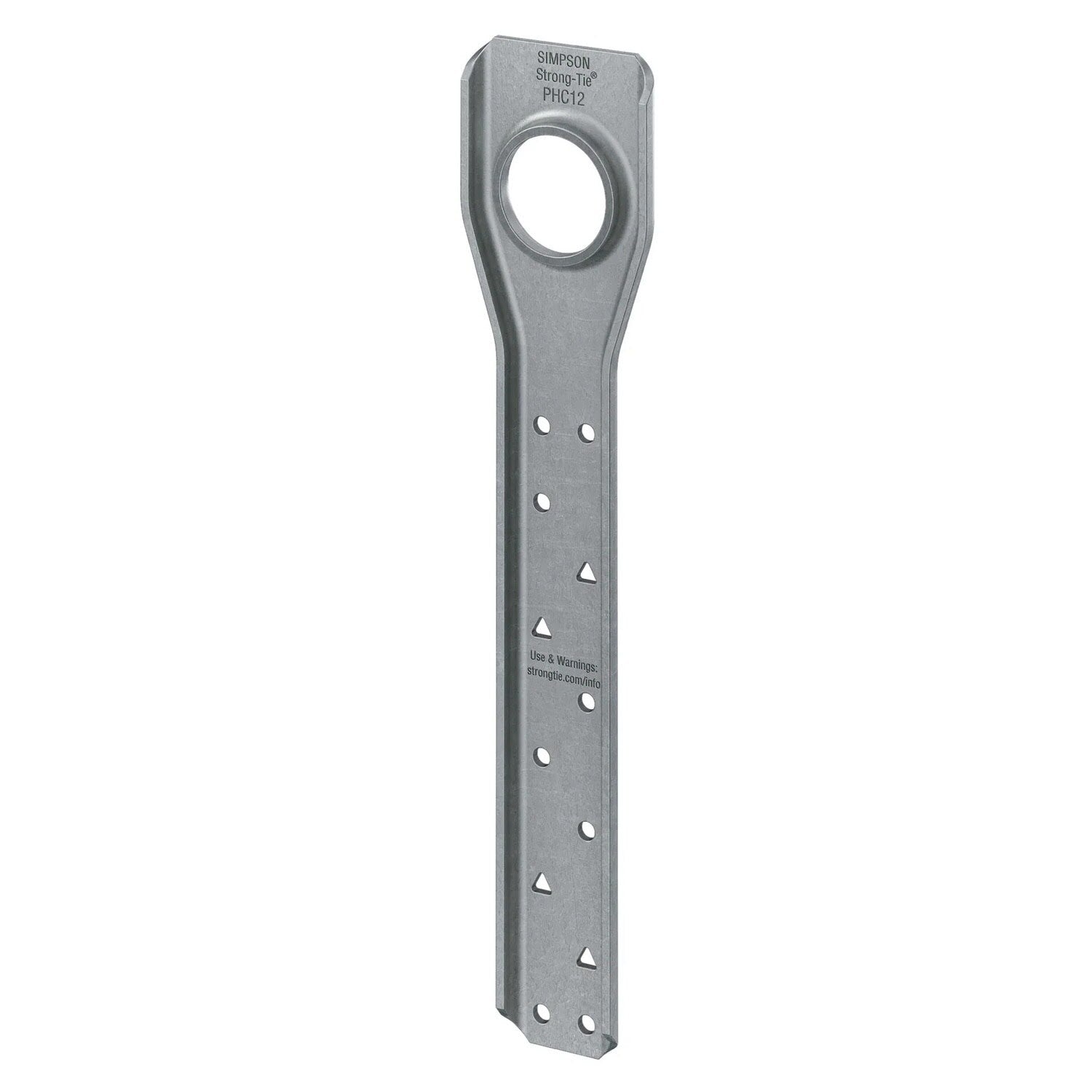

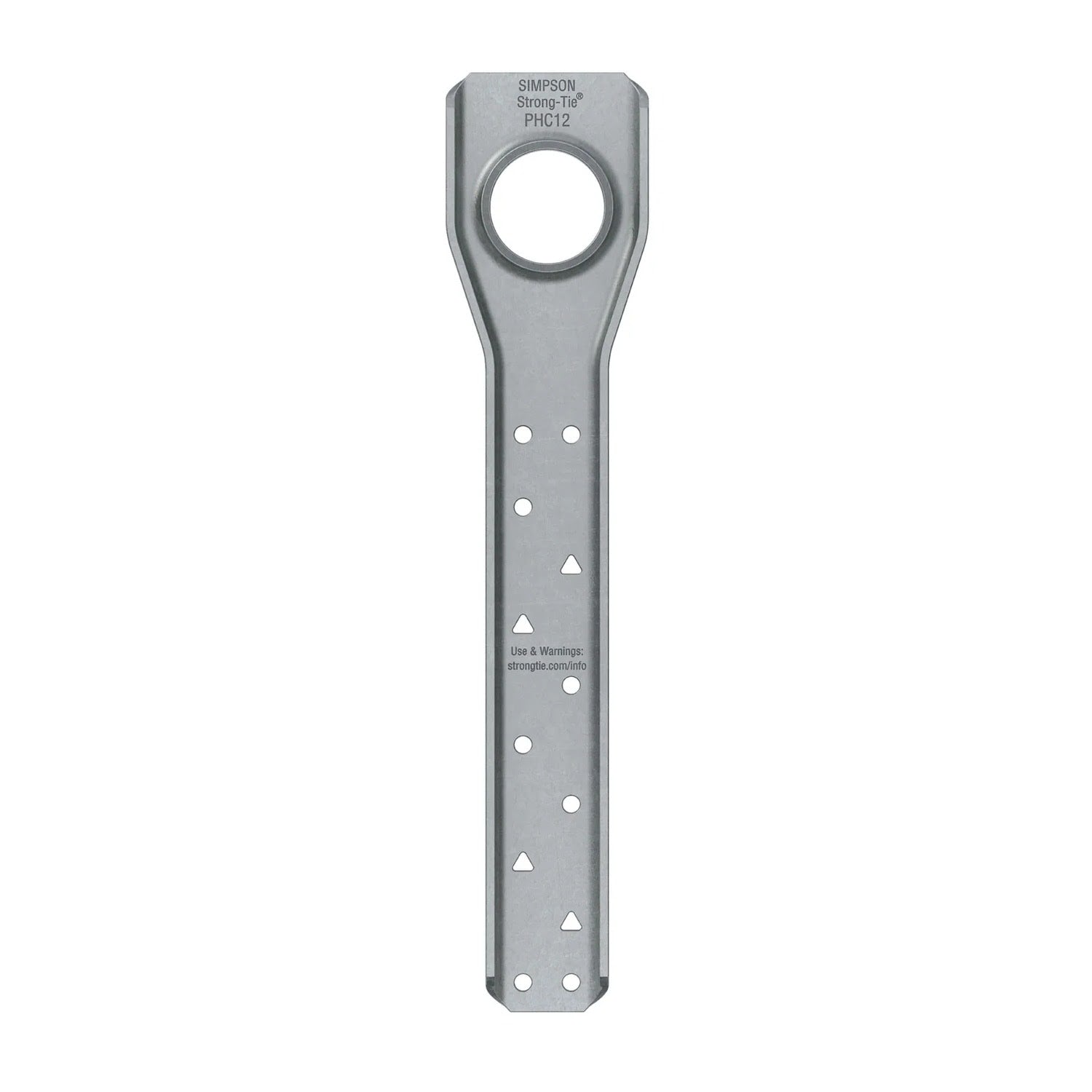

Simpson PHC12 Description
The Simpson PHC12 Panel Hoist Clip is designed for easy installation and lifting of wall panels, featuring rolled edges for enhanced strength and safety.
Simpson PHC12 Includes
- (50) Panel Hoist Clip
Simpson PHC12 Features

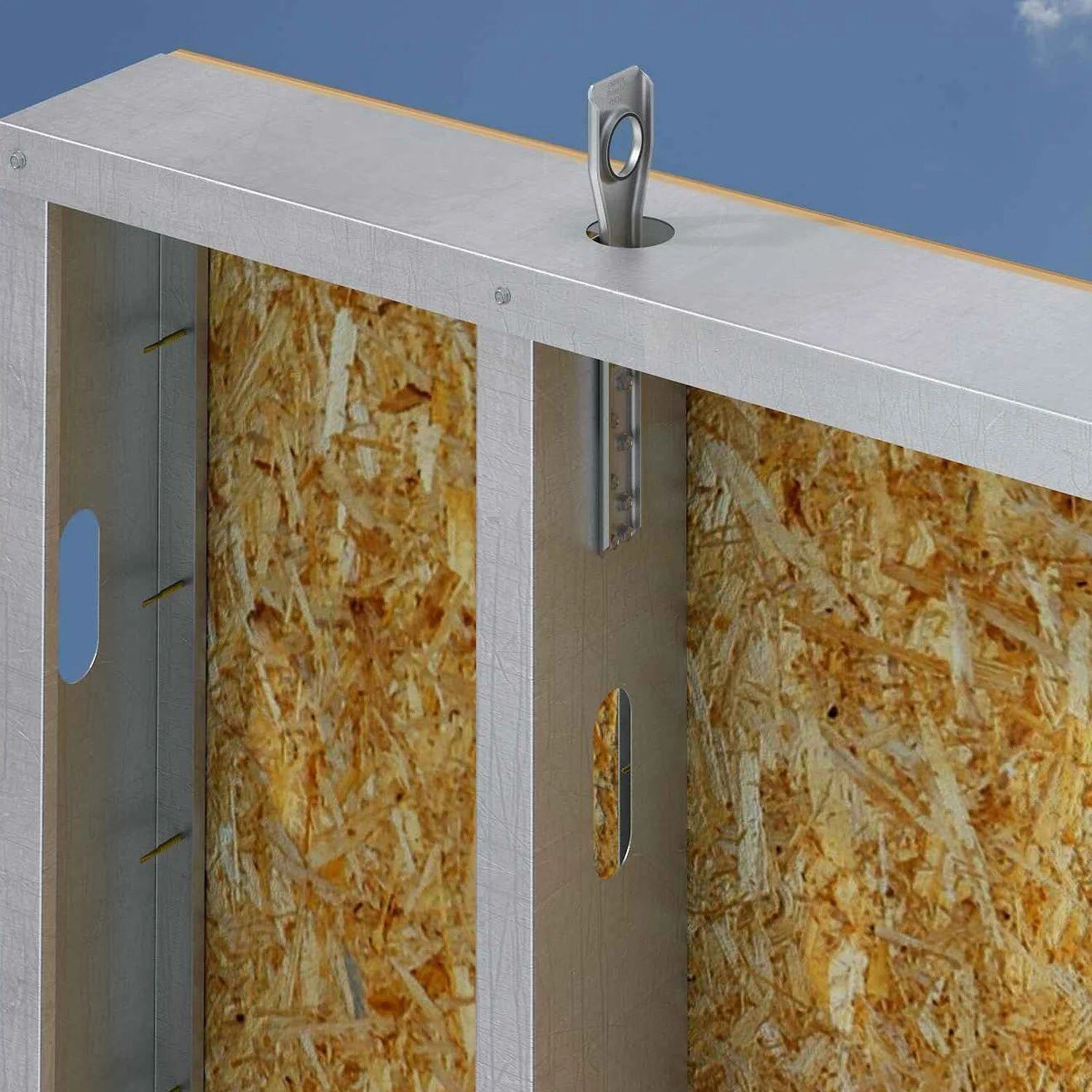

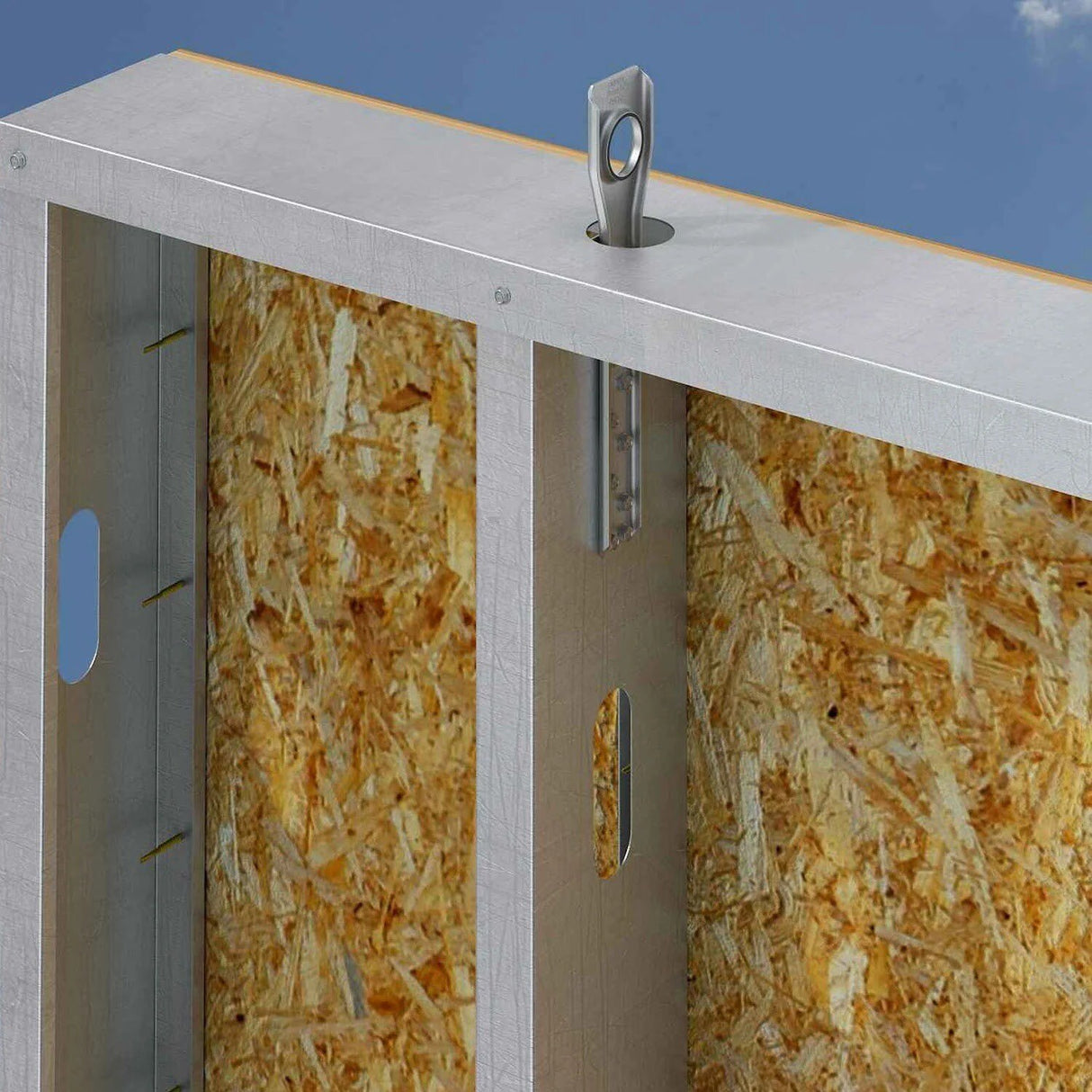

- Small profile for easy installation through the top track
- Rolled stiffener for increased strength
- Rolled hoist-edge-hole for smooth mounting edge
- Screw pattern options for varying load needs
- Chamfered top corners for smooth lifting device operation
- Assembly tested for tension and panel pick up at different angles
- Optional panel hoist clip cover available for tight connector fit
Simpson PHC12 Applications

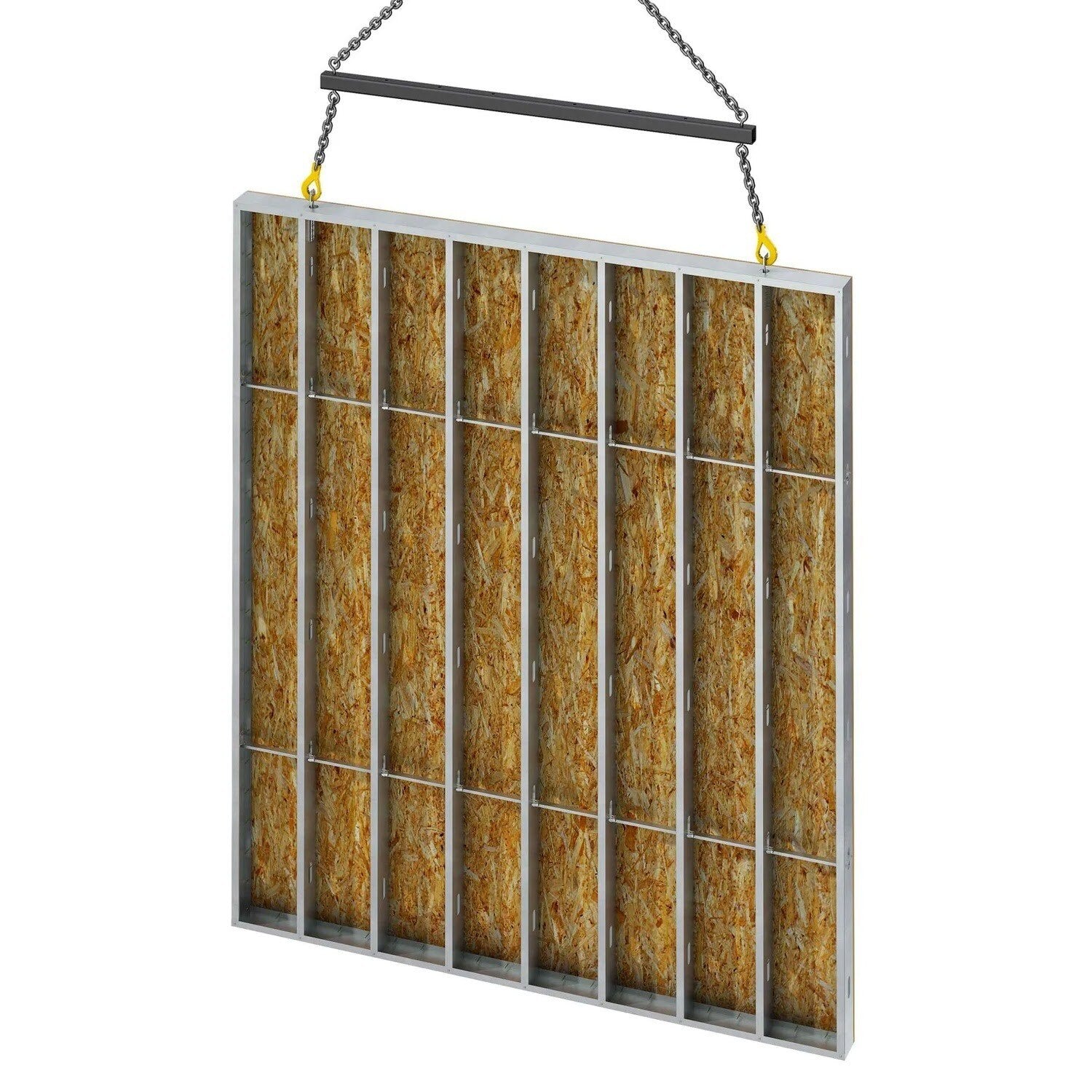

- Wall panel lifting and installation
- By-pass framing applications
- Concrete embedding with optional cover
- Heavy panel projects requiring enhanced strength
Simpson PHC12 Installation Overview
- Use all specified fasteners
Simpson PHC12 Specifications
| Material | 97 mil (12 ga.), 50 ksi |
| Finish | Galvanized (G90) |
| Application | By-Pass |
| Thickness | 12 Gauge |
| Width | 1 3/8 in. |
| Height | 10 3/8 in. |
| Packaging Quantity | 50 |
NOTE: Ensure all specified fasteners are used during installation to achieve optimal performance.
