Description
Description
Simpson Strong-Tie PPHD134S1016 Description

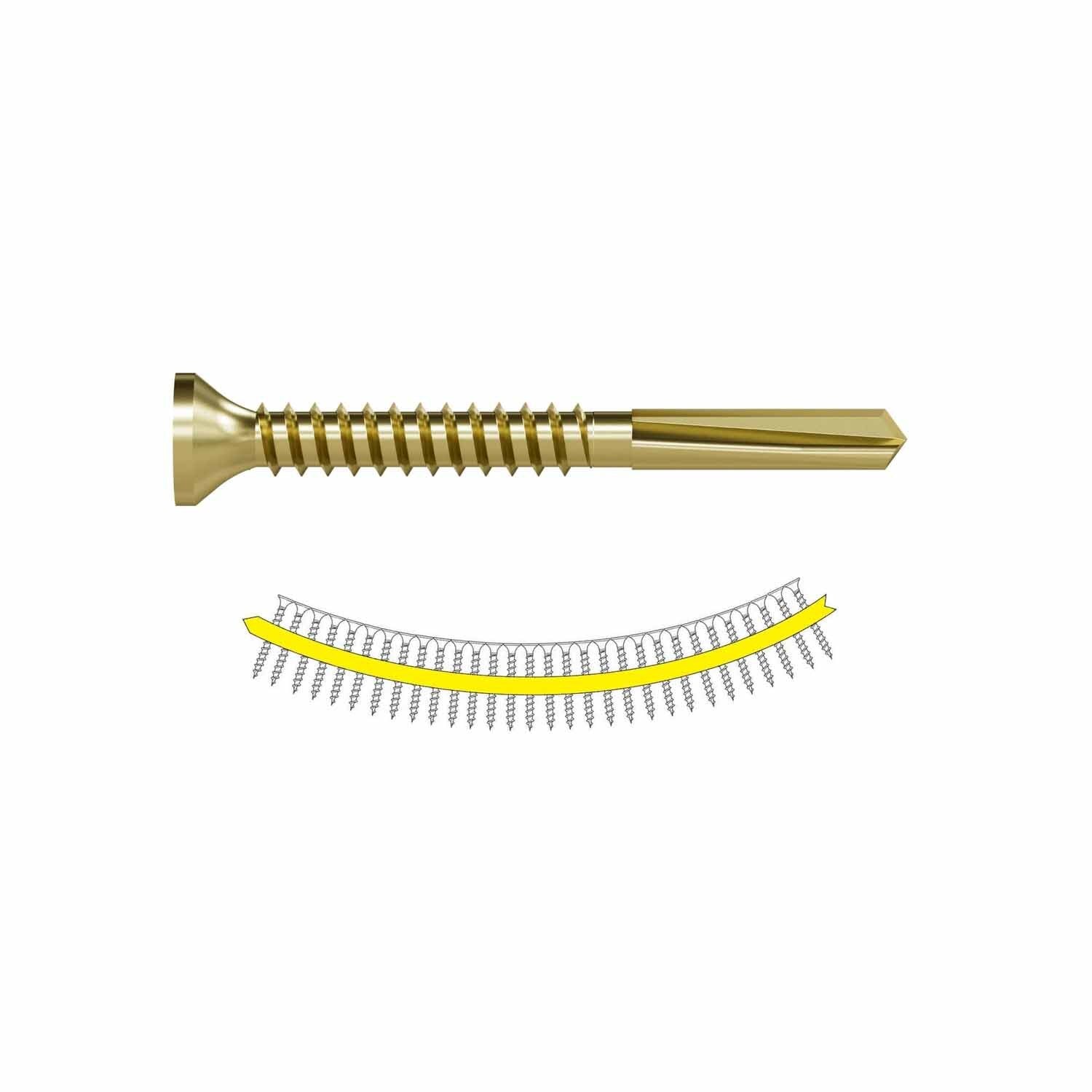

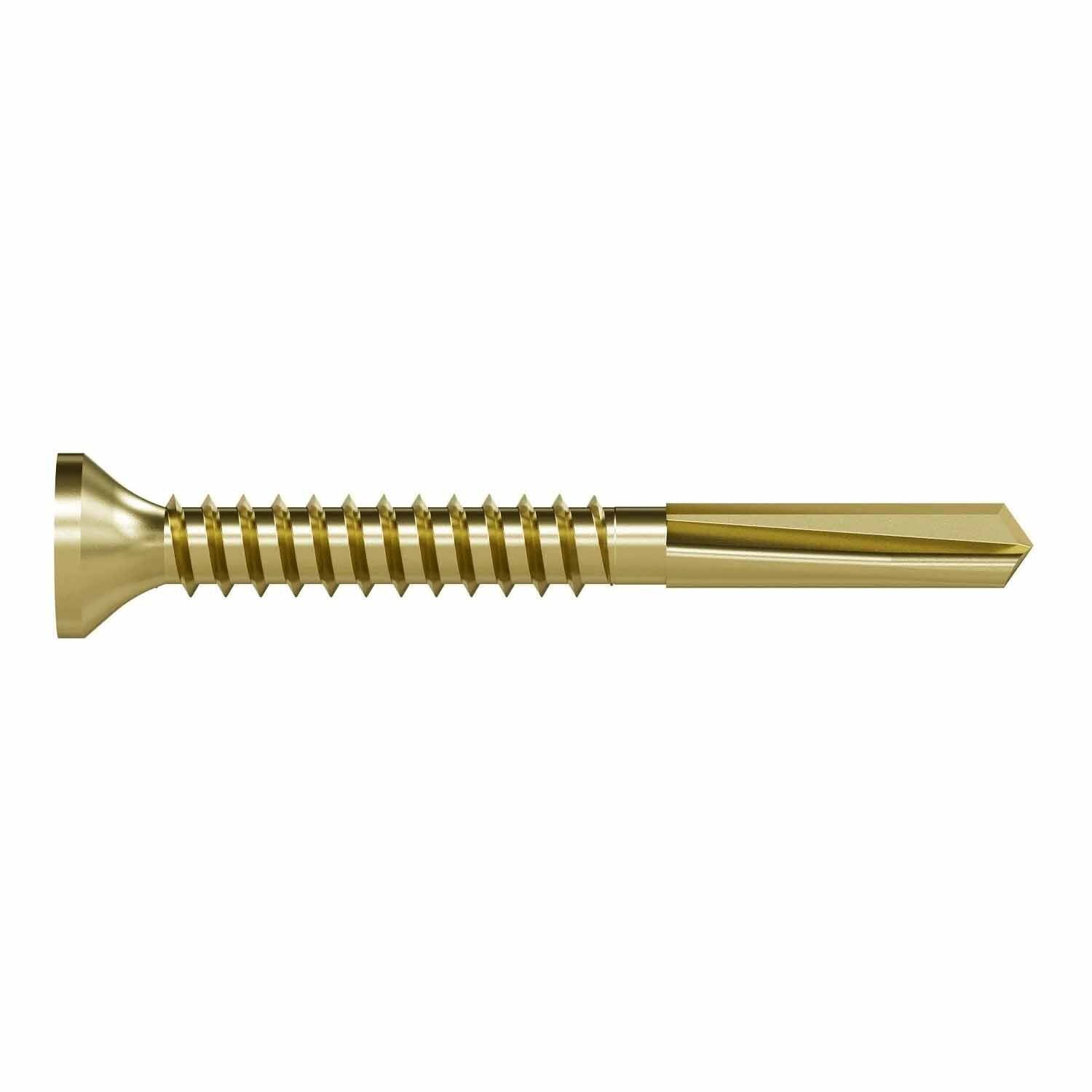

The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point. It is collated for use in Quik Drive auto-feed screw driving systems.
Simpson Strong-Tie PPHD134S1016 Includes
- (2000) #10 x 1-3/4 in. Strong-Drive PPHD Sheathing-to-CFS Screw
- (2) T25 6-lobe driver bits
Simpson Strong-Tie PPHD134S1016 Features
- Larger #5 pilot point with longer flute
- 6-lobe recess for a more secure drive
- Yellow zinc coating for corrosion resistance
- Compatible with Quik Drive PRO200SG2 and PRO300SG2 auto-feed screw driving systems
- Designed for use in dry service, low-corrosion environments and some fire-rated sheathing
Simpson Strong-Tie PPHD134S1016 Applications
- Sheathing, drywall, and subfloor to cold-formed steel (CFS)
- Factory-built and modular construction
Simpson Strong-Tie PPHD134S1016 Installation Overview
- Ensure the maximum thickness does not exceed two layers of 12 ga. (0.218 in. total)
- Recommended wood panel sheathing thickness: 7/8 in. to 1-1/8 in.
Simpson Strong-Tie PPHD134S1016 Specifications
| Diameter | #10 |
| Length | 1-3/4 in. |
| Finish | Yellow Zinc |
| Drive Type | T25 Star Drive |
| Head Type | Flat Head |
| Thread Type | Fine Threads |
| Quantity | 2000 |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
