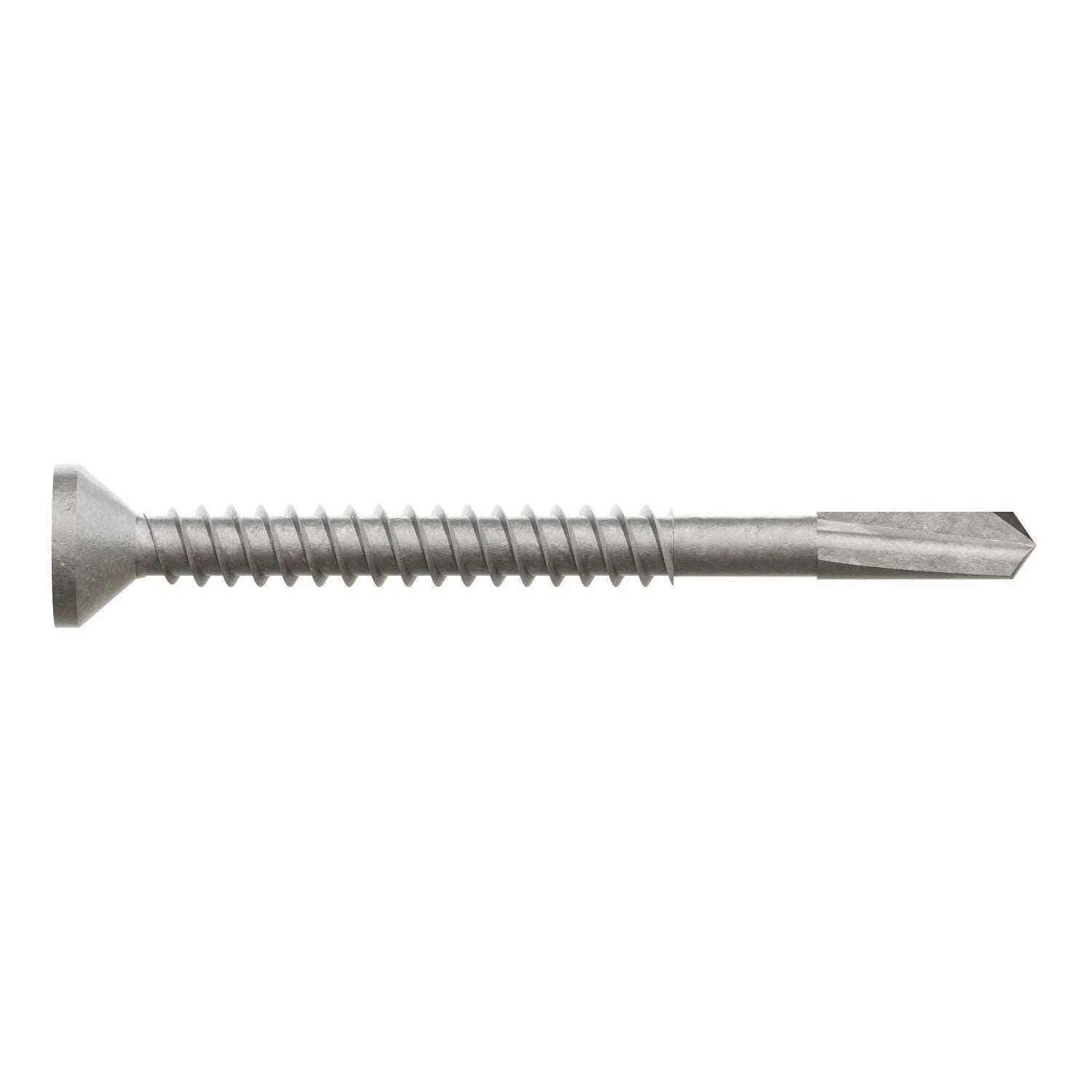

Simpson Strong-Tie PPHDQ11516B-4K Strong-Drive (#8 x 1-15/16" T25) PPHD Sheathing-to-CFS Screw, Quik Guard (4000 Pack)
Free Shipping
$395.82
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie PPHDQ11516B-4K Description
The Strong-Drive PPHD Sheathing-to-CFS screw is designed for fastening wood structural panels and other building materials to cold-formed steel framing.
Simpson Strong-Tie PPHDQ11516B-4K Includes
- (4000) Strong-Drive PPHD Sheathing-to-CFS Screw
Simpson Strong-Tie PPHDQ11516B-4K Features
- 6-lobe drive for secure fastening
- Fine threads for precise application
- Pilot point for easy starting
- Quik Guard and yellow zinc coating for durability
- Designed for use in dry service, low-corrosion environments
- Suitable for some fire-rated sheathing applications
Simpson Strong-Tie PPHDQ11516B-4K Applications
- Fastening wood structural panels to cold-formed steel framing
- Securing drywall and subfloor to CFS
- Shearwalls and diaphragms as described in AISI S240 and AISI S400
Simpson Strong-Tie PPHDQ11516B-4K Installation Overview
- Ensure maximum thickness of 16 ga. for #8 screws
- Recommended maximum wood panel sheathing thickness: 7/8" for #8 screws
- Use the specified driver bit for installation
Simpson Strong-Tie PPHDQ11516B-4K Specifications
| Diameter | #8 |
| Finish | Quik Guard Coating |
| Length | 1-15/16" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Manufacturer name | Simpson Strong-Tie Company Inc |
| Quantity | 4000 |
| Thread type | Buttress Threads |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
