Simpson Strong-Tie PPHDQ11516S0817 Description

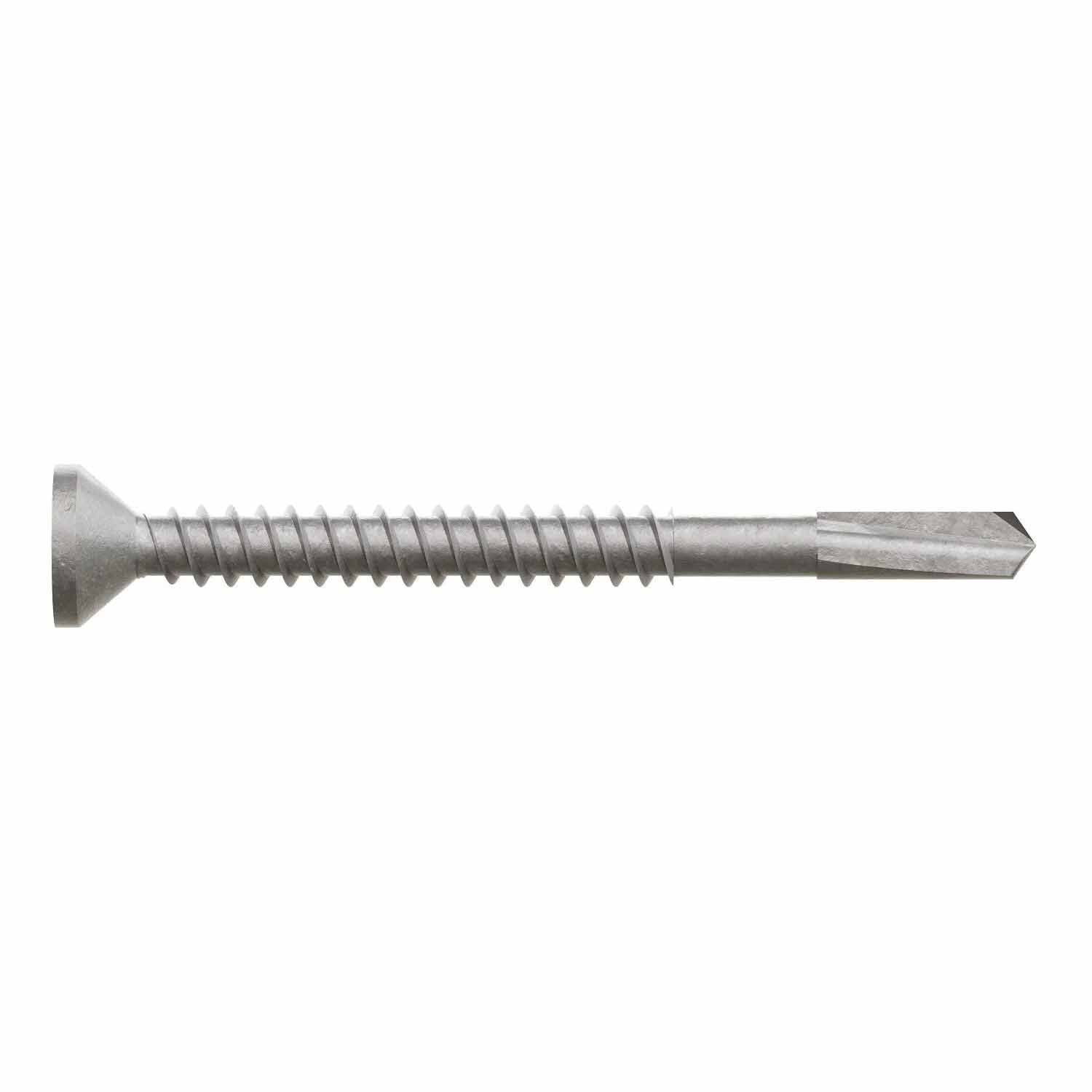

The Strong-Drive PPHD Sheathing-to-CFS screw is designed for efficient fastening of sheathing materials to cold-formed steel (CFS) with its long #5 drill point and Quik Guard coating.
Simpson Strong-Tie PPHDQ11516S0817 Includes

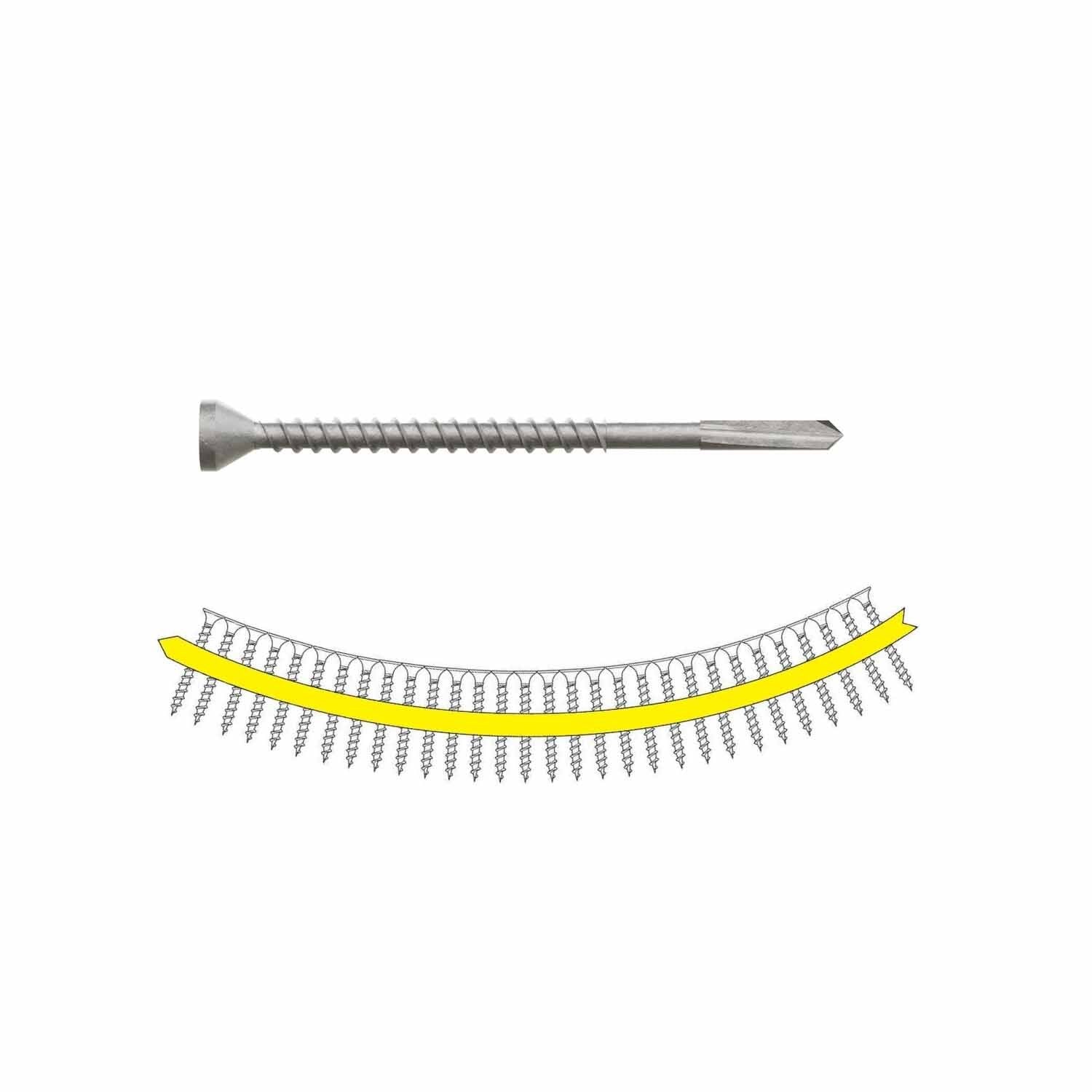

- (2000) #8 x 1-15/16 in. Strong-Drive PPHD Sheathing-to-CFS Screw Collated, Quik Guard Coating
- (2) T25 6-lobe driver bits
Simpson Strong-Tie PPHDQ11516S0817 Features
- Designed for sheathing, drywall, and subfloor to CFS applications
- Available in multiple sizes for various needs
- Features a larger #5 pilot point with a longer flute
- #8 sizes include buttress threads and a dog-eared point for improved drilling
- 6-lobe recess for a secure drive
- Quik Guard coating for enhanced durability
- Compatible with Quik Drive PRO200SG2 and PRO300SG2 systems
Simpson Strong-Tie PPHDQ11516S0817 Applications
- Sheathing to cold-formed steel
- Drywall to cold-formed steel
- Subfloor to cold-formed steel
Simpson Strong-Tie PPHDQ11516S0817 Installation Overview
- Ensure the screw is compatible with the Quik Drive system
- Align the screw with the material to be fastened
- Drive the screw using the appropriate Quik Drive tool
Simpson Strong-Tie PPHDQ11516S0817 Specifications
| Diameter | #8 |
| Finish | Quik Guard Coating |
| Length | 1-15/16" |
| Drive type | T25 Star Drive |
| Head type | Flat Head |
| Thread type | Buttress Threads |
| Quantity | 2000 |
NOTE: Use only in dry, interior, and noncorrosive environments to avoid performance issues.
