Simpson Strong-Tie PPHDQ134S1214 Description

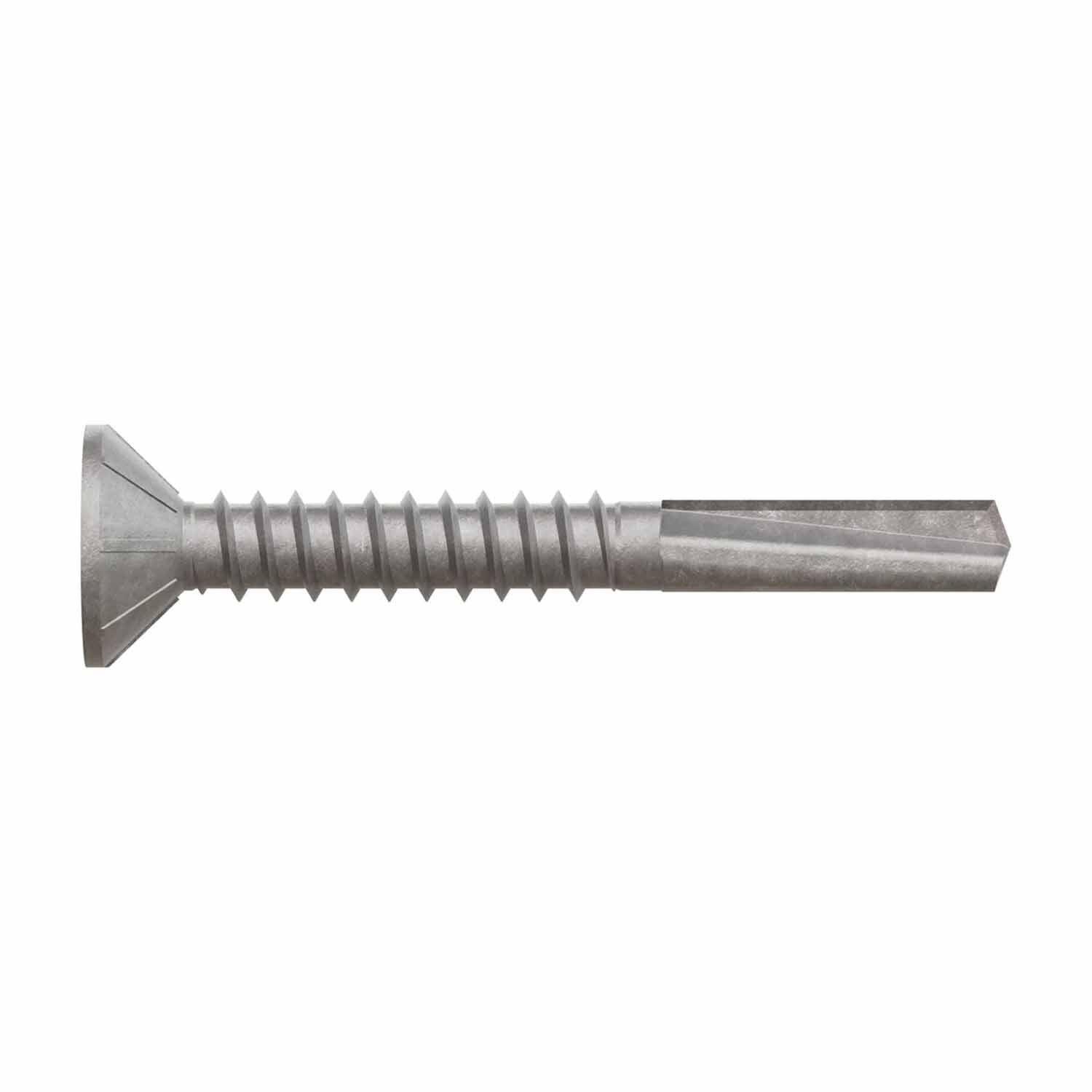

The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point.
Simpson Strong-Tie PPHDQ134S1214 Includes
- (1000) #12 x 1-3/4 in. Strong-Drive PPHD Sheathing-to-CFS Screw
Simpson Strong-Tie PPHDQ134S1214 Features
- Designed for use in dry service, low-corrosion environments and some fire-rated sheathing

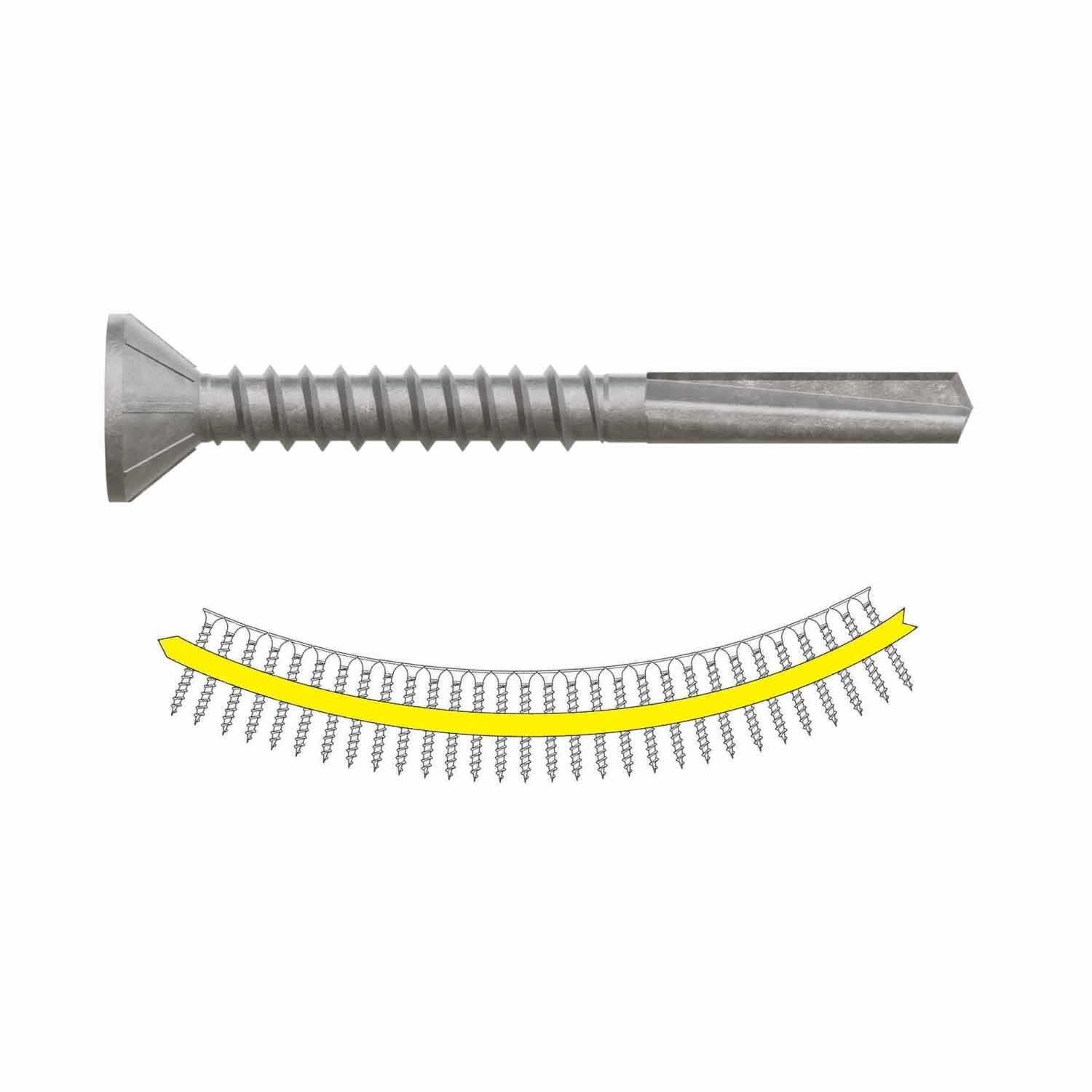

- Compatible with Quik Drive PROHSD60/M auto-feed screw driving systems
- 6-lobe recess for a more secure drive
- #12 sizes have underhead nibs for easy countersinking
- Larger #5 pilot point with longer flute
Simpson Strong-Tie PPHDQ134S1214 Applications
- Sheathing, drywall, subfloor to CFS
- Factory-Built/Modular Construction
Simpson Strong-Tie PPHDQ134S1214 Installation Overview
- Maximum thickness two layers of 12 ga. (0.218" total)
- Recommended wood panel sheathing thickness: 19/32"
Simpson Strong-Tie PPHDQ134S1214 Specifications
| Diameter | #12 |
| Finish | Quik Guard Coating |
| Length | 1-3/4" |
| Material | Carbon Steel |
| Drive type | T25 Star Drive |
| Head type | Flat Head with Nibs |
| Point type | Pilot Point |
| Quantity | 1000 |
| Thread type | Fine Threads |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
Toolup Part # :
822067
