Simpson Anchors | SKU:
QUIKSTIK

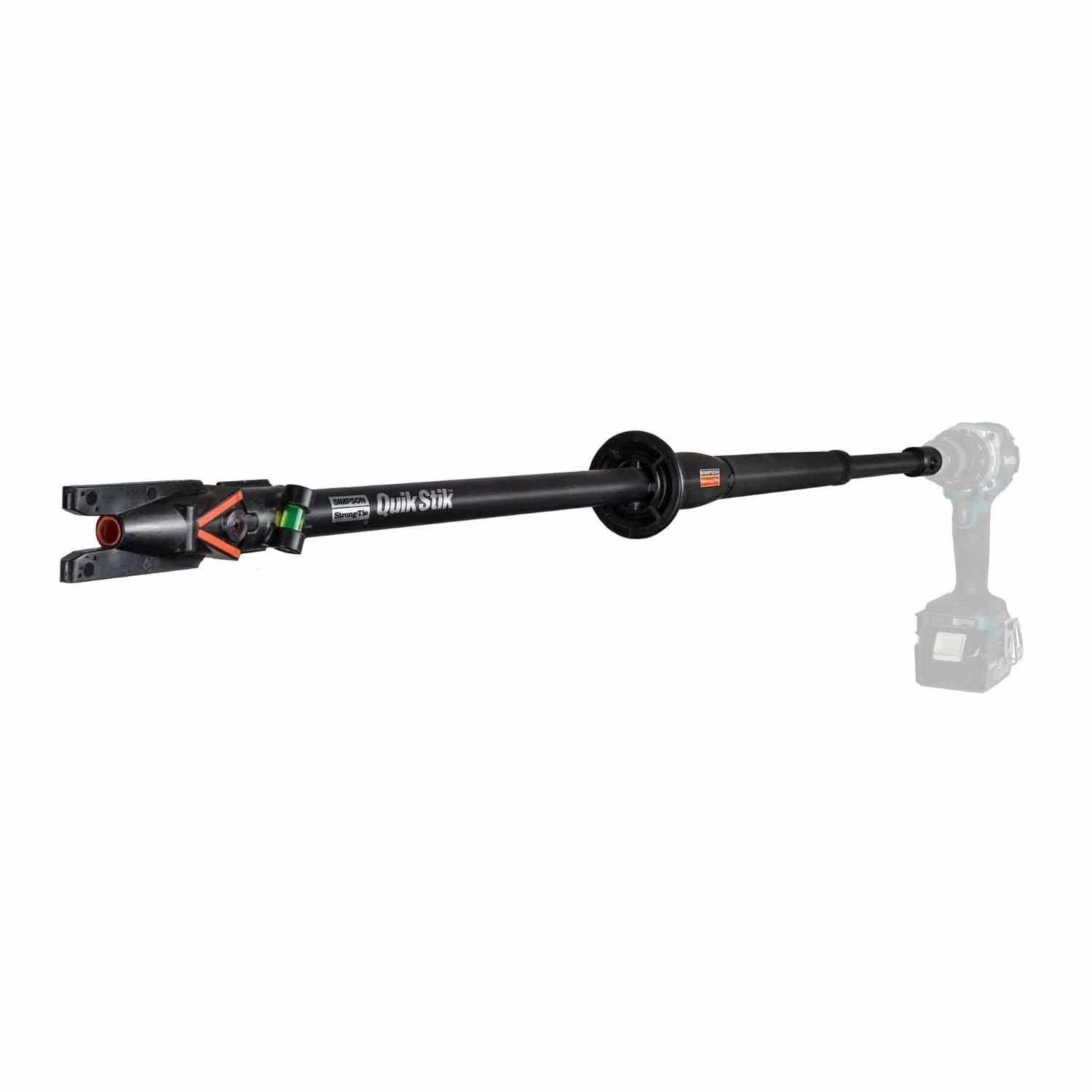

Simpson Strong-Tie QUIKSTIK Rafter and Truss Fastening System with Carrying Case
Free Shipping
$272.13
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie QUIKSTIK Description
The QUIKSTIK Rafter and Truss Fastening System is designed for efficient and secure overhead fastening of truss and rafter connections. It features a long extension arm, a comfortable grip, and an adjustable bubble level for precise installation.
Simpson Strong-Tie QUIKSTIK Includes
- (1) Quik Stik fastening tool
- (1) carrying case
- (1) bubble level
- (1) T30 6-lobe driver bit
- (1) Operator's Manual
- (1) Limited lifetime warranty

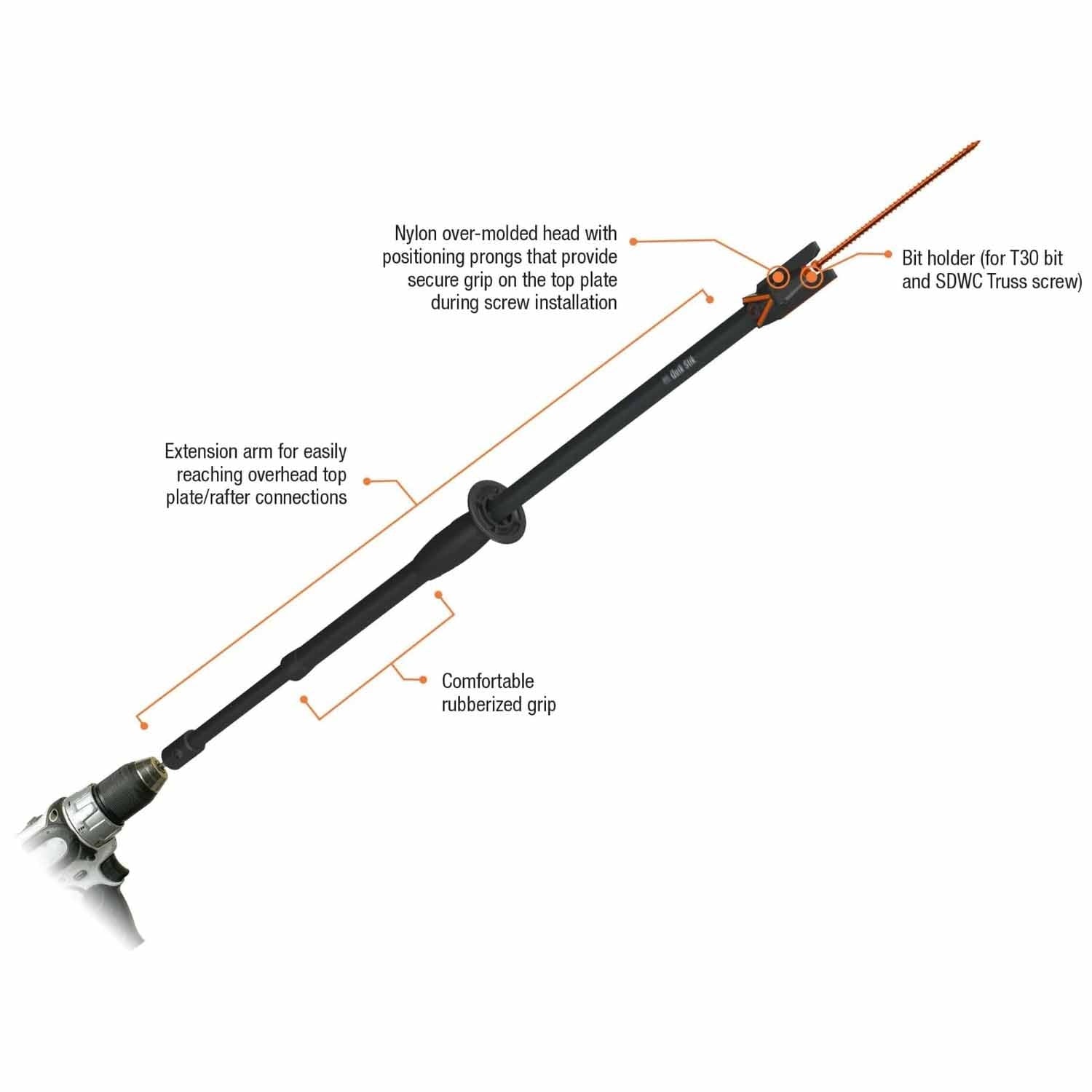

Simpson Strong-Tie QUIKSTIK Features

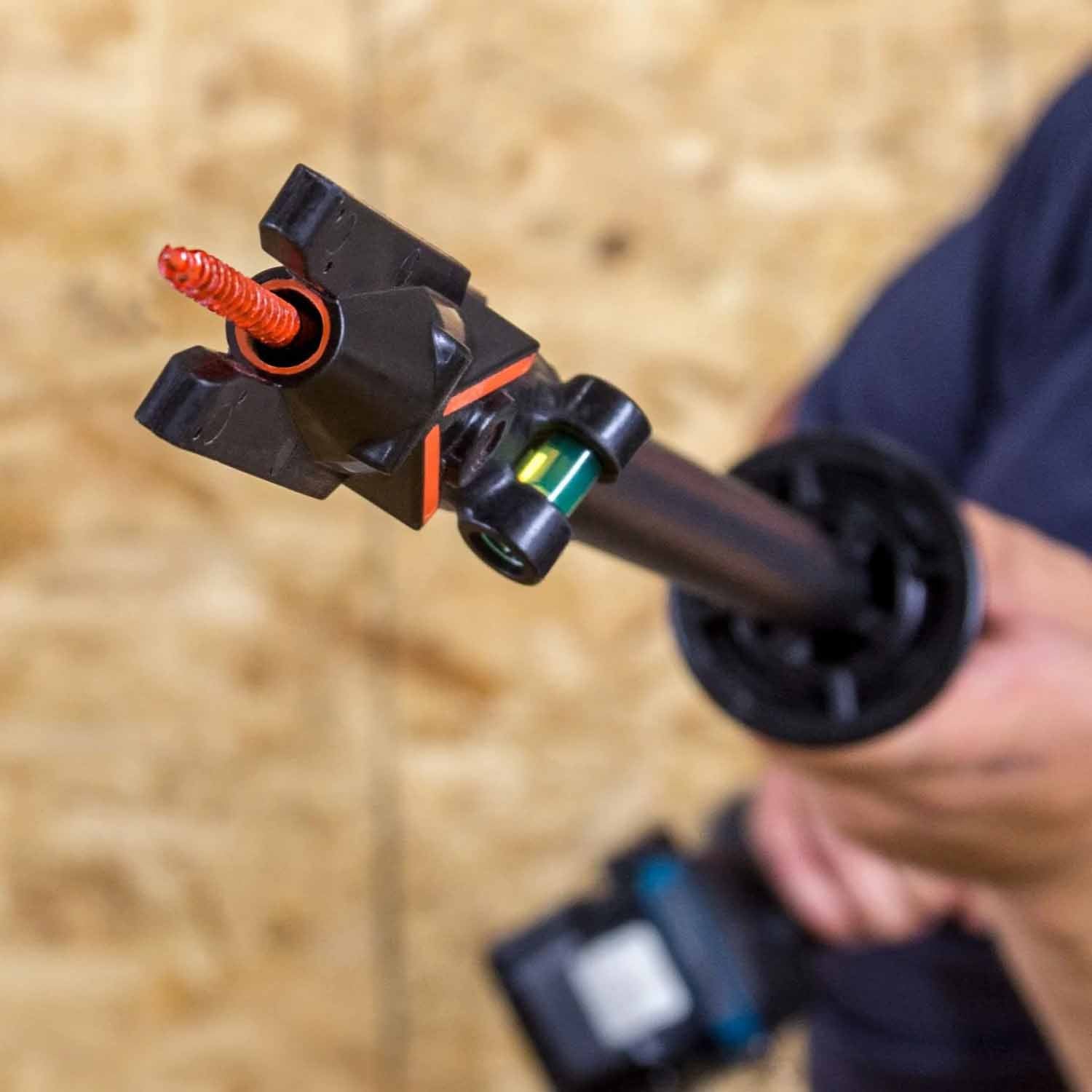

- Nylon over-molded head with positioning prongs for a secure grip on top plate
- Long extension arm for reaching overhead connections
- Comfortable rubberized grip
- Angle and centerline guide lines for precise screw positioning
- Adjustable bubble level for proper installation angle
Simpson Strong-Tie QUIKSTIK Applications

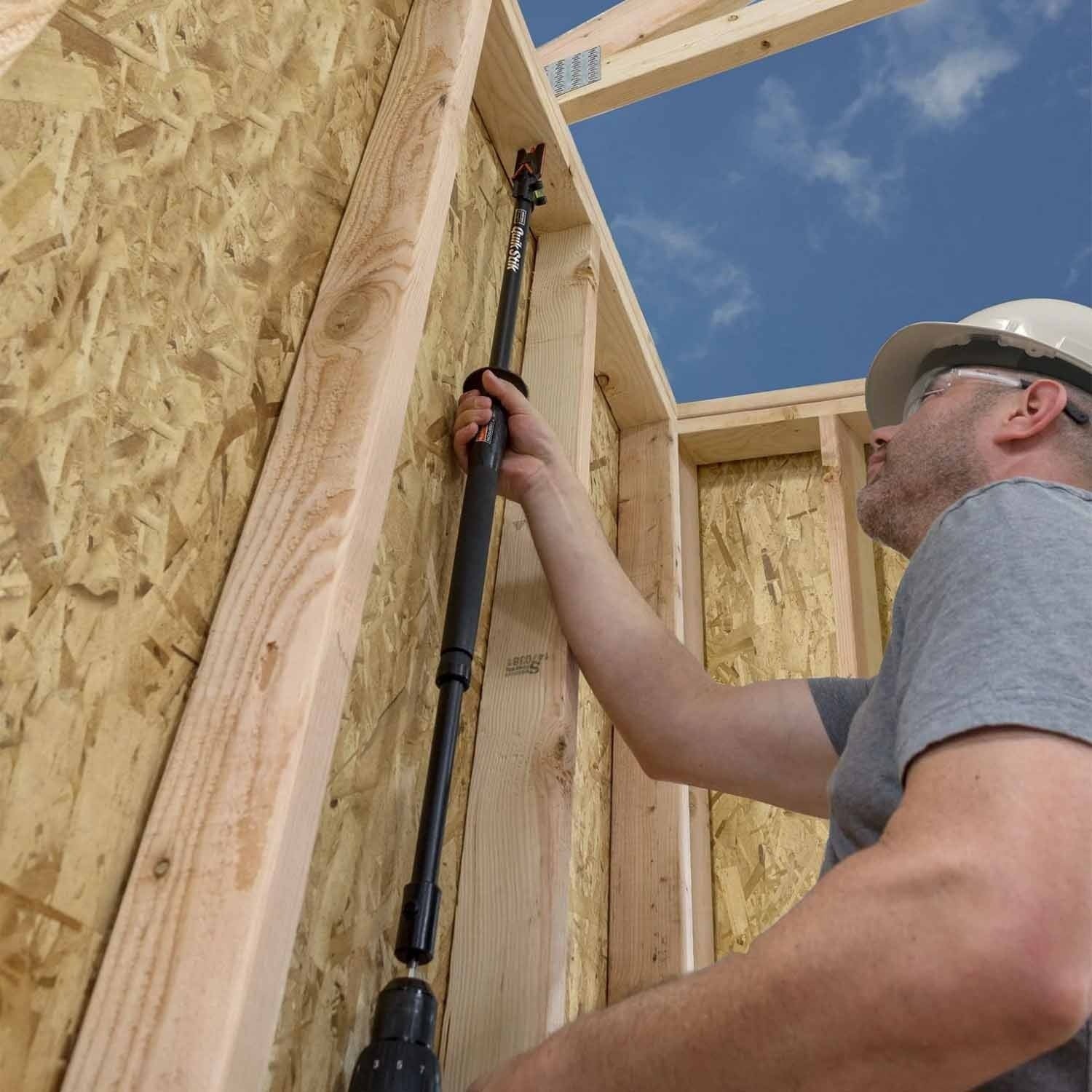

- Overhead fastening of truss and rafter connections
- Narrow-face stud to top plate connections
- Wide-face stud to top plate connections
- Truss rafter offset from stud connections
Simpson Strong-Tie QUIKSTIK Installation Overview

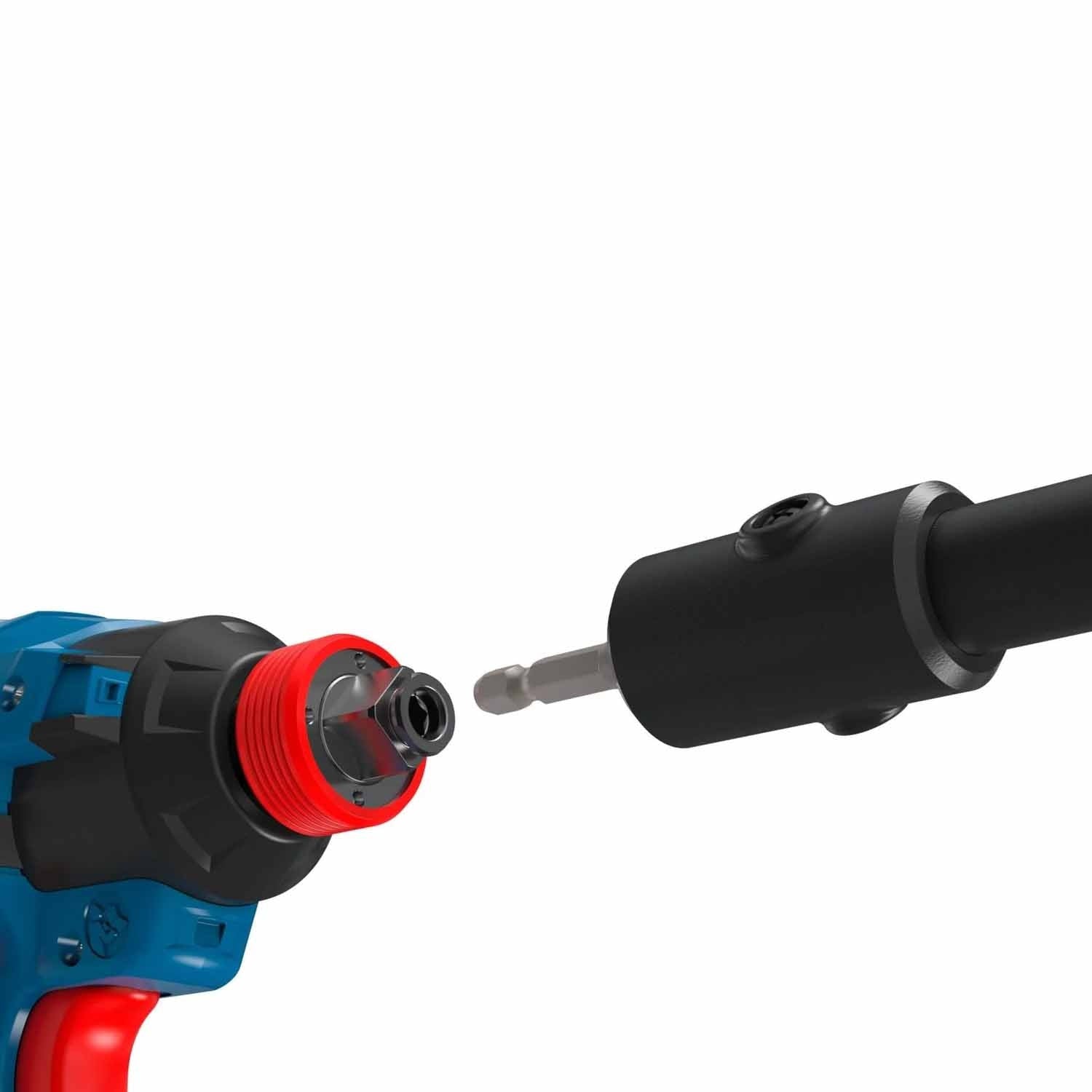

- Attach the QUIKSTIK to a drill or impact driver.
- Position the tool for the desired connection type.
- Use the adjustable bubble level to ensure proper angle.
- Install the SDWC Truss screws as per guidelines.
Simpson Strong-Tie QUIKSTIK Specifications
| Weight | 10.0 lb |
| Driver Motor Type | Driver Not Included |
| Application | Fastening Truss/Rafter-to-Plate |
