Simpson Anchors | SKU:
RCA-C223/97-R90
Simpson Strong-Tie RCA-C223/97-R90 (2" x 2" x 3" 12-Gauge) Rigid Connector Angle for Concrete (90 Pack)
Free Shipping
$238.37
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie RCA-C223/97-R90 Description

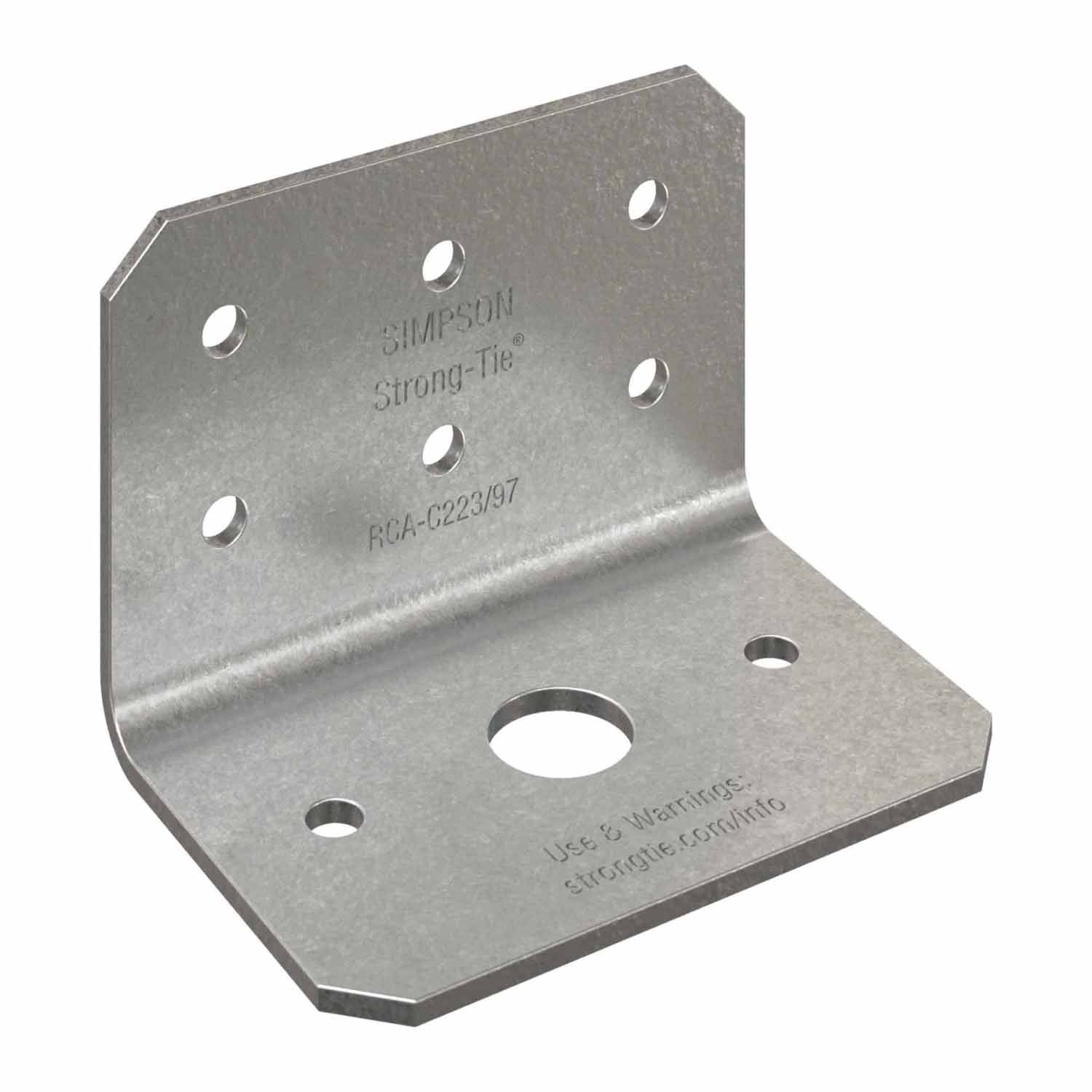

The RCA-C223/97-R90 is a zinc galvanized rigid connector angle designed for concrete applications, offering durability and versatility for various framing and structural needs.
Simpson Strong-Tie RCA-C223/97-R90 Includes
- (90) Zinc Galvanized Rigid Connector Angle
Simpson Strong-Tie RCA-C223/97-R90 Features
- 2" x 2" legs for ample attachment space
- Multiple screw pattern options for varied load ratings
- Prepunched holes for easy installation
- Compatible with various anchor types for concrete or masonry attachment
- Durable G90 galvanized finish

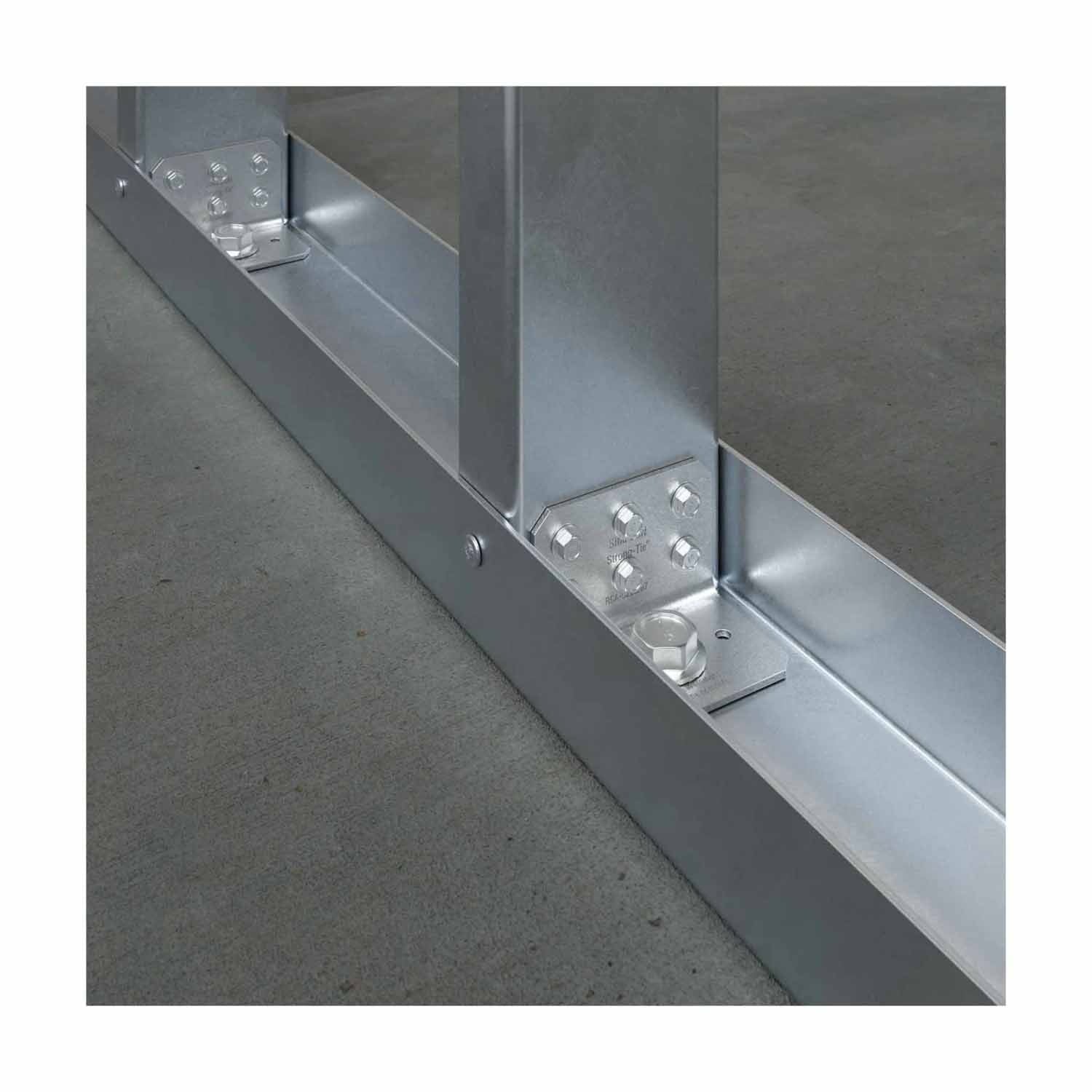

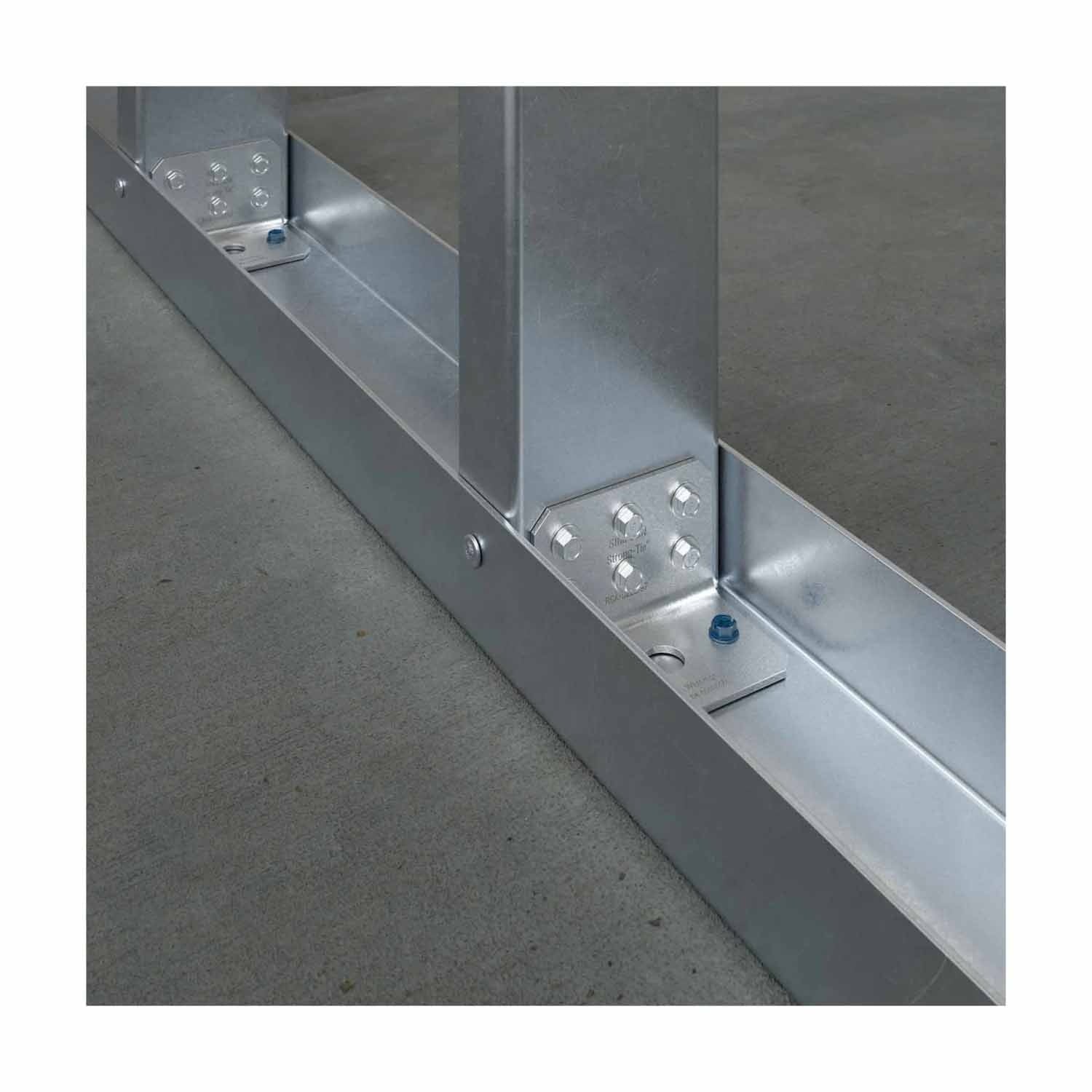

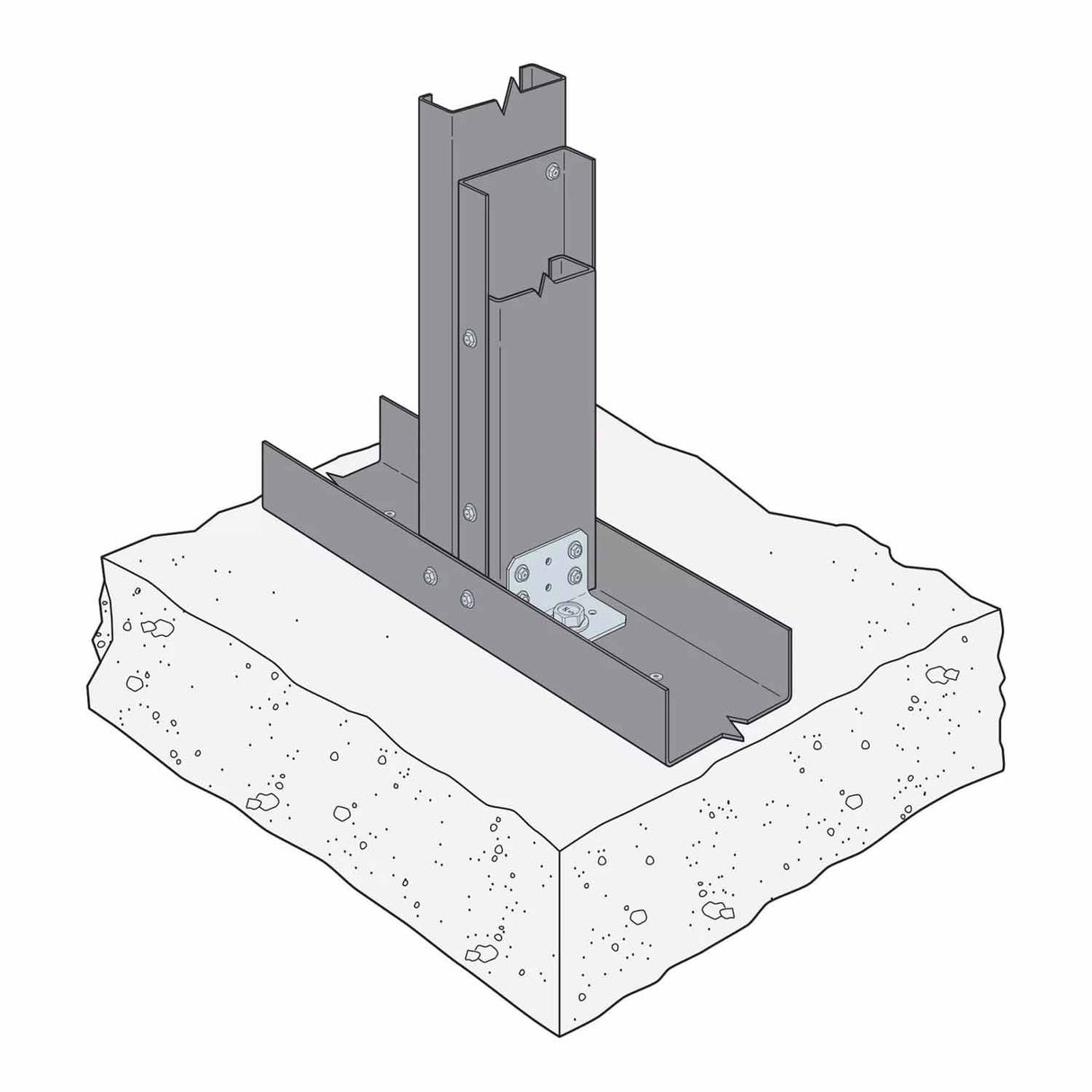

Simpson Strong-Tie RCA-C223/97-R90 Applications
- General framing connections
- Reinforcement of jamb studs
- By-pass curtainwall framing
- Miscellaneous head/sill connections to jamb studs
- Stud-blocking and u-channel bridging

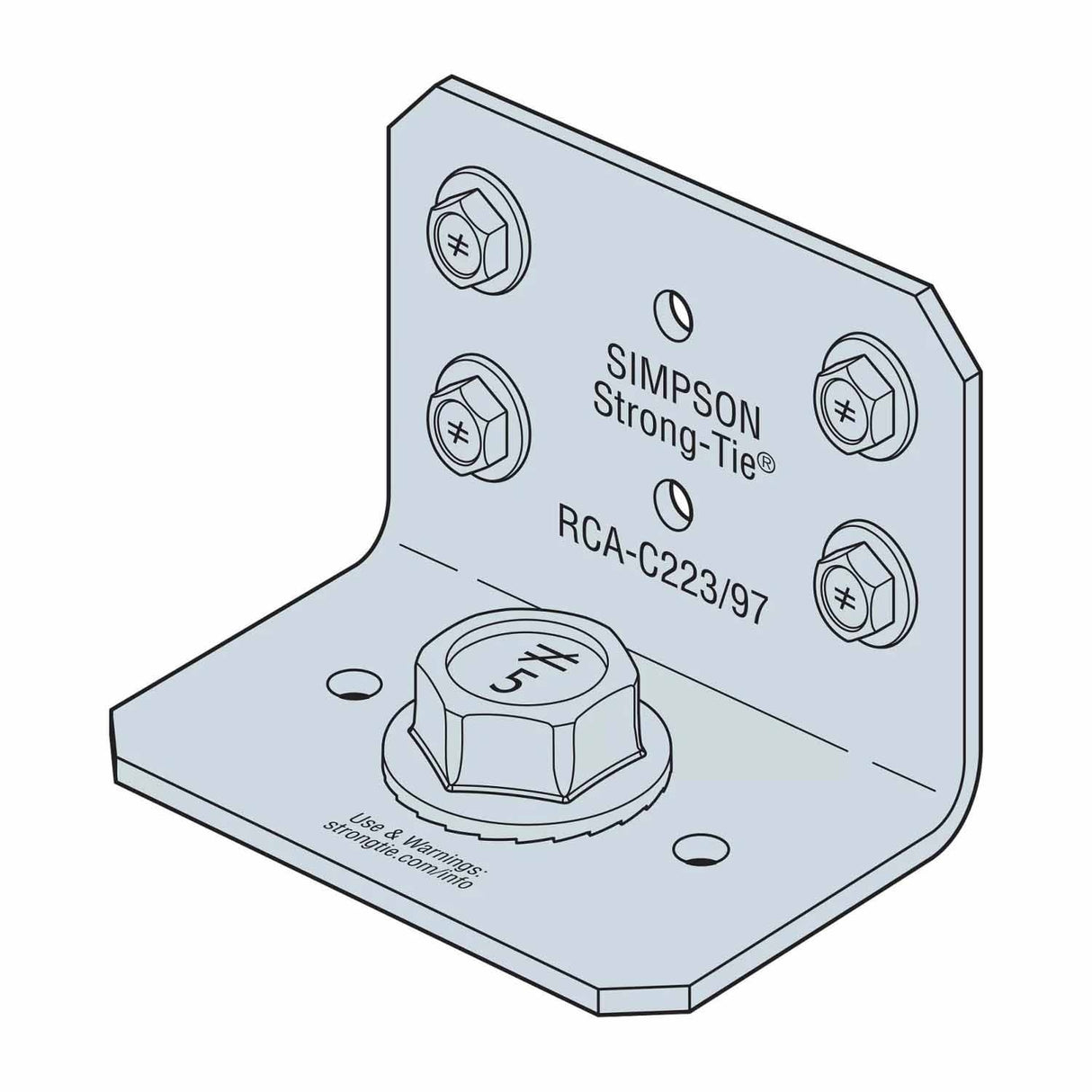

Simpson Strong-Tie RCA-C223/97-R90 Installation Overview
- Use all specified fasteners

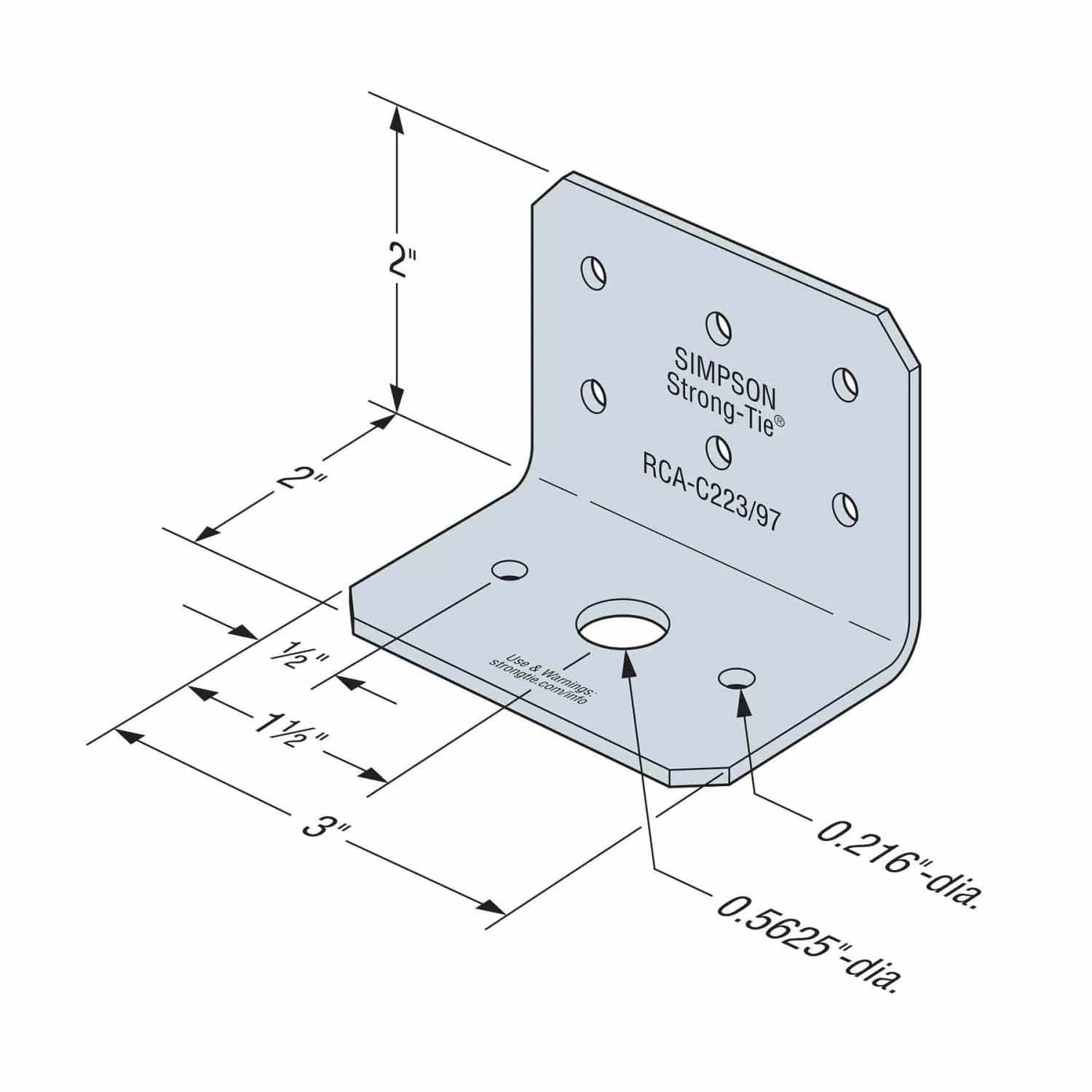

Simpson Strong-Tie RCA-C223/97-R90 Specifications
| Finish | G90 Galvanized |
| Length | 3" |
| Base width | 2" |
| Height | 2" |
| Thickness | 97 mil |
| Quantity | 90 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
