Simpson RCKW3-R10 Description

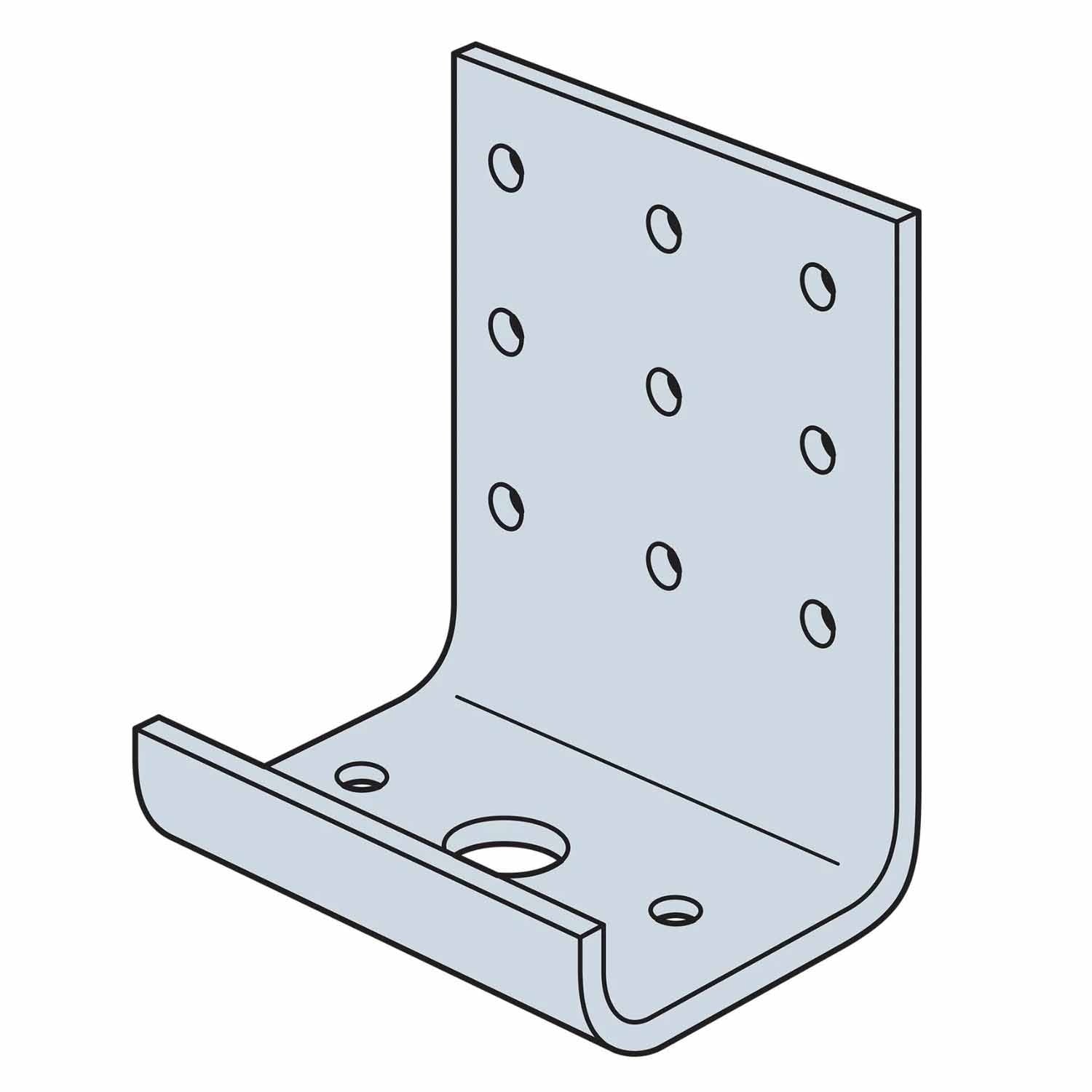

The Simpson Strong-Tie RCKW3-R10 Rigid Kneewall Connector Clip is designed for cold-formed steel construction, providing reliable resistance to overturning moments in kneewalls and parapets.
Simpson RCKW3-R10 Includes
- (10) Rigid Kneewall Connector Clip
Simpson RCKW3-R10 Features
- Designed to resist overturning moments at the base of kneewalls and parapets
- Compatible with both concrete and structural steel anchorage
- Large-diameter anchor holes accommodate 1/2"-diameter concrete screws
- Galvanized finish for corrosion resistance
- Heavy-duty 171 mil (7 ga.) stiffener for enhanced structural support
Simpson RCKW3-R10 Applications
- Cold-formed steel construction
- Exterior kneewalls and parapets
- Interior partial-height walls
Simpson RCKW3-R10 Installation Overview
- Use all specified screw fasteners to achieve tabulated load values
- Secure stiffener to the clip with specified screws, ensuring minimum thread exposure
- Pre-drill or punch bottom track with a 3/4"-diameter hole for anchor installation
Simpson RCKW3-R10 Specifications
| Material | Galvanized Steel |
| Finish | G90 Galvanized |
| Height | 3-1/2" |
| Thickness | 171 mil (7 ga.) |
| Dimensions | 2 13/16 x 3 1/2 |
| Packaging Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
