Simpson Strong-Tie RCKW3DS-R10 Description
The Simpson Strong-Tie RCKW3DS-R10 is a rigid connector designed to resist overturning moments at the base of kneewalls and parapets, providing enhanced capacity for 3-5/8" framed kneewalls.
Simpson Strong-Tie RCKW3DS-R10 Includes
- (10) Two-Anchor Kneewall Connector Stiffener
Simpson Strong-Tie RCKW3DS-R10 Features
- Two large holes for anchorage, providing increased capacity.
- Stiffened flanges for improved overturning moment resistance.
- Compatible with 1/2"-diameter concrete screw anchors and wedge anchors.
- Additional smaller-diameter anchor holes for attachment to structural steel.
- Optimized for cold-formed steel applications.
Simpson Strong-Tie RCKW3DS-R10 Applications
- Exterior kneewalls and parapets.
- Interior partial-height walls.
- Overhead ribbon window conditions.
- Cold-formed steel construction.
Simpson Strong-Tie RCKW3DS-R10 Installation Overview
- Use all specified screw fasteners according to the installation illustrations.
- Secure the stiffener to the clip with specified screw fasteners.
- Ensure anchors are installed with the required torque.
- Predrill or punch the bottom track with a 3/4"-diameter hole for larger-diameter anchor holes.
Simpson Strong-Tie RCKW3DS-R10 Specifications
| Material | 171 mil (7 ga.), 33 ksi |
| Finish | Galvanized (G90) |
| Thickness | 7 Gauge |

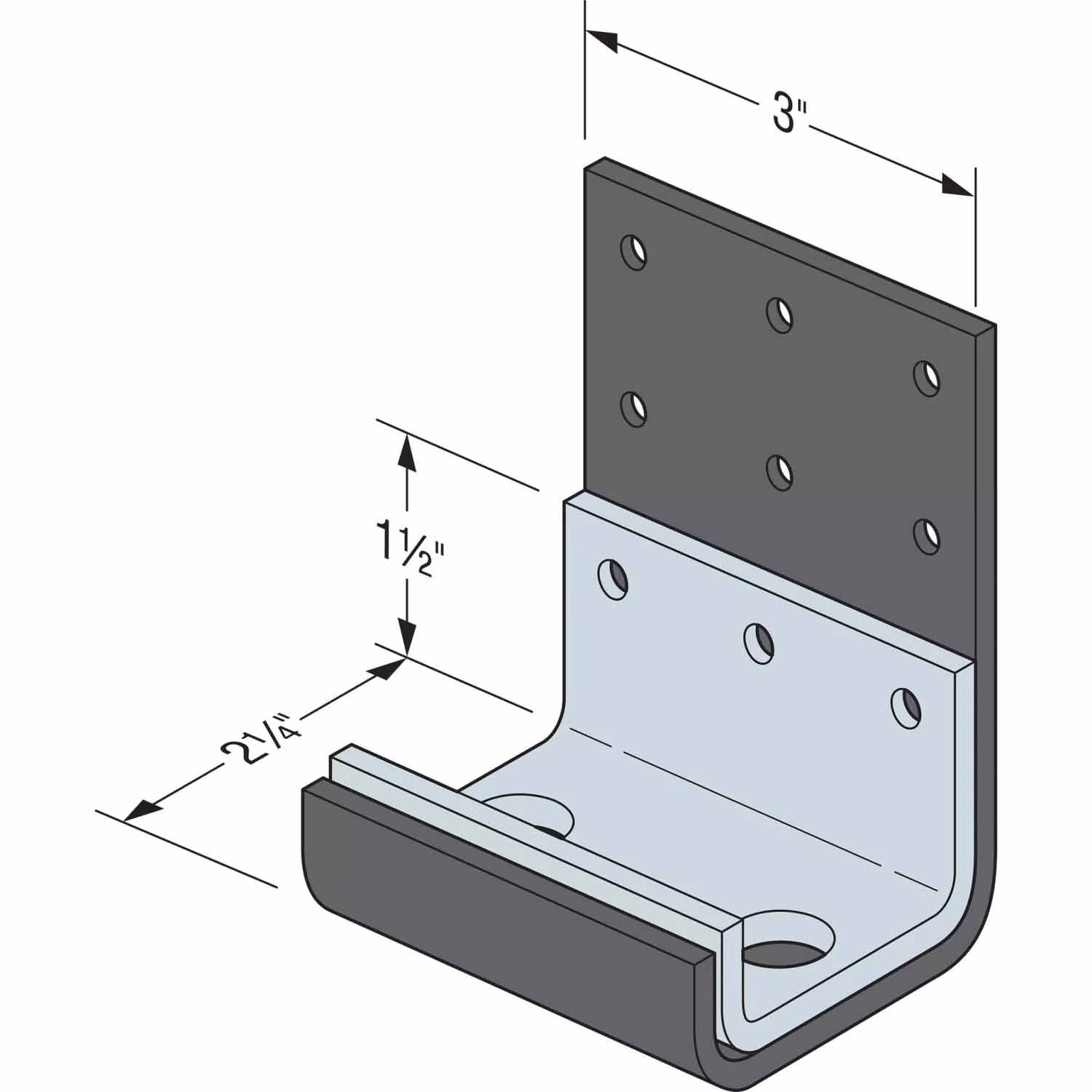

| Dimensions | 2 3/16 x 1 1/2 |
| Packaging Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
821910
