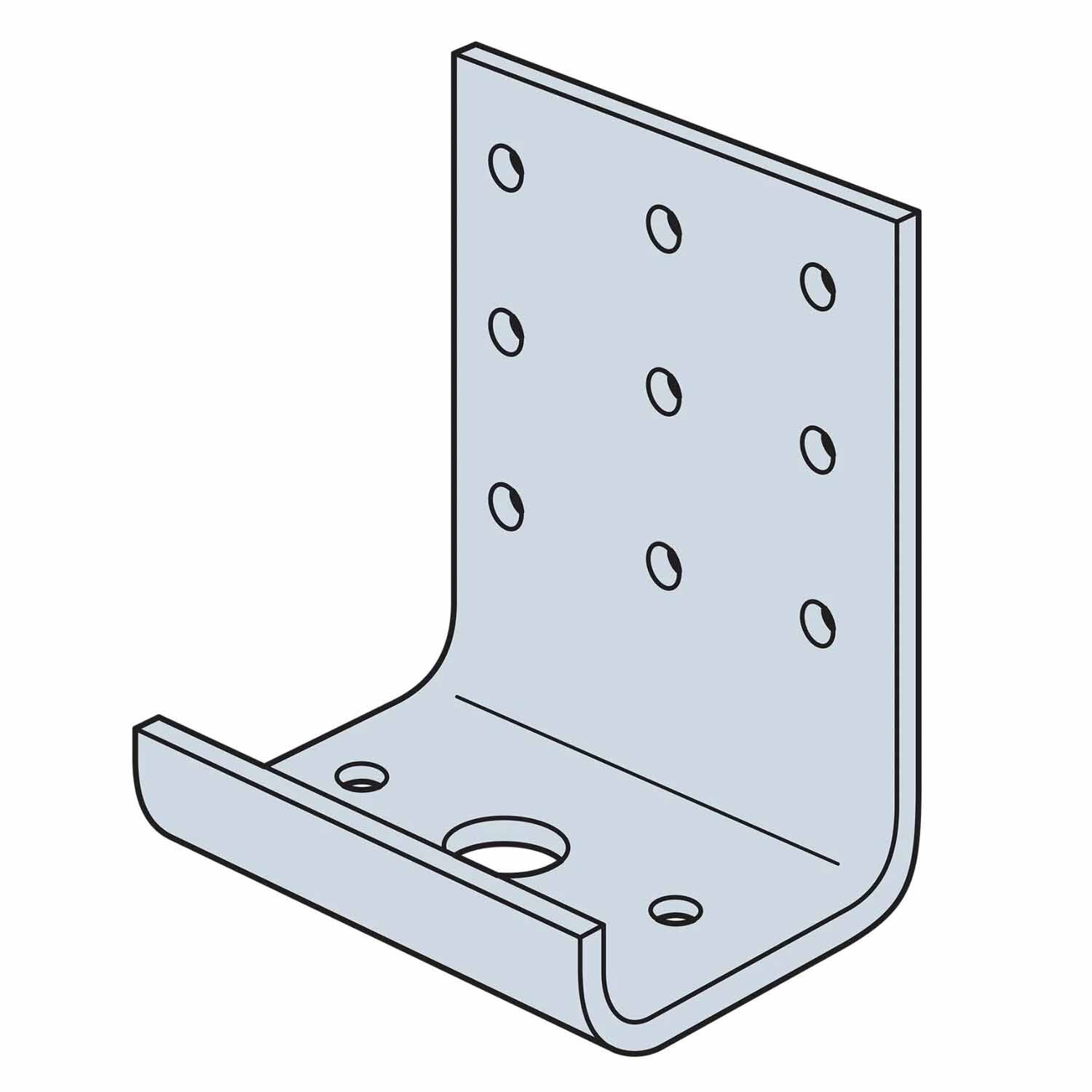

Simpson Strong-Tie RCKW3S-R10 Description
The RCKW3S-R10 Rigid Kneewall Connector Stiffener is designed for 3 in. framing, providing enhanced structural support and resistance to overturning moments.
Simpson Strong-Tie RCKW3S-R10 Includes
- (10) RCKW3S Rigid Kneewall Connector Stiffener
Simpson Strong-Tie RCKW3S-R10 Features
- Designed for 3 in. framing applications
- Provides resistance to overturning moments
- Compatible with concrete and structural steel anchorage
- Includes stiffened flanges for improved performance
- Galvanized finish for corrosion resistance
Simpson Strong-Tie RCKW3S-R10 Applications
- Cold-formed steel construction
- Kneewalls and parapets
- Partial-height interior walls
Simpson Strong-Tie RCKW3S-R10 Installation Overview
- Use all specified screw fasteners to achieve tabulated load values.
- Secure the stiffener to the clip with specified screws, ensuring at least 1 inch length and three exposed threads.
- Use specified anchors with a minimum torque of 17 ft.-lb.
- Predrill or punch a 3/4 inch diameter hole for bottom track when using 1/2 inch diameter anchors.
Simpson Strong-Tie RCKW3S-R10 Specifications
| Material | 171 mil (7 ga.), 33 ksi steel |
| Finish | G90 Galvanized |
| Dimensions | 2 3/16 x 1 1/2 in. |
| Packaging Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
821683
