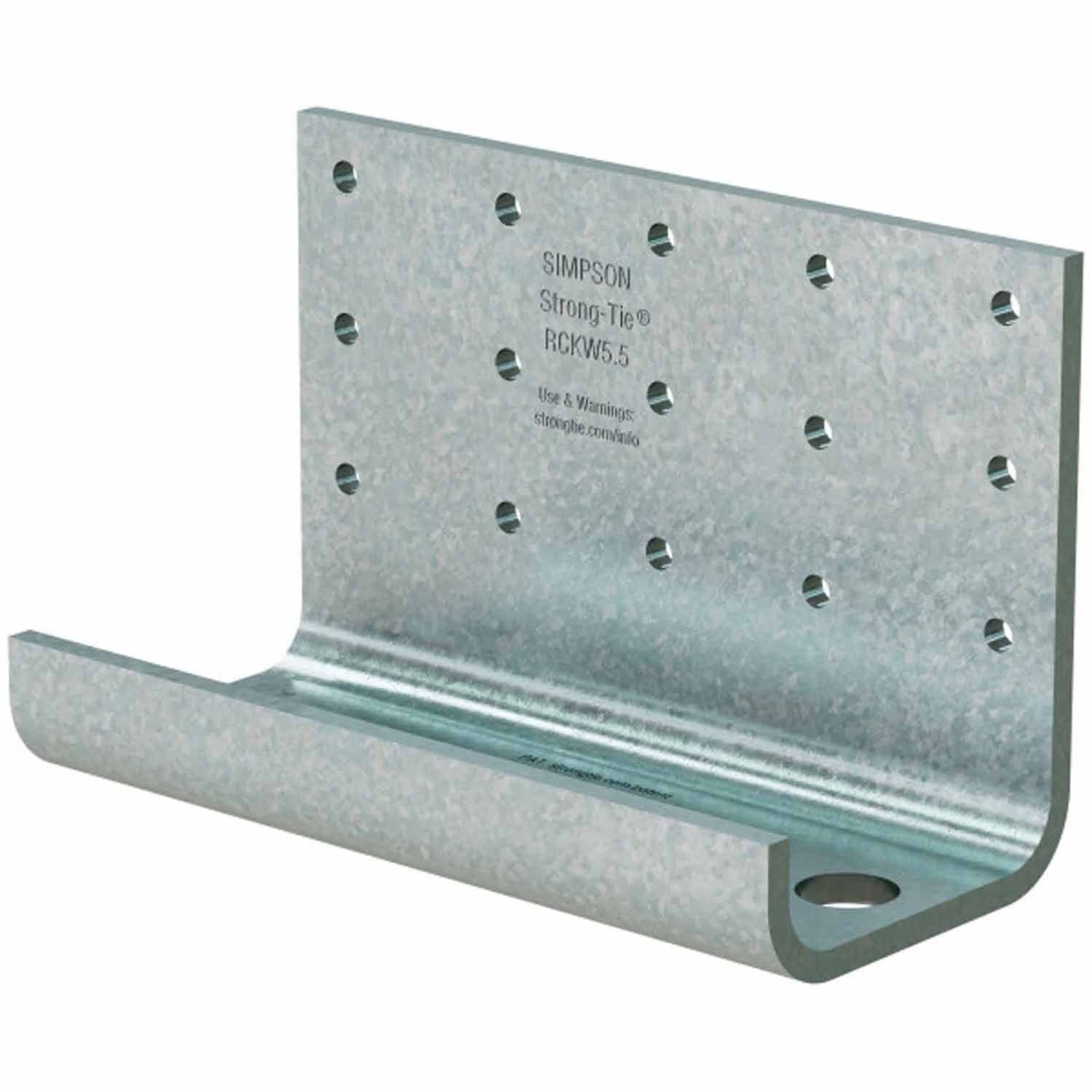

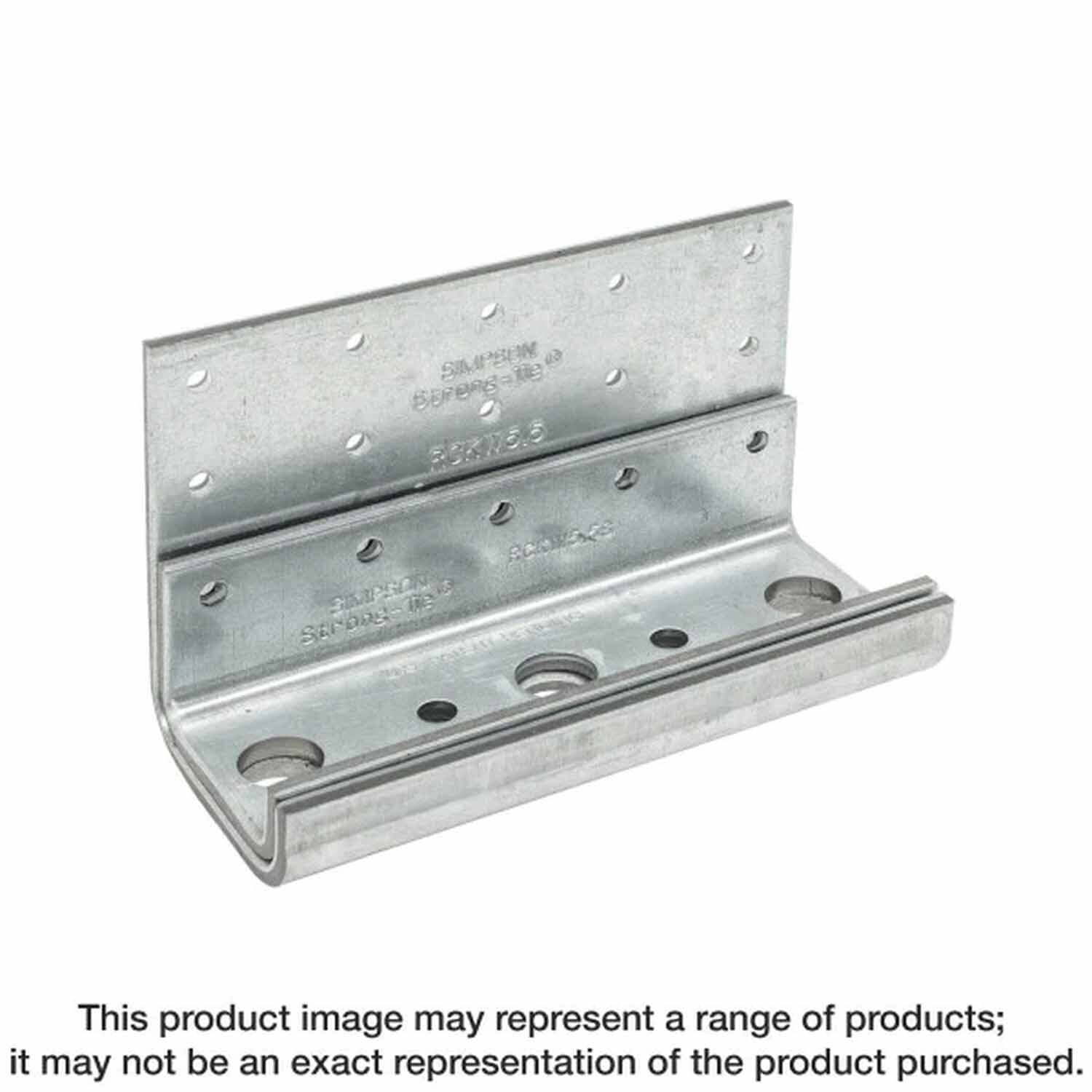

Simpson RCKW5.5-R10 Description
The RCKW5.5 Rigid Kneewall Connector Clip is designed for cold-formed steel construction, providing resistance to overturning moments and versatile anchorage options.
Simpson RCKW5.5-R10 Includes
- (10) Rigid Kneewall Connector Clip
Simpson RCKW5.5-R10 Features
- Resists overturning moments at the base of kneewalls and parapets
- Compatible with both concrete and structural steel anchorage
- Large-diameter anchor holes for 1/2"-diameter concrete screws
- Smaller-diameter anchor holes for attachment to structural steel
- Galvanized finish for corrosion resistance
Simpson RCKW5.5-R10 Applications
- Cold-formed steel construction
- Exterior kneewalls and parapets
- Interior partial-height walls

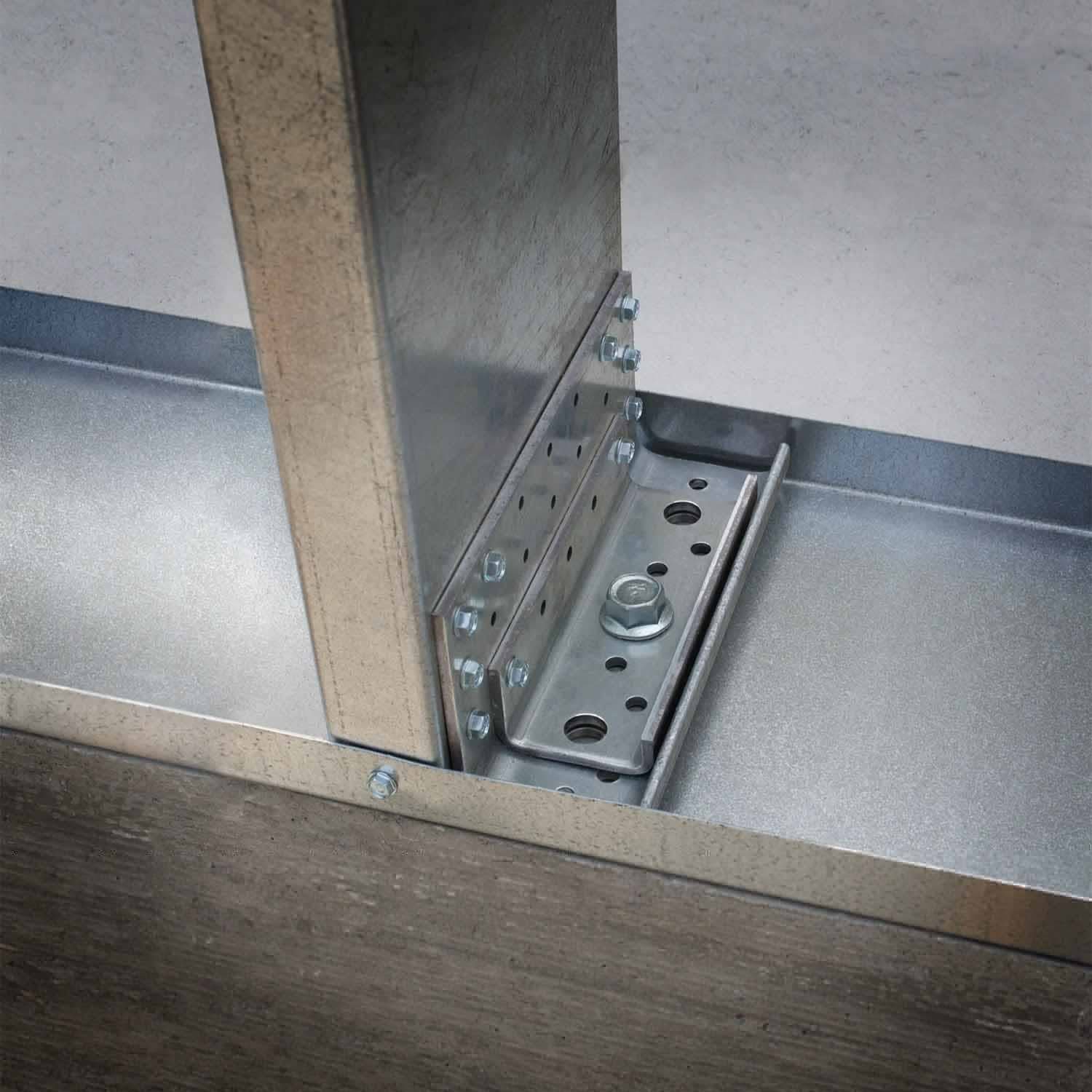

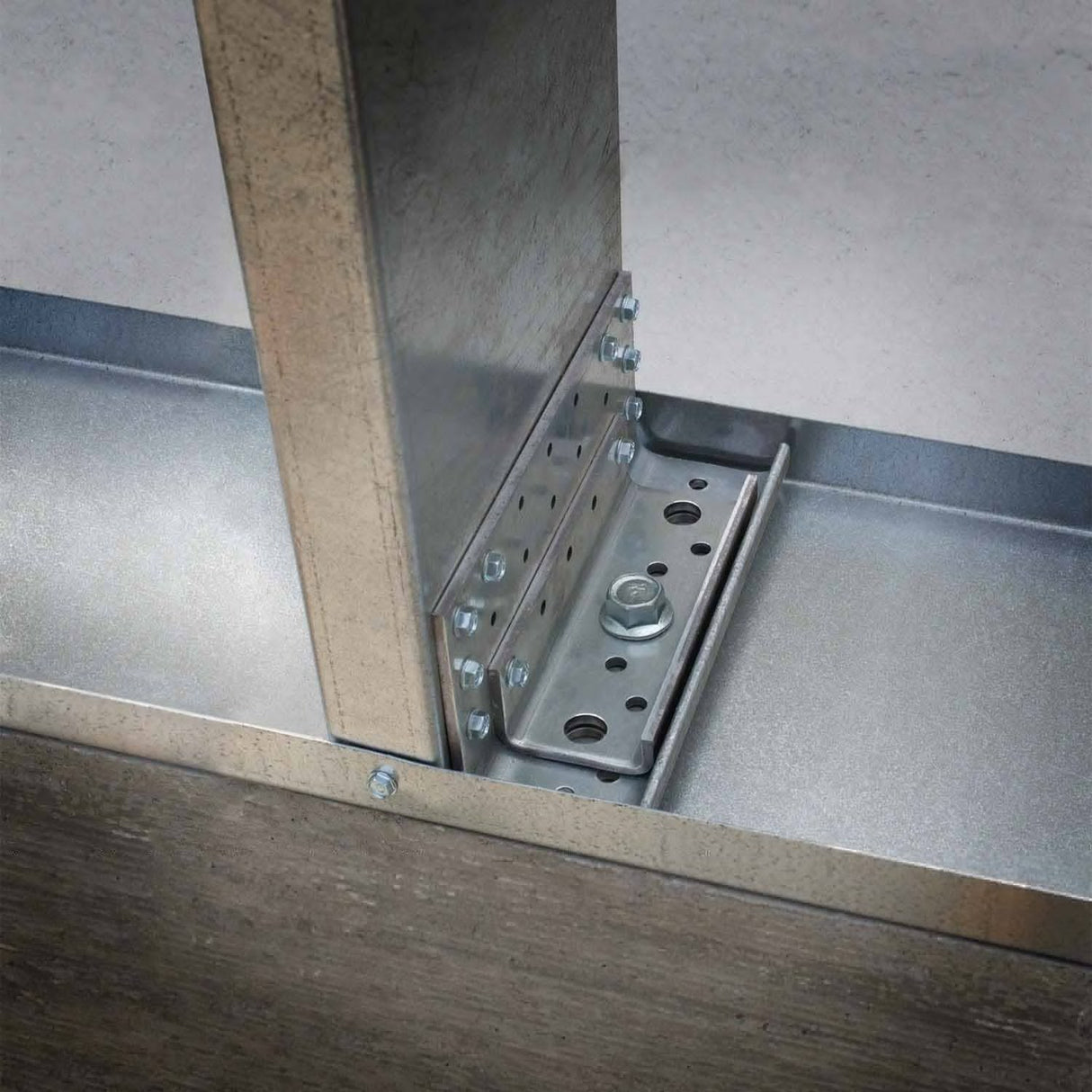

Simpson RCKW5.5-R10 Installation Overview
- Use all specified screw fasteners to achieve tabulated load values
- Secure stiffener to the clip with specified screws
- Ensure anchors meet required installation torque
- Pre-drill or punch bottom track for larger-diameter anchors

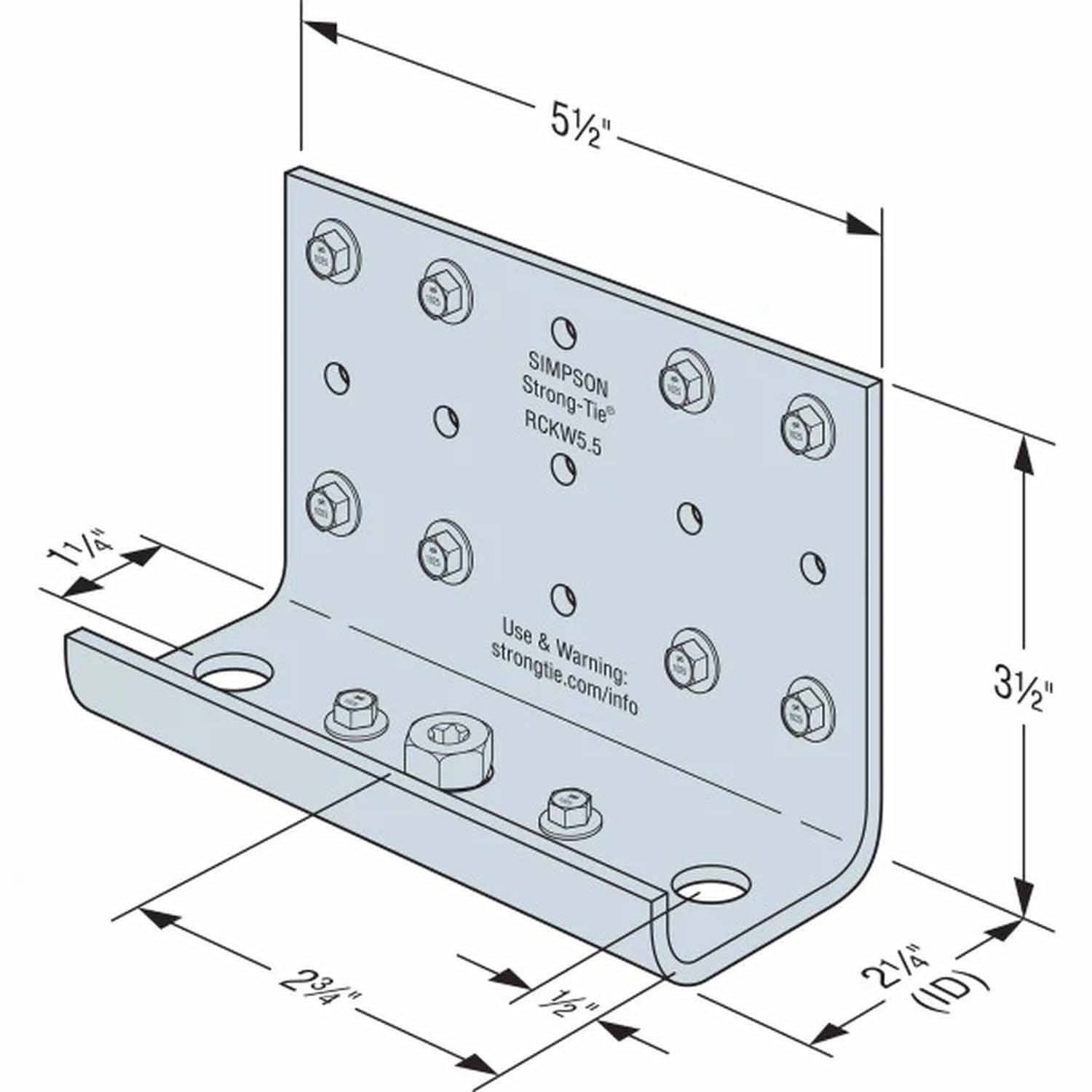

Simpson RCKW5.5-R10 Specifications
| Material | Galvanized Steel |
| Finish | G90 Galvanized |
| Height | 3-1/2" |
| Width | 5-1/2" |
| Depth | 2-1/4" |
| Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
