Simpson Anchors | SKU:
RPS28Z

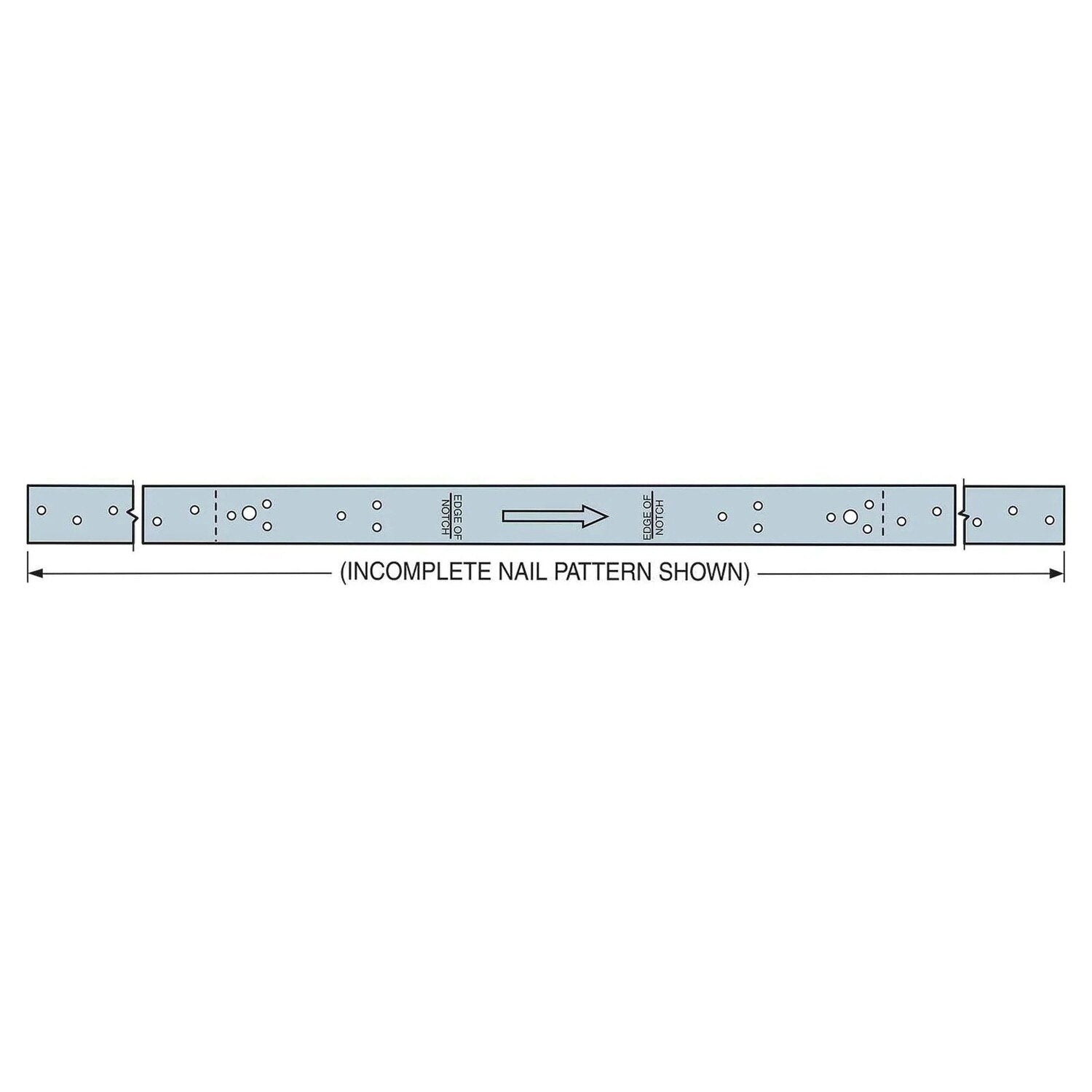

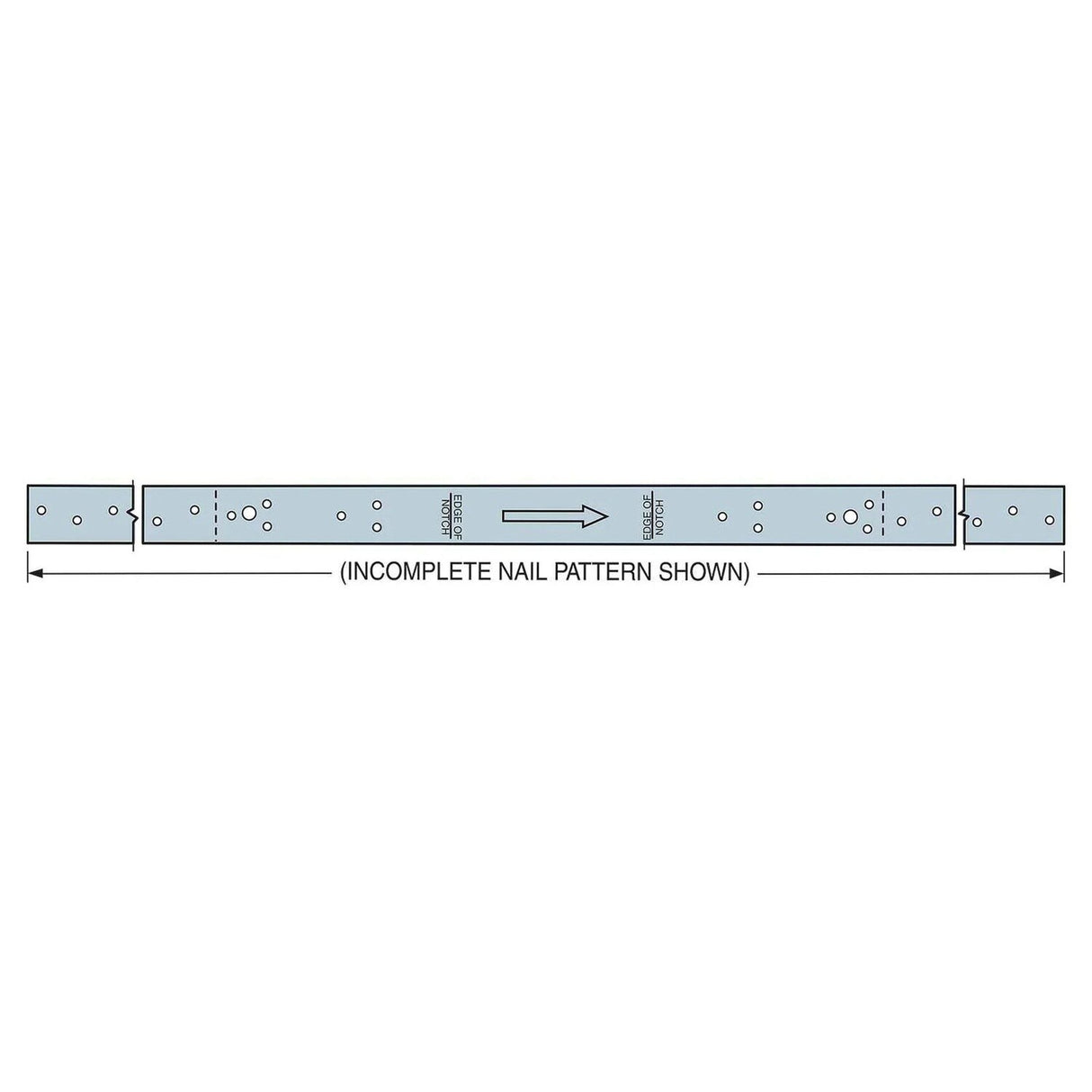

Simpson Strong-Tie RPS28Z (28-5/16") 16Ga Retrofit Strap Tie - ZMAX Finish
$7.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie RPS28Z Description
The Simpson RPS28Z Retrofit Strap Tie features a ZMAX coating for enhanced corrosion resistance and is designed to reinforce top and sill plates in wood construction.
Simpson Strong-Tie RPS28Z Includes
- (1) RPS28Z Retrofit Strap Tie
Simpson Strong-Tie RPS28Z Features
- ZMAX coating for corrosion resistance
- 16-gauge galvanized steel construction
- Designed for reinforcing top and sill plates
- Meets IBC, IRC, and City of Los Angeles code requirements
Simpson Strong-Tie RPS28Z Applications
- Reinforcing top plates in wood construction
- Reinforcing sill plates in wood construction
- General tension strap applications
Simpson Strong-Tie RPS28Z Installation Overview
- Use all specified fasteners as per guidelines
- Reinforce top plate using RPS22 or RPS28
- Reinforce sill plate using RPS18Z, RPS22Z, or RPS28Z
Simpson Strong-Tie RPS28Z Specifications
| Finish | ZMAX |
| Material | Galvanized Steel |
| Thickness | 16 Gauge |
| Width | 1-1/2" |
| Length | 28-5/16" |
| Weight | 0.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
