Simpson Anchors | SKU:
RTC22Z
Simpson Strong-Tie RTC22Z (2" x 2") Rigid Tie Corner ZMAX Finish
$5.66
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie RTC22Z Description

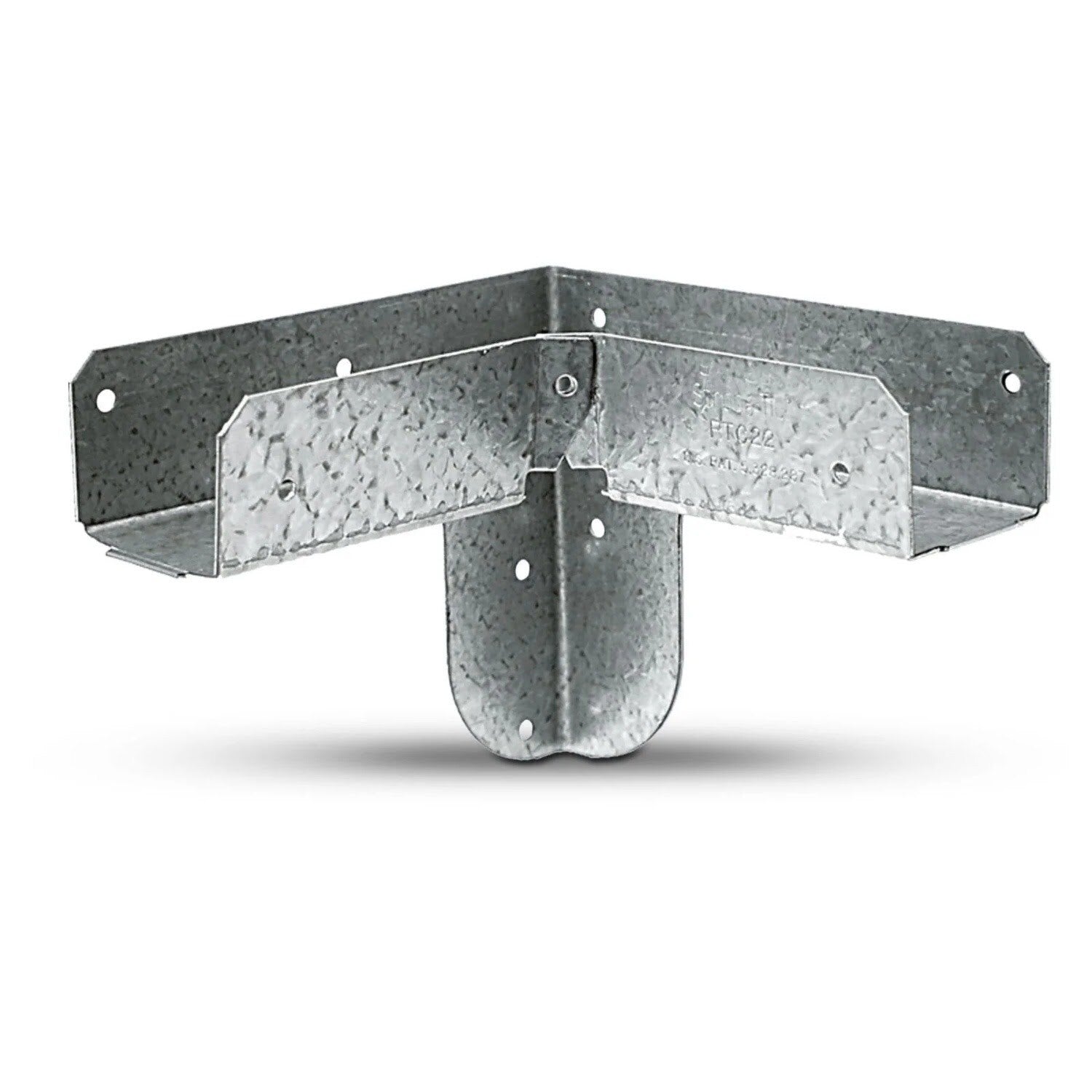

The Simpson Strong-Tie RTC22Z Rigid Tie Corner is designed to secure two wood members to a vertical post, forming a 90-degree corner. It features a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie RTC22Z Includes
- (1) 2x2 Rigid Tie Corner ZMAX Finish
Simpson Strong-Tie RTC22Z Features
- ZMAX galvanized finish for corrosion resistance
- Designed for 2X joists and posts
- Compatible with hot-dip galvanized fasteners
- Can be installed with specified nails or Strong-Drive SD connector screws
Simpson Strong-Tie RTC22Z Applications

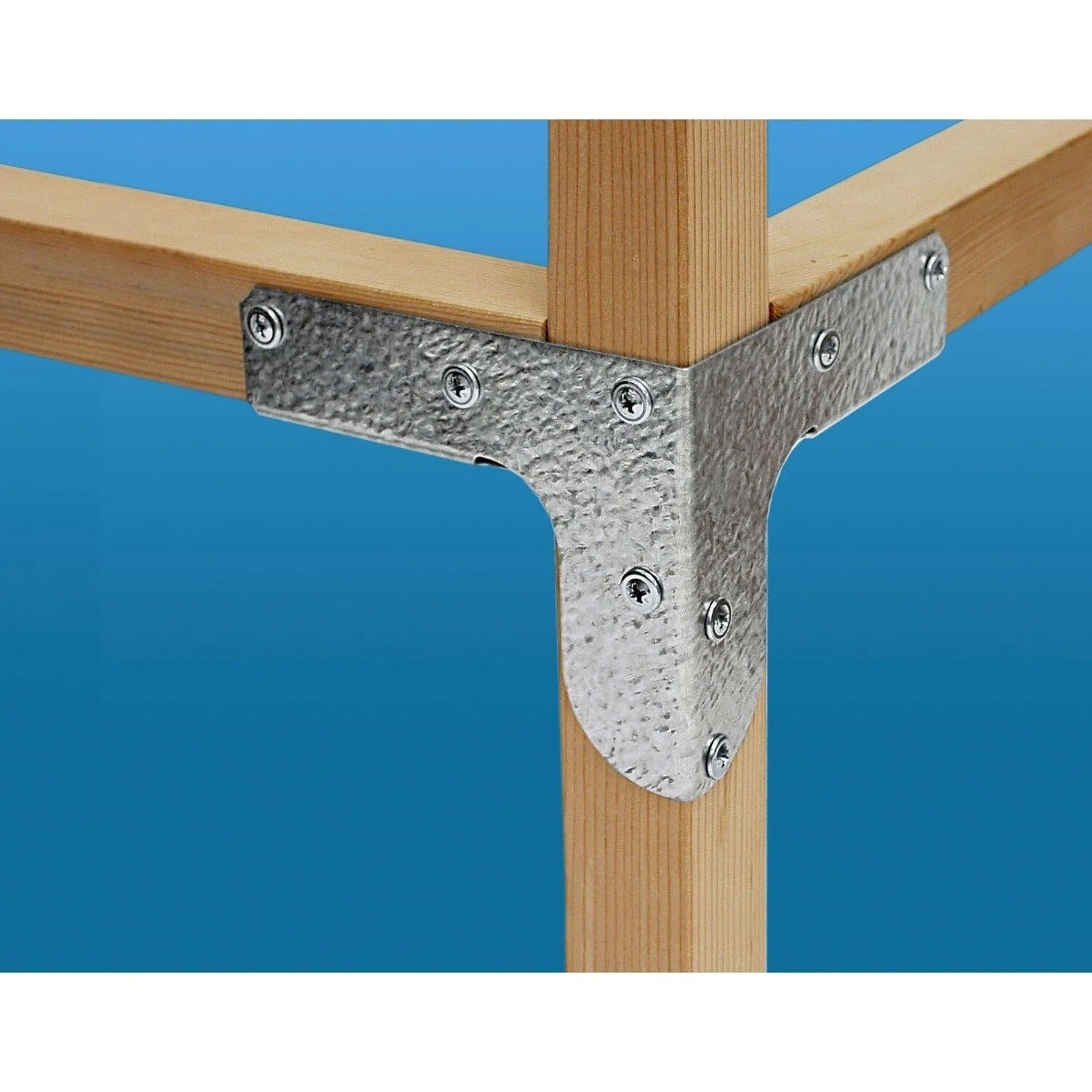

- Securing wood members to vertical posts
- Forming 90-degree corners in wood structures
- Use in treated lumber applications
Simpson Strong-Tie RTC22Z Installation Overview
- Use all specified fasteners
- Install vertical members first, then attach horizontal members for easier alignment
- Seat wood member in bracket with a C-clamp before securing to aid positioning and prevent skewing
- Follow manufacturer's instructions when using power tools and building equipment
Simpson Strong-Tie RTC22Z Specifications
| Weight | 0.6 lb |
| Finish | ZMAX Galvanized |
| For Treated Lumber | Yes |
| Joist size | 2X |
| Post size | 2X |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
