Simpson Anchors | SKU:
RTC42Z
Simpson Strong-Tie RTC42Z (2x) Rigid Tie Corner - ZMAX for Wood Construction
$13.21
Unit price
/
Unavailable
Description
Description

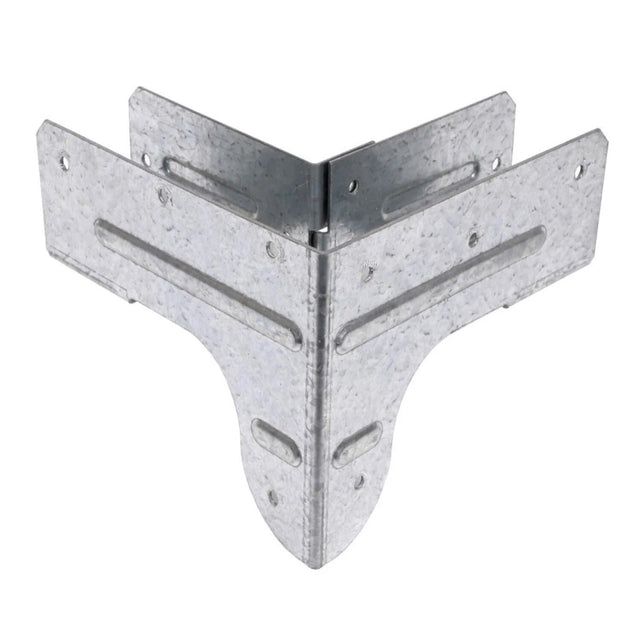

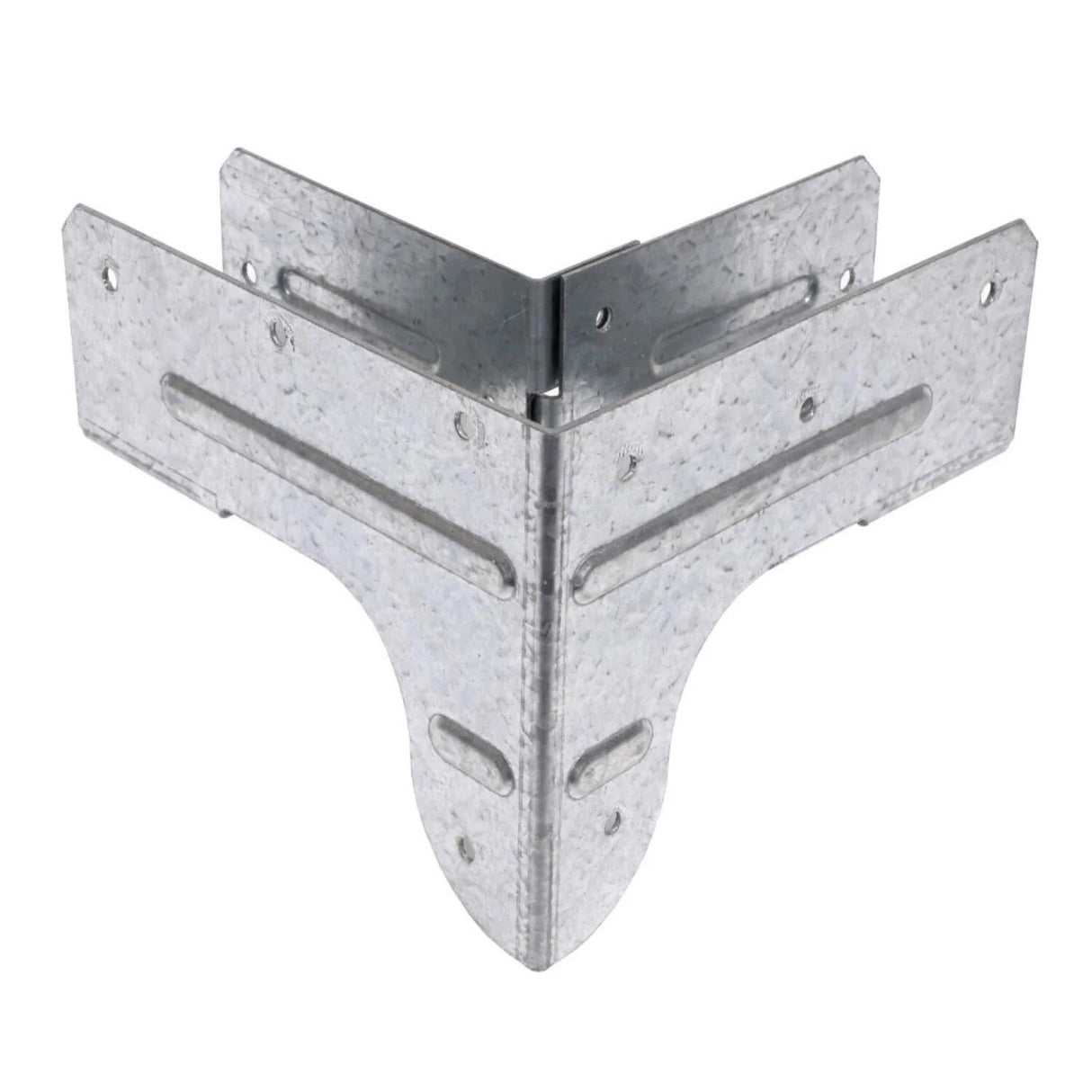

Simpson Strong-Tie RTC42Z Description

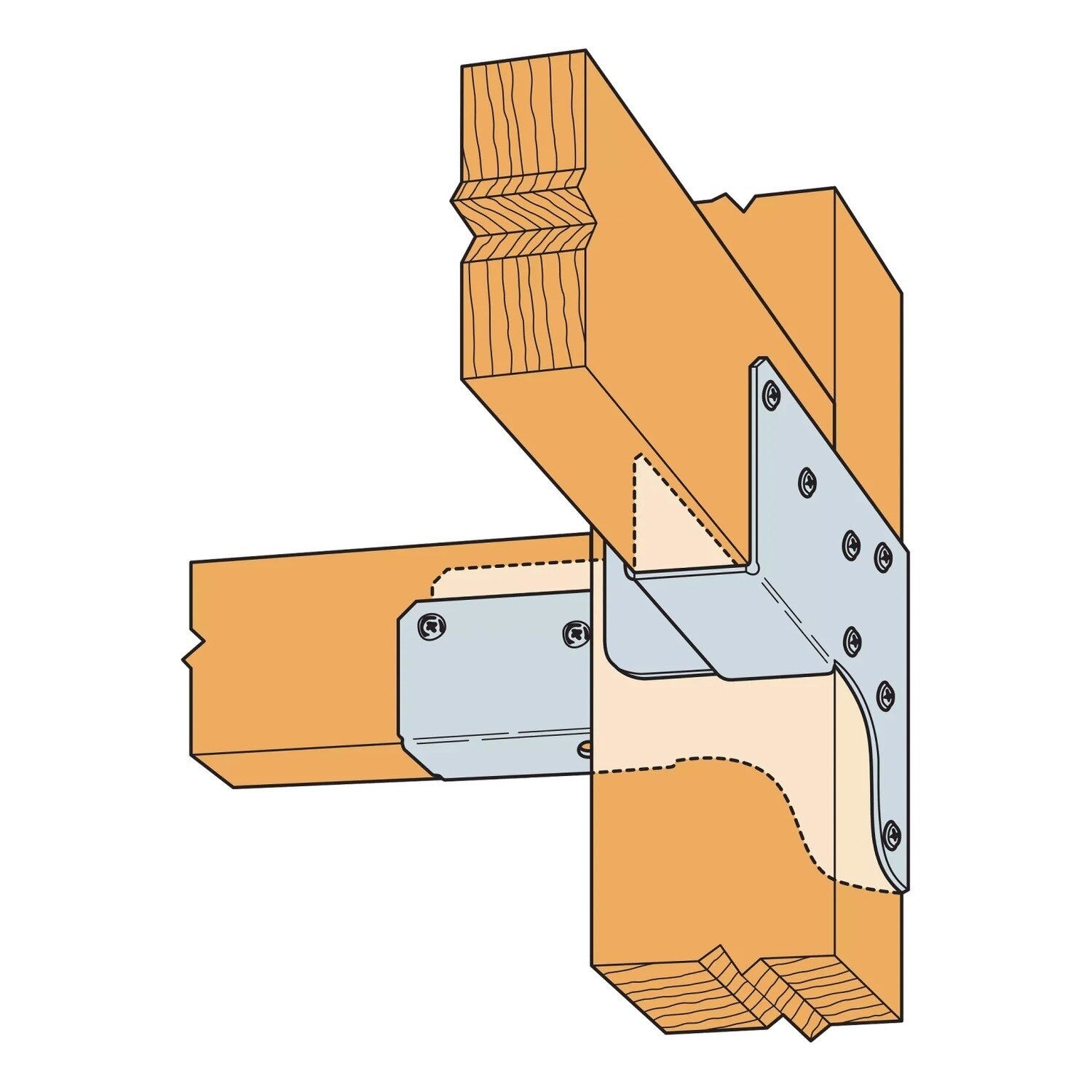

The Simpson Strong-Tie RTC42Z Rigid Tie Corner is designed for securing two wood members to a vertical post, forming a 90-degree corner. It features a ZMAX finish for enhanced corrosion resistance and is compatible with specified nails or Strong-Drive SD connector screws.
Simpson Strong-Tie RTC42Z Includes
- (1) RTC42Z Rigid Tie Corner
Simpson Strong-Tie RTC42Z Features
- Compatible with Simpson Strong-Tie Strong-Drive SD screws
- Constructed from corrosion-resistant galvanized steel
- Easier and stronger than angled fastening
Simpson Strong-Tie RTC42Z Applications
- Securing wood members to vertical posts in wood construction
- Forming 90-degree corners in structural framing
Simpson Strong-Tie RTC42Z Installation Overview
- Use all specified fasteners
- Install vertical members first, then attach horizontal members for easier alignment
- Seat wood member in bracket with a C-clamp before securing to aid positioning and prevent skewing
- Always follow manufacturer's instructions when using power tools and building equipment

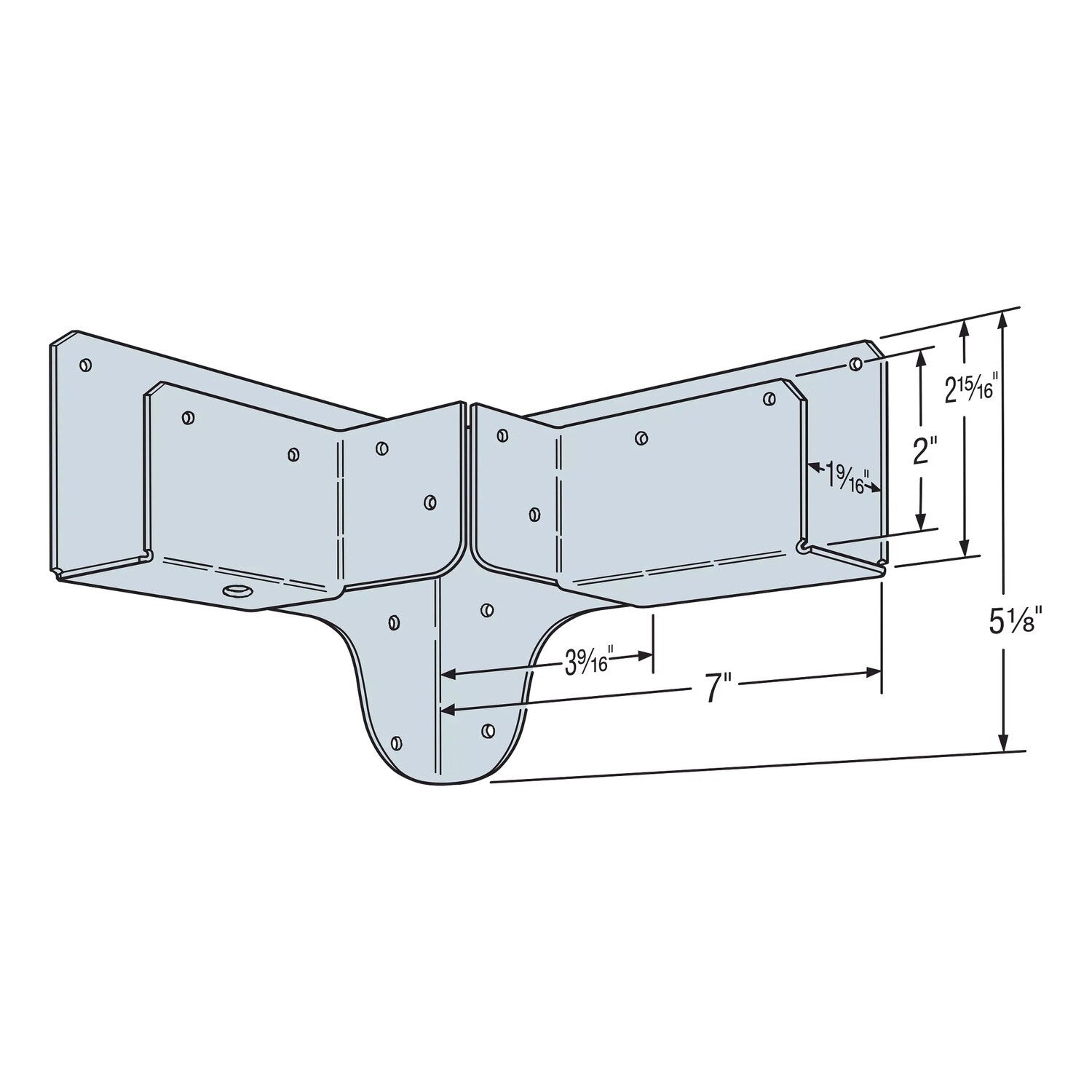

Simpson Strong-Tie RTC42Z Specifications
| Finish | ZMAX |
| Material | Galvanized Steel |
| Joist size | 2X |
| Post size | 4 X 4 |
| Thickness | 18 Gauge |
| Weight | 1.1 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
