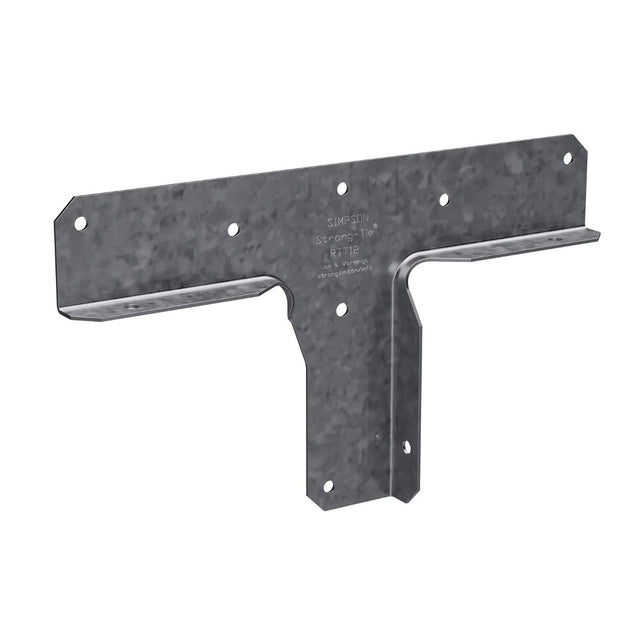

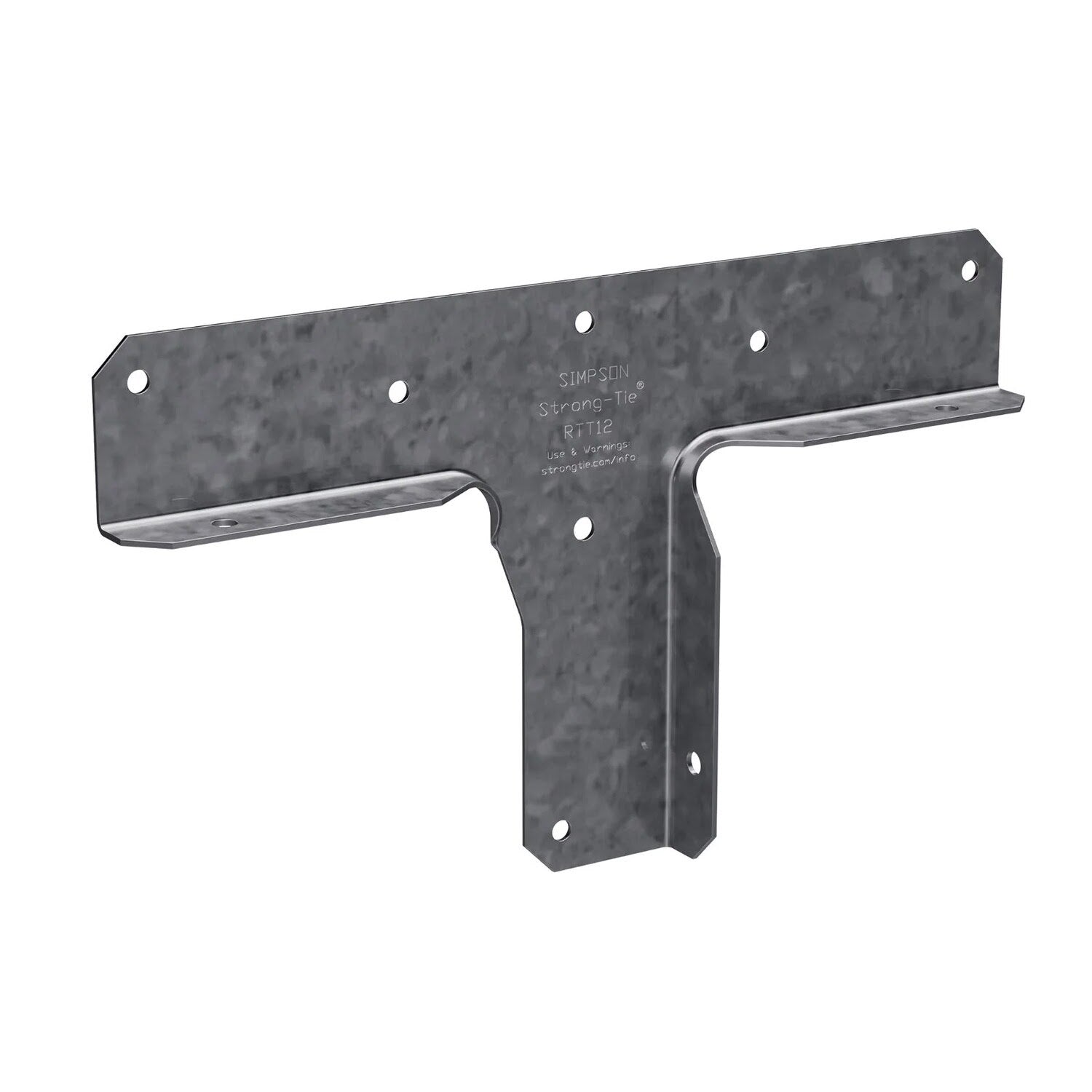

Simpson Strong-Tie RTT12 Description
The Simpson Strong-Tie RTT12 Rigid Tie Connector is designed for strengthening T-shaped outer corner connections where two 1x members join at a 90 Degree angle. It features a G90 Galvanized finish for added corrosion resistance.
Simpson Strong-Tie RTT12 Includes
- (1) Simpson RTT12 Rigid Tie Connector - Galvanized
Simpson Strong-Tie RTT12 Features
- Strengthens T-shaped outer corner connections
- Compatible with specified nails or Strong-Drive SD connector screws
- G90 Galvanized finish for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson Strong-Tie RTT12 Applications

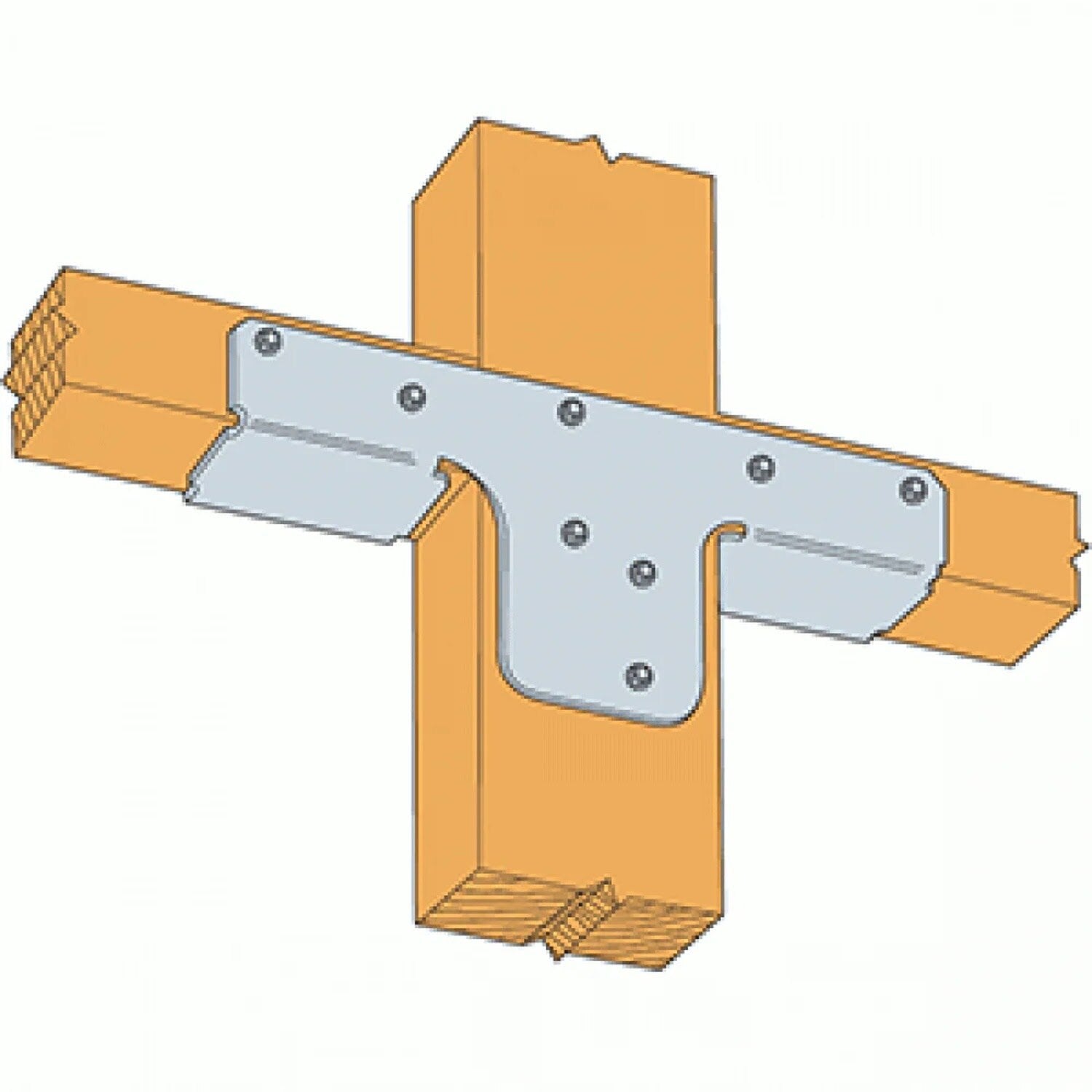

- Strengthening T-shaped outer corner connections
- Joining two 1x members at a 90 Degree angle
- Use in construction requiring rigid tie connectors
Simpson Strong-Tie RTT12 Installation Overview
- Use all specified fasteners
- Install vertical members first, then attach horizontal members for easier alignment
- Seat wood member in bracket with a C-clamp before securing to aid positioning and prevent skewing
- Always follow manufacturer's instructions when using power tools and building equipment
Simpson Strong-Tie RTT12 Specifications
| Finish | G90 Galvanized |
| For Treated Lumber | No |
| Joist size | 2X |
| Post size | 2X |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
825249
