Simpson Anchors | SKU:
RWH25100

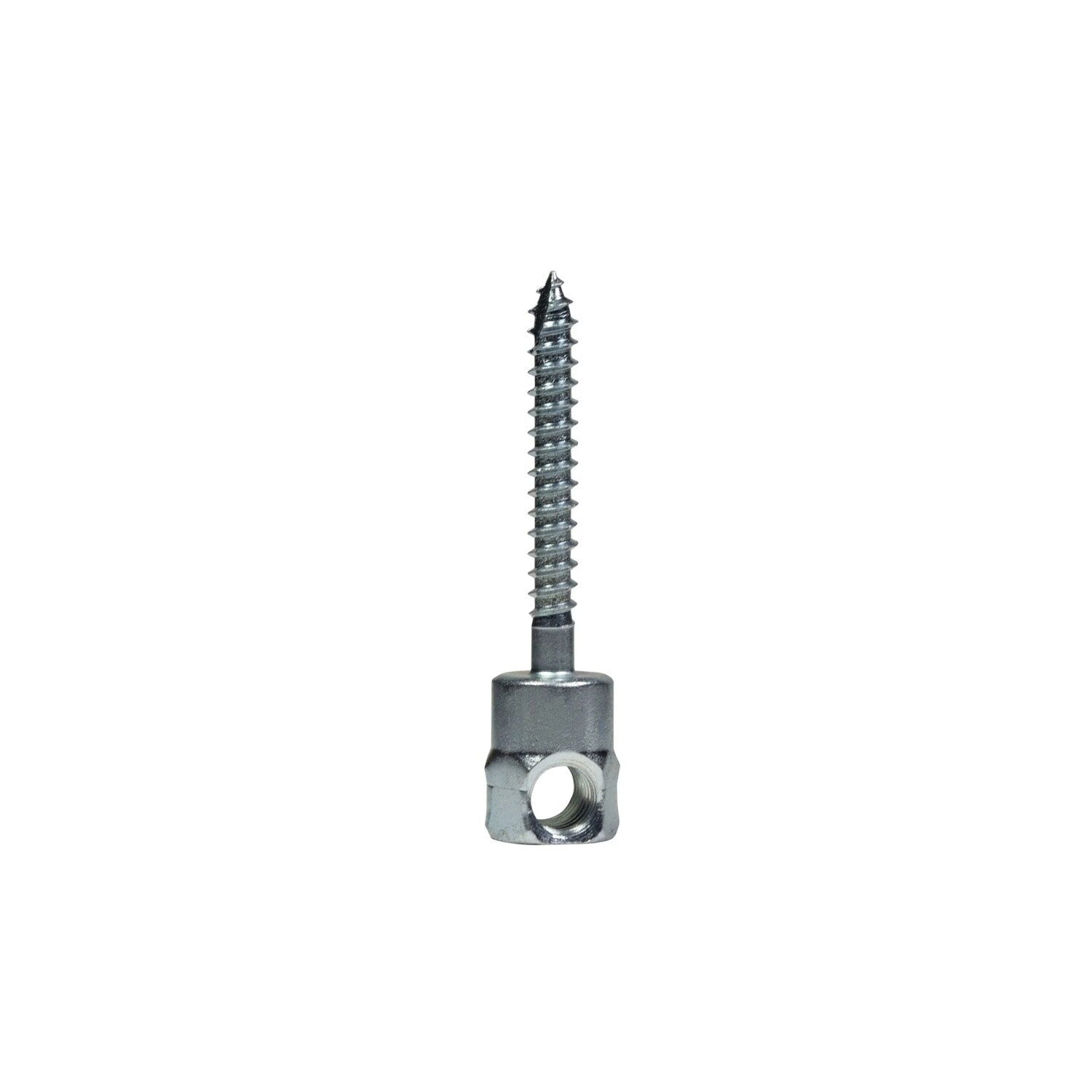

Simpson Strong-Tie RWH25100 (1/4" x 1") Wood Rod Hanger Horizontal Threaded Anchor for 1/4" Rod (25 Pack)
$22.32
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie RWH25100 Description
The Simpson Strong-Tie RWH25100 is a horizontal wood rod hanger designed for 1/4 in. rods. It features a zinc-plated finish and is ideal for secure and efficient rod-hanging applications.
Simpson Strong-Tie RWH25100 Includes
- (25) Horizontal Wood Rod Hanger for 1/4 in. Rod
Simpson Strong-Tie RWH25100 Features
- Threaded anchors for rod-hanging applications in wood
- Suitable for installation horizontally or vertically in overhead applications
- No predrilling required
- Type-17 point provides for fast starts
Simpson Strong-Tie RWH25100 Applications
- Pipe hanging
- Fire protection systems
- Electrical conduit installation
- Cable-tray applications
Simpson Strong-Tie RWH25100 Installation Overview
- Attach RND62 nut driver to a drill.
- Insert rod hanger into the RND62 nut driver.
- Using rotation-only mode, drive rod hanger until it contacts the surface. Do not over-tighten.
- Insert threaded rod ensuring minimum thread engagement equal to the nominal diameter of the threaded insert.
Simpson Strong-Tie RWH25100 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Rod Diameter | 1/4 in. |
| Length | 1 in. |
| Point Type | Type 17 |
| Quantity | 25 |
