Simpson Anchors | SKU:
RWV25200
Simpson Strong-Tie RWV25200 (1/4" x 2", 1/4") Vertical Wood Rod Hanger Zinc-Plated Carbon Steel (25 Pack)
$18.24
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie RWV25200 Description

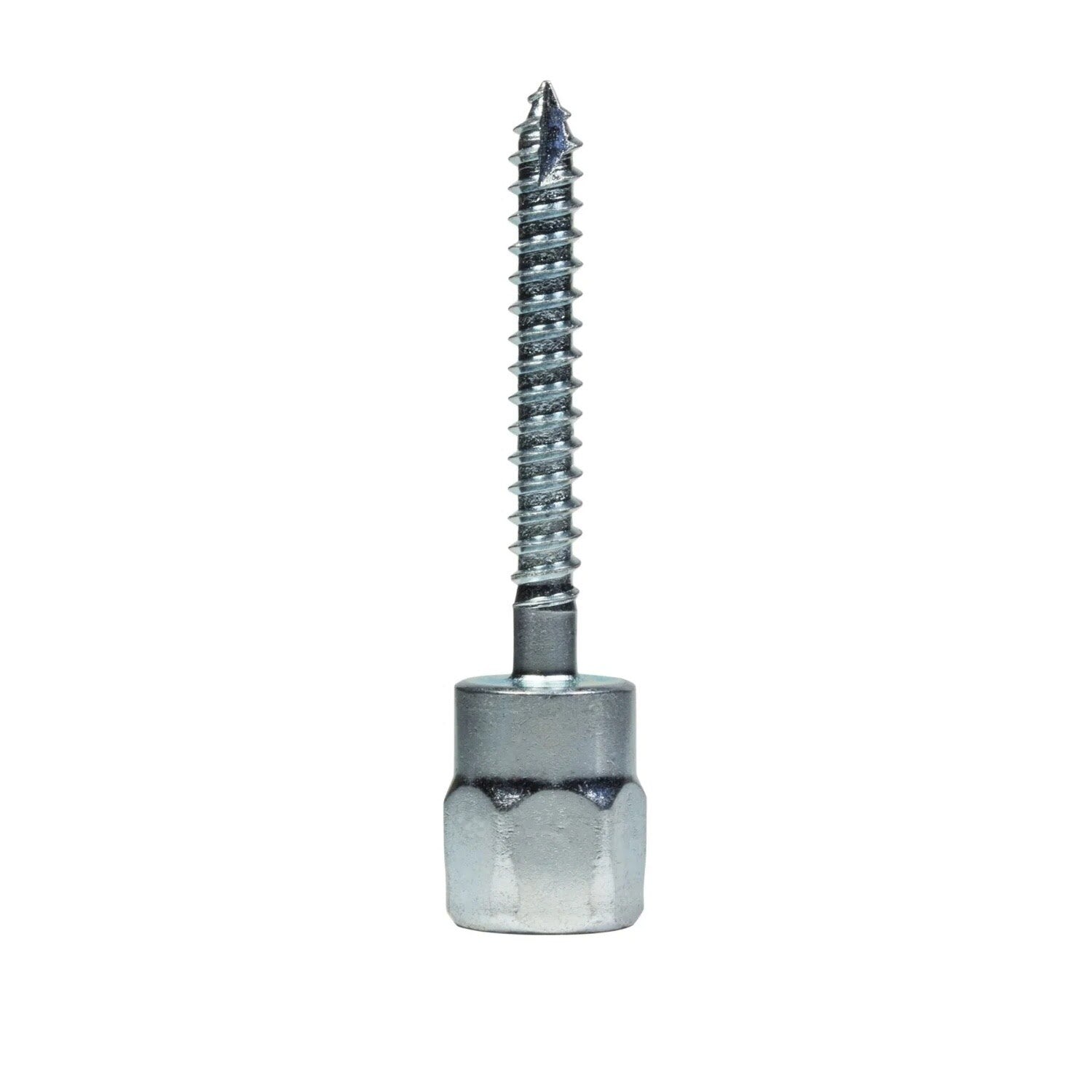

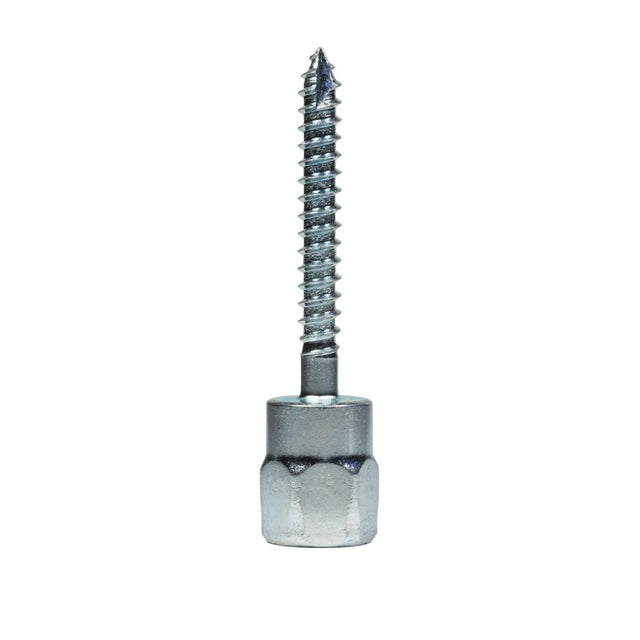

The Simpson RWV25200 Vertical Wood Rod Hanger is a self-drilling anchor designed for suspending 1/4" threaded rods from wood structures, ideal for electrical, mechanical, or HVAC applications.
Simpson Strong-Tie RWV25200 Includes
- (25) Vertical Wood Rod Hanger for 1/4 in. Rod
Simpson Strong-Tie RWV25200 Features
- Self-drilling Type-17 point for easy installation
- Durable carbon steel construction with zinc plating
- Designed for vertical applications with 1/4" threaded rods
- No pre-drilling required for installation
- Compatible with Simpson Strong-Tie RND62 nut driver
Simpson Strong-Tie RWV25200 Applications
- Electrical conduit installations
- Fire protection systems
- Mechanical piping setups
- Cable tray systems
Simpson Strong-Tie RWV25200 Installation Overview
- Attach the RND62 nut driver to a drill.
- Insert the rod hanger into the nut driver.
- Drive the rod hanger into the wood surface using rotation-only mode.
- Stop when the nut driver disengages, ensuring proper embedment.
- Insert the 1/4" threaded rod, ensuring minimum thread engagement.
Simpson Strong-Tie RWV25200 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Rod Diameter | 1/4" |
| Length | 2" |
| Point Type | Type 17 |
| Quantity | 25 |
| Application Type | Vertical |
