Simpson Anchors | SKU:
RWV37100

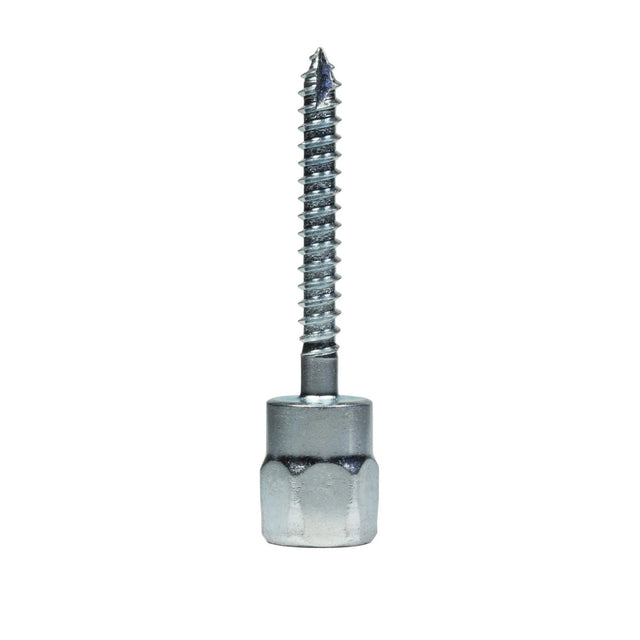

Simpson Strong-Tie RWV37100 (1/4" x 1", 3/8") Wood Rod Hanger Vertical Threaded Anchor for Rod (25 Pack)
$18.49
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie RWV37100 Description

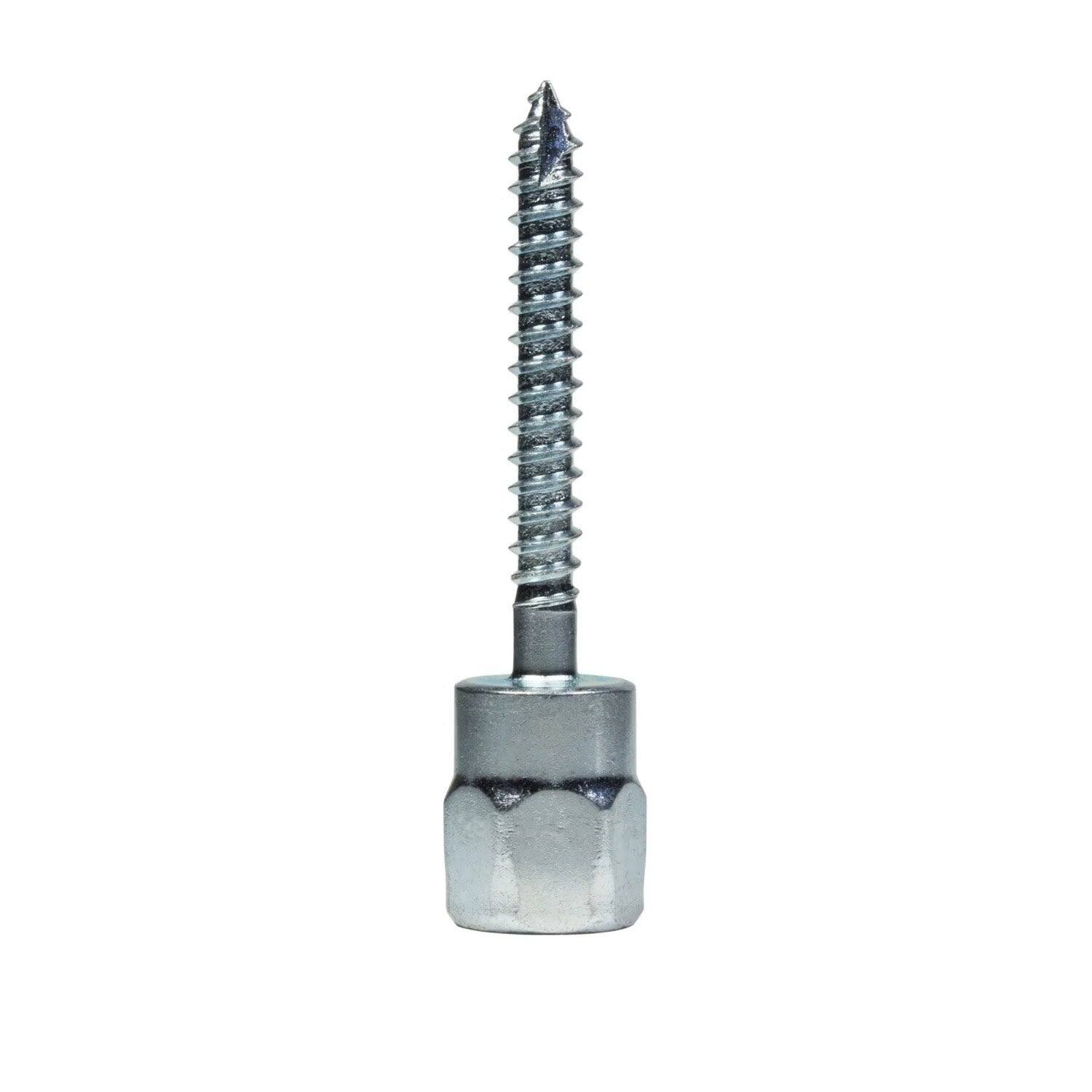

The Simpson Strong-Tie RWV37100 is a vertical wood rod hanger designed for suspending 3/8 in. threaded rods from overhead wood members. It features a self-drilling design with a Type-17 point for easy installation without pre-drilling.
Simpson Strong-Tie RWV37100 Includes
- (25) Vertical Wood Rod Hanger
Simpson Strong-Tie RWV37100 Features
- Self-drilling design for easy installation
- Durable carbon steel construction with zinc plating
- Compatible with Simpson Strong-Tie RND62 nut driver
- Supports various overhead installations
Simpson Strong-Tie RWV37100 Applications
- Pipe hanging
- Fire protection systems
- Electrical conduit
- Cable trays
Simpson Strong-Tie RWV37100 Installation Overview
- Attach the RND62 nut driver to a drill.
- Insert the rod hanger into the nut driver.
- Using rotation-only mode, drive the hanger until it contacts the wood surface.
- Insert the 3/8 in. threaded rod, ensuring minimum thread engagement equal to the rod's nominal diameter.
Simpson Strong-Tie RWV37100 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/4 in. |
| Length | 1 in. |
| Accepts Rod Size | 3/8 in. |
| Point Type | Type 17 |
| Quantity | 25 |
