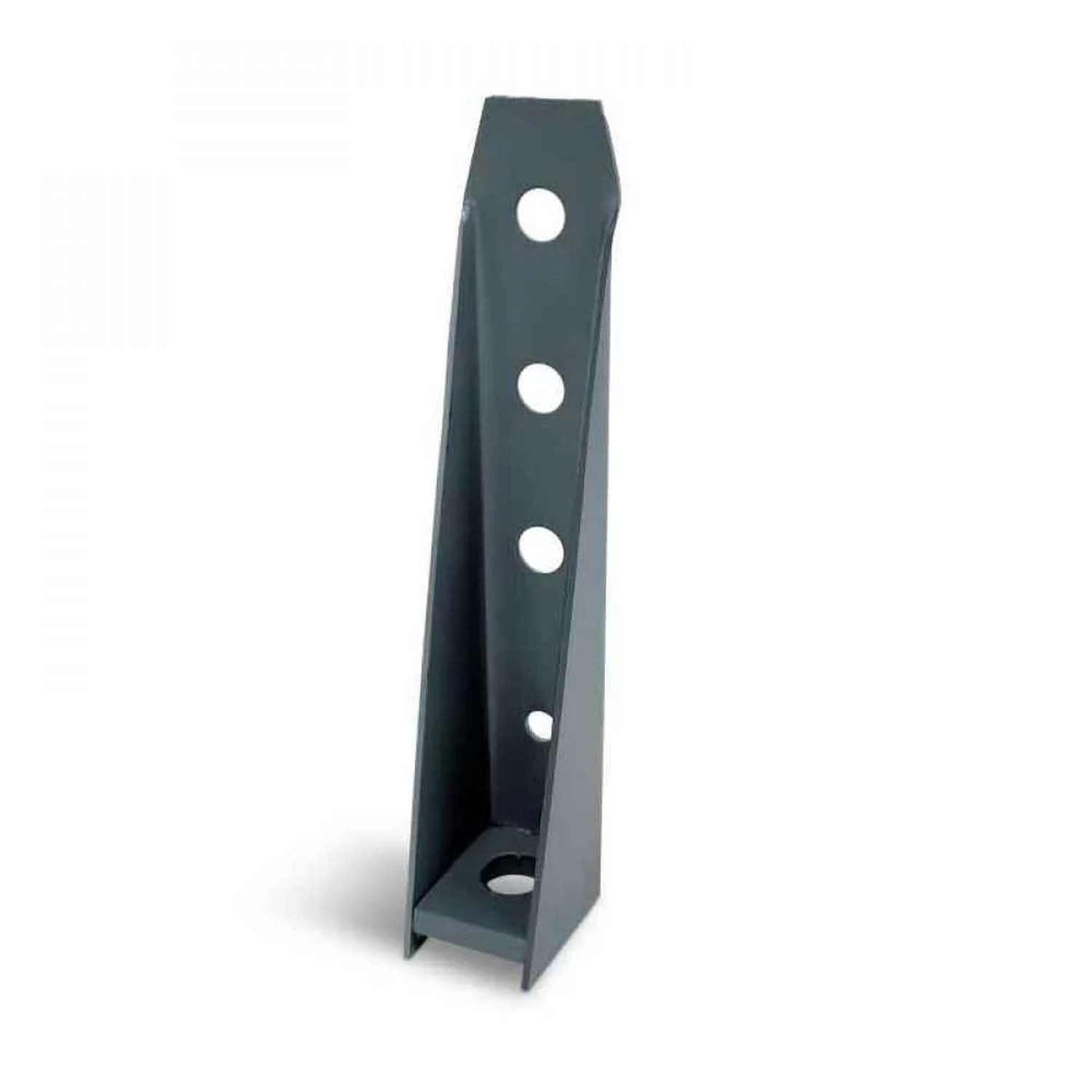

Simpson Strong-Tie S/HD10B Description
The Simpson S/HD10B Light Gauge Holdown is designed for steel applications, featuring a G90 galvanized finish for durability and compatibility with screws or bolts.
Simpson Strong-Tie S/HD10B Includes
- (1) Light Gauge Holdown For Steel - G90 Galvanized
Simpson Strong-Tie S/HD10B Features
- Designed for installation with screws or bolts into studs or columns
- G90 galvanized finish for corrosion resistance
- Compatible with #14 screws for reduced installation time
- Ideal for bolt-on applications with pre-punched bolt holes
Simpson Strong-Tie S/HD10B Applications
- Steel framing applications requiring holdown support
- Cold-formed steel construction projects
- Structural reinforcement in steel framing
Simpson Strong-Tie S/HD10B Installation Overview
- Use all specified fasteners
- Anchor bolt washer is not required
- Standard washers are required on stud bolt nuts for model S/HDB
- Thin wall socket (OD=2" maximum) is required for S/HD15 to tighten the 1" anchor bolt
- Stud bolts – use A307
- Boundary members (back-to-back studs) design shall be by Designer
- S/HDS and S/HDB holdowns can be welded per Designer’s recommendation and specification
Simpson Strong-Tie S/HD10B Specifications
| Height | 13-1/2" |
| Finish | G90 Galvanized |
| Weight | 3.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
825169
