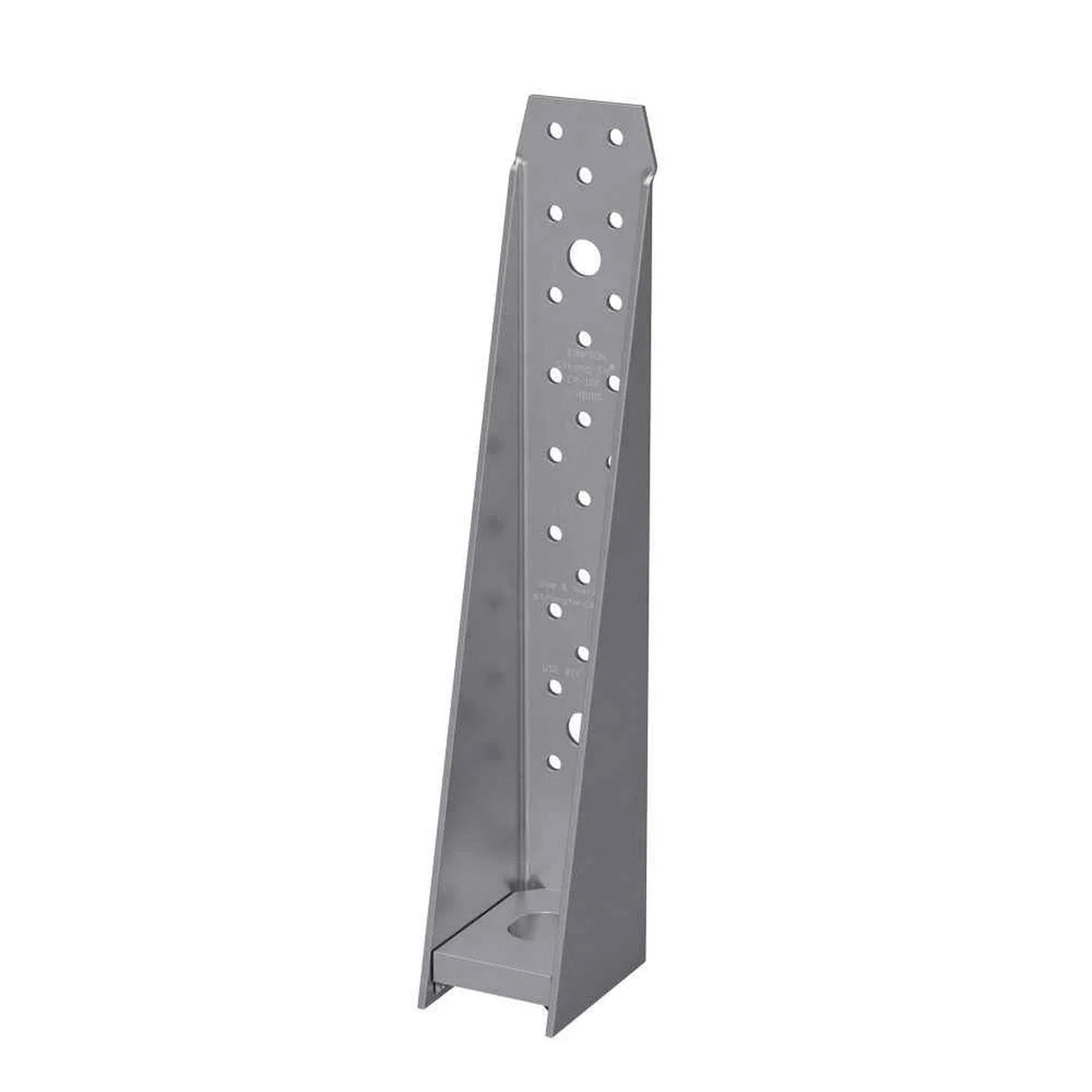

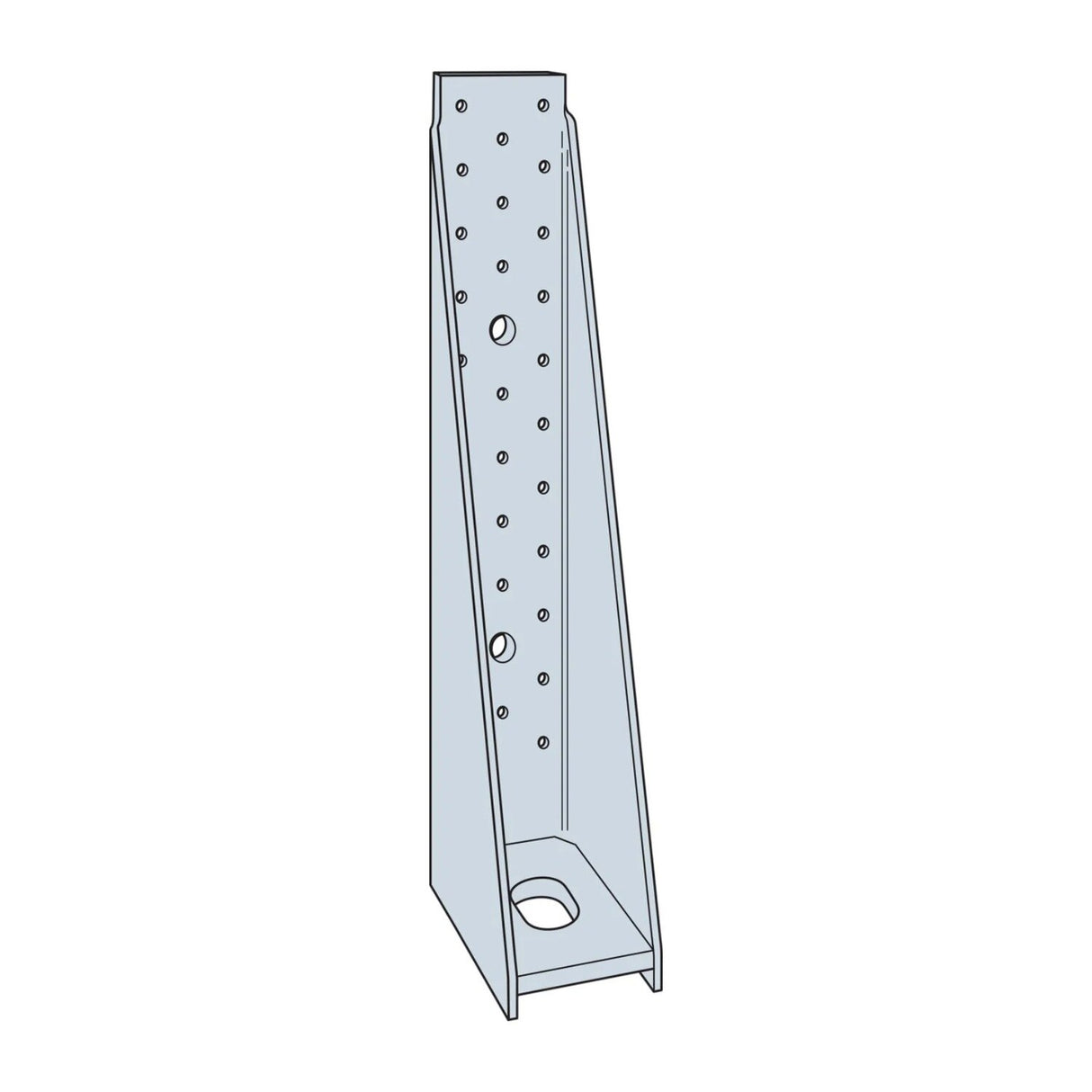

Simpson Strong-Tie S/HD10S Description
The Simpson S/HD10S High-Load Steel Holdown is designed for shearwall and lateral applications, offering robust performance and reliability.
Simpson Strong-Tie S/HD10S Includes
- (1) S/HD10S High-Load Steel Holdown
Simpson Strong-Tie S/HD10S Features
- Can be installed directly on the base track or raised above it
- Features a unique seat that minimizes deflection under load
- Designed for installation with screws
Simpson Strong-Tie S/HD10S Applications
- High-Wind Construction

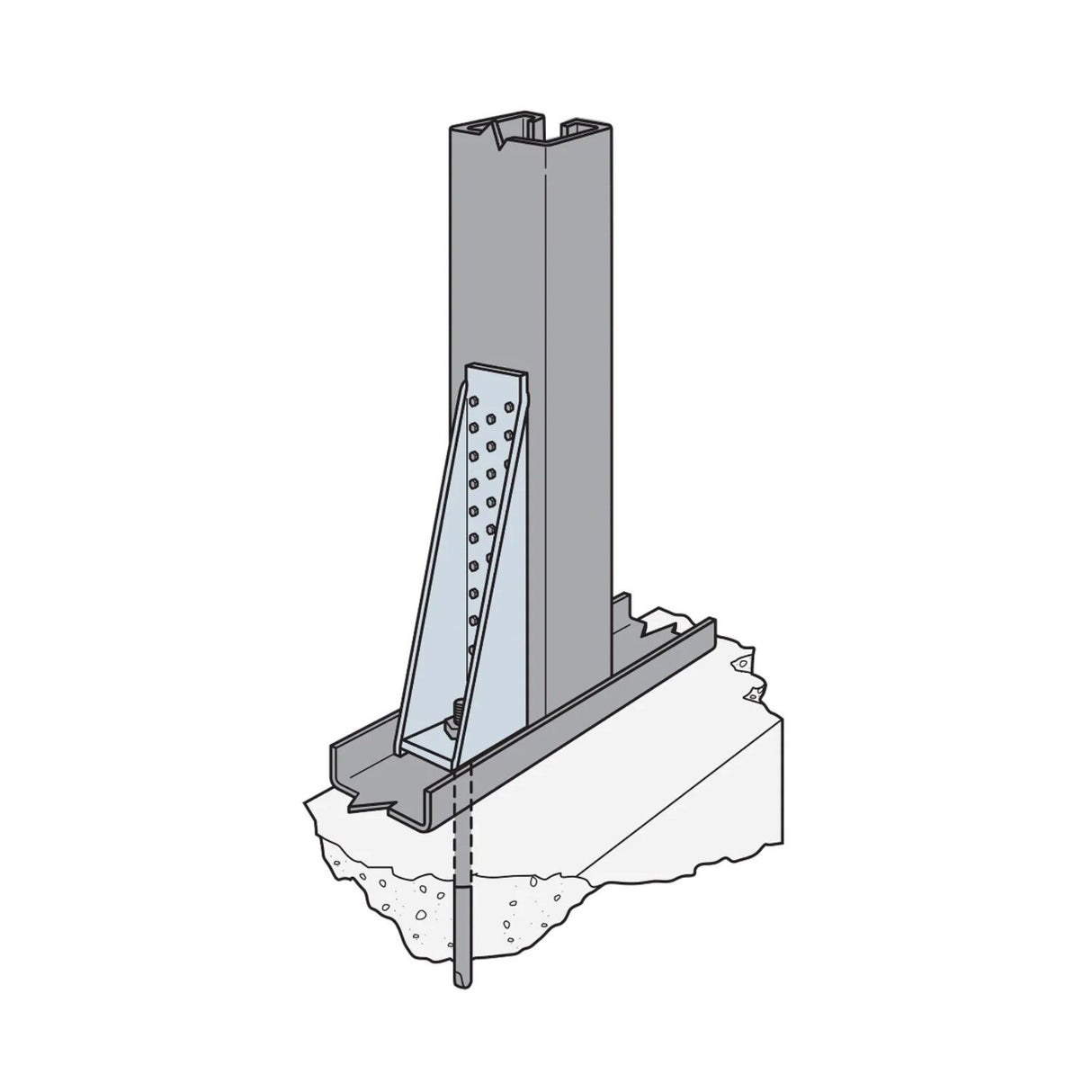

Simpson Strong-Tie S/HD10S Installation Overview
- Use all specified fasteners
- Anchor bolt washer is not required
- Thin wall socket required for tightening anchor bolt
- Use A307 stud bolts
- Boundary members design by designer
- Holdowns can be welded per designer's recommendation
- See SB and SSTB anchor bolts for anchorage options
Simpson Strong-Tie S/HD10S Specifications
| Material | Steel |
| Finish | Simpson Strong-Tie Gray Paint |
| Height | 13-1/2" |
| Weight | 3.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
