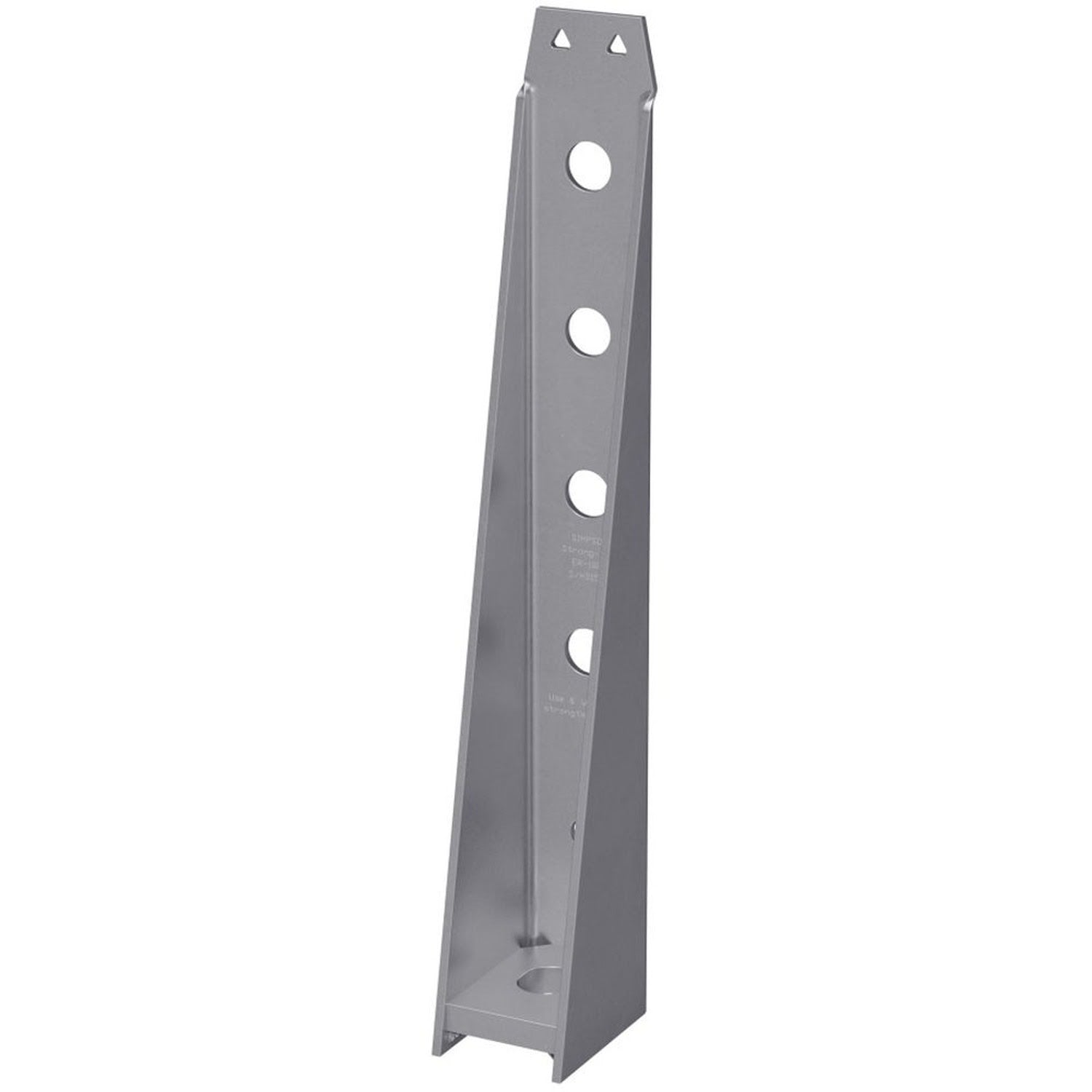

Simpson Strong-Tie S/HD15B Description
The S/HD15B High-Load Steel Holdown is designed for shearwall and lateral applications, offering robust performance and minimal deflection under load.
Simpson Strong-Tie S/HD15B Includes
- (1) S/HD15B High-Load Steel Holdown
Simpson Strong-Tie S/HD15B Features
- Can be installed directly on the bottom track or raised above it
- Unique seat design minimizes deflection under load
- Designed for installation with bolts
Simpson Strong-Tie S/HD15B Applications
- High-Wind Construction
- Shearwall and lateral applications
Simpson Strong-Tie S/HD15B Installation Overview
- Use all specified fasteners
- Anchor bolt washer is not required
- Standard washers are required on stud bolt nuts for S/HDB models
- Thin wall socket required for tightening the 1" anchor bolt
- Boundary members design shall be by designer
- Holdowns can be welded per designer’s recommendation

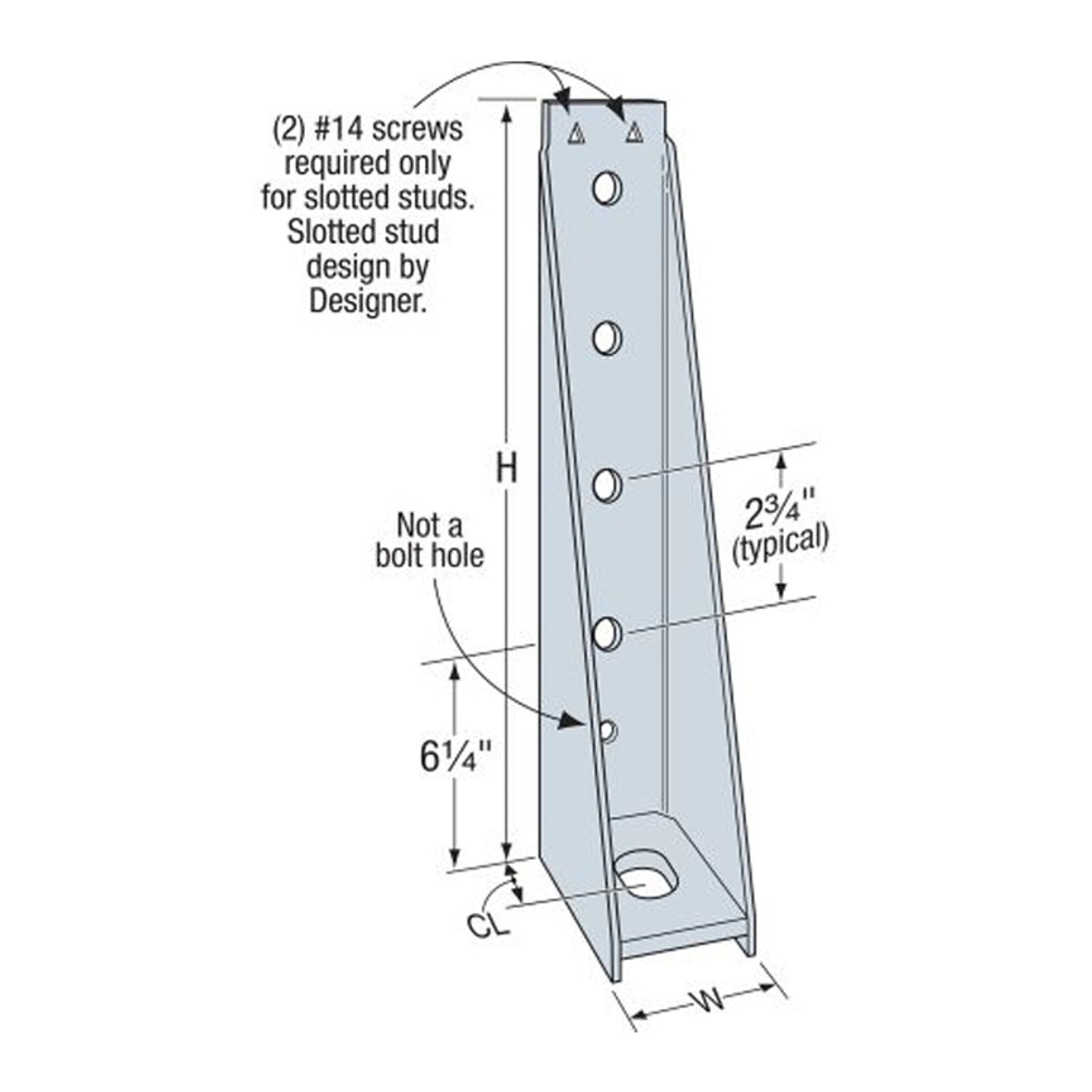

Simpson Strong-Tie S/HD15B Specifications
| Material | Steel |
| Finish | Simpson Strong-Tie Gray Paint |
| Height | 17" |
| Thickness | 171 mil |
| Gauge | 7 |
| Width | 2 5/16" |
| Center Line | 1 9/16" |
| Standoff | 7/8" |
| Weight | 5.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
