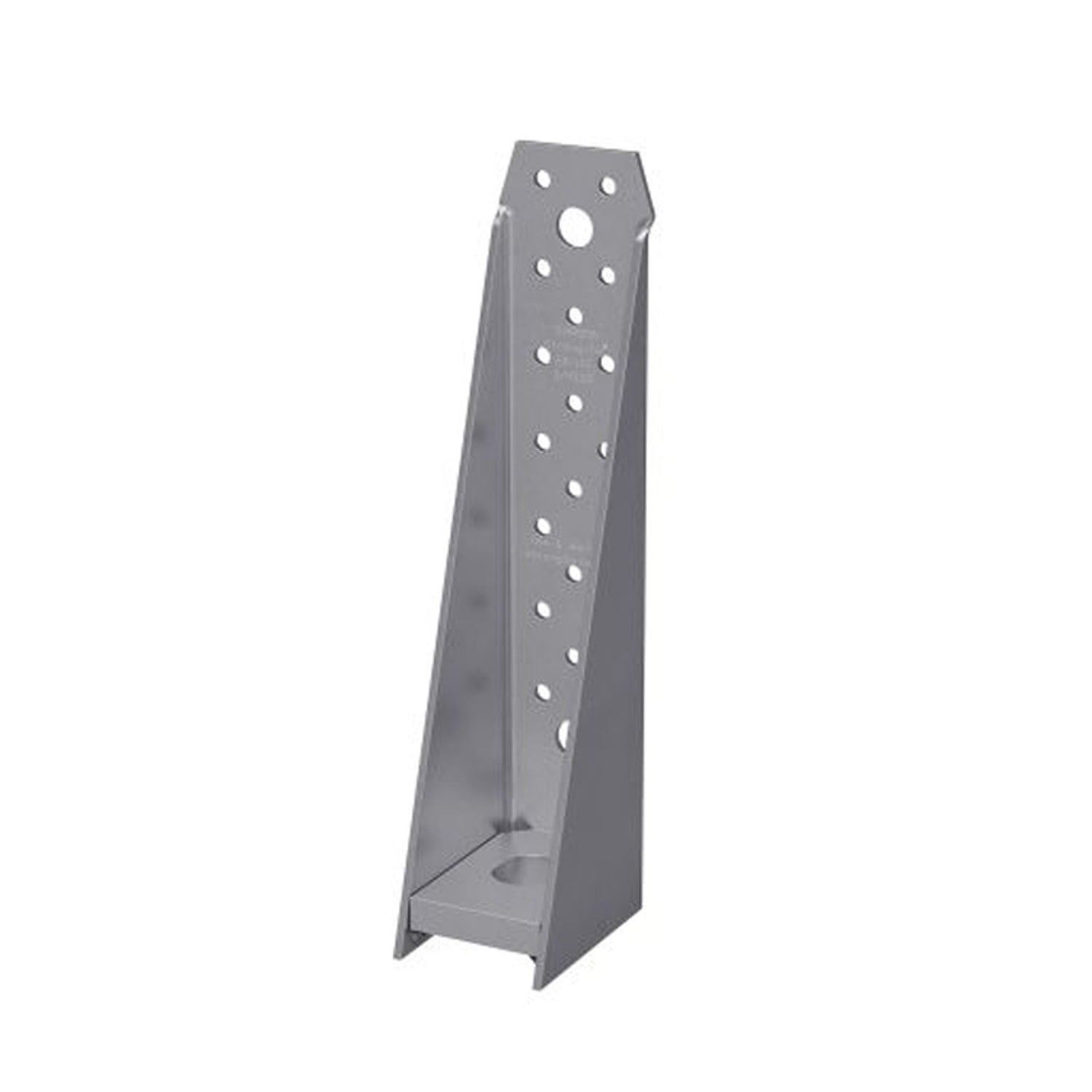

Simpson Strong-Tie S/HD8S Description
The Simpson S/HD8S Light Gauge Steel Holdown is designed for high-load shearwalls and lateral applications, offering reliable performance and ease of installation.
Simpson Strong-Tie S/HD8S Includes
- (1) S/HD8S Light Gauge Steel Holdown
Simpson Strong-Tie S/HD8S Features
- Can be installed directly on the base track or raised above it
- Suitable for back-to-back applications where eccentricity is a concern
- Features a unique seat that greatly minimizes deflection under load
- Designed for installation with screws
Simpson Strong-Tie S/HD8S Applications
- High-Wind Construction
- Shearwalls and lateral applications
Simpson Strong-Tie S/HD8S Installation Overview
- Use all specified fasteners
- Anchor bolt washer is not required
- Thin wall socket required for tightening anchor bolts
- Boundary members design shall be by designer
- Holdowns can be welded per designer’s recommendation
- See adhesive products for anchor bolt retrofit options

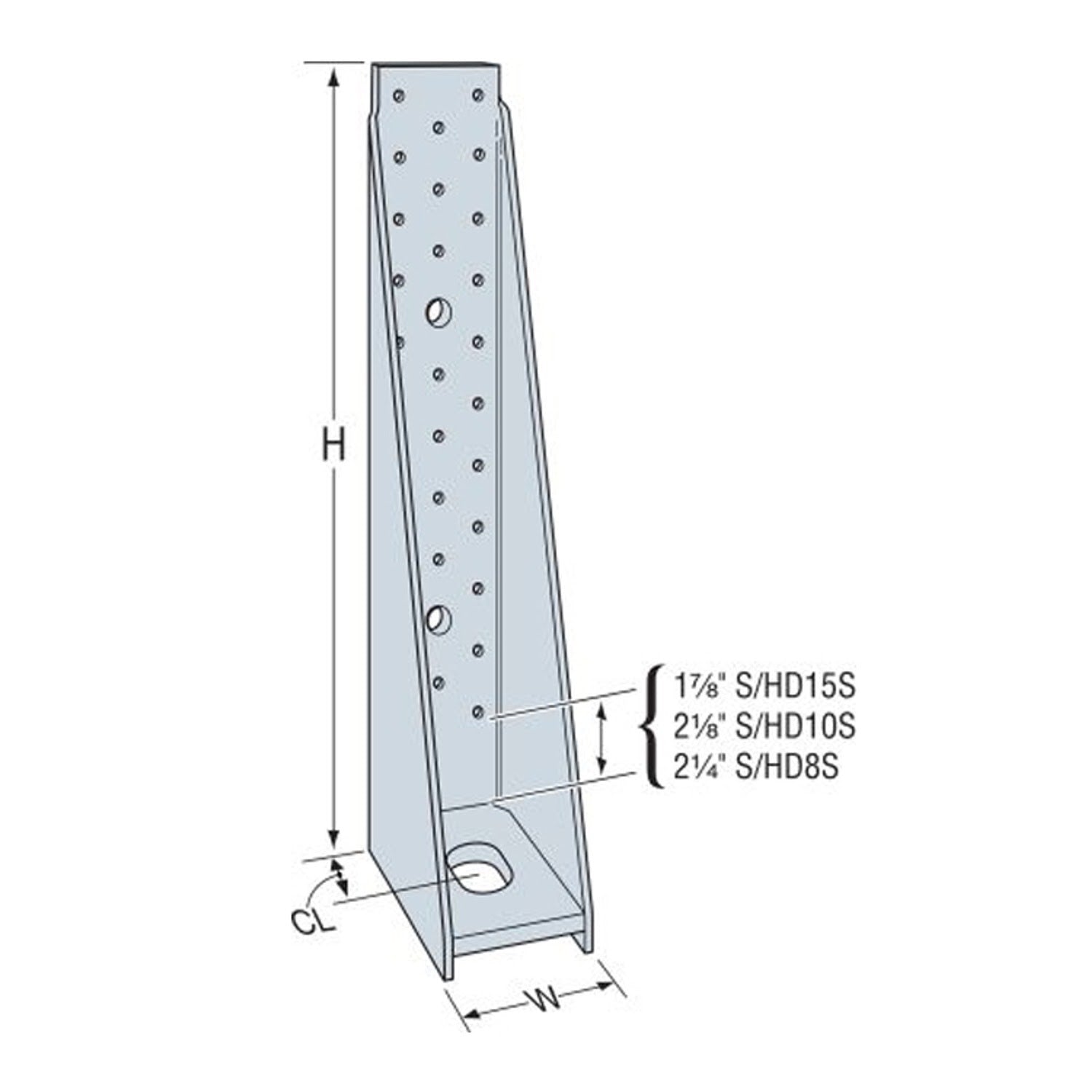

Simpson Strong-Tie S/HD8S Specifications
| Height | 11" |
| Finish | G90 Galvanized |
| Weight | 2.8 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
819052
