Simpson Anchors | SKU:
S/HDU11

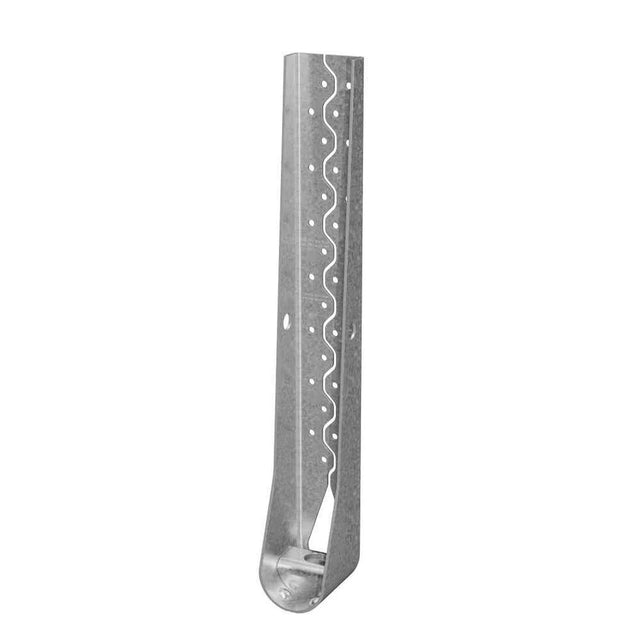

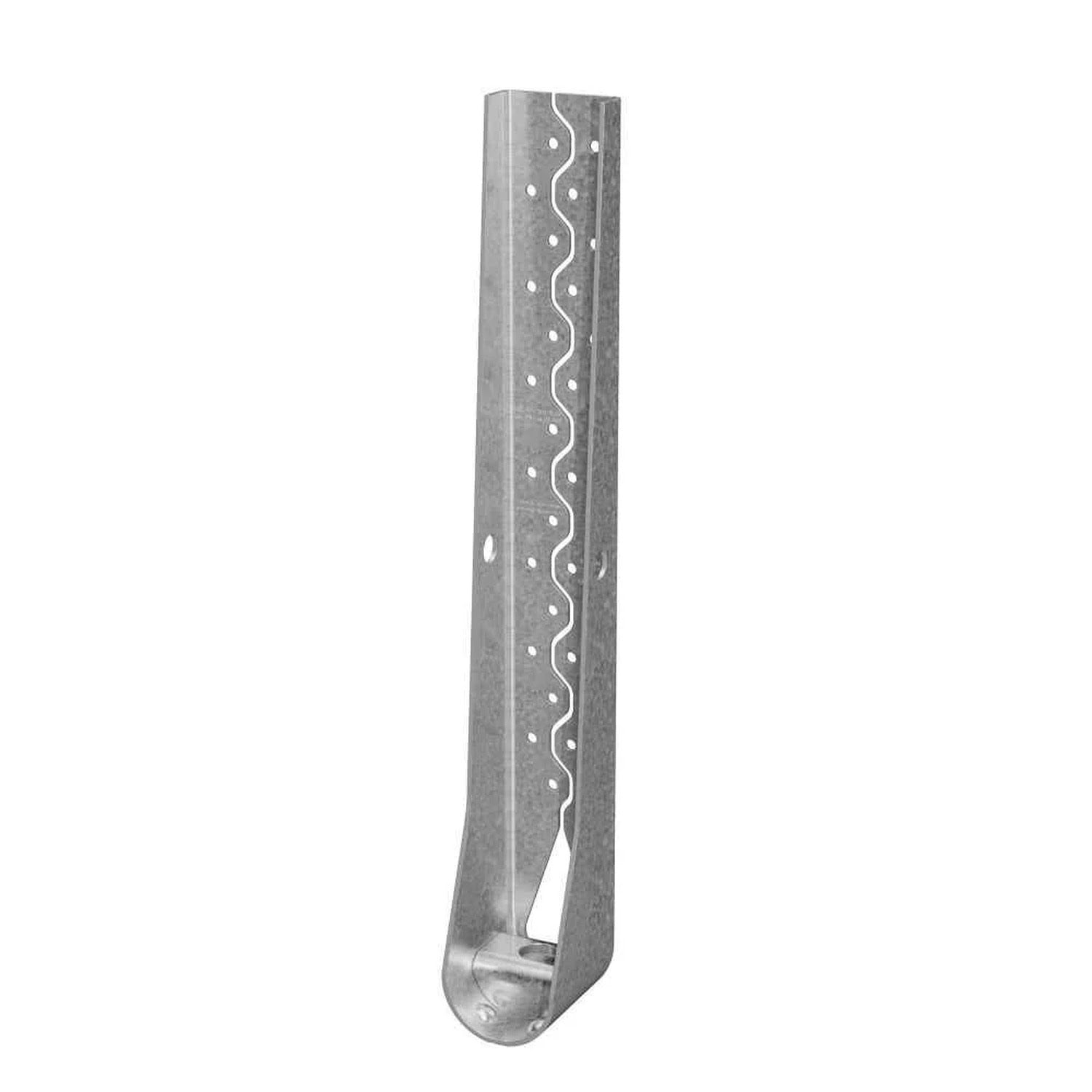

Simpson Strong-Tie S/HDU11 Pre-Deflected Cold-Formed Steel Holdown
$56.07
Unit price
/
Unavailable
Description
Description
Simpson S/HDU11 Description
The S/HDU11 Pre-Deflected Cold-Formed Steel Holdown is designed for high-wind construction, offering low deflection under load and ease of installation.
Simpson S/HDU11 Includes
- (1) Pre-Deflected Cold-Formed Steel Holdown
Simpson S/HDU11 Features
- Pre-deflected geometry for reduced material stretch
- Low deflection under load
- Galvanized G90 finish for corrosion resistance
- Compatible with standard #14 self-drilling screws
- Designed for high-wind construction
Simpson S/HDU11 Applications
- High-wind construction
- Cold-formed steel framing
- Structural reinforcement
Simpson S/HDU11 Installation Overview
- Use all specified fasteners
- Fasten to studs using standard #14 self-drilling screws
- Anchor bolt washer is not required
- Refer to SB, SSTB, and PAB Anchor Bolts for cast-in-place anchorage options
- Use SET-3G and AT-XP adhesive products for anchor bolt retrofit options
Simpson S/HDU11 Specifications
| Material | 118 mil (10 ga.) |
| Finish | Galvanized (G90) |
| Height | 16-5/8" |
| Width | 2-3/8" |
| Center Line | 1-3/8" |
| Standoff | 1-1/2" |
| Weight | 5.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
