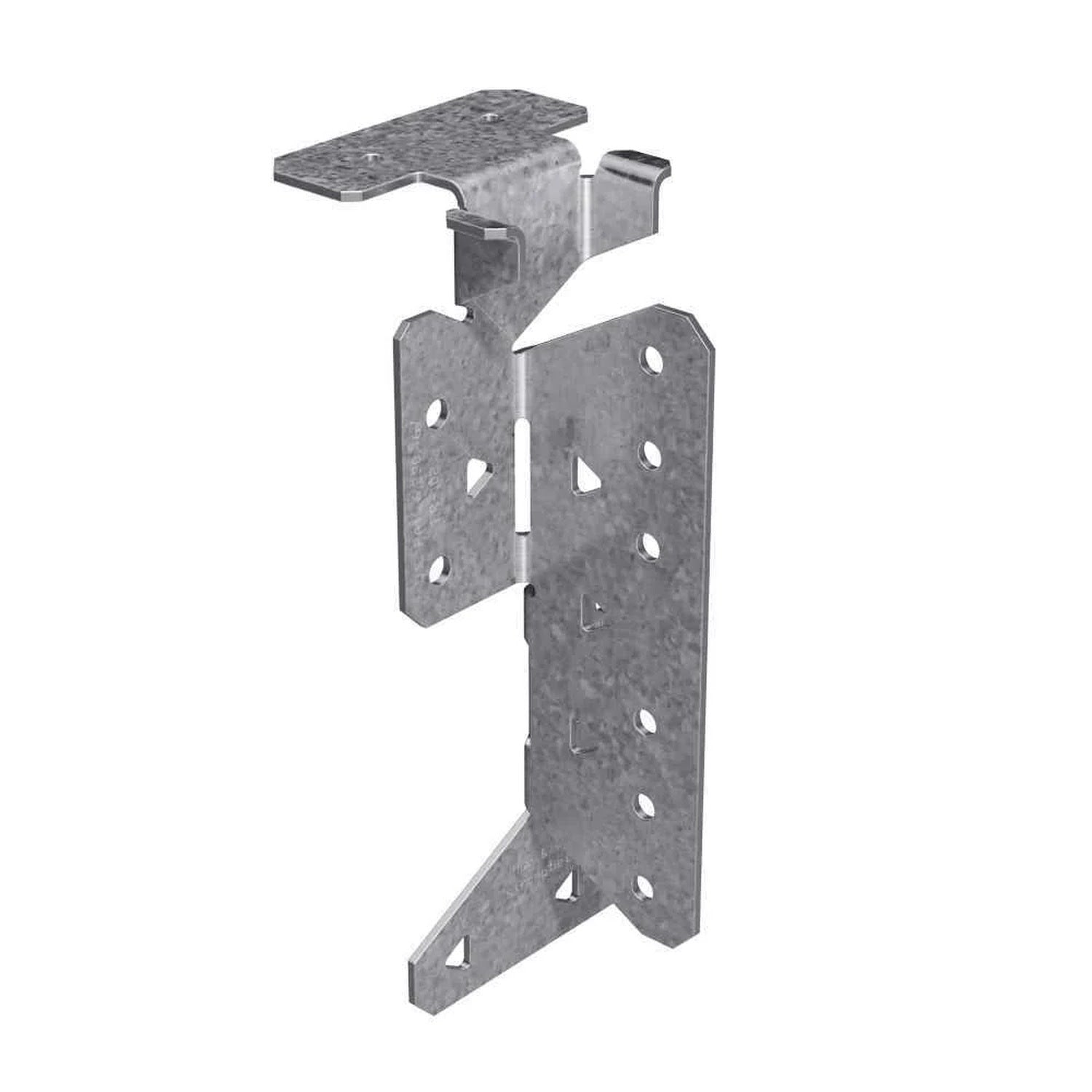

Simpson S/HJCT-KT Description
The S/HJCT-KT is a heavy-duty steel joist hanger kit designed for cold-formed steel construction. It includes five hangers and screws, offering strength, versatility, and corrosion resistance.
Simpson S/HJCT-KT Includes
- (5) S/HJCT connectors
- (95) #14 screws
Simpson S/HJCT-KT Features
- Min./max. fill hole options for load capacity options
- Field skewable up to 45 Degree left or right
- Horizontal tabs facilitate top-flange alignment and joist support during screw installation
- One size fits joists 8" through 14" deep
Simpson S/HJCT-KT Applications
- Cold-Formed Steel Construction: Ideal for securing joists in steel-framed structures
- Wood Headers: Suitable for use with wood headers in various framing applications
- Steel I-Beams: Compatible with welds or powder-actuated fasteners for steel I-beam connections
- Masonry Walls: Can be used for masonry wall applications
Simpson S/HJCT-KT Installation Overview
- Attach hanger with specified fasteners. Use round holes for minimum load; use round and triangle holes for maximum load.
- May be used for weld-on applications. The minimum required weld to the top flange is 1/8" x 2 1/2" fillet weld to each side of top flange.
- May be installed using PDPAT-62KP (0.157" x 5/8") powder-actuated fasteners. Steel headers with thicknesses between 1/4" and 3/4" having a minimum Fy= 36 ksi.
Simpson S/HJCT-KT Specifications
| Material | 97 mil (12 ga.) |
| Finish | Galvanized (G90) |
| Height | 8" |
| Weight | 5.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
826253
